Audio Technica ATW701H92TH Headset Wireless System

Audio-Technica’s 700 Series Freeway wireless delivers professional features and sound quality unheard of in its class. These easy-to-use wireless systems feature eight selectable frequency-coordinated channels, diversity operation for increased range/reliability, automatic frequency scanning, Tone Lock squelch and more. 700 Series Freeway systems come equipped with your choice of handheld, headworn, or lavalier microphones; or choose a system designed for guitar hookup. For multiple-mic applications, as many as eight systems may be used together.

Features

8 selectable frequency-coordinated UHF channels

Use up to 8 simultaneous systems—all channels compatible

Automatic frequency scanning

Diversity operation for increased range/reliability

LED Channel display plus Antenna, AF Peak indicators

Balanced XLR and unbalanced 1/4 in. output connectors

Tone Lock squelch system eliminates interference when transmitter is off

UniPak transmitter features: separate guitar/mic trim control, switchable high/low RF power, internal channel selector, multi-color battery/power indicator, AA operation

Handheld transmitter features: variable trim control, internal channel selector, multi-color battery/power indicator, AA operation

Freeway body-pack systems are compatible with all Audio-Technica Wireless Essentials microphones and cables

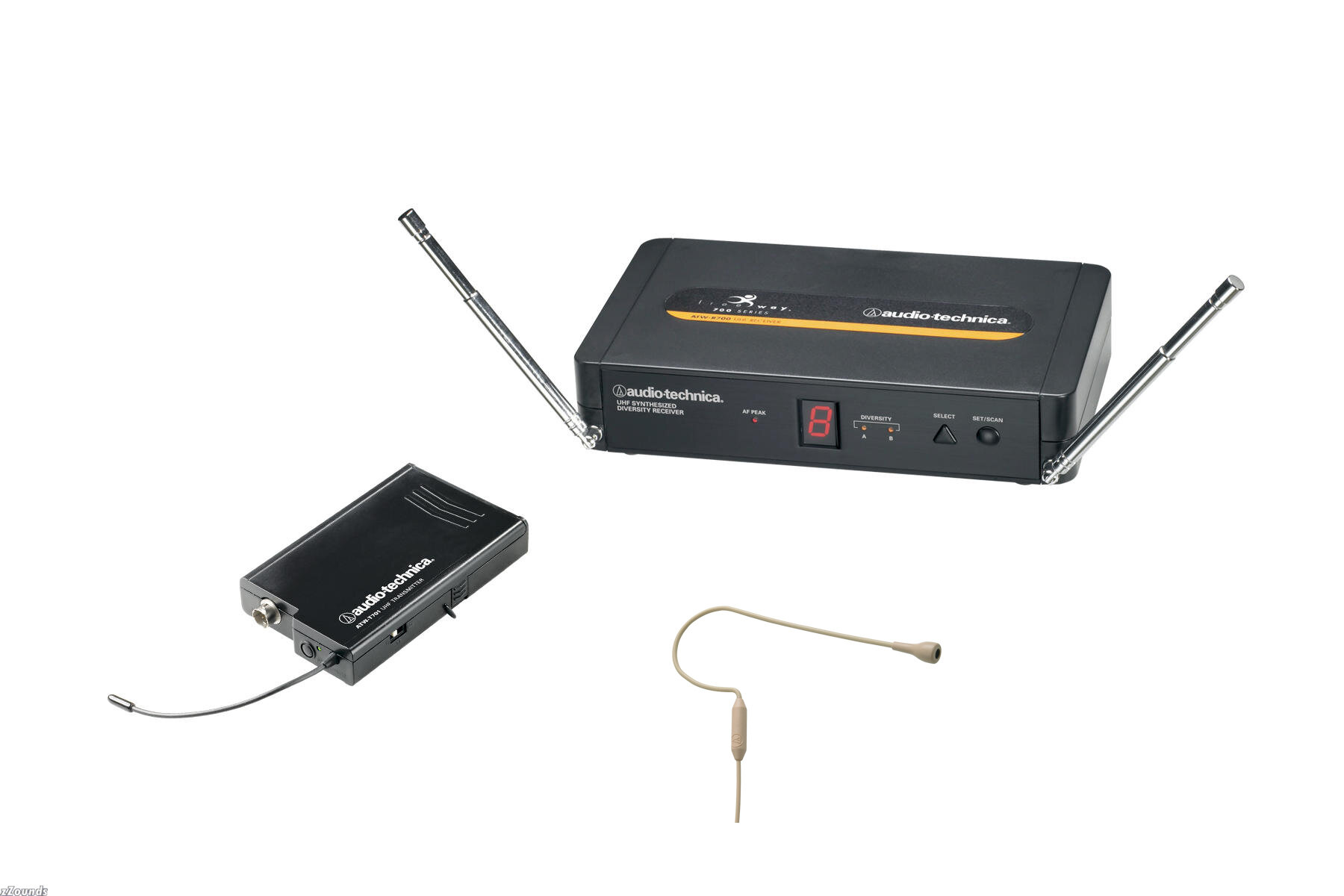

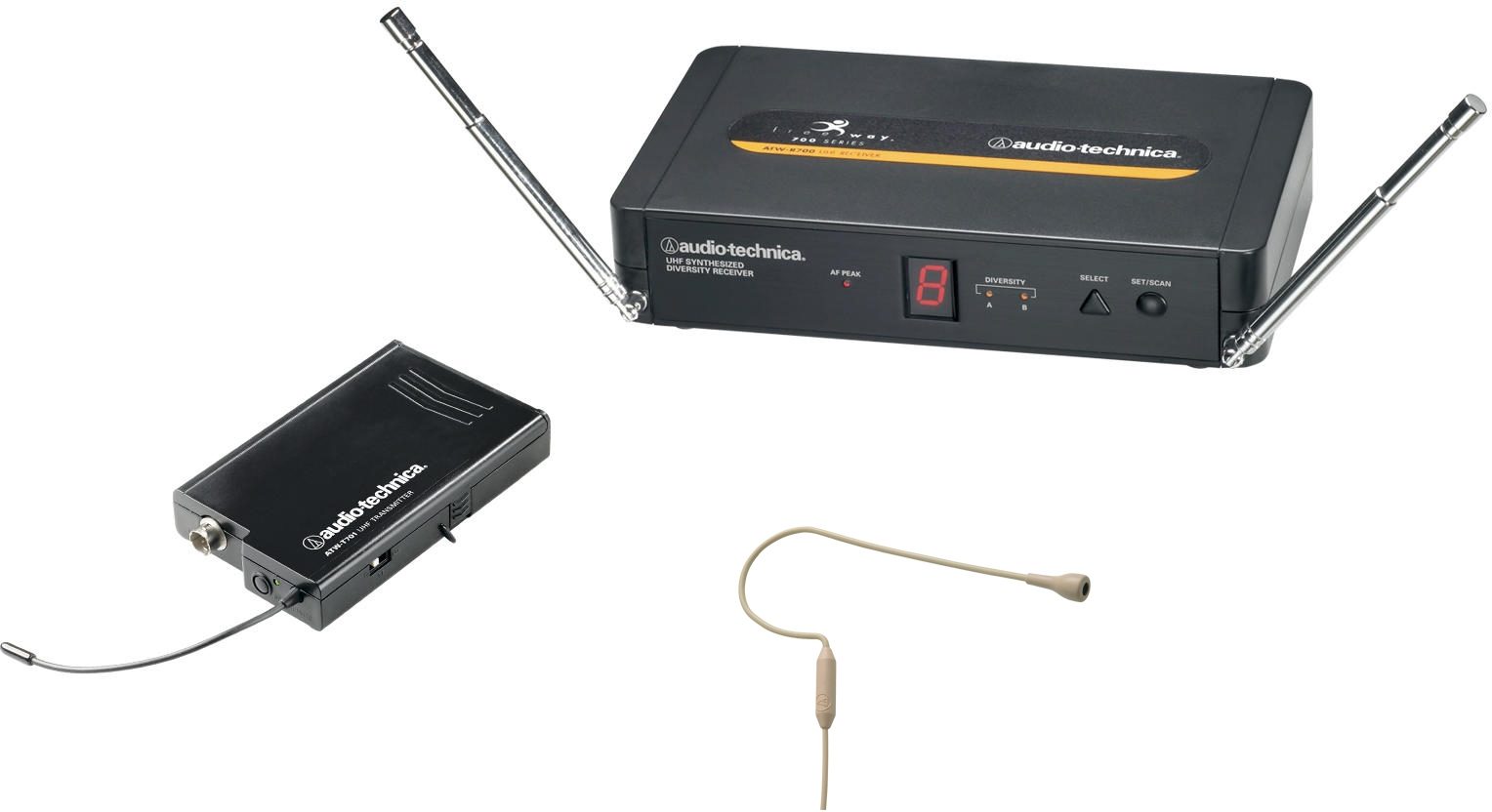

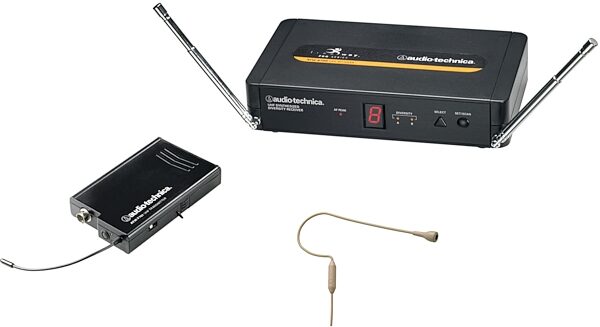

ATW701H92TH Headset Wireless System
Includes ATWR700 receiver, ATWT701 transmitter and PRO92CWTH headworn microphone (beige).

PRO92CW Headset
Audio-Technica's PRO 92cW wireless omnidirectional condenser headworn microphone offers a natural, smooth frequency response optimized for vocal articulation. The mic features a small condenser capsule; a lightweight, contoured earpiece; and a flexible boom that is easily repositioned for a comfortable fit. Terminated to fit Audio-Technica wireless systems.

Technical Info

Overall System Specifications
Operating Frequencies: UHF band, 542.125 MHz to 561.250 MHz

Number of Channels: 8

Frequency Stability: +/-0.005%, Phase Lock Loop frequency control

Modulation Mode: FM

Maximum Deviation: +/-25 kHz

Operating Range: 200 ft. typical

Operating Temperature Range: 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C)

Frequency Response: 100 Hz to 12 kHz

Receiver Specifications
Receiving System: Antenna-switching diversity

Image Rejection: 55 dB minimum

Signal-to-noise Ratio: >80 dB at 10 kHz deviation (IEC-weighted), maximum deviation 25 kHz

Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)

Sensitivity: 25 dB

Frequency-agile UHF diversity system. Includes transmitter and flesh-tone PRO92CW-TH headworn microphone for inconspicuous stage use.
