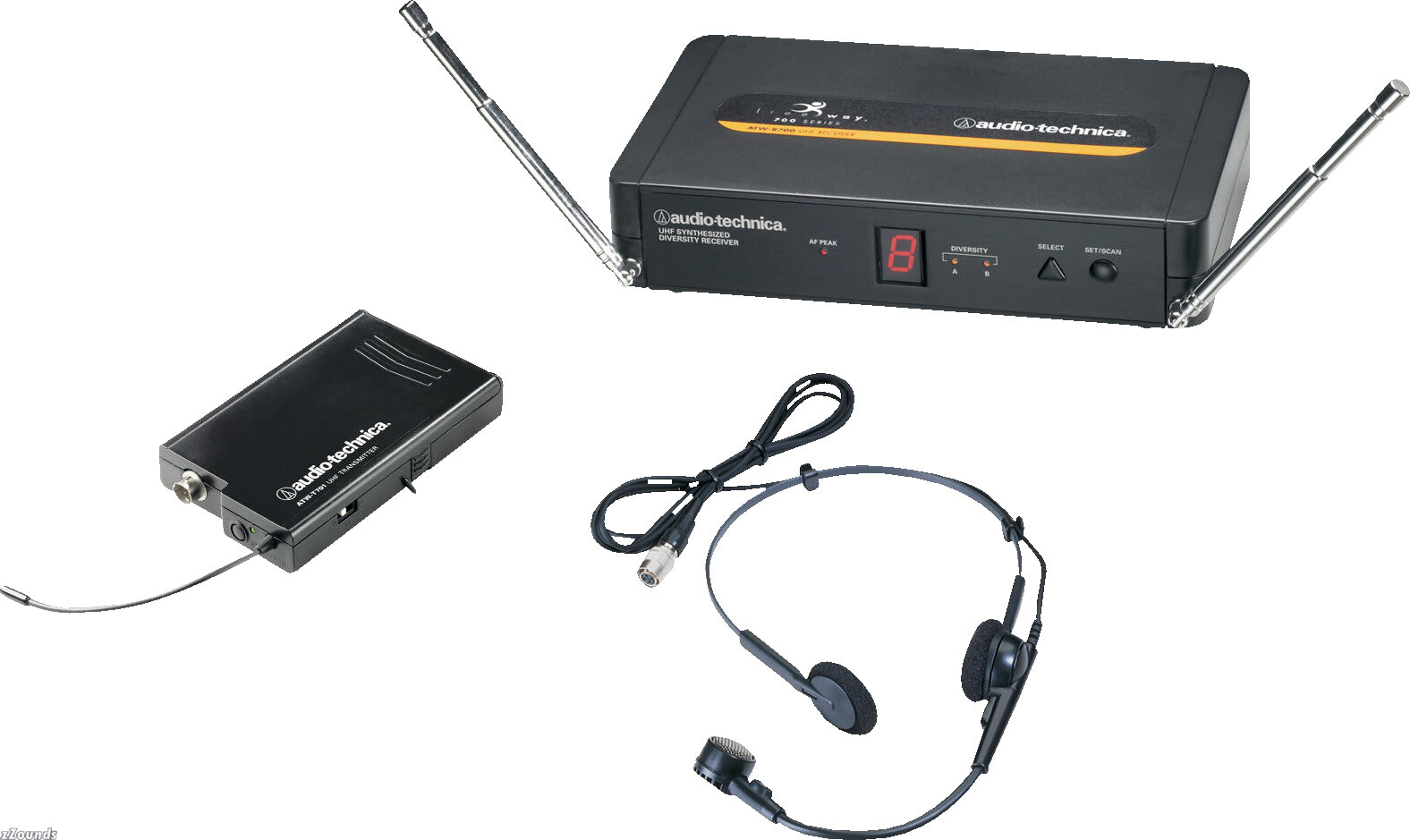

Audio Technica ATW701H UHF Headworn Wireless System

Representing the latest generation of A-T's popular Freeway UHF wireless systems, 700 Series systems provide automatic frequency scanning, which selects an open channel at the touch of a button - an unheard of feature in this price range - for interference-free performance and exceptional audio quality in a diverse range of applications including live performance, houses of worship, public address and aerobic instruction.

Available in handheld, headworn, lavalier, guitar and body-pack configurations, the new 700 Series Freeway systems feature automatic frequency scanning, eight selectable frequency-coordinated UHF channels, diversity operation for interference-resistant reception, and a Tone Lock squelch system that eliminates noise when the transmitter is off. All channels are compatible, so up to eight systems may be used simultaneously. Visual feedback is provided by an LED channel display as well as by antenna and AF Peak indicator lights. Balanced XLR and unbalanced 1/4-inch output connectors allow the 700 Series receiver to interface with the most popular audio inputs.

The 700 Series UniPak transmitter, included with all 700 Series Freeway body-pack systems, features a soft-touch power/mute/off switch, separate instrument/mic trim control, switchable high/low RF power, internal channel selector, multi-color battery/power/mute indicator, professional locking connector and AA battery operation. Four body-pack system configurations are available: the ATW-701 UniPak system (includes receiver and UniPak transmitter only), the ATW-701/G Guitar system, the ATW-701/H Headworn system, and the ATW-701/L Lavalier system. All 700 Series body-pack systems are compatible with the wide selection of Audio-Technica Wireless Essentials microphones and cables.

The ATW-702 Handheld microphone transmitter features a rugged unidirectional dynamic element, and includes a variable microphone trim control, internal channel selector, easily accessible soft-touch power/mute/off switch, multi-color battery/power/mute indicator and AA battery operation.

Both the handheld and body-pack 700 Series Freeway systems provide up to eight hours of continuous use without a battery change. All 700 Series UHF wireless systems offer clear, natural sound quality, and are designed for maximum ease of use.

Features
8 selectable frequency-coordinated UHF channels

Use up to 8 simultaneous systems, all channels compatible

Automatic frequency scanning

Diversity operation for increased range/reliability

LED Channel display plus Antenna, AF Peak indicators

Balanced XLR and unbalanced 1/4 in. output connectors

Tone Lock squelch system eliminates interference when transmitter is off

UniPak transmitter features: separate guitar/mic trim control, switchable high/low RF power, internal channel selector, multi-color battery/power indicator, AA operation

Handheld transmitter features: variable trim control, internal channel selector, multi-color battery/power indicator, AA operation

Freeway body-pack systems are compatible with all Audio-Technica Wireless Essentials microphones and cables

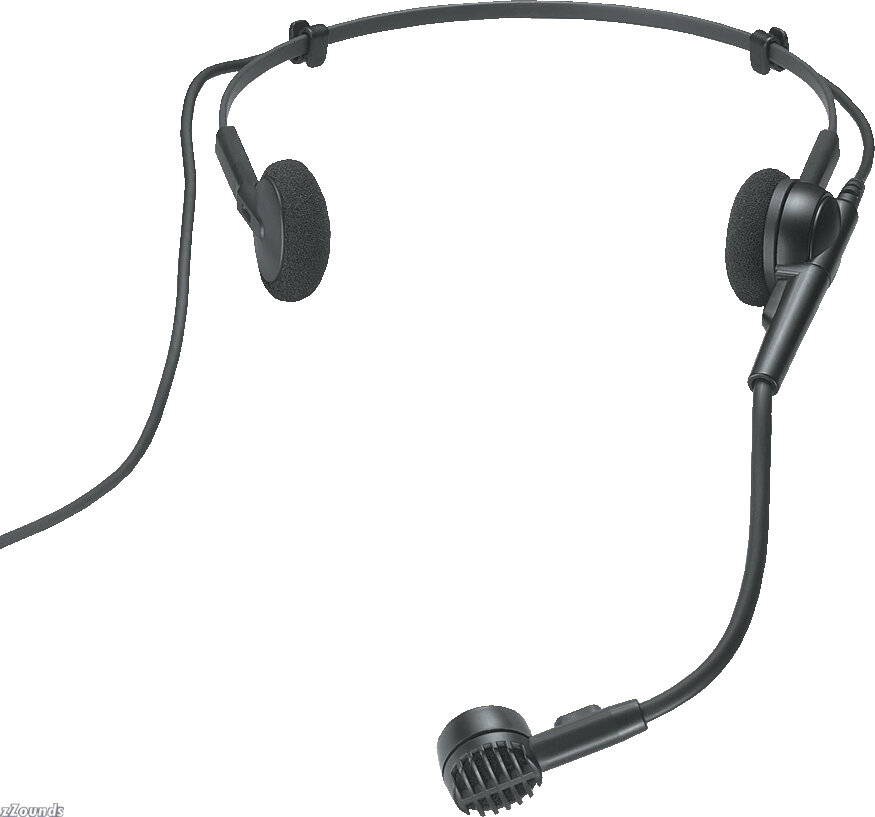

PRO 8HEcW Hypercardioid Dynamic Headworn Microphone
Offering highly intelligible individual voice reproduction, the comfortable, lightweight PRO 8HEcW is ideal for guitarists, keyboard players, drummers and others who need the use of their hands during performance. Its low-visibility headband and cushioned support pads provide a stable, comfortable fit. Designed for professional quality vocal pickup with hands-free operation, the PRO 8HEcW features a pivot-mounted flexible mic boom that descends from either the left or right side.

Wear the headband around the back of the head with each cushioned support pad resting on the temple in front of the ear. The assembly may be oriented
so that the microphone descends from either the left or right side. The cable should remain clipped to the headband, with some slack at the boom connection.

-- Ideal for guitarists, keyboard players, drummers and others who need the use of their hands during performance

-- Low-visibility headband and cushioned support pads provide a stable, comfortable fit

-- Pivot-mounted flexible mic boom descends from left or right side

-- Hypercardioid polar pattern improves isolation of desired sound source

-- Hi-ENERGY neodymium element for articulate vocal reproduction

-- 7.2 ft. (2.2 m) cable permanently attached between microphone and XLRM-type connector

Technical Info

Overall System Specifications
Operating Frequencies: UHF band, 542.125 MHz to 561.250 MHz

Number of Channels: 8

Frequency Stability: +/-0.005%, Phase Lock Loop frequency control

Modulation Mode: FM

Maximum Deviation: +/-25 kHz

Operating Range: 200 ft. typical

Operating Temperature Range: 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C)

Frequency Response: 100 Hz to 12 kHz

Receiver Specifications
Receiving System: Antenna-switching diversity

Image Rejection: 55 dB minimum

Signal-to-noise Ratio: >80 dB at 10 kHz deviation (IEC-weighted), maximum deviation 25 kHz

Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)

Sensitivity: 25 dB

With bodypack transmitter and headset mic.
