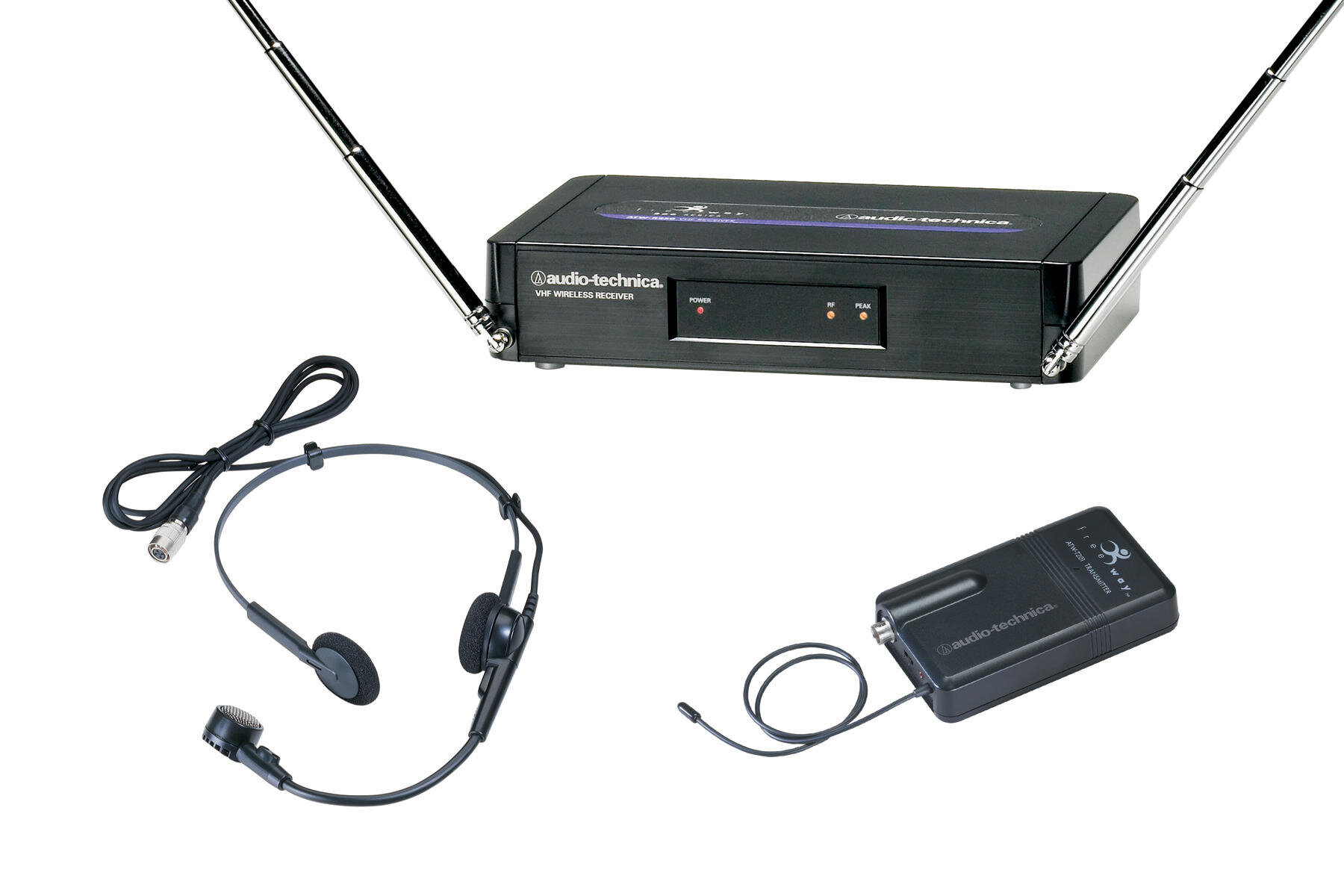

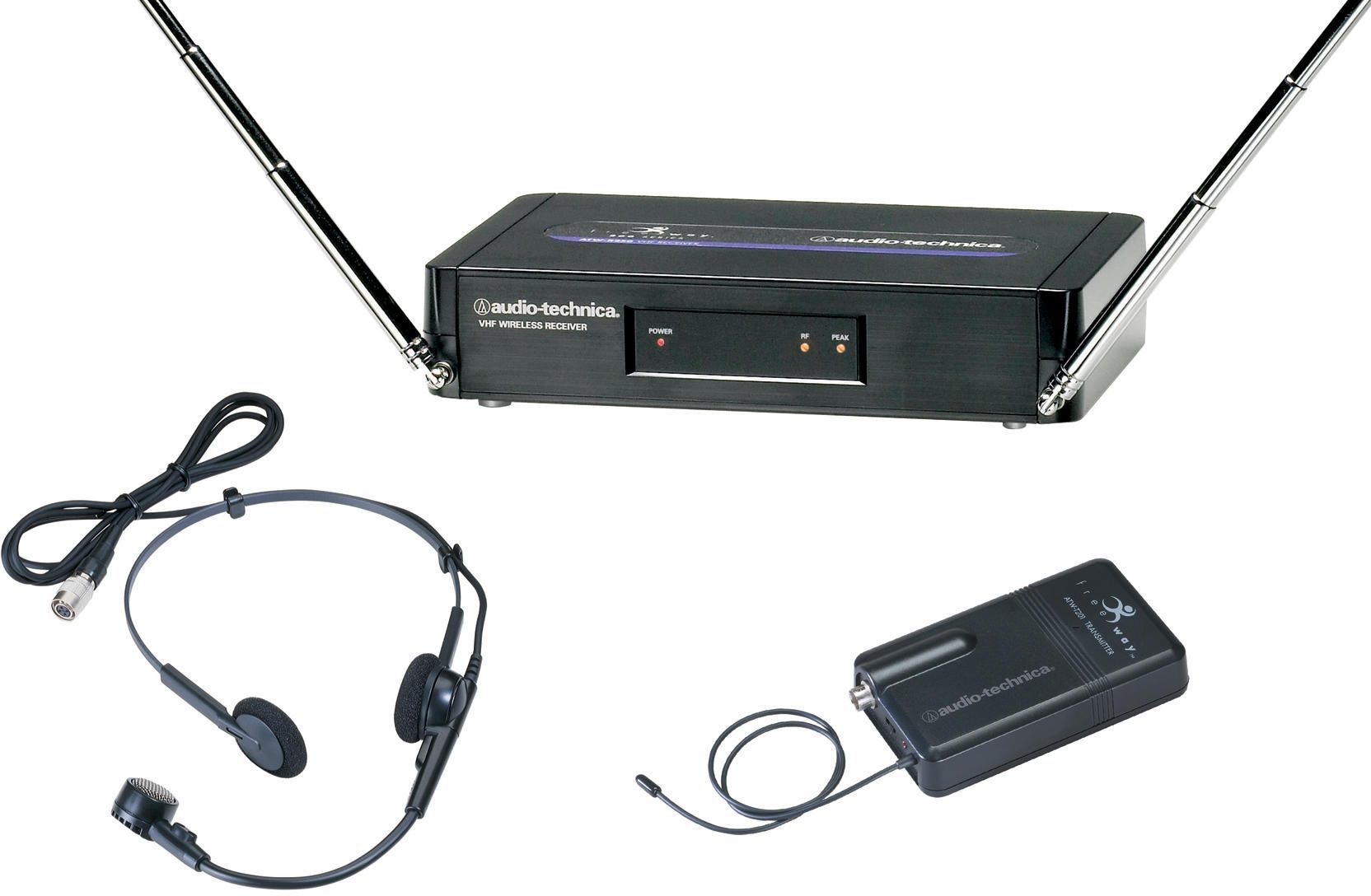

Audio Technica ATW251H Headset Wireless System
ATW-R250 receiver, ATW-T201 transmitter and PRO 8HEcW headworn microphone.
Because this item is used at your mouth or ear, it cannot be returned once opened due to health reasons. details
Description
From Our Catalog
News
Audio-Technica's Freeway 200 Series Wireless Systems are designed to provide reliable performance, easy setup and clear, natural sound quality. Each 200 Series professional VHF wireless system includes a receiver and either a body-pack transmitter or a handheld microphone/transmitter on a specific crystal-controlled frequency. A novel dipole antenna system on the receiver improves operation by providing a ground element in addition to the usual signal element.
Features
Easy operation and clear, natural sound quality
Reliable performance and durable construction
Advanced dipole antenna system for extended operating range
Power, RF, and AF Peak indicators
Volume control, ¼" output jack and space-saving power supply
Rugged unidirectional dynamic element on handheld microphone/transmitter
Variable microphone trim control and easily accessible On/Standby/Off switch on transmitters
Professional locking connector on UniPak™ body-pack transmitter
Available in 5 system configurations
ATW-251/H
ATW-R250 receiver, ATW-T201 transmitter and PRO 8HEcW headworn microphone.
Operating Frequency: VHF high band, 169 MHz to 172 MHz
Number of Channels: Fixed channel
Frequency Stability: ±0.005%
Modulation Mode: FM
Maximum Deviation: ±15 kHz
Operating Range: 200' typical
Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
Frequency Response: 80 Hz to 13 kHz
Receiver Specifications
Receiving System: Non-diversity, single-channel, dual antenna system
Image Rejection: 50 dB minimum
Signal-to-noise Ratio: 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
Sensitivity: 20 dBµV for 60 dB S/N (IEC-weighted)
Audio Output: 350 mV (1 kHz modulation, 10 kHz deviation, 100 k ohm load)
Output Connector: 1/4" TS ("mono") phone jack
Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions: 7.48" (190.0 mm) W x 1.65" (42.0 mm) H x 5.12" (130.0 mm) D
Net Weight: 11.0 oz (311 g)
Accessory Included: Power supply
Body-pack Transmitter Specifications
RF Power Output: 10 mW High position, 2 mW Low position, typical
Spurious Emissions: Under federal regulations
Dynamic Range: >=90 dB, A-weighted
Input Connections: High impedance, low impedance, bias
Battery: 9V (NEDA type 1604) alkaline, not included
Current Consumption: 30 mA typical
Battery Life: Approximately 15 hours in High position; Approximately 20 hours in Low position (depending on battery type and use pattern)
Dimensions: 2.56" (65.0 mm) W x 4.33" (110.0 mm) H x 1.00" (25.4 mm) D
Net Weight: 2.8 oz (78 g) (without battery)
Features
Easy operation and clear, natural sound quality
Reliable performance and durable construction
Advanced dipole antenna system for extended operating range
Power, RF, and AF Peak indicators
Volume control, ¼" output jack and space-saving power supply
Rugged unidirectional dynamic element on handheld microphone/transmitter
Variable microphone trim control and easily accessible On/Standby/Off switch on transmitters
Professional locking connector on UniPak™ body-pack transmitter
Available in 5 system configurations
ATW-251/H
ATW-R250 receiver, ATW-T201 transmitter and PRO 8HEcW headworn microphone.
Technical Info
Overall System SpecificationsOperating Frequency: VHF high band, 169 MHz to 172 MHz
Number of Channels: Fixed channel
Frequency Stability: ±0.005%
Modulation Mode: FM
Maximum Deviation: ±15 kHz
Operating Range: 200' typical
Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
Frequency Response: 80 Hz to 13 kHz
Receiver Specifications
Receiving System: Non-diversity, single-channel, dual antenna system
Image Rejection: 50 dB minimum
Signal-to-noise Ratio: 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
Sensitivity: 20 dBµV for 60 dB S/N (IEC-weighted)
Audio Output: 350 mV (1 kHz modulation, 10 kHz deviation, 100 k ohm load)
Output Connector: 1/4" TS ("mono") phone jack
Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions: 7.48" (190.0 mm) W x 1.65" (42.0 mm) H x 5.12" (130.0 mm) D
Net Weight: 11.0 oz (311 g)
Accessory Included: Power supply
Body-pack Transmitter Specifications
RF Power Output: 10 mW High position, 2 mW Low position, typical
Spurious Emissions: Under federal regulations
Dynamic Range: >=90 dB, A-weighted
Input Connections: High impedance, low impedance, bias
Battery: 9V (NEDA type 1604) alkaline, not included
Current Consumption: 30 mA typical
Battery Life: Approximately 15 hours in High position; Approximately 20 hours in Low position (depending on battery type and use pattern)
Dimensions: 2.56" (65.0 mm) W x 4.33" (110.0 mm) H x 1.00" (25.4 mm) D
Net Weight: 2.8 oz (78 g) (without battery)
With ATW-R250 receiver, ATW-T201 transmitter and PRO 8HEcW headworn microphone.
09/10
SAVE ON THIS BLOWOUT! Warehouse Resealed, Frequency 169.505, only a few in stock!
07/16
Just added to zZounds! Warehouse Resealed, Frequency 169.505, be the first on your block to order!
What Our Customers Say About zZounds
"I love zZounds. It's easy to use. The pictures are clear and your descriptions are super helpful." - customer on November 9, 2009
Call
800.ZZOUNDS (996.8637)
and mention priority code: 7GLVX7W
Item: AUTATW251HT
Choose a model below and select "Add to Cart"
related accessories
from $9.95
Audio Technica ATW251H Headset Wireless System Reviews
3 out of 10
"Get real this is a piece of junk and wish my people hadn't gotten it."
Feature:
too much to do to set it up. It should come tuned to the mike it is shipped with
Quality:
sounds horible
Value:
If you want a low cost unit stick with Nady
Sound:
Too tinny sounding
Ease of Use:
Once again to much to set it up. Have to tune transmitter, have to tune the reciever, and have to tune you sound board and still can't stop it from cutting out and sounding tinny
too much to do to set it up. It should come tuned to the mike it is shipped with
Quality:
sounds horible
Value:
If you want a low cost unit stick with Nady
Sound:
Too tinny sounding
Ease of Use:
Once again to much to set it up. Have to tune transmitter, have to tune the reciever, and have to tune you sound board and still can't stop it from cutting out and sounding tinny
Submitted: 05/18/2008
3 out of 10
zZounds has verified that this customer bought this product from us.
"CHeap price,cheap product"
Feature:
Features are basic.
Quality:
Have had two Freeway 200 systems for about five years and have had to have them repaired three times. The mics don't stay in place and sound pretty poor.
Value:
Cheap price, cheap product....
Sound:
The sound quality is poor to average. We've been experiencing a lot of drop outs.
Ease of Use:
Easy to set up. There is no adjustment on the headset for the size of your head.
Support:
AT has always turned around repairs in less than two weeks.
Features are basic.
Quality:
Have had two Freeway 200 systems for about five years and have had to have them repaired three times. The mics don't stay in place and sound pretty poor.
Value:
Cheap price, cheap product....
Sound:
The sound quality is poor to average. We've been experiencing a lot of drop outs.
Ease of Use:
Easy to set up. There is no adjustment on the headset for the size of your head.
Support:
AT has always turned around repairs in less than two weeks.
Submitted: 07/27/2009
Style of Music: drum circles
