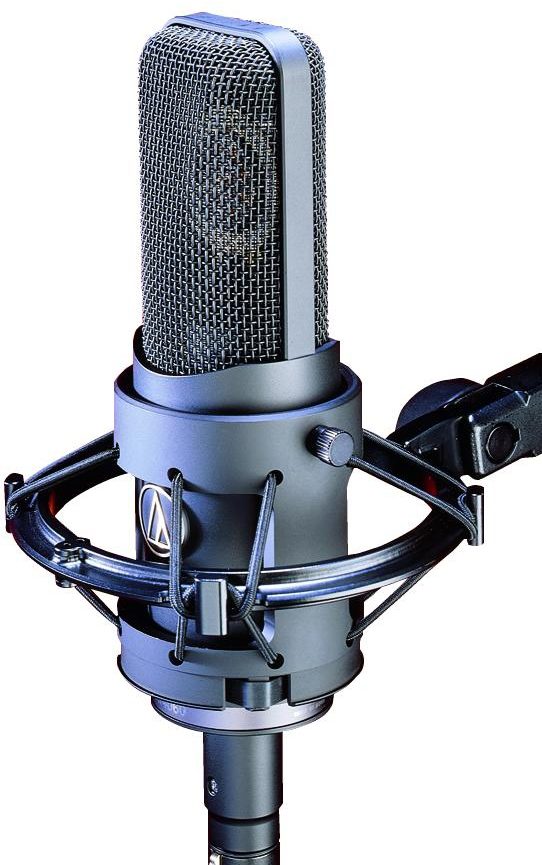

The AT4060 captures the elusive vintage tube sound with the versatile performance necessary for the most demanding studio applications. It features a wide dynamic range, low self-noise, high max SPL capability, and a carefully-controlled cardioid pattern that maintains uniform off-axis response.
In addition, dual large-diaphragm elements have been included for extended frequency response, and hand-selected tubes are aged and individually tested to ensure peak performance. The unit includes AT8560 power supply, 32 ft. cable, and AT8447 shock mount.
Technical Info
Element: Capacitor
Maximum Input Sound Level: 150 dB SPL, 1 kHz at 1% T.H.D.
Polar Pattern: Cardioid
Signal to Noise Ratio: 75 dB, 1 kHz at 1 Pa
Frequency Response: 20 - 20,000 Hz
Dynamic Range (Typical): 131 dB, 1 kHz at Max. SPL
Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
Weight: 22.6 oz (640 g)
Impedance: 200 ohms
Output Connector: XLRM-type (on power supply)
Accessories Furnished: AT8560 power supply, switchable 120V/230V input; AT8447 shock mount; 32.8 ft. (10 m) special mic-to-power supply cable; AC power supply cable; power supply rack-mount adapters; protective mic case.
