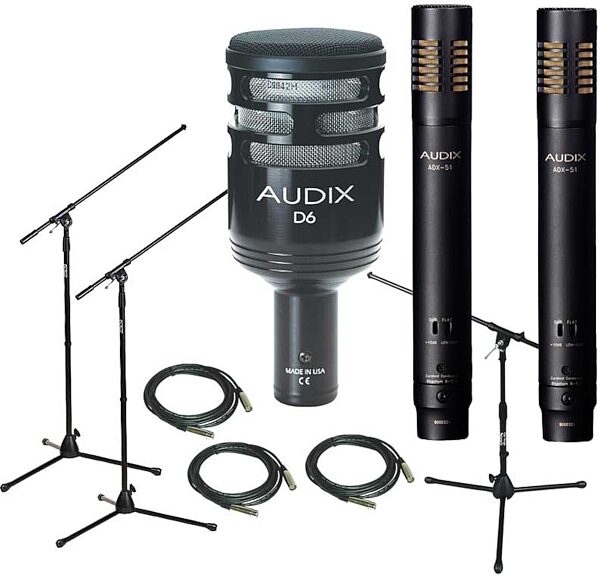

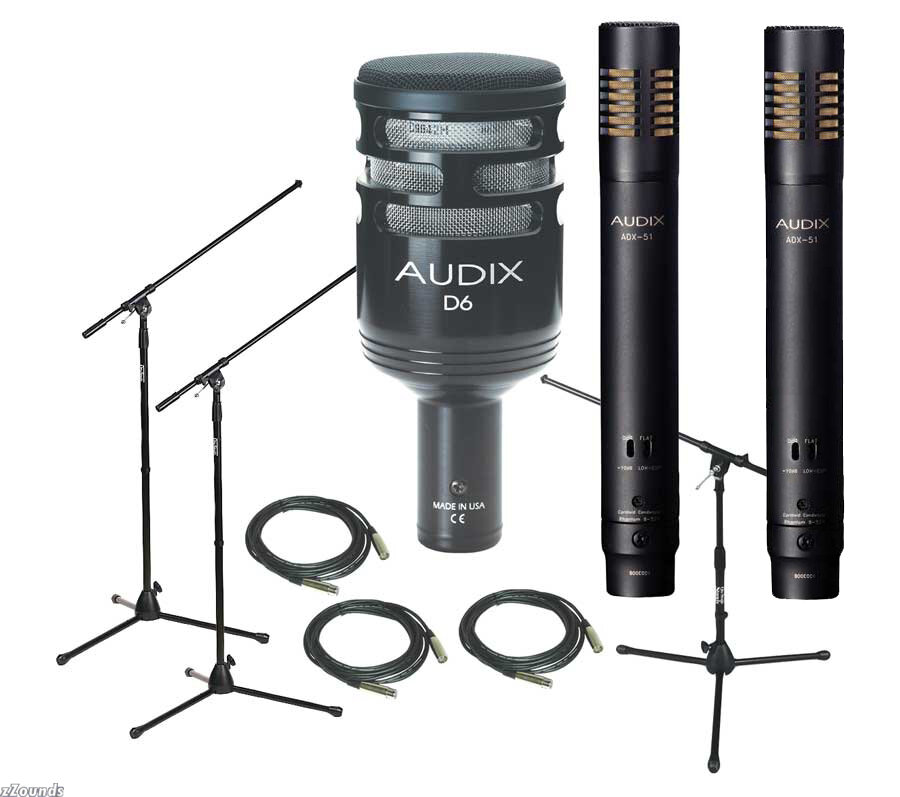

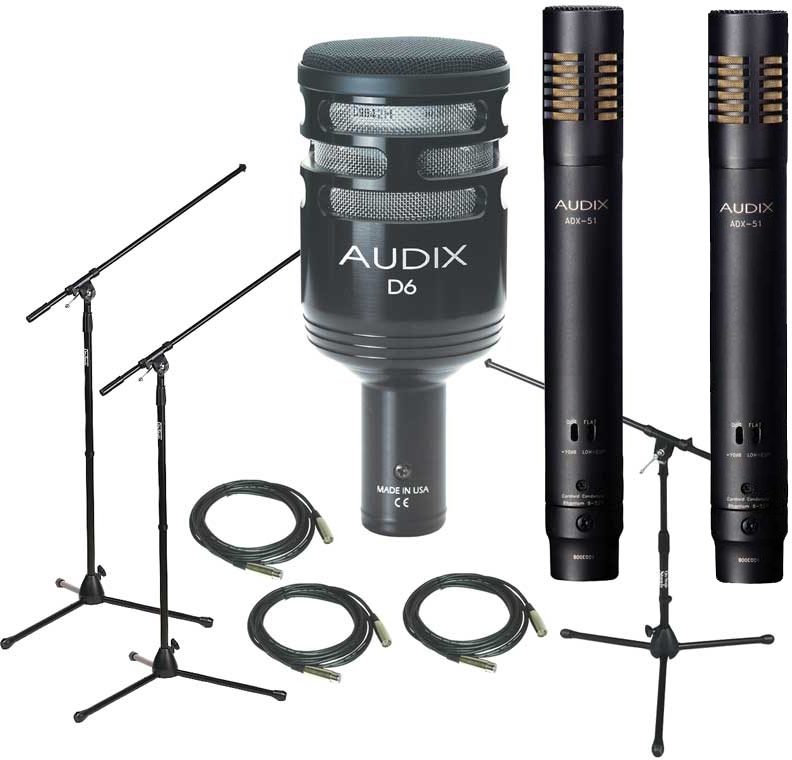

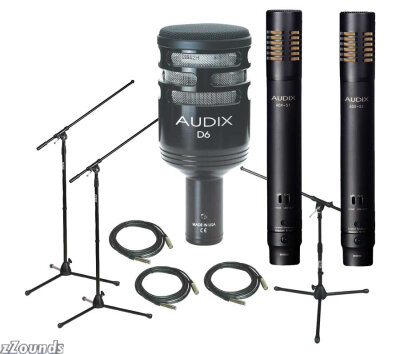

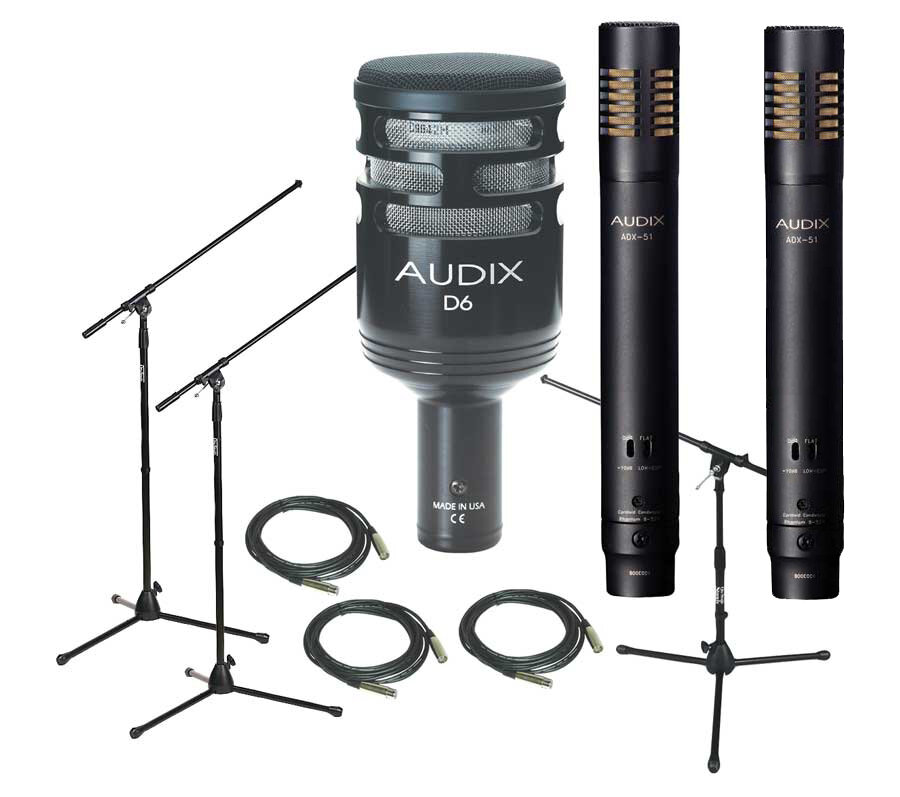

Audix Premium Triangle Microphone Package

The D6
The D6 is an American-made instrument microphone designed for live and studio performance. Characterized with a cardioid pick-up pattern and a frequency response of 30 Hz-15 kHz, the D6 is an ideal choice for kick drum, bass cabs, and other instruments requiring low frequency reproduction.

Transformerless design, low impedance, and balanced output allow interference-free performance even with long cable runs. The D6, a one-piece body precision machined from solid aluminum, consists of a durable hard coat anodized finish.

Applications
Live Stage-Coffee House to Stadium

Kick Drum, Floor Tom, Djembe, Cajon

Acoustic Bass, Electric Bass Cabs

Studio-Any Instrument Requiring Precise

Low Frequency Reproduction

7.7 oz / 217 grams

Finish Black Anodize

Supplied Accessories
Mic clip (MC2) adjustable through 180 degrees with standard 5/8 inch 27 thread.

Note: Metal stand adapter also supplied to accommodate European standard threads

Zippered microphone carrying pouch

The ADX51
The ADX51 is a pre-polarized condenser microphone designed to handle a wide
variety of live, studio and broadcast applications. Characterized with a cardioid pickup pattern and a smooth uniform response over a frequency range of 40-20k Hz, the ADX51 is precision machined from solid brass with a low reflective black e-coat finish.

The ADX51 is designed with low noise electronic circuitry, balanced output, and switches that enable a 10 dB pad and a bass roll-off. The ADX51 is road-worthy and capable of handling high sound pressure levels of 142dB.

Applications
Overhead for Drums / Percussion

Bells, cymbals, hi-hat, goodie table

Acoustic instruments

Guitar, piano, saxophone, orchestra (zone miking)

Group vocals

ADX51 may be used as a hanging mic or on a stand to pick up group vocals for ensemble, choirs or plays. Two mics may be positioned overhead or in front of the group, at a distance of 4-6 feet apart.

Supplied Accessories
Mic clip (Dclip) adjustable through 180 degrees with standard 5/8 in. -27 thread.

Note: Metal stand adapter also supplied to accommodate European standard threads.

Vinyl carrying case.

WS-81C External Foam Windscreen.

Technical Info

D6 Specifications
Transducer Type: Dynamic

Frequency Response: 30 Hz - 15 kHz

Polar Pattern: Cardioid

Output Impedance: 200 Ohms

Sensitivity: 2.2 mV @ 80Hz

Capsule Technology: VLM Type E

Off Axis Rejection: >20 db

Maximum SPL: 144 db

Cable/Connector: 3 pin gold plated male XLR connector

Polarity: Positive voltage on pin 2 relative to pin 3 of output XLR connector

Housing: Machined Aluminum

Weight: 7.7 oz / 217 grams

Finish: Black Anodize

ADX51 Specifications
Transducer Type: Condenser (pre-polarized)

Frequency Response: 40 Hz - 18 kHz, 150 Hz - 18 kHz (with low cut filter)

Polar Pattern: Cardioid

Output Impedance: 100 Ohms balanced

Open Circuit Sensitivity: 15.9 mV (ref 1k @ 1 Pascal)

Equivalent Noise Level: 29 dB (A weighted)

Signal to Noise Ratio: 65 dB (ref 1k @ 1 Pascal)

Power Requirements: 9 - 52v phantom

Maximum SPL: 132 dB

Cable/Connector: 3 pin gold plated male XLR connector

Polarity: Positive voltage on pin, 2 relative to pin 3 of output XLR connector

Housing: Machined Brass

Weight: 5 oz/143 grams
