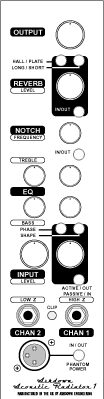

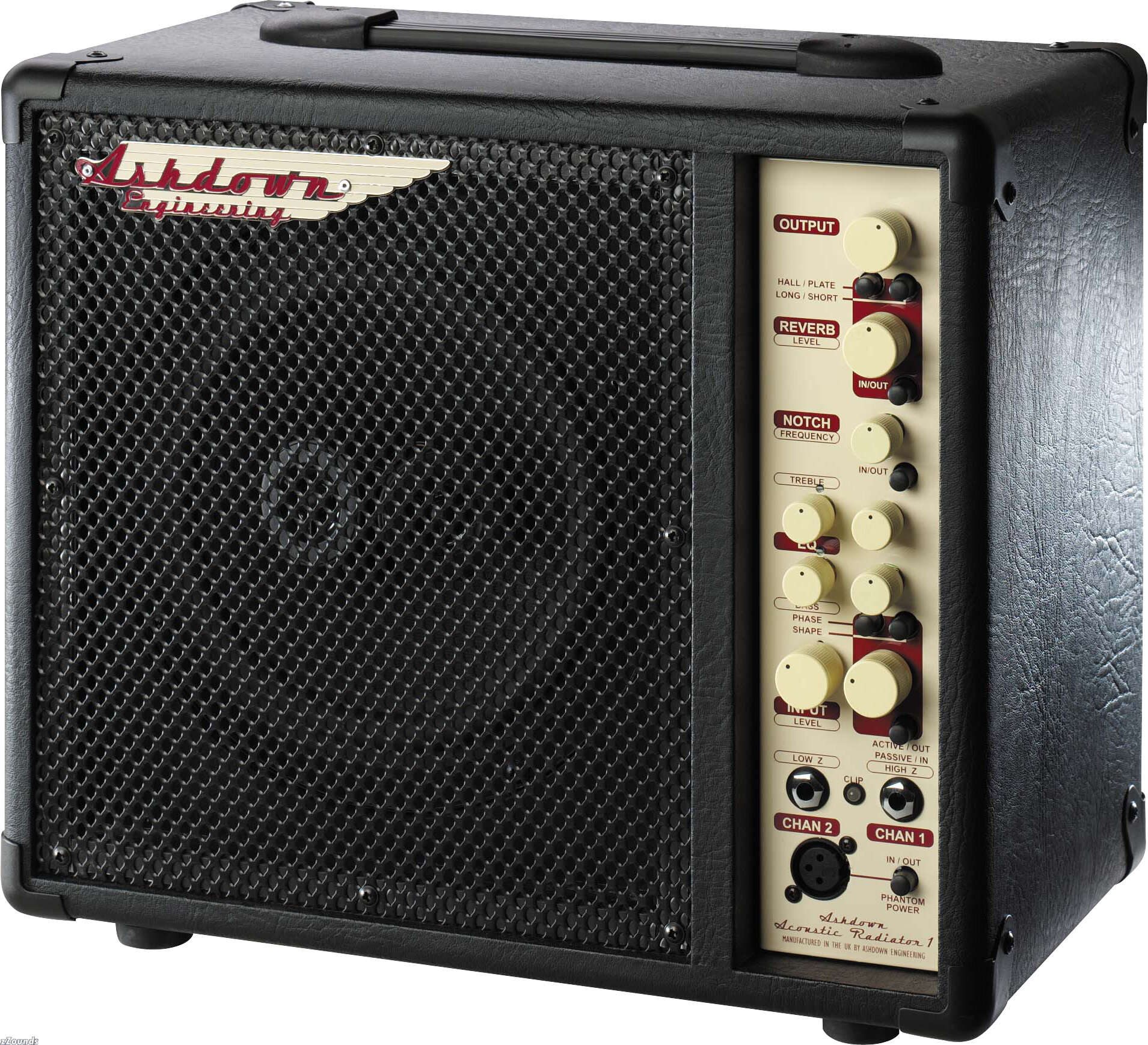

For the acoustic musician on the move, the Ashdown Acoustic Radiator 1 combines a 100-watt bridged power section, a fully featured preamplifier and an 8 in., dual tweeter array driver in a compact, portable and beautifully designed cabinet. There are 2 channels with facilities including a switchable input for active and piezo pick-ups with a phase switch for the elimination of standing wave feedback, an XLR mic input with switchable phantom power, bass and treble controls with a shape switch providing instant access to an optimum acoustic guitar EQ setting, a switchable notch filter with a variable frequency control to tune out feedback, and an all-new digital reverb. Rear panel facilities include a balanced XLR DI output for recording use, or for connection to a PA system, an FX loop and a line / link output.
Ashdown Acoustic Radiators are available in both cherry and black vinyl.
Technical Info
Low Input: Impedance 10 Ohms / Input range 150mV - 8V p-p
High Input: Impedance 10 Ohms / Input range 200mV - 15V p-p
Effects Return: Impedance 22kOhms / Input level 0dBu nominal
Tuner Output: Impedance 22kOhms / Level 0dBu nominal
Effects Send: Impedance 22kOhms / Level 0dBu nominal
DI Output: 600 Ohms balanced / Level -20dBu nominal
Line Output: Impedance 10kOhms / Level 0dBu nominal
Power: 60W RMS
Output Impedance: 8 Ohms
Speaker Configuration: 1 x 8 in. with dual tweeter array
H x W x D (mm): 440 x 490 x 325
Weight (kg): 11
