This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

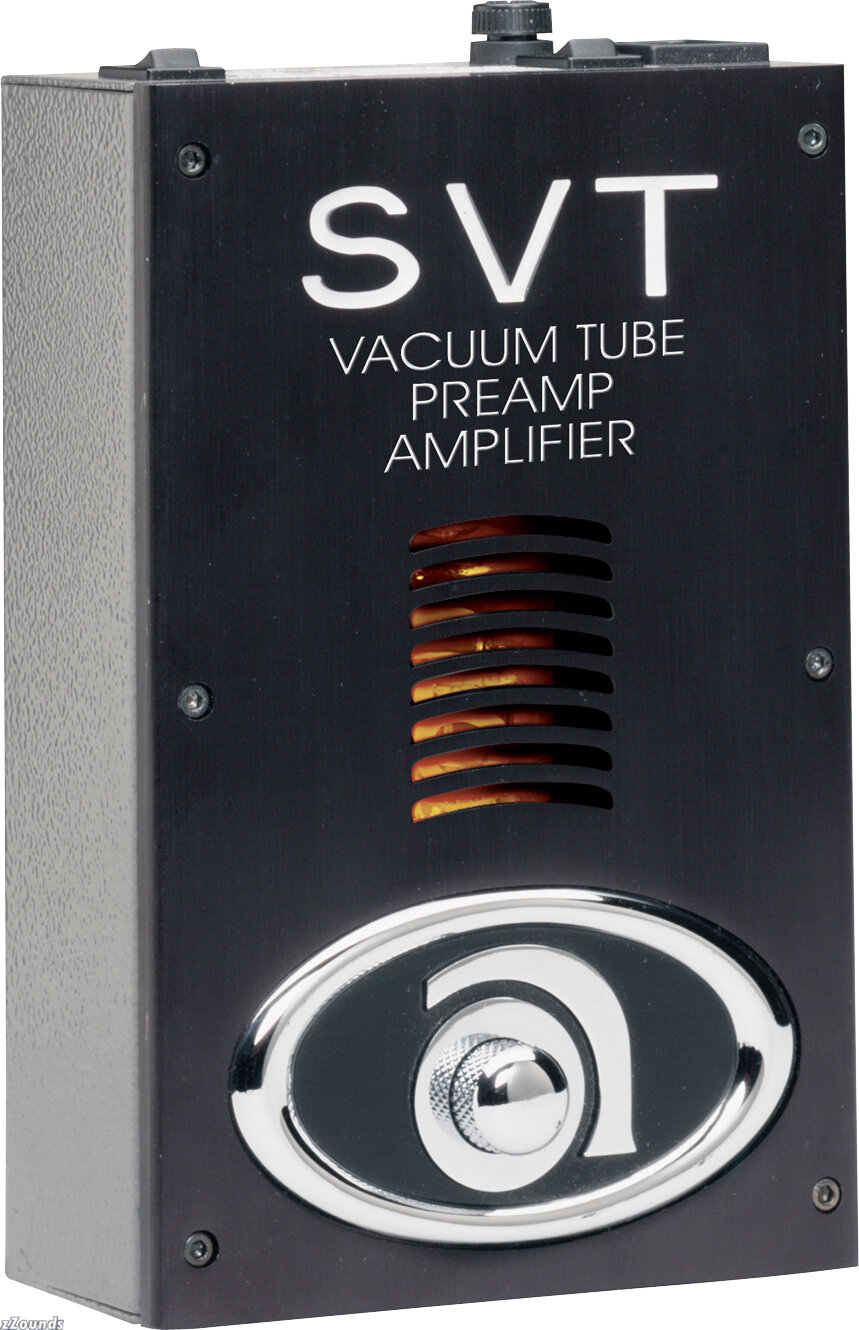

Ampeg SVTMP Tube Microphone Preamp
Phantom power. XLR and 1/4 in. input.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
The New SVT-MP microphone preamp is a unique studio tool for the modern player. This device features a 12AX7 tube and a 12AU7 tube for tone enhancement, a combination XLR and 1/4 in. input jack, and 48-volt phantom power.
Mic input to output min 34dB, max 54dB
Line input to output min -6dB, max 14dB
Instrument input to output min 24dB, max 44dB
Instrument input to thru jack 0dB, 0dB
Pad:
Mic input -20dB
Line input -10dB
Output -20dB
Frequency Response:
Mic input to output 20-20kHz, +/-1dB
Line input to output 20-20kHz, +/-1dB
Instrument input to output 5Hz-25kHz,+/-1dB
Maximum Output Signal: +20dBm (1% THD)
Signal to Noise Ratio: Greater than 97dB
Dimensions: 5.25 x 8 x 2.5 in.
Weight: 6 lbs.
Tube Complement: 1 x 12AX7, 1 x 12AU7
Technical Info
Gain:Mic input to output min 34dB, max 54dB
Line input to output min -6dB, max 14dB
Instrument input to output min 24dB, max 44dB
Instrument input to thru jack 0dB, 0dB
Pad:
Mic input -20dB
Line input -10dB
Output -20dB
Frequency Response:
Mic input to output 20-20kHz, +/-1dB
Line input to output 20-20kHz, +/-1dB
Instrument input to output 5Hz-25kHz,+/-1dB
Maximum Output Signal: +20dBm (1% THD)
Signal to Noise Ratio: Greater than 97dB
Dimensions: 5.25 x 8 x 2.5 in.
Weight: 6 lbs.
Tube Complement: 1 x 12AX7, 1 x 12AU7
