Alesis iO DOCK Pro Audio Dock for iPad

Product Description

The Alesis iO Dock is the first device that enables iPad users to record, create and perform music with guitars, midi controllers and microphones. Utilizing the App Store’s massive library of music creating software and the power of the iPad, the iO Dock is a universal docking station that gives musicians, engineers and producers the flexibility to record and create music anywhere.

The Inputs

The iO Dock has two combination XLR and 1/4" inputs, each with independent gain knobs and switchable phantom power for condenser microphones. Using Garage Band for the iPad, musicians can utilize the multiplicity of available inputs to capture layered, multitrack recordings with live instruments or synths and samples. With the two combo jacks, guitarists and bassists can access the many amplifier- and effects-modeling apps and send them right to the recording. Producers and composers can take advantage of the iO Dock’s MIDI jacks to run keyboards, samplers, drum machines and synths or use an external controller keyboard to trigger the many synths and sound sets within Garage Band. Bands can even connect an output from their mixer to archive their rehearsals or live sets.

The Outputs

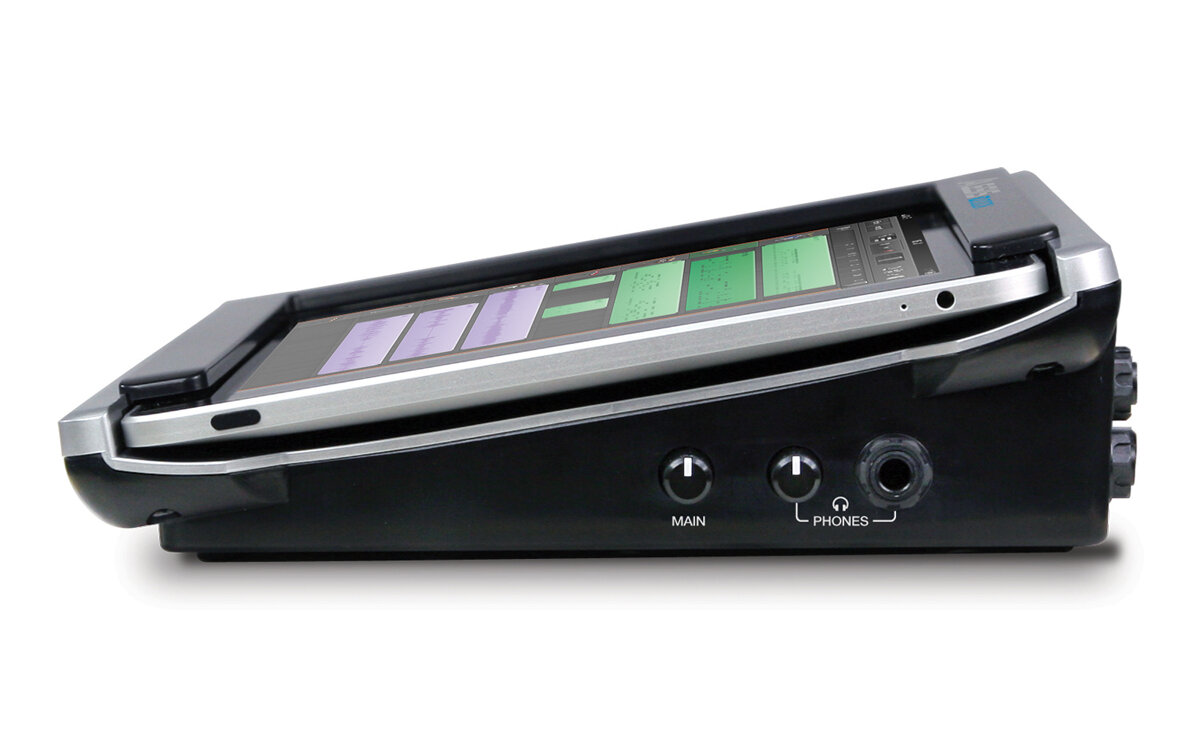

The Alesis iO Dock features a stereo pair of 1/4" main outputs so its users can hook up to their favorite studio monitors for critical listening or to house PA for a show. With independent level controls on each output, it also allows separate mixes to be sent to monitors and headphones. In addition to an assignable 1/4" footswitch for hands-free recording control, the iO Dock's USB midi enables it to be connected to a computer to send MIDI data back and forth to use the iPad and computer in tandem. And, with a video output, the iO Dock can be connected to video monitors to control video projections during a live show or to maximize the mixing experience in the studio.

Sturdy and Reliable

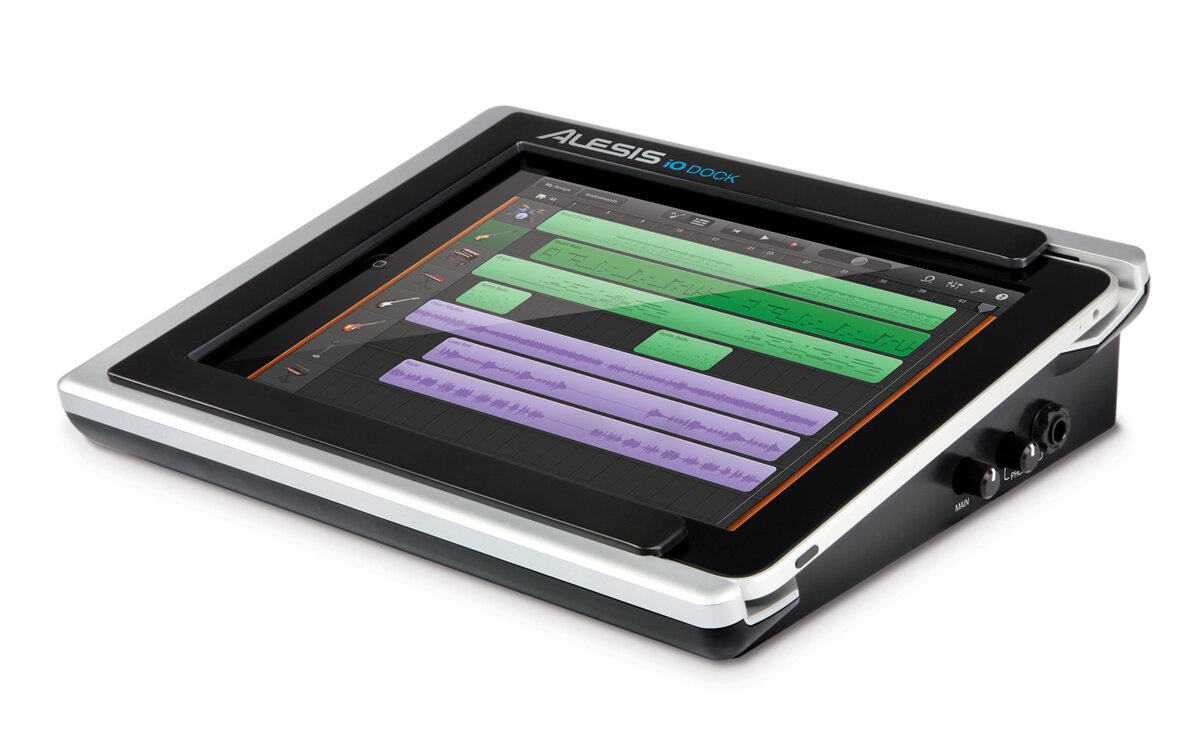

The iO Dock is housed in a sturdy plastic chassis that allows it to be both lightweight for easy travel and durable so it survives that travel. It also serves as a protective case for the iPad itself. The Alesis iO Dock completely houses the iPad on the bottom and three side surfaces and encases the screen in a protective bezel on three of its four edges.

A powerful, portable, cutting-edge music maker, the Alesis iO Dock empowers musicians to seamlessly connect the world of pro audio gear and instruments to the iPad and its massive collection of apps.

Features of the Alesis iO Dock
- The world's first pro audio dock for iPad
- Connect microphones and instruments including guitar, studio monitors, PA speakers, headphones, and MIDI controllers
- Universal device works with virtually every audio and MIDI app in the App Store; Core MIDI compliant
- Perform, craft, create and play back music in virtually any conceivable manner or location
- Video output for connection to TVs and projectors
- Inputs: two combo XLR-1/4" for use with audio gear, instruments, and computer audio
- Input channel gain controls and switchable phantom power for use with condenser microphones
- Guitar-direct switch for use with amplifier- and effects-modeling app
- Outputs: pair 1/4" and 1/4" headphone with separate volume controls
- Control: MIDI In, MIDI Out, USB MIDI, and assignable 1/4-inch footswitch input

Includes:
- iO Dock docking station for iPad
- Power supply
- Quick start guide

Does the Alesis iO Dock work with the iPad 2?

Yes!

The iO Dock is fully certified by Apple to work with both iPad and iPad 2.
As soon as iPad 2 was announced, Alesis began designing a fitted insert for iO Dock that perfectly conforms to iPad 2’s thinner profile. If your iO Dock did not include an iPad 2 insert in the box, visit alesis.com/iodockadaptor to receive one for free. If you use the original iPad, no insert is necessary.

Apple Certification Pending. iPad(tm), App Store(tm), Appler(r) and Mac(r) are trademarks of Apple Inc., registered in the U.S. and other countries. zZounds is an authorized dealer of Alesis products.

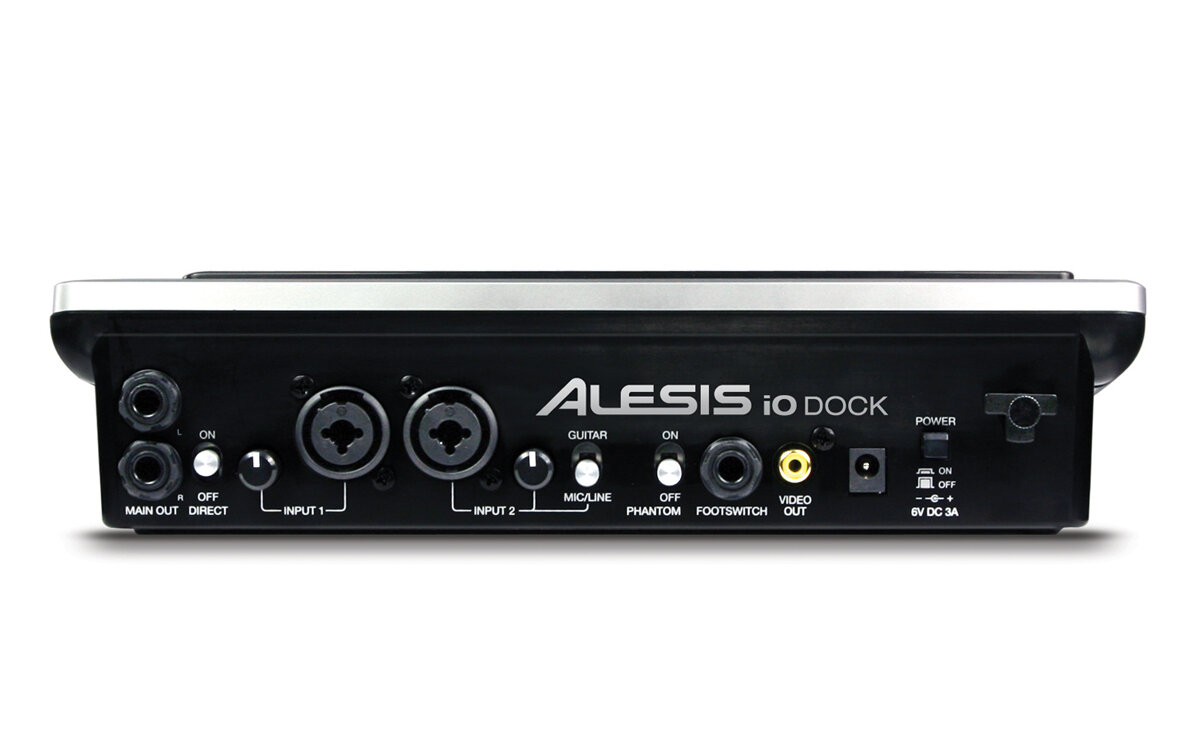

Inputs:
- 2x XLR-1/4"
- Individual gain controls
- Phantom power, switchable
- Guitar (high-impedance) switch on Input 2

Outputs:
- 2x 1/4" Main
- 1/4" TRS Headphone
- Individual level controls

Output:
- RCA Composite (requires compatible apps)

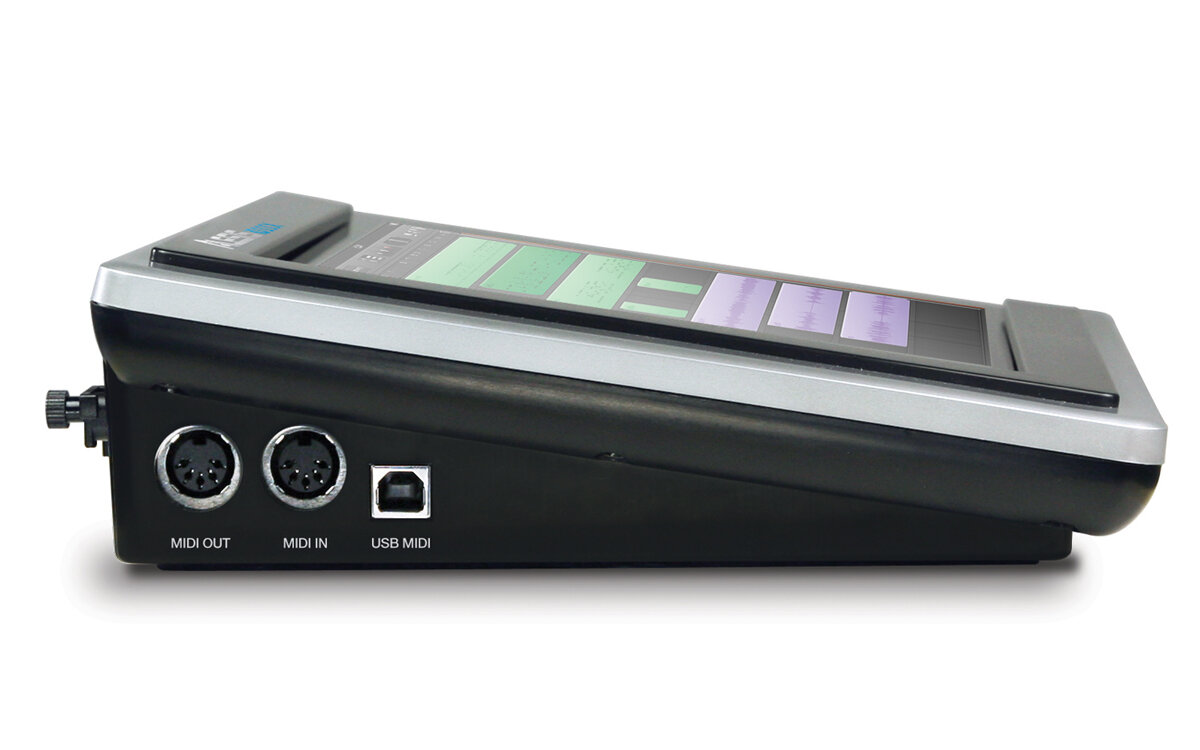

Control I/O:
- MIDI In (DIN)
- MIDI Out (DIN)
- USB MIDI
- 1/4" Footswitch (function assigned by apps)

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 4 lbs

Shipping Dimensions: 10 x 15 x 4 in
