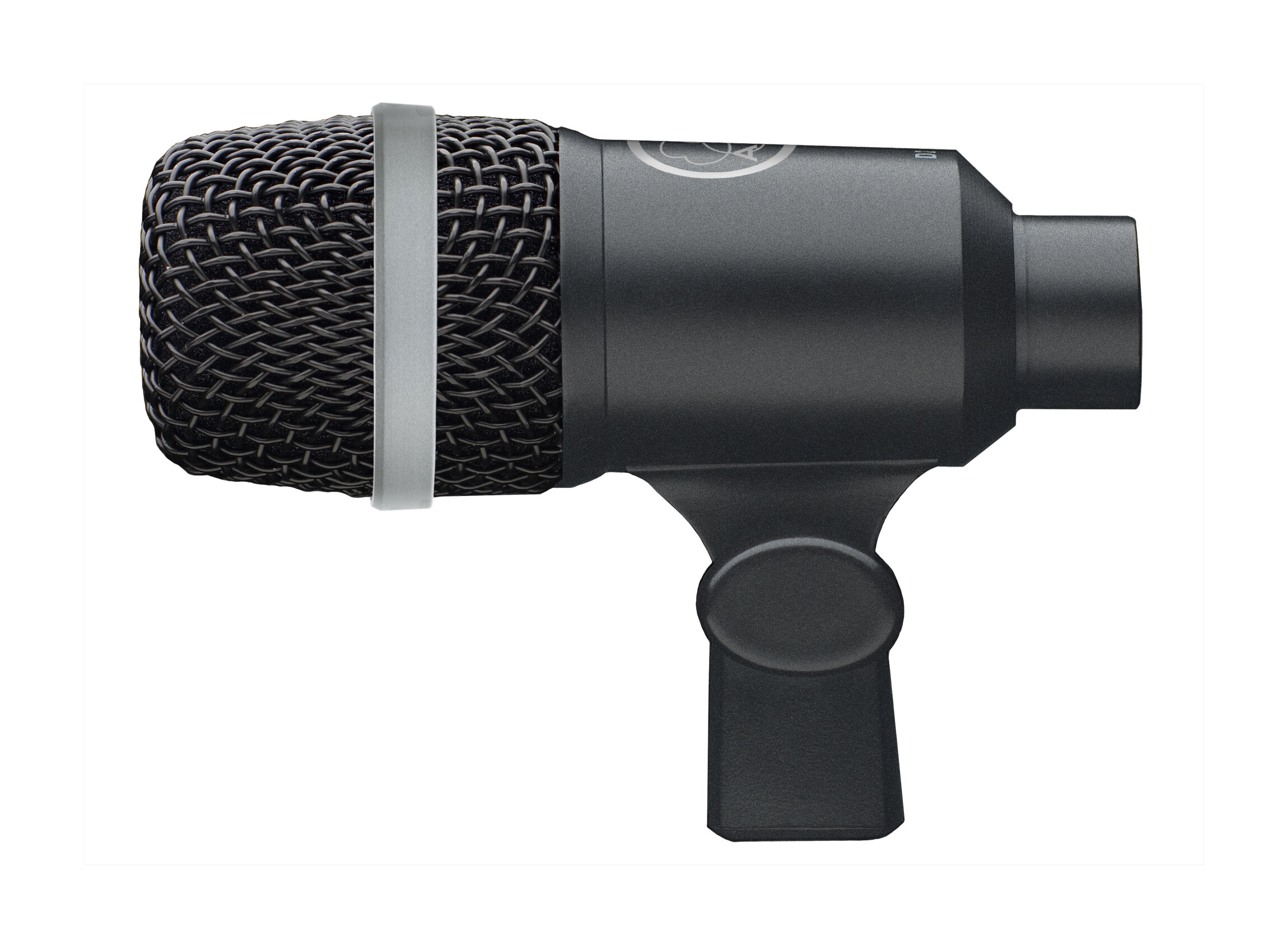

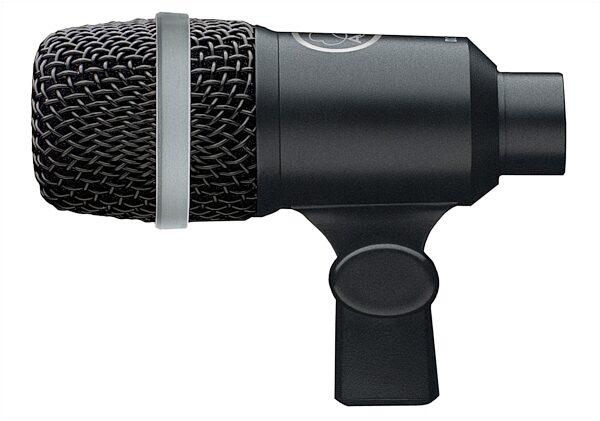

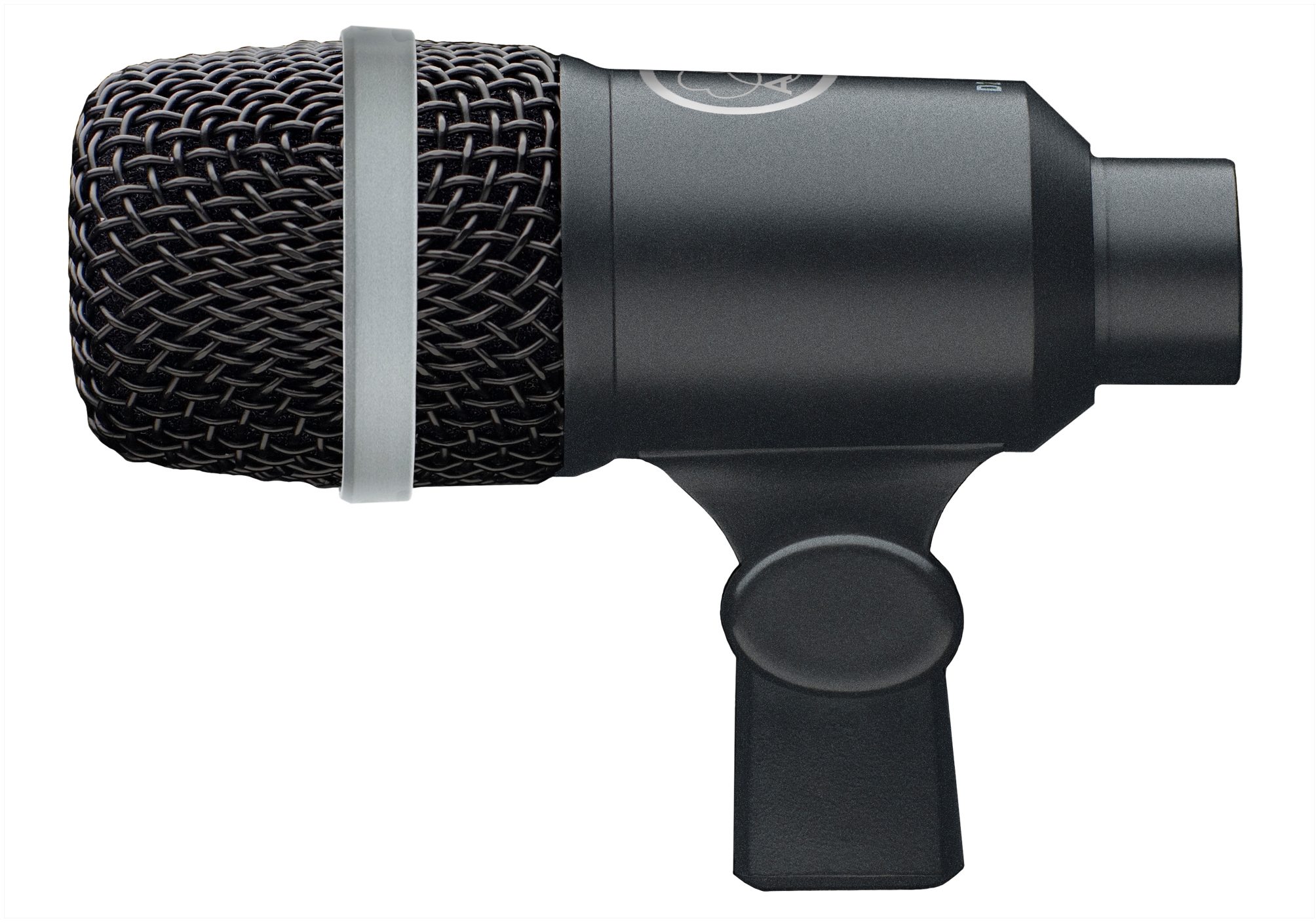

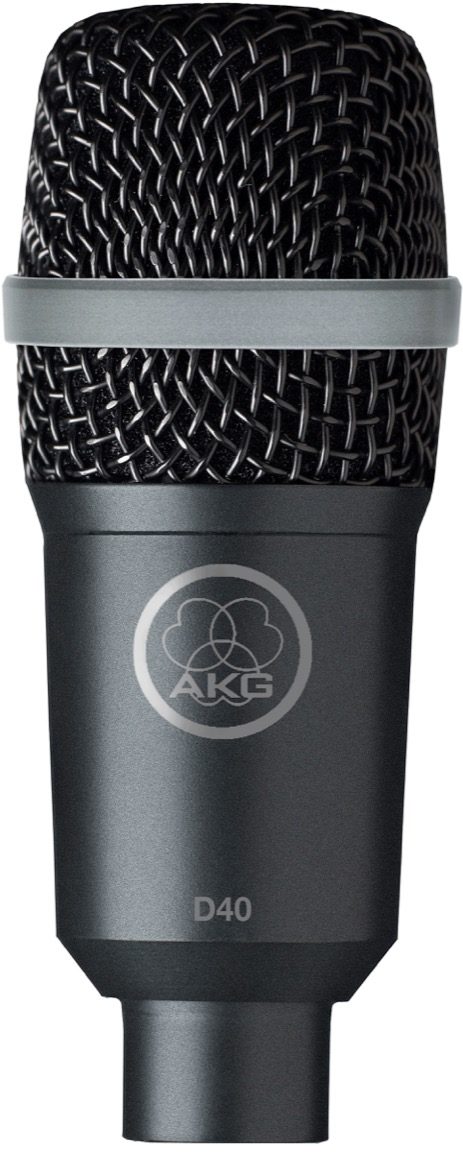

AKG D40 Dynamic Instrument Microphone

The D40 with its solid all-metal body will stand up to the hardships of night-after-night onstage use "with a smile". The Varimotion diaphragm deep-drawing process allows the diaphragm itself to be fine-tuned with no need for tuning resonators, leading to a quantum leap in audio performance.

The transducer is protected by a sturdy wire-mesh cap and takes extremely high sound pressure levels with ease.

An integrated stand adapter and standard H 440 mounting bracket for snare drums, tom-toms, etc. make the D40 a highly versatile tool for use on drums, percussions, wind instruments, and guitar amps.

Features
- Dynamic microphone designed for drums and percussions, wind instruments, and guitar amps

- Patented AKG Varimotion diaphragm

- Custom built capsule mounting

- Spring steel wire-mesh cap

- Rugged all-metal body withstands typical tough handling on stage

Technical Info

Specifications
Type: Cardioid

Polar pattern: 75 to 20,000 Hz

Sensitivity: 4 mV/Pa (-48 dBV)

Max. SPL: 144/156 dB SPL (for 1%/3 % THD)

Equivalent noise level: 18 dB-A

Impedance: <=200 ohms

Recommended load impedance: >=1000 ohms

Connector: 3-pin XLR

Finish: dark stage blue

Dimensions: length 104 mm (4.1 in.) height (incl. stand adapter): 79 mm (3.1 in.) max. dia.: 44 mm (1.7 in.)

Net weight: 245 g (8.6 oz.)

Shipping weight: 380 g (13.4 oz.)

Patent(s): Varimotion - multiple-thickness diaphragm for dynamic transducer (Patent no. AT 403.751, US 6,185,809, EP 814.637 (DE, DK, FI, FR, GB, IT, NL), JP 3.927.651)
