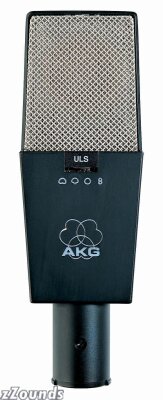

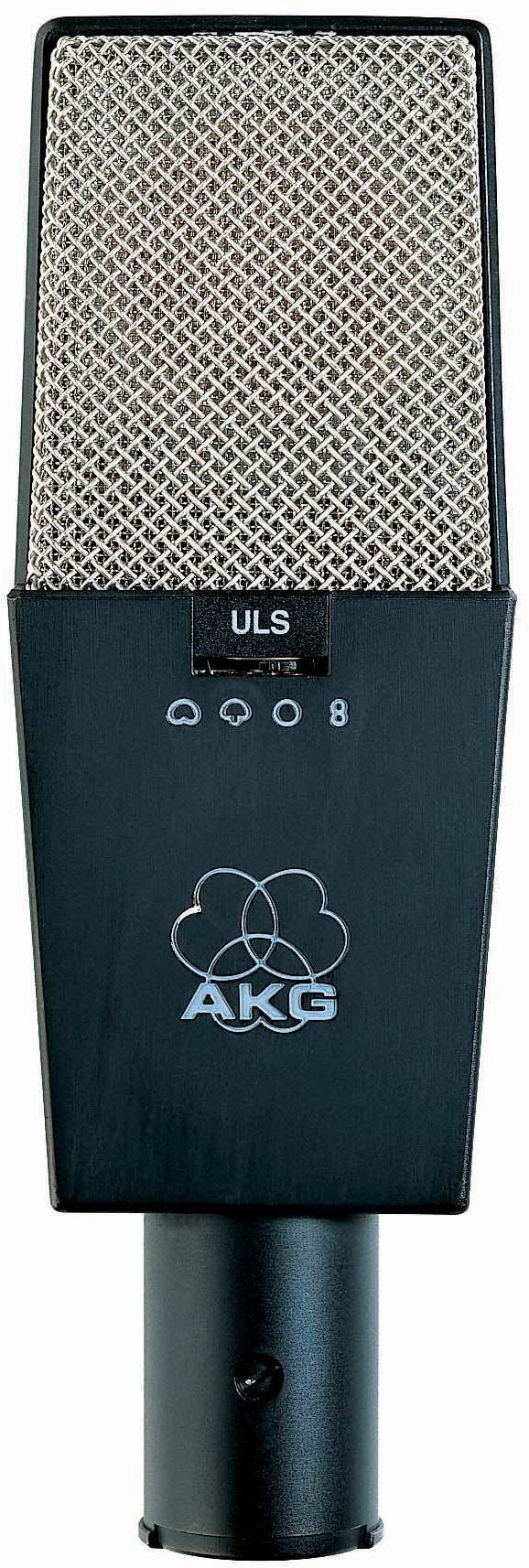

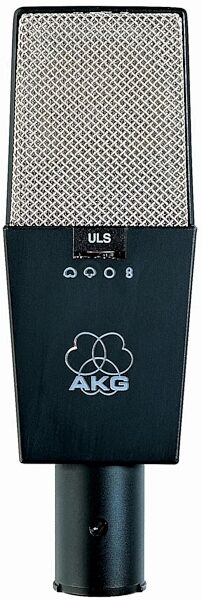

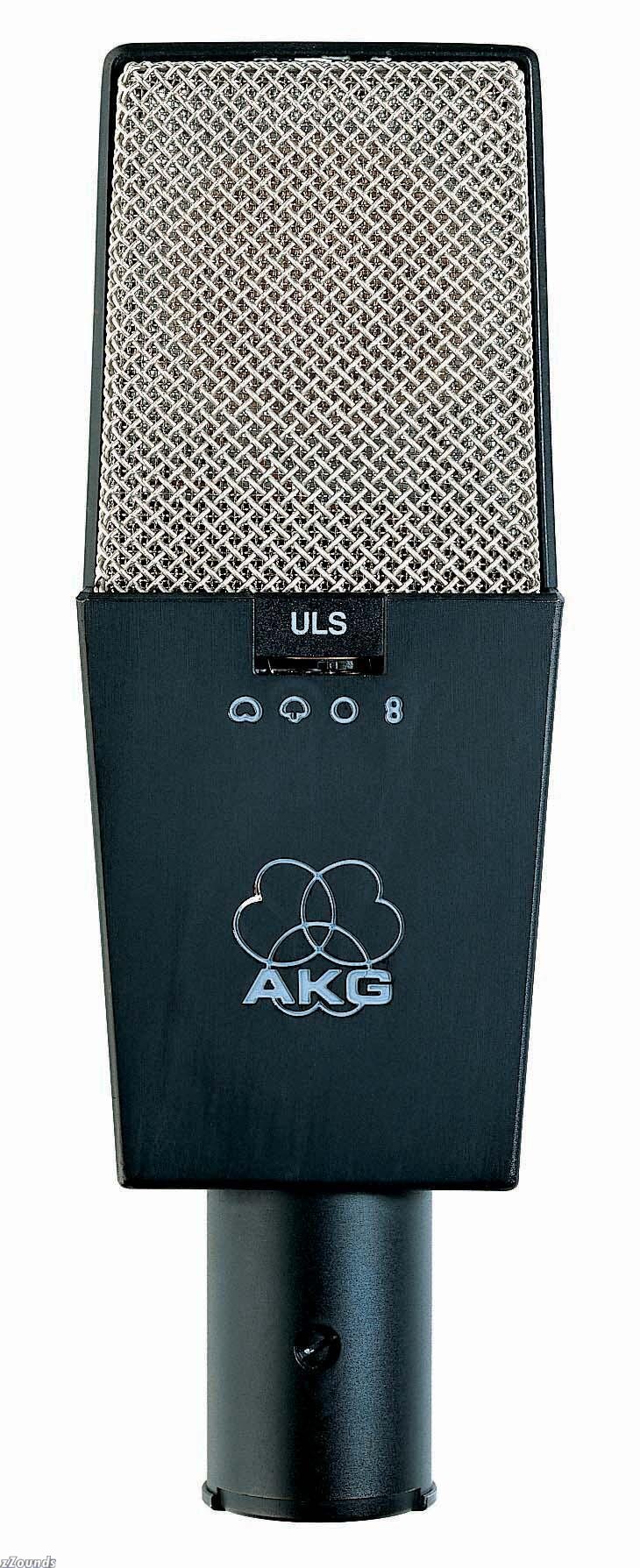

C 414 B-ULS Microphone
The C 414 B-ULS is 'the' reference microphone for almost all comparative microphone tests and one of the most used condenser microphones in the world. It is the microphone of choice for miking up vocals, grand pianos, percussions, and any other sound sources with complex waveforms.
Features:
Classic large-diaphragm reference microphone
Selectable cardioid, hypercardioid, omnidirectional or figure-8 polar patterns
Two-stage preattenuation pad and bass cut filter
High sound pressure level capability - up to 160 dB SPL

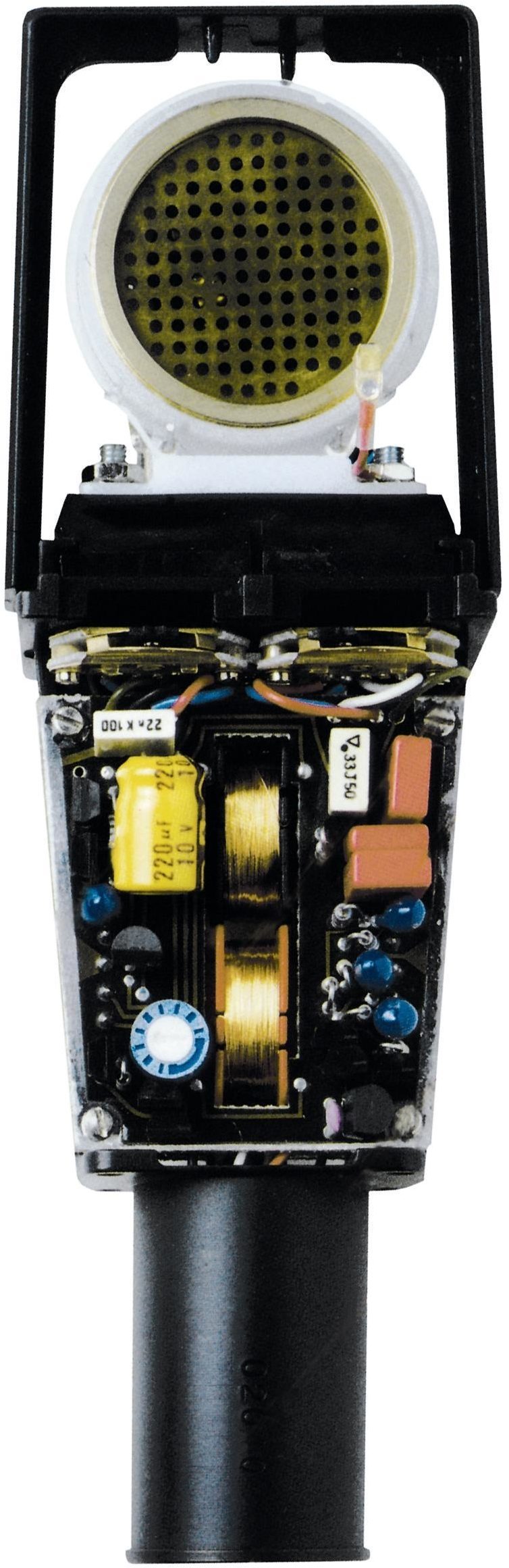

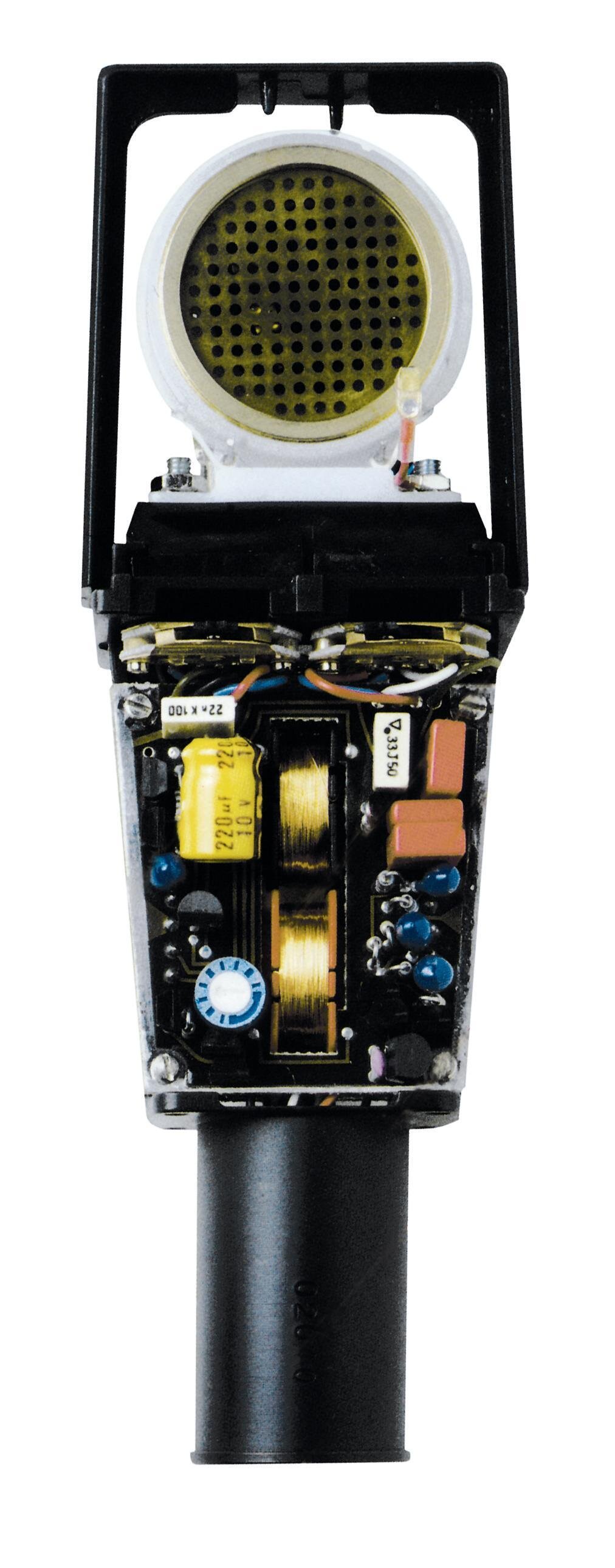

A gold-sputtered 1-inch dual-diaphragm and Ultra Linear Series electronics combine to provide an extremely smooth frequency response.
Four selectable polar patterns allow the microphone to be used for every recording technique and two bass cut filters suppress low-frequency noise. Extremely low self noise and high headroom result in a dynamic range of 126 dB, which is wider than that of digital recording equipment.
Switchable 10-dB and 20-dB preattenuation pads let you record instruments with sound pressure levels beyond 150 dB SPL at less than 0.5% THD.

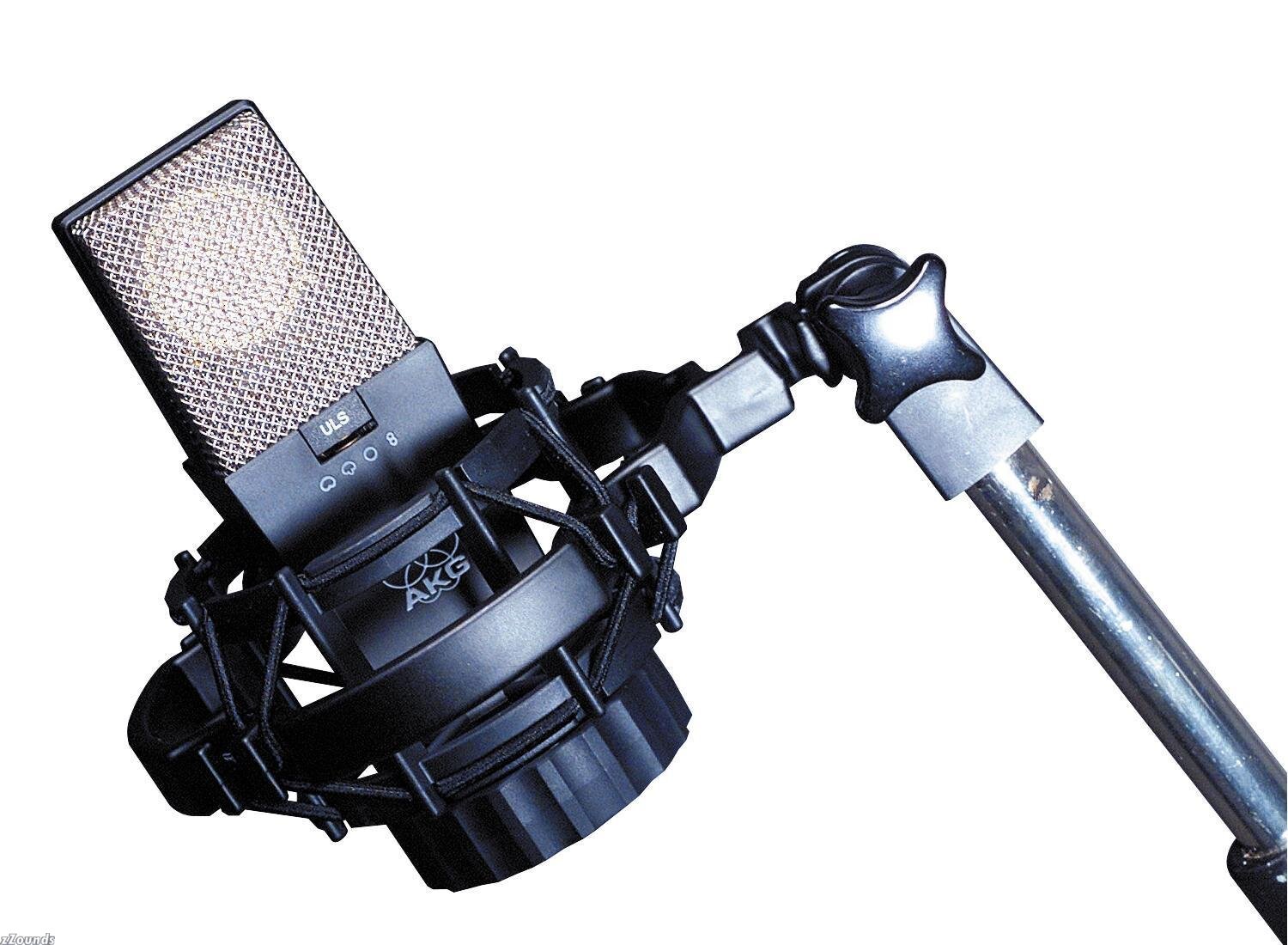

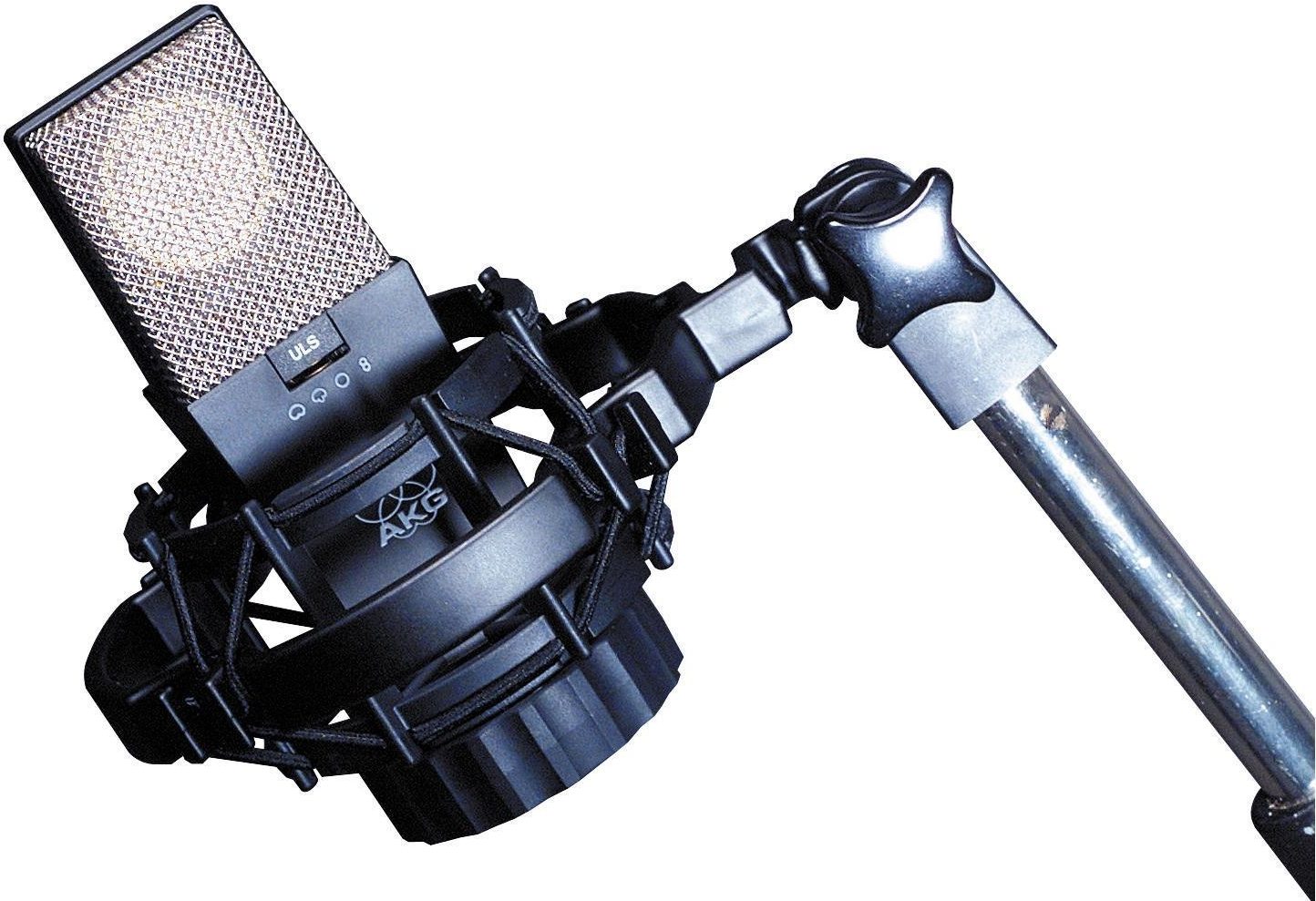

Complete with spider type suspension, windscreen, and indivi-dual frequency response printout.
Technical Info
Frequency Range: 20 Hz to 20 kHz

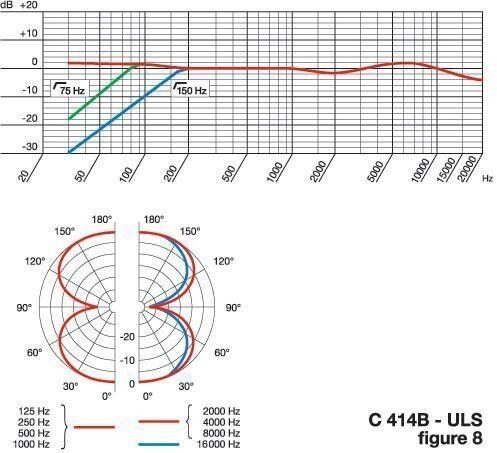

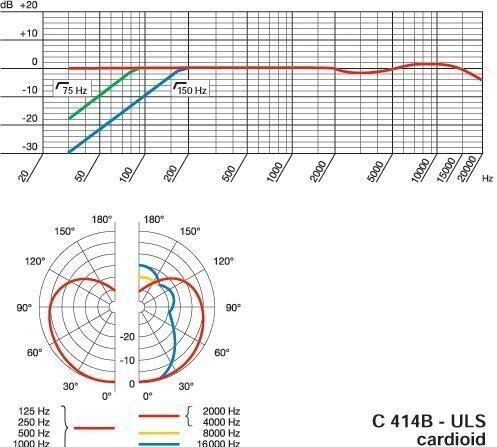

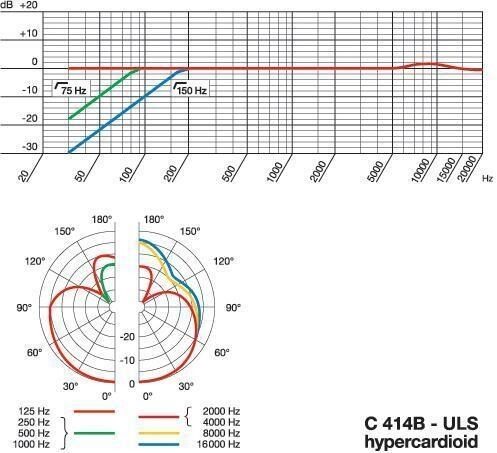

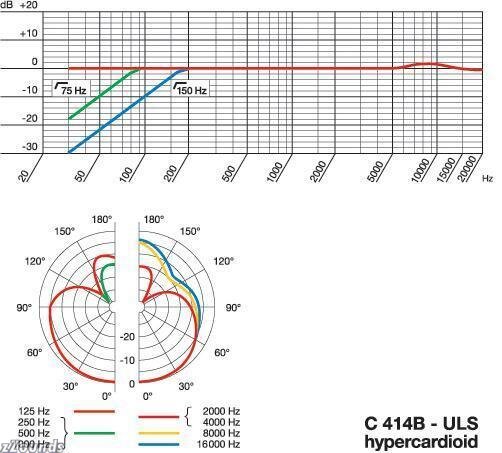

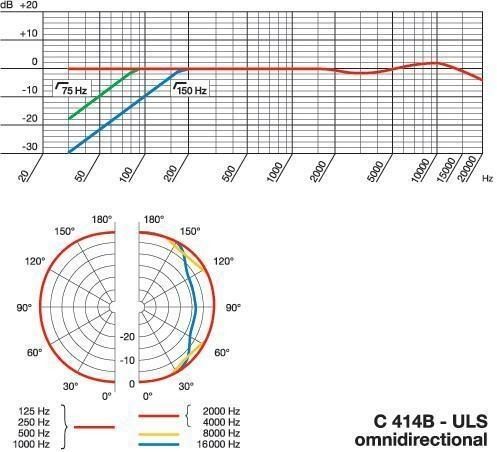

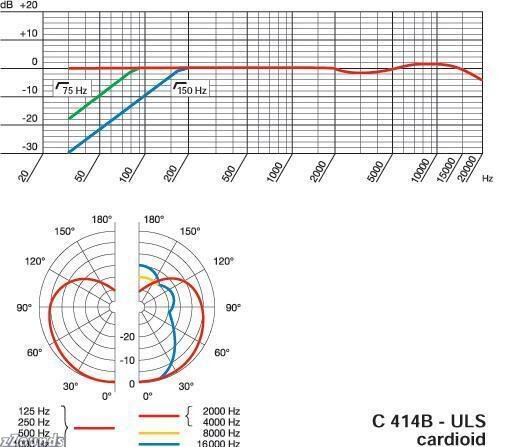

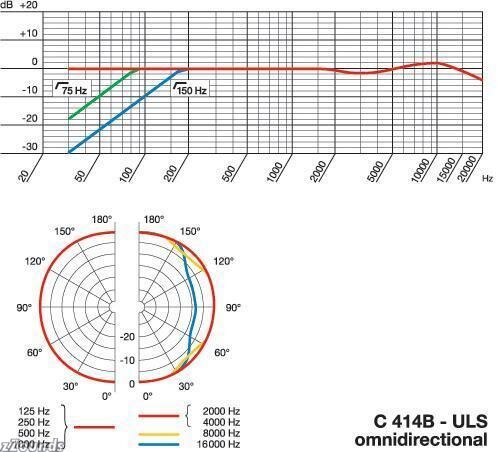

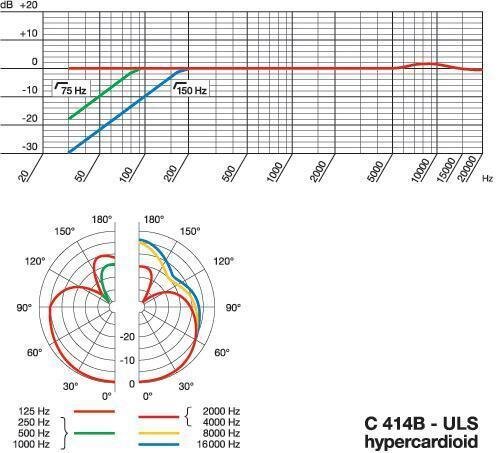

Polar Patterns: Cardioid, Hypercardioid, Omnidirectional, and Figure-8
Preattenuation: -10 dB, -20 dB switchable
Basscut Filter: 12 dB/octave roll-off at 75 Hz or 150 Hz
Sensitivity: 12.5 mV/Pa (-38dBV) (all patterns)
Impedance: 180 ohms
Equivalent Noise Level: 14 dB-A
Maximum SPL for 0.5% THD 140 dB (160 dB@-20 dB) at 1 kHz 134dB (154dB@-20dB) 30Hz-20kHz
Power Requirement: 9-52 V phantom power to DIN 45596
Current Consumption: approximately 2 mA
Size: 141 x 45 x 35 mm (5.6 x 1.8 x 1.4 in.)
Net/Shipping Weight: 320/920 g (11.3 oz. /2.1 lbs.)
