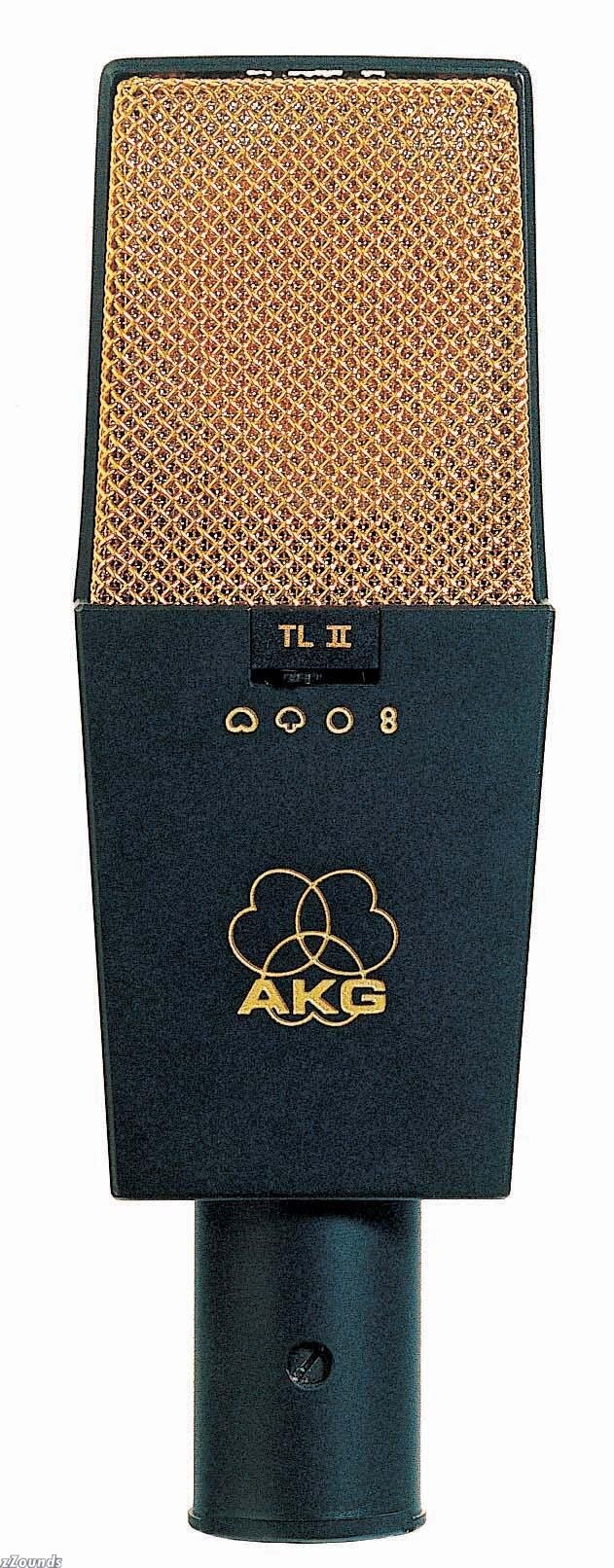

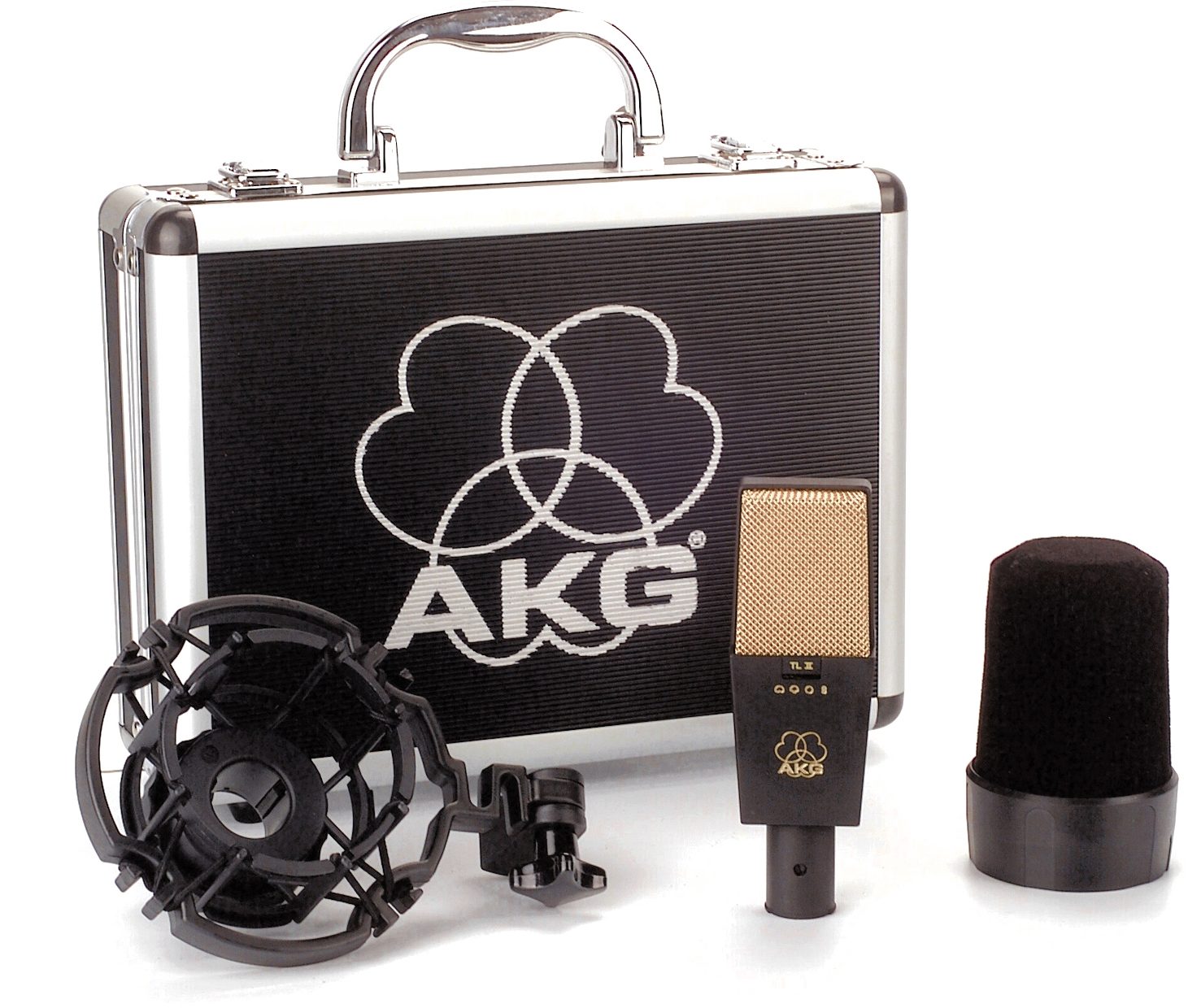

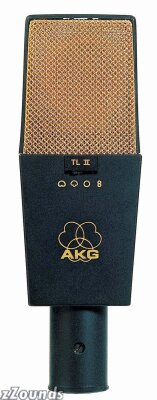

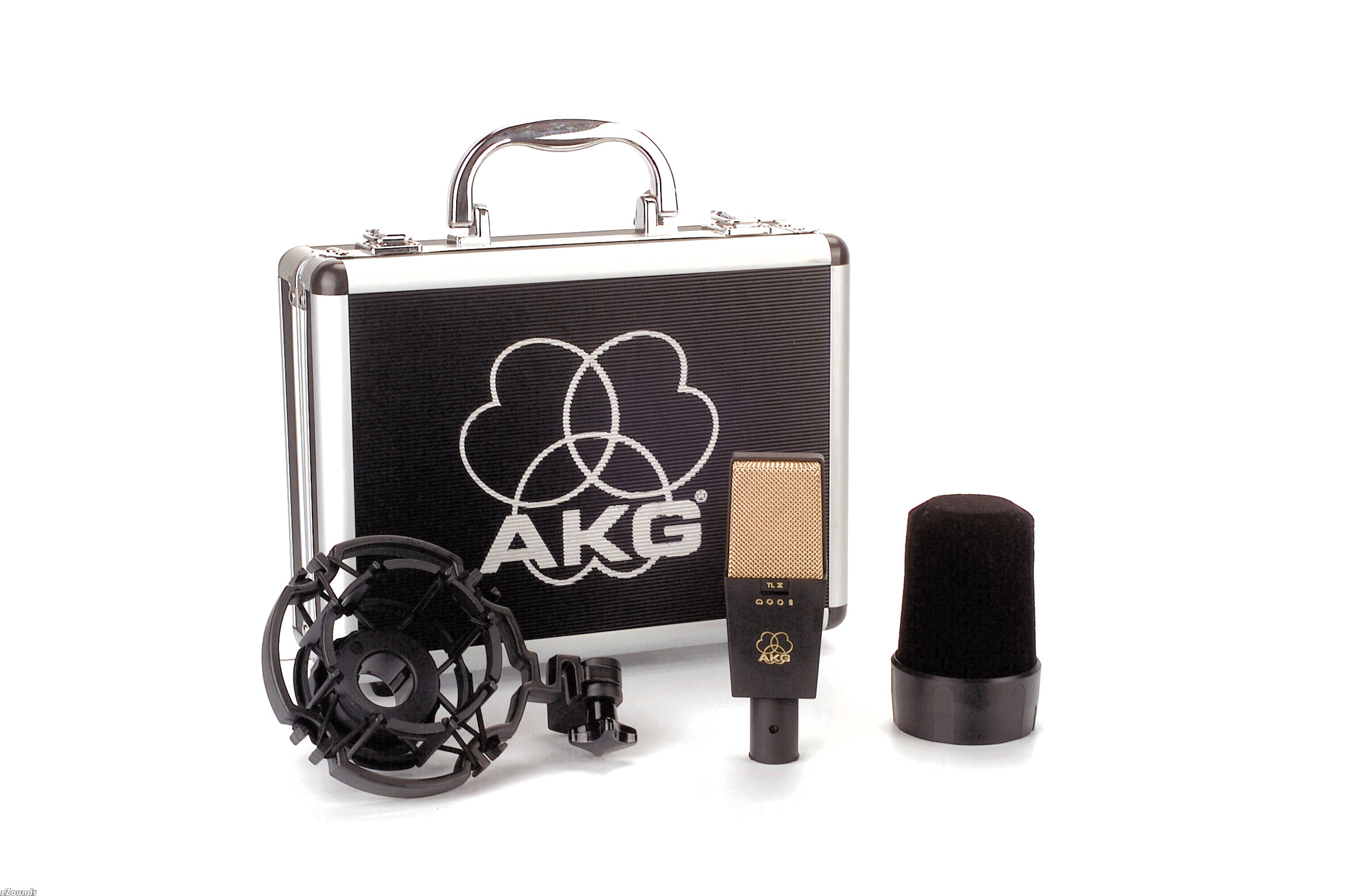

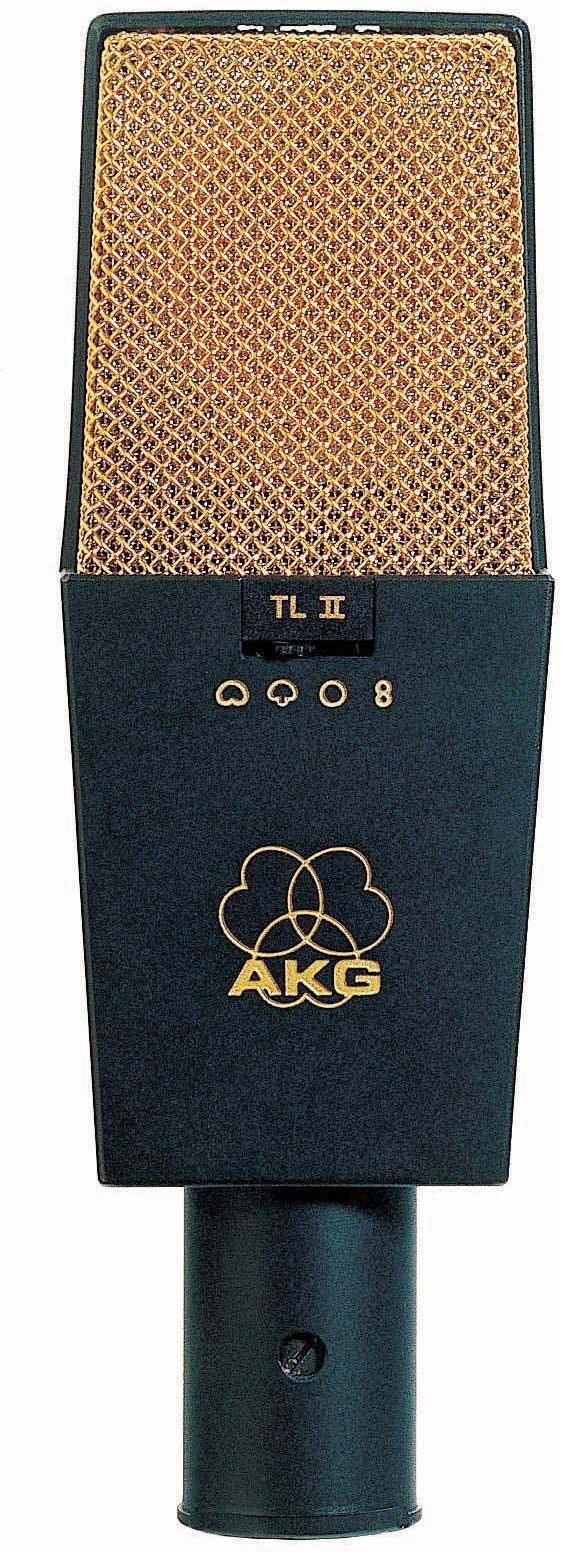

The C414BTLII is a 1 in. dual diaphragm pressure gradient microphone, offering 4 polar patterns (omni, cardioid, hypercardioid, and figure eight), with 3-position bass cut switch (12dB/octave, 75 Hz, or 150 Hz) and switchable pre-attenuation pad (-10dB or -20dB) to ensure accurate reproduction and up to 160dB SPL capacity. Its gold grill and lettering distinguishes it from C414BULS. The C414BTLII comes with W414 windscreen, H-100 suspension mount, SA183 stand adapter, and serialized frequency response chart.
Technical Info

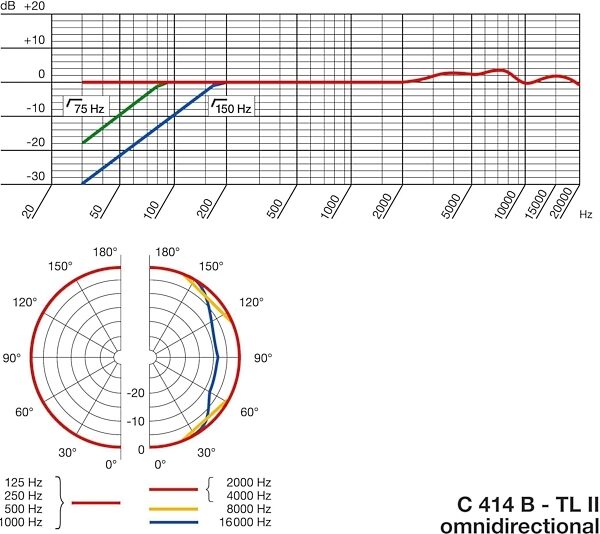

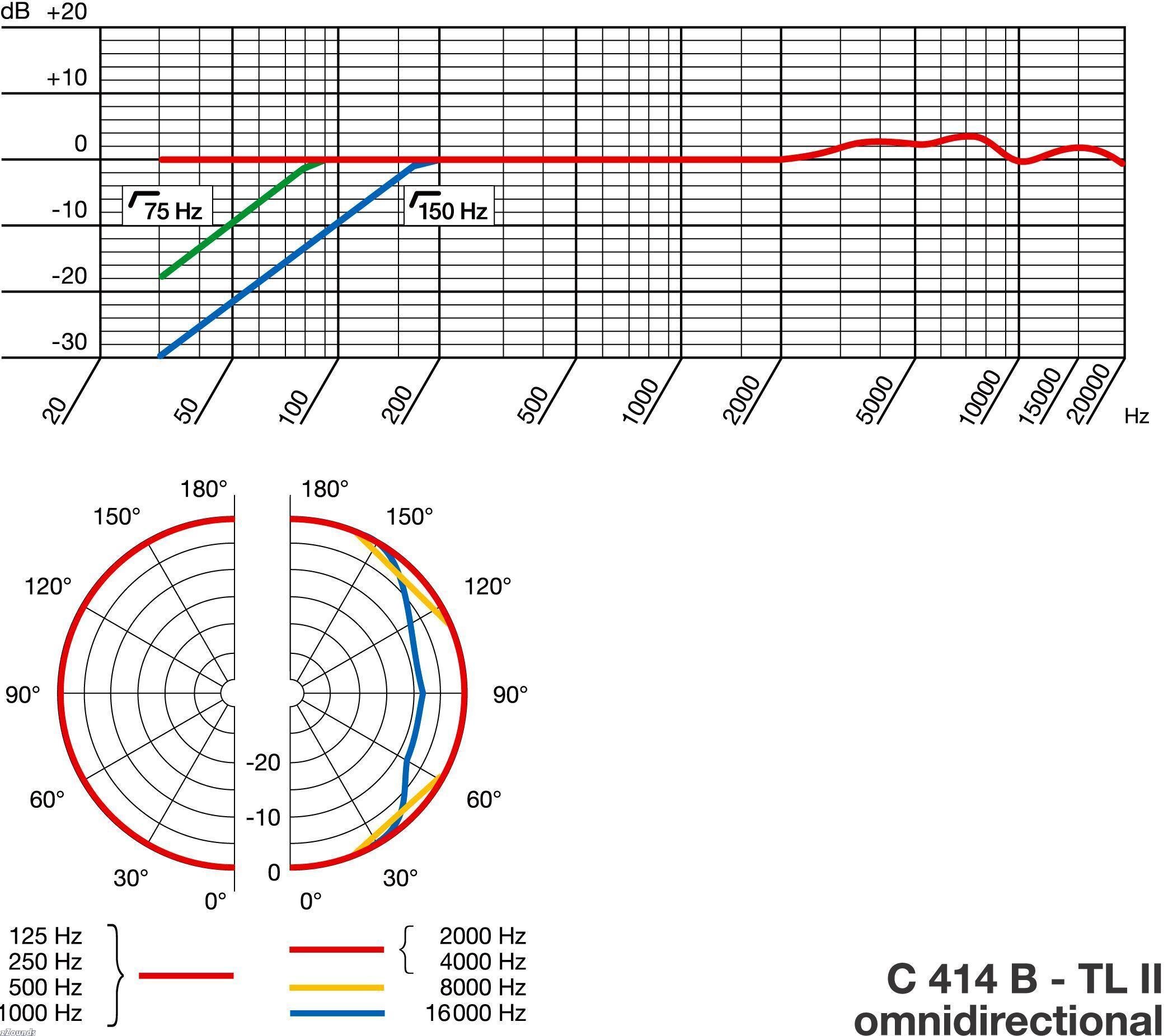

Frequency Range: 10 Hz to 20 kHz

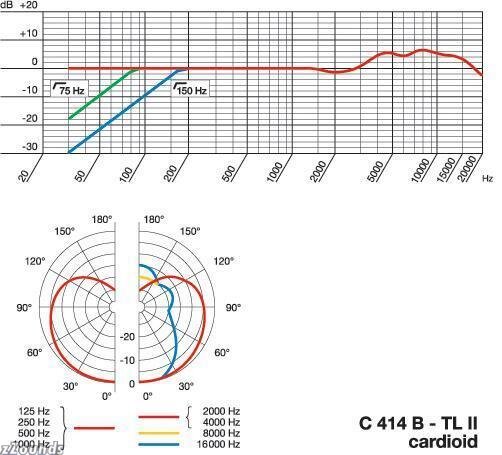

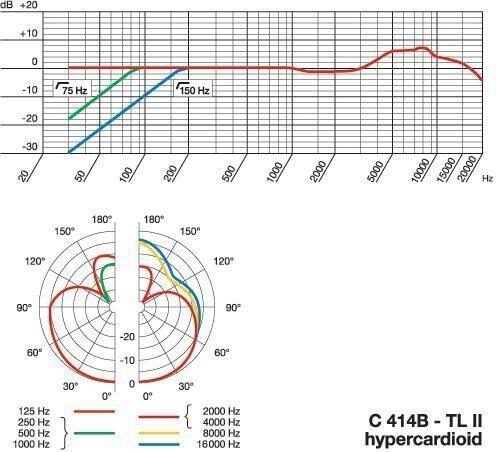

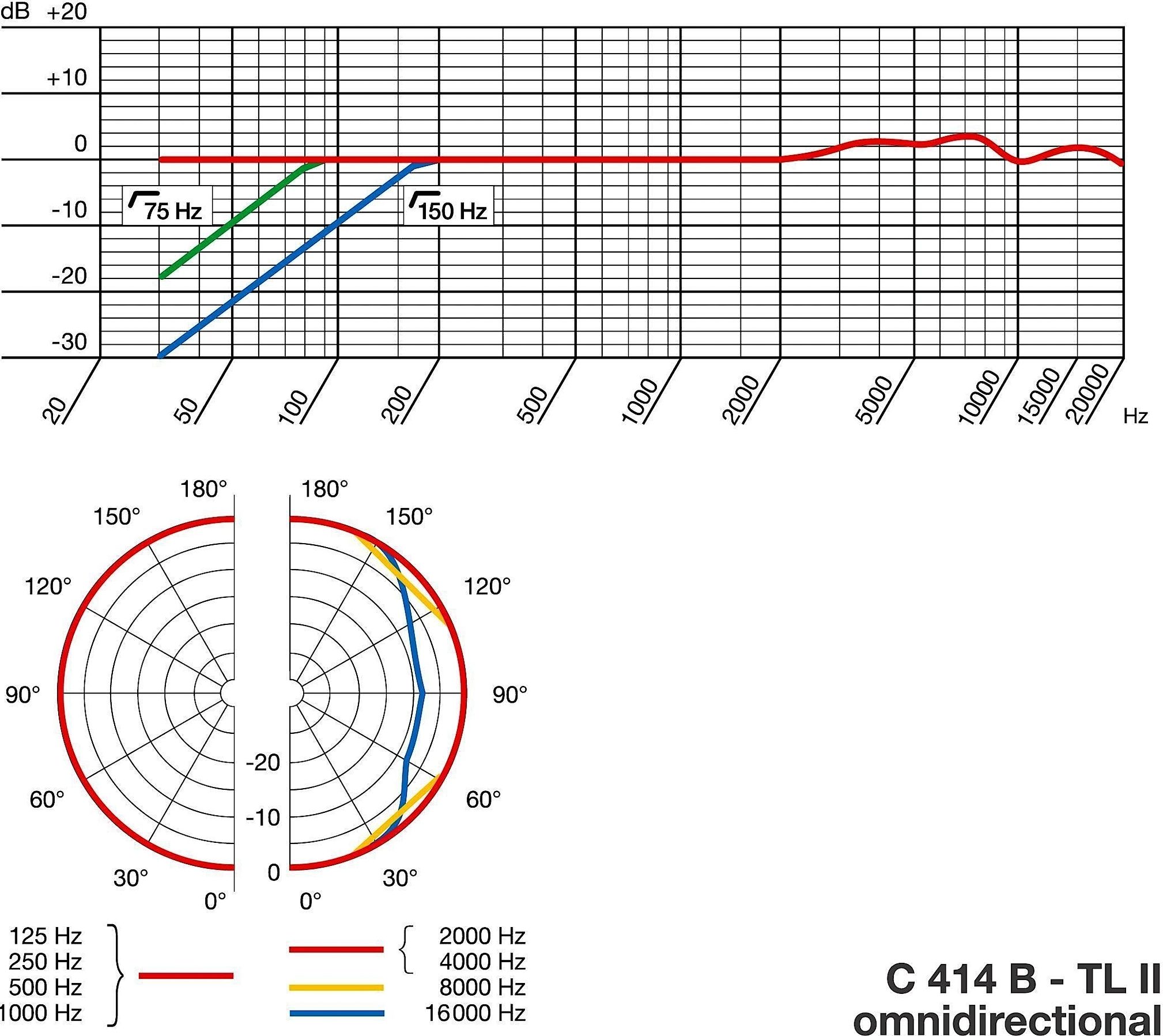

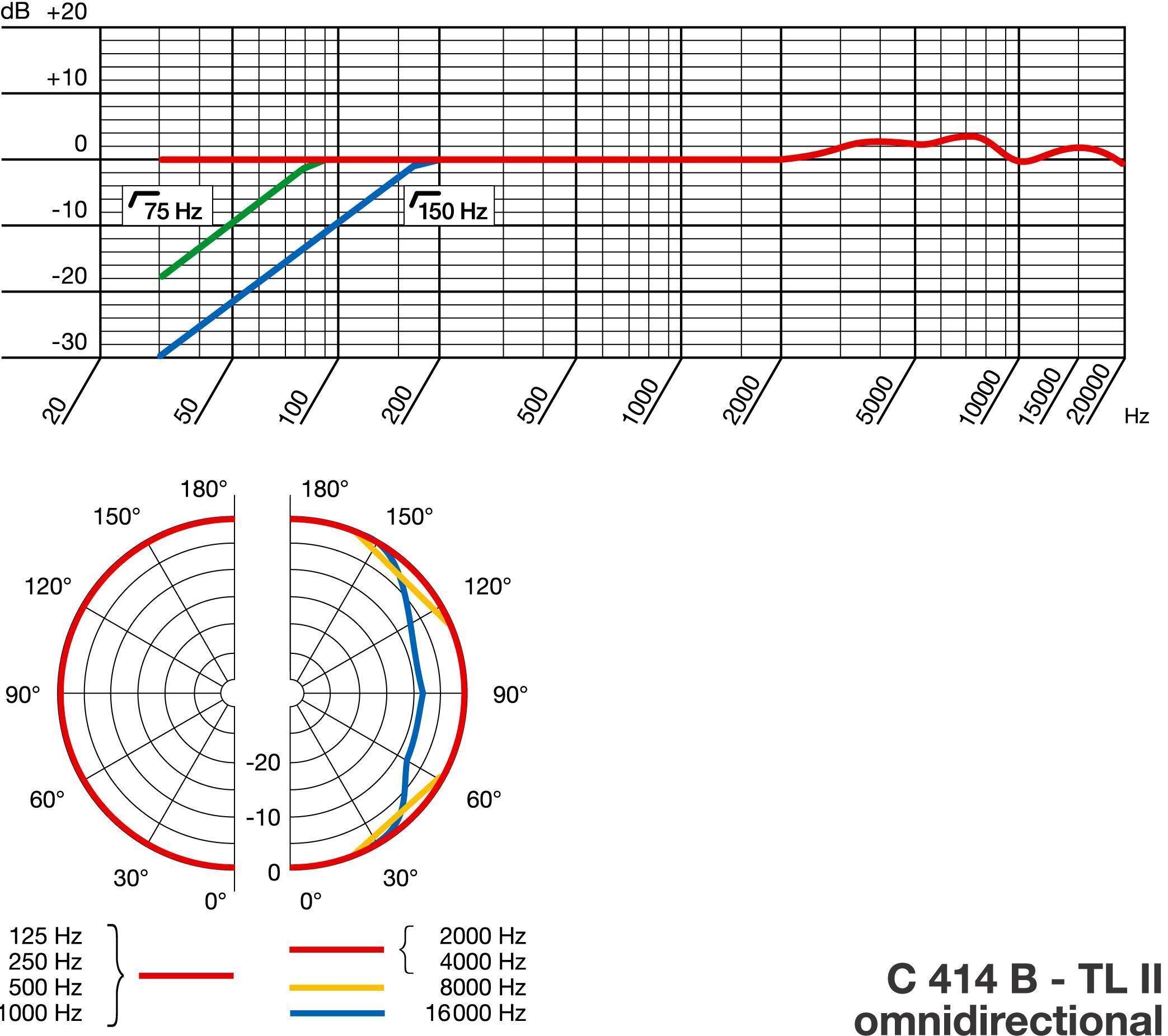

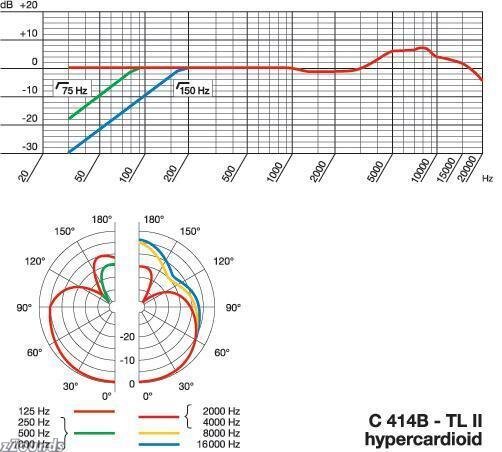

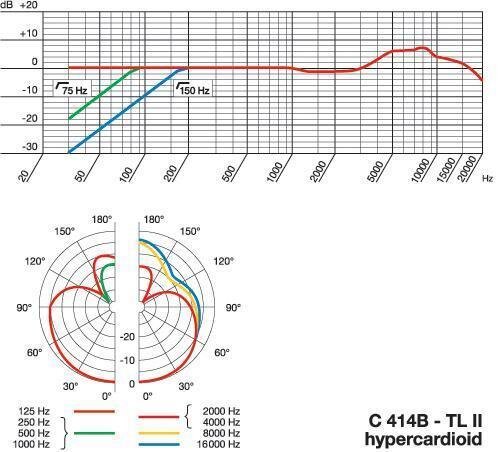

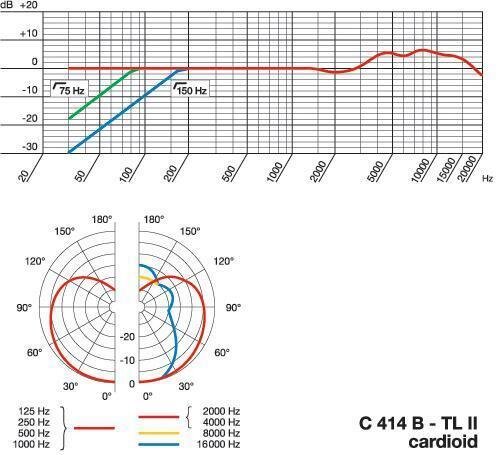

Polar Patterns: Cardioid, Hypercardioid, Omnidirectional, and Figure-8
Preattenuation: -10 dB, -20 dB switchable
Basscut Filter: 12 dB/octave roll-off at 75 Hz or 150 Hz
Sensitivity: 12.5 mV/Pa (-38 dBV) (all patterns)
Impedance: 180 ohms
Equivalent Noise Level: 14 dB-A
Maximum SPL for 0.5% THD 14 0dB (160 dB @ -20 dB) at 1kHz 134dB (154dB@-20dB) 30Hz-20kHz
Power Requirement: 9-52 V phantom power to DIN 45596
Current Consumption: approximately 2 mA
Size: 141 x 45 x 35 mm (5.6 x 1.8 x 1.4 in.)
Net/Shipping Weight: 320/920 g (11.3 oz./2.1 lbs.)
