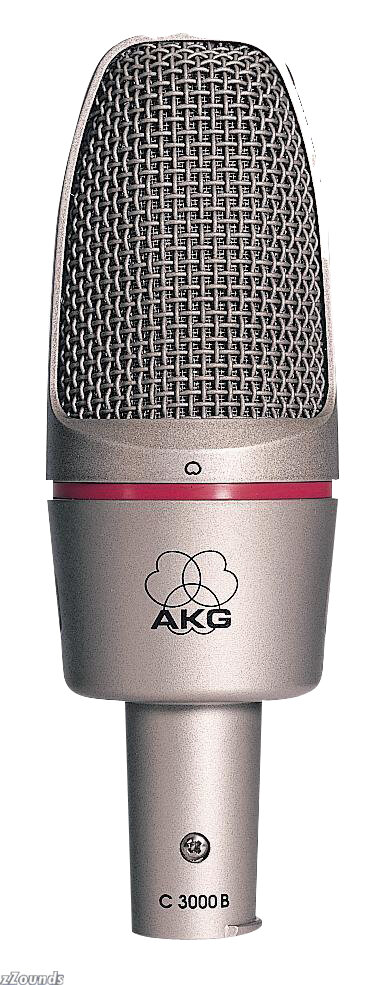

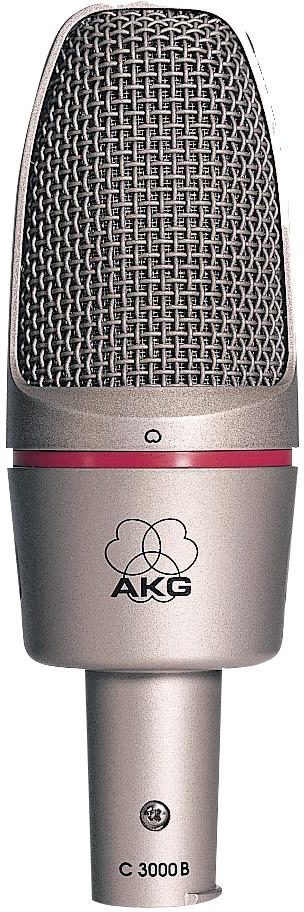

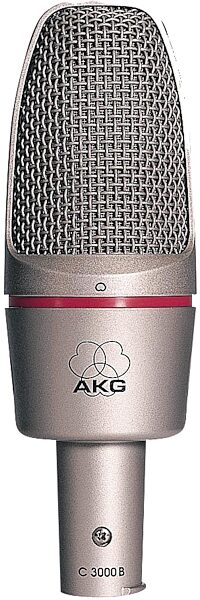

The C 3000 B is a large-diaphragm cardioid condenser microphone for universal use, designed and made specifically to suit the needs of musicians as well as the rigors of the stage.
Features

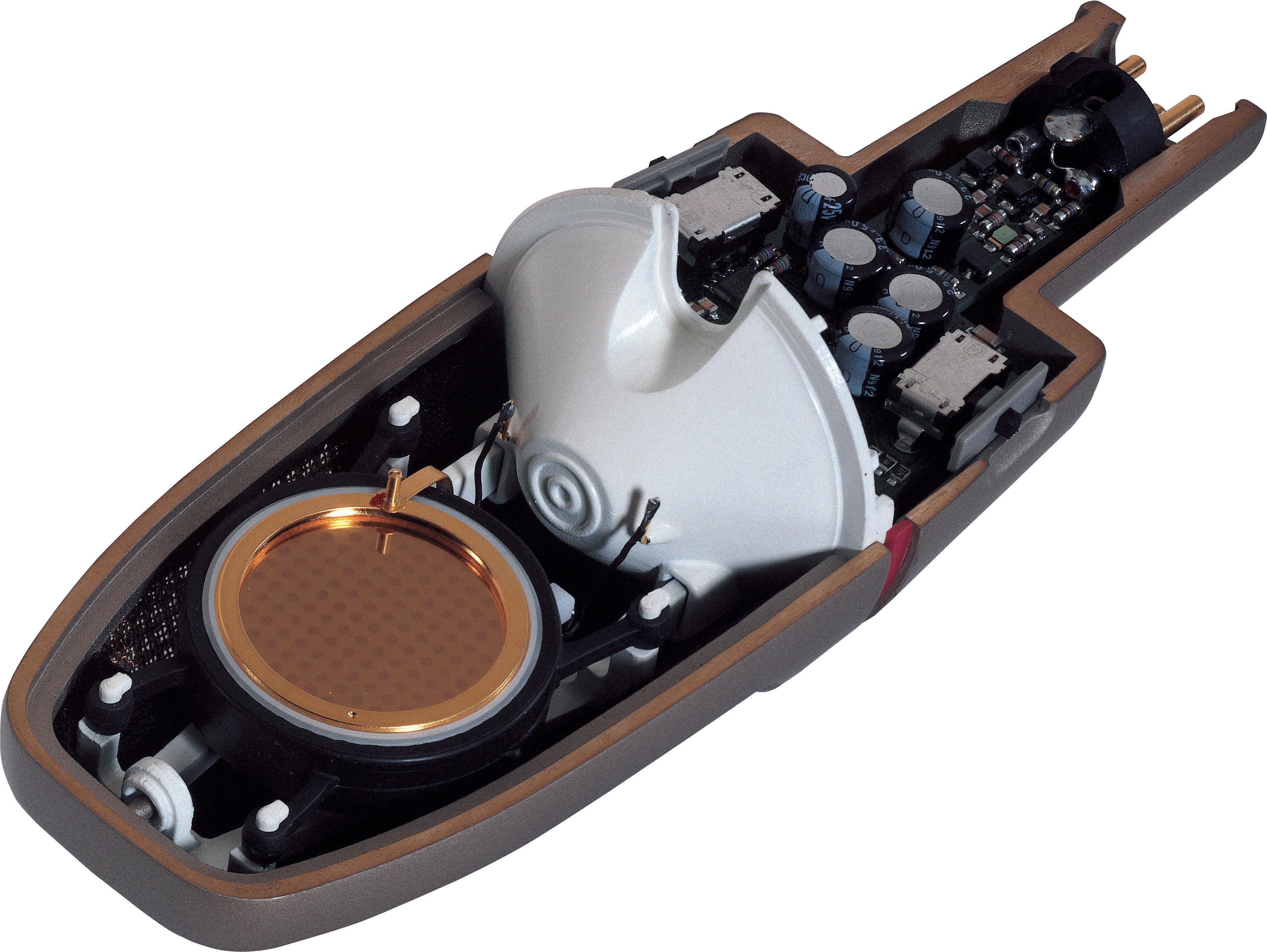

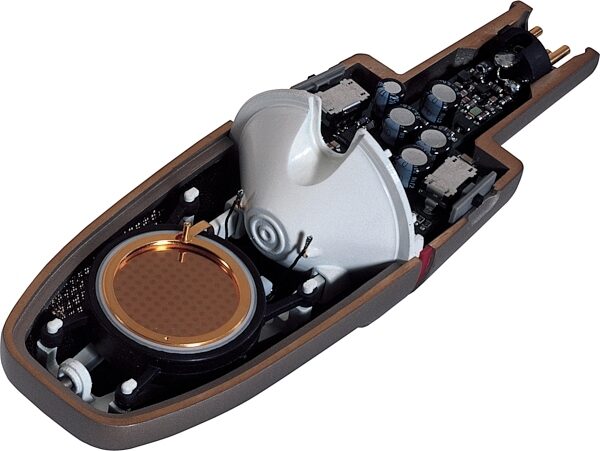

"True" large diaphragm, with active mylar foil diameter of 1 in. (25 mm)
Cardioid pattern for both vocal and instrument applications
Classic character and rugged construction
Applications
In the studio or on stage
Solo or choral vocals
Brass and woodwinds
Acoustic string instruments
Electric guitar amps
Drum overhead miking
Technical Info

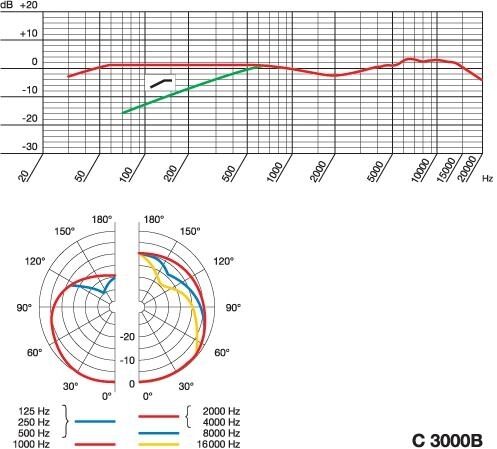

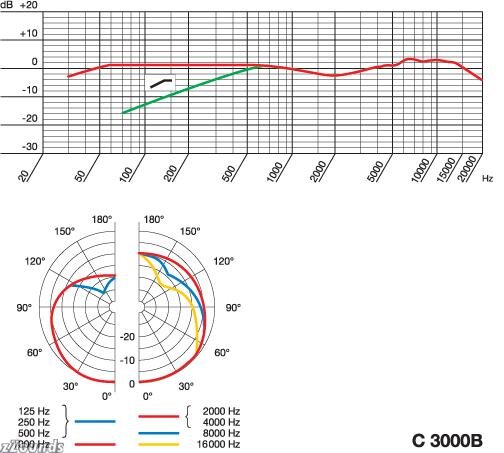

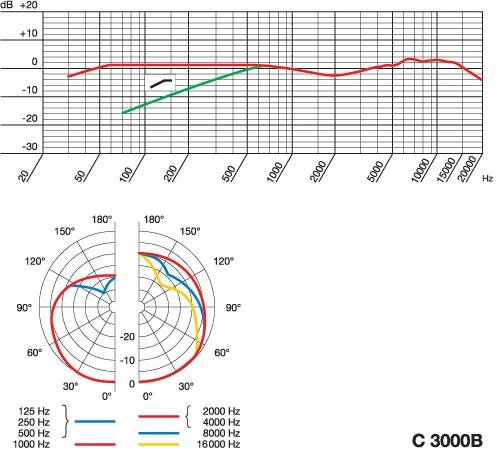

Polar Patterns: Cardioid
Frequency Range: 20 Hz To 20 kHz
Sensitivity: 25 Mv/Pa (-32dBv)
Max. SPL for 0.5% THD: 140/150 dB
Equivalent Noise Level: 14 dB-A
Signal/Noise Ratio (A Weighted): 80 dB
Preattenuation: -10 dB, Switchable
Basscut Filter: 6 dB/Octave Below 500 Hz
Impedance: 200 Ohms
Recommended Load Impedance: >1000 Ohms
Power Requirement: 9 - 52 V Phantom Power to Din 45596
Current Consumption:< 2 Ma
Connector: 3-Pin Male XLR
Finish: Silver Gray
Size: 53 ø x 162 mm (2.1 ø x 6.4 In.)
Net/Shipping Weight: 320/950 g (11.3 oz./2.1 lbs.)
Optional Accessories: B 18, PF 100, MK 9/10, SA 41/1, W 414

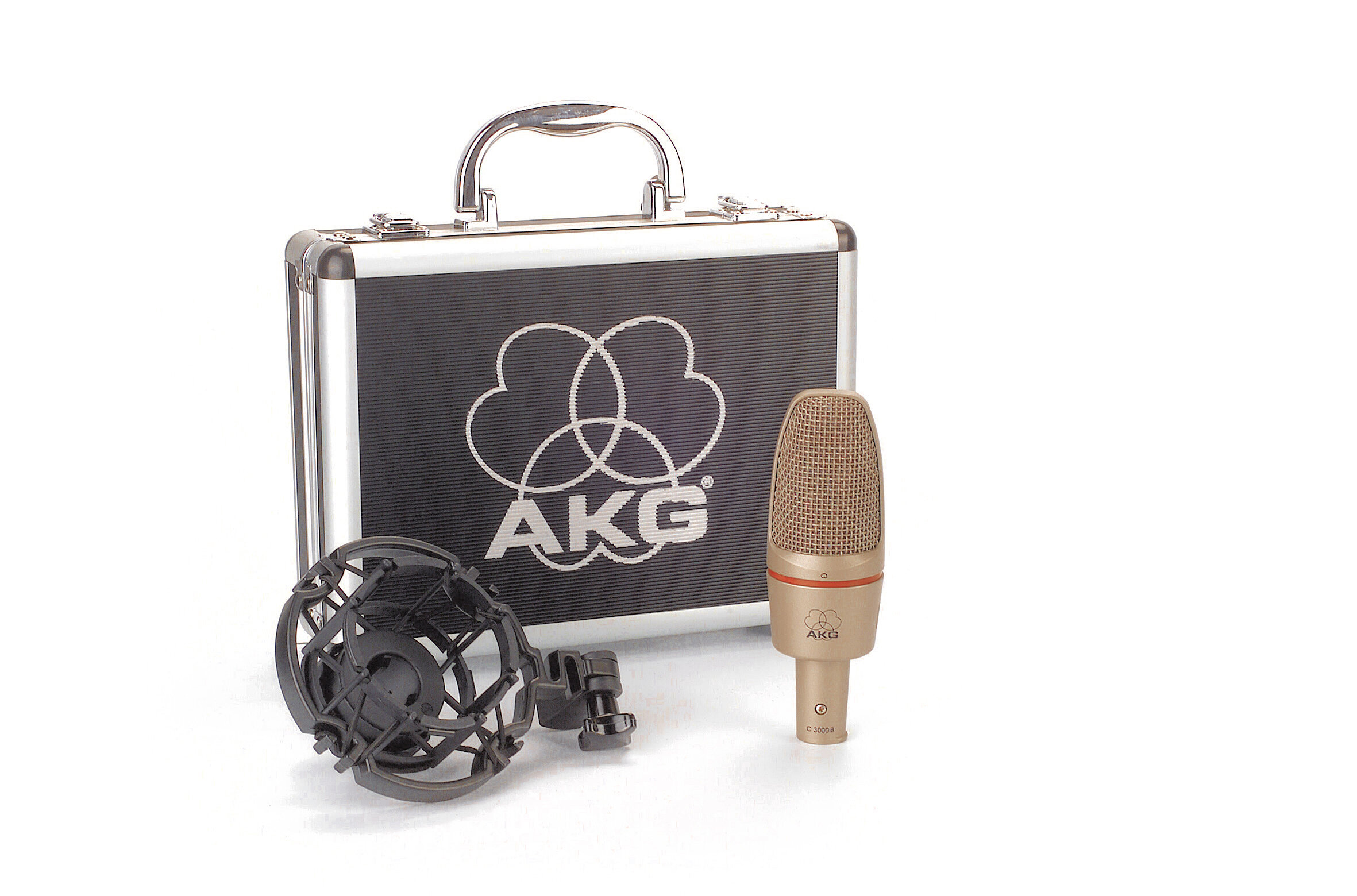

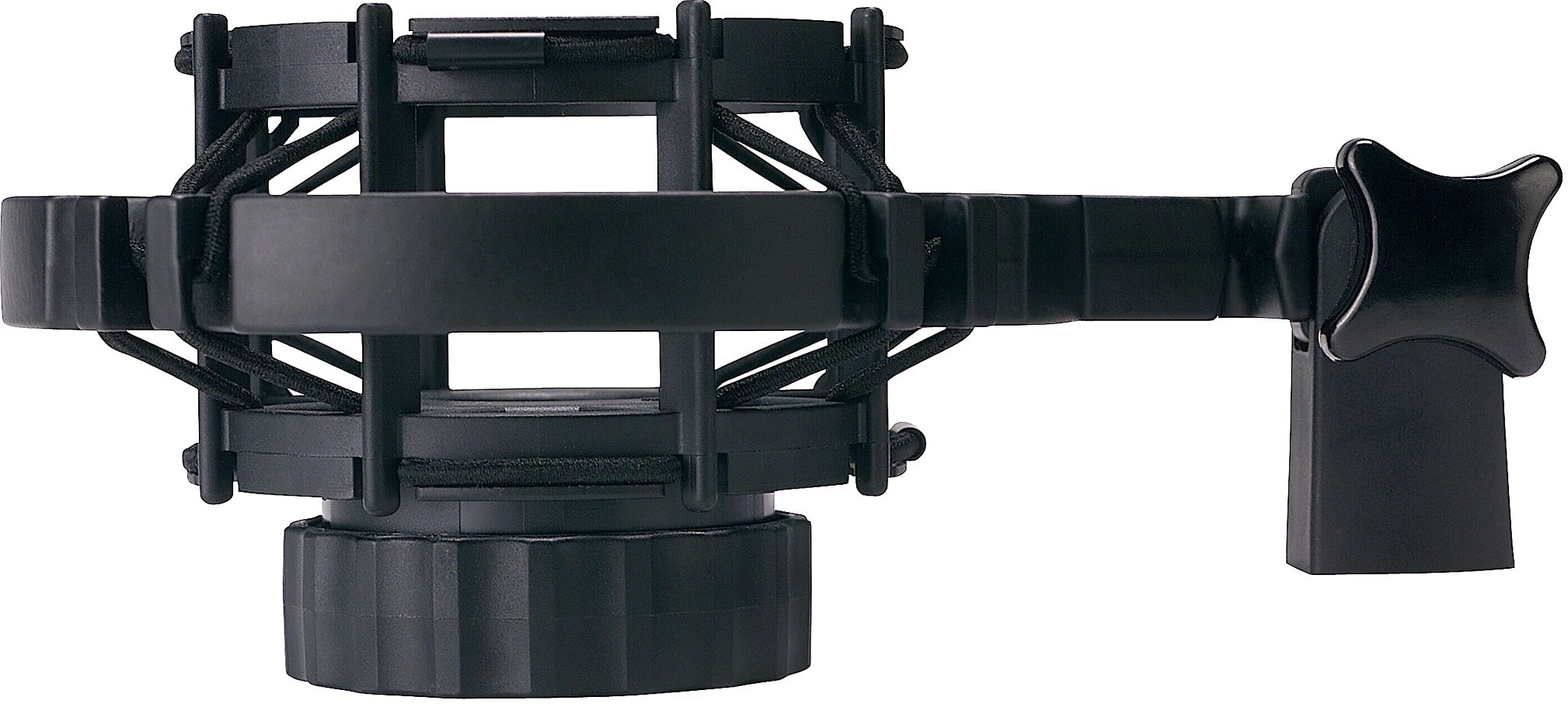

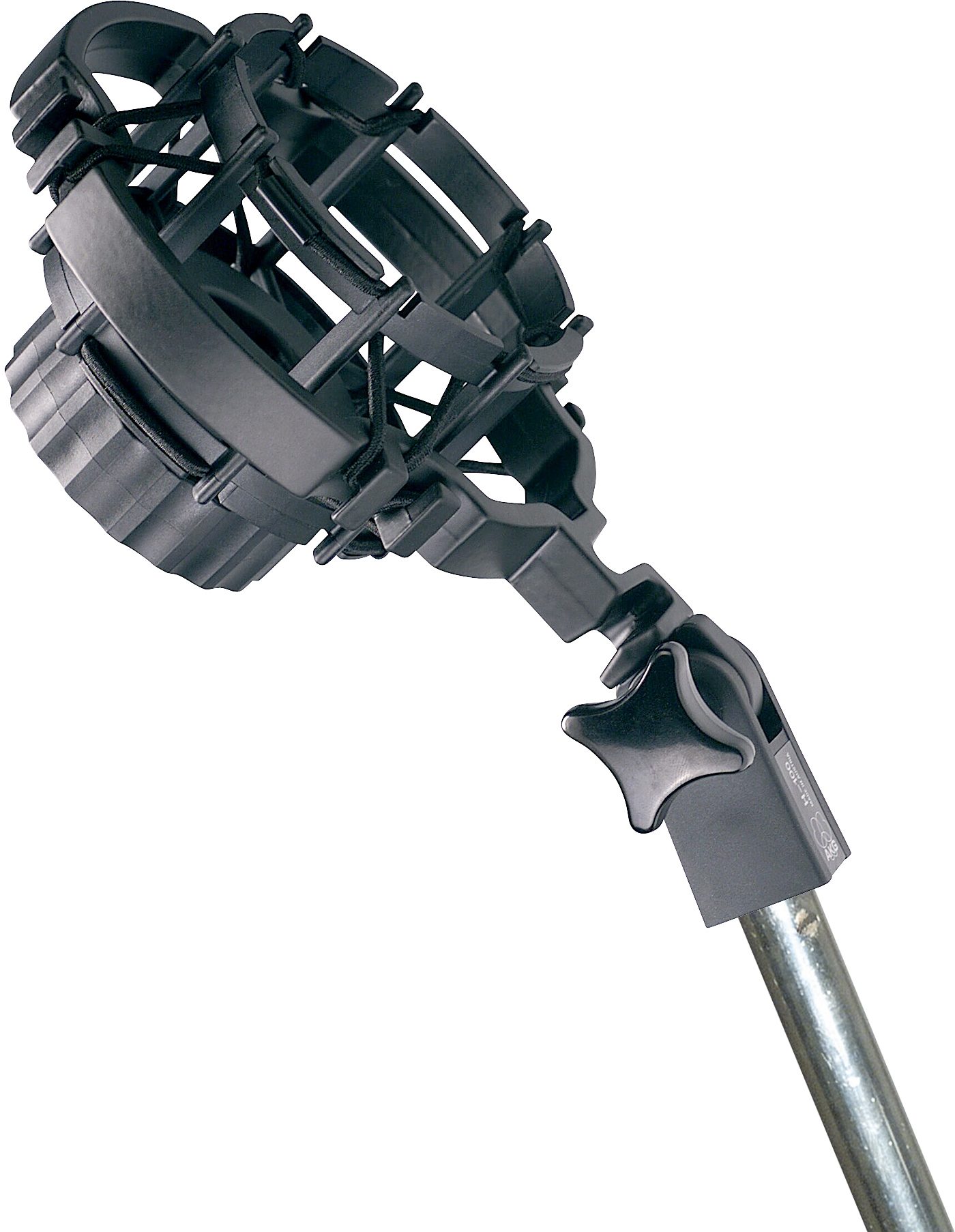

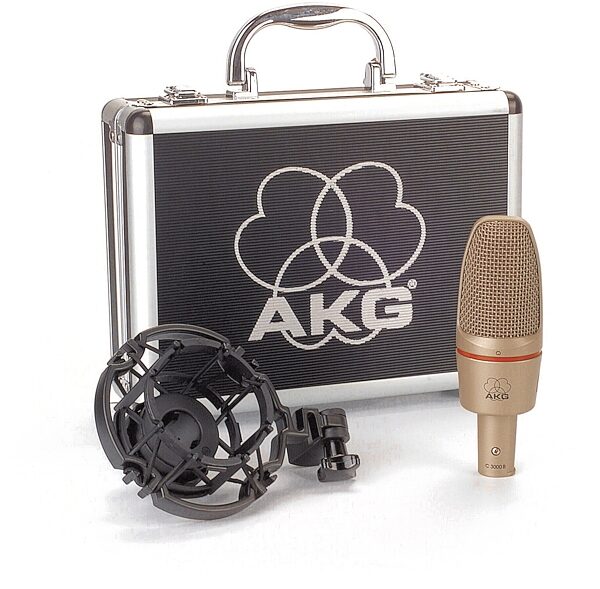

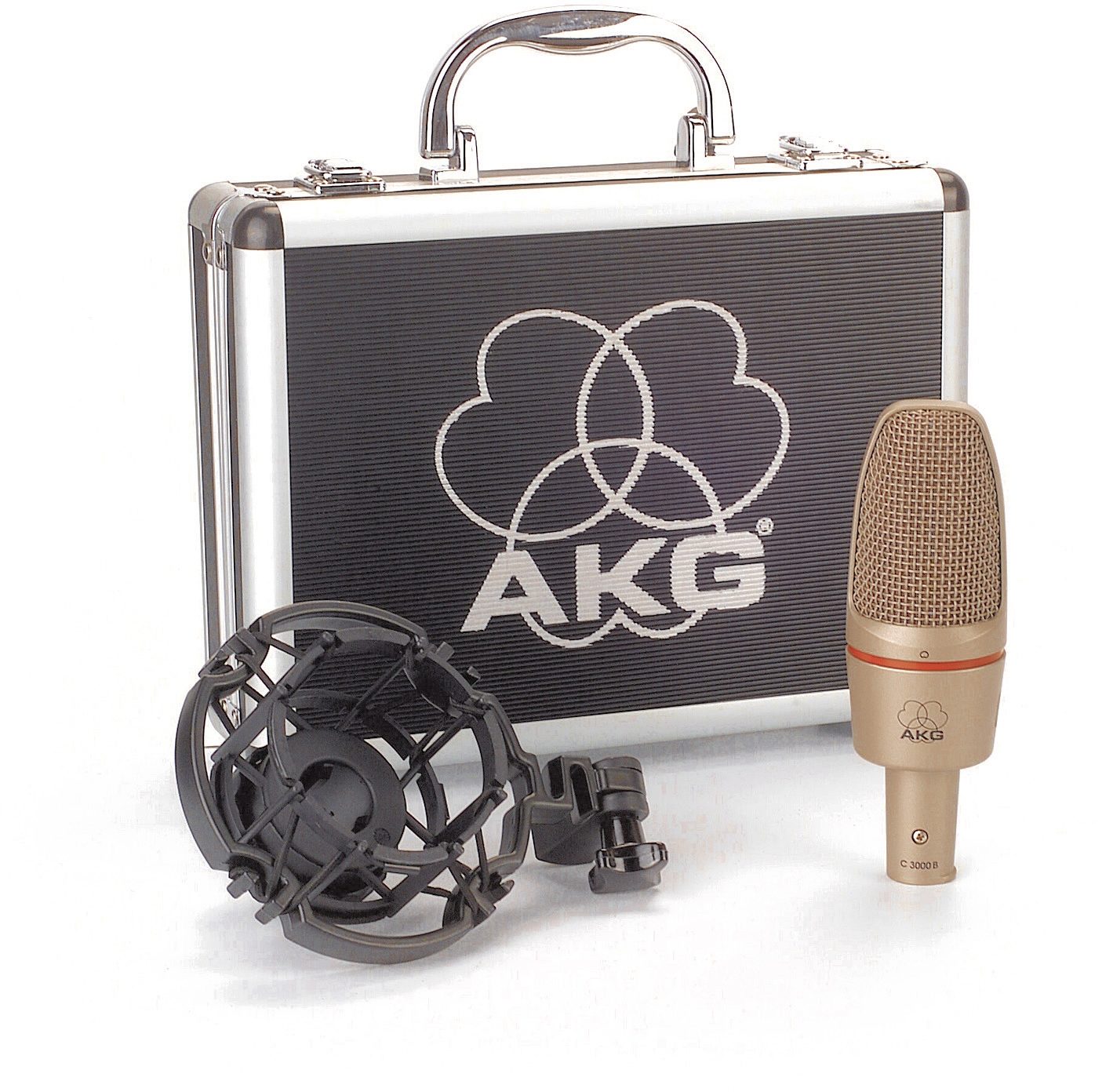

This large-diaphragm condenser mic works well with any audio source. Cardioid pattern for tight pickup of vocals, brass, strings, guitar amps, and overhead drums. One-inch Mylar foil diaphragm captures frequencies from 20 Hz to 20 kHz. Switchable -10 dB pad. Includes shockmount.
