American Audio QD1 MKII Professional Preamp DJ Mixer

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

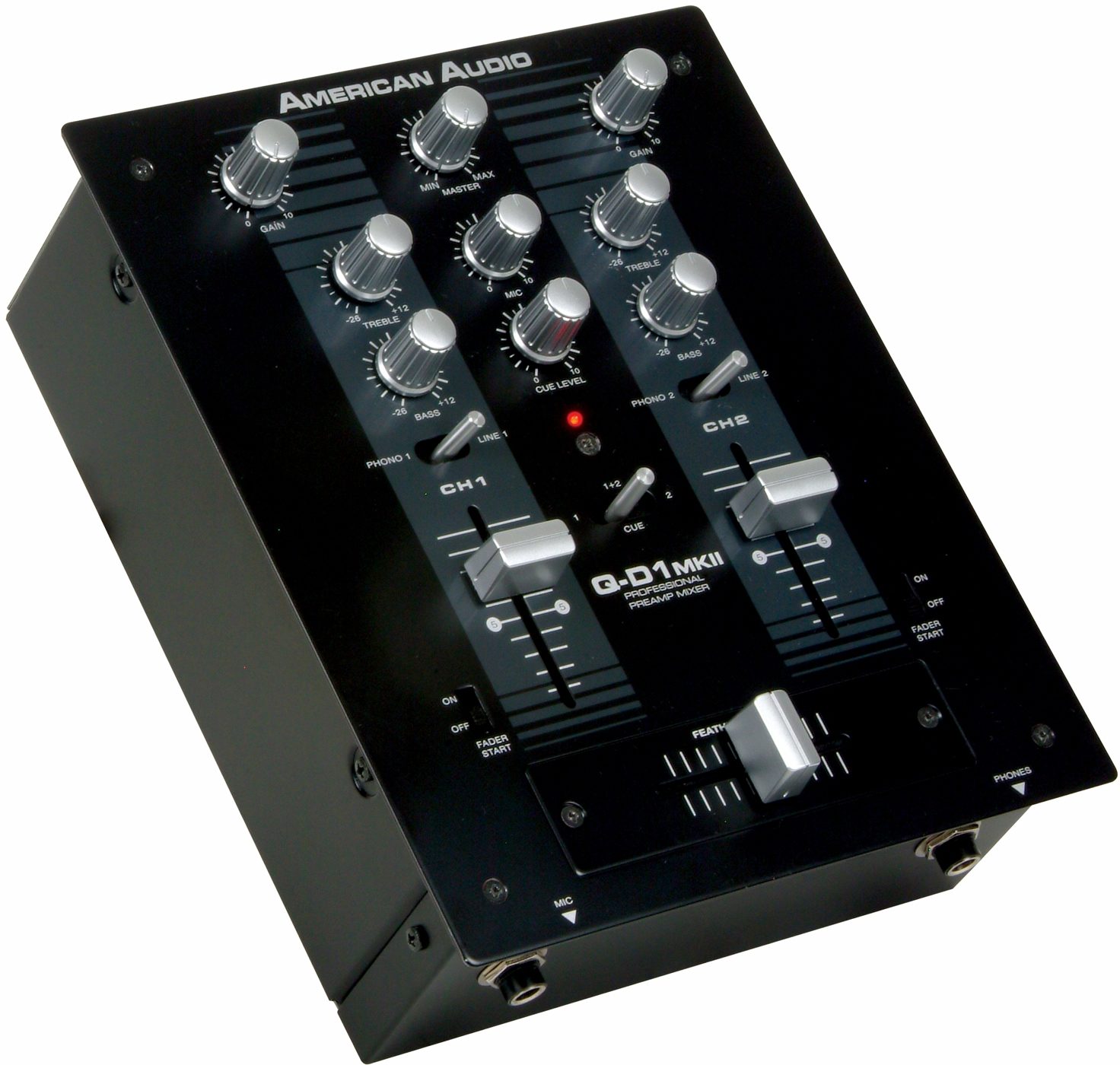

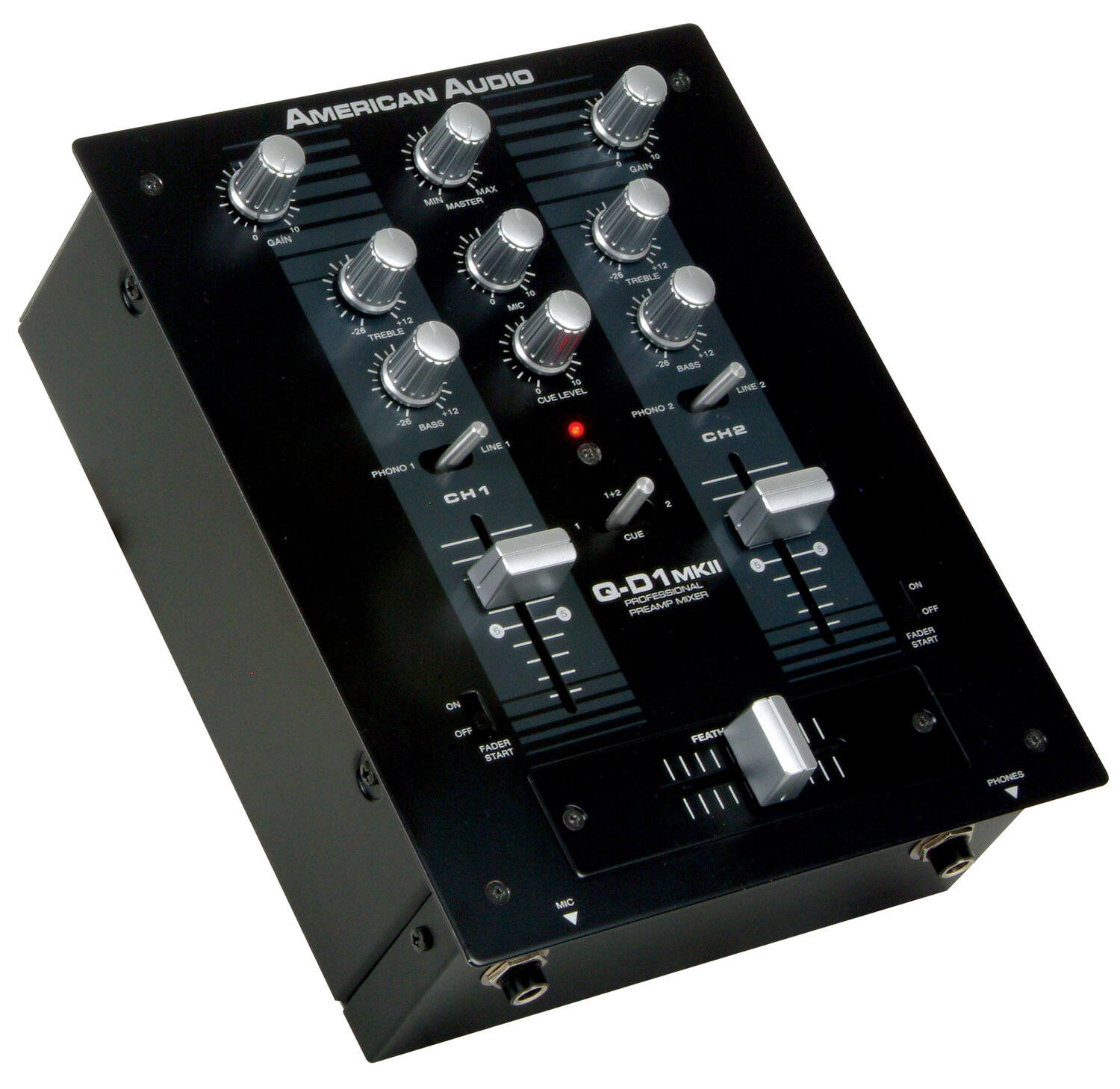

American Audio QD1 MKII Professional Preamp DJ Mixer, Main

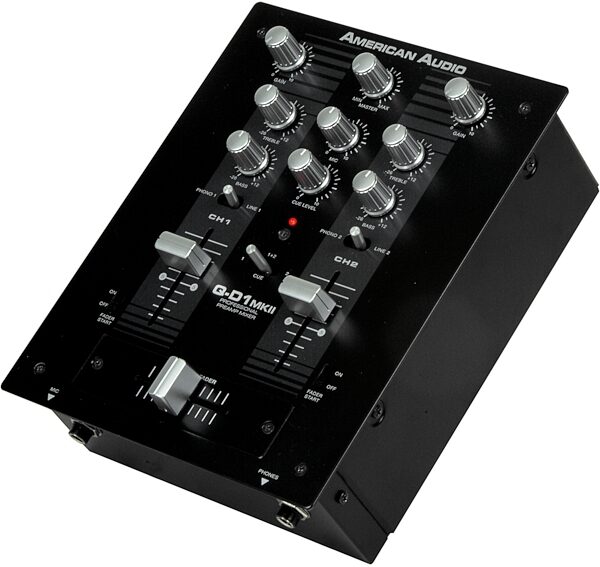

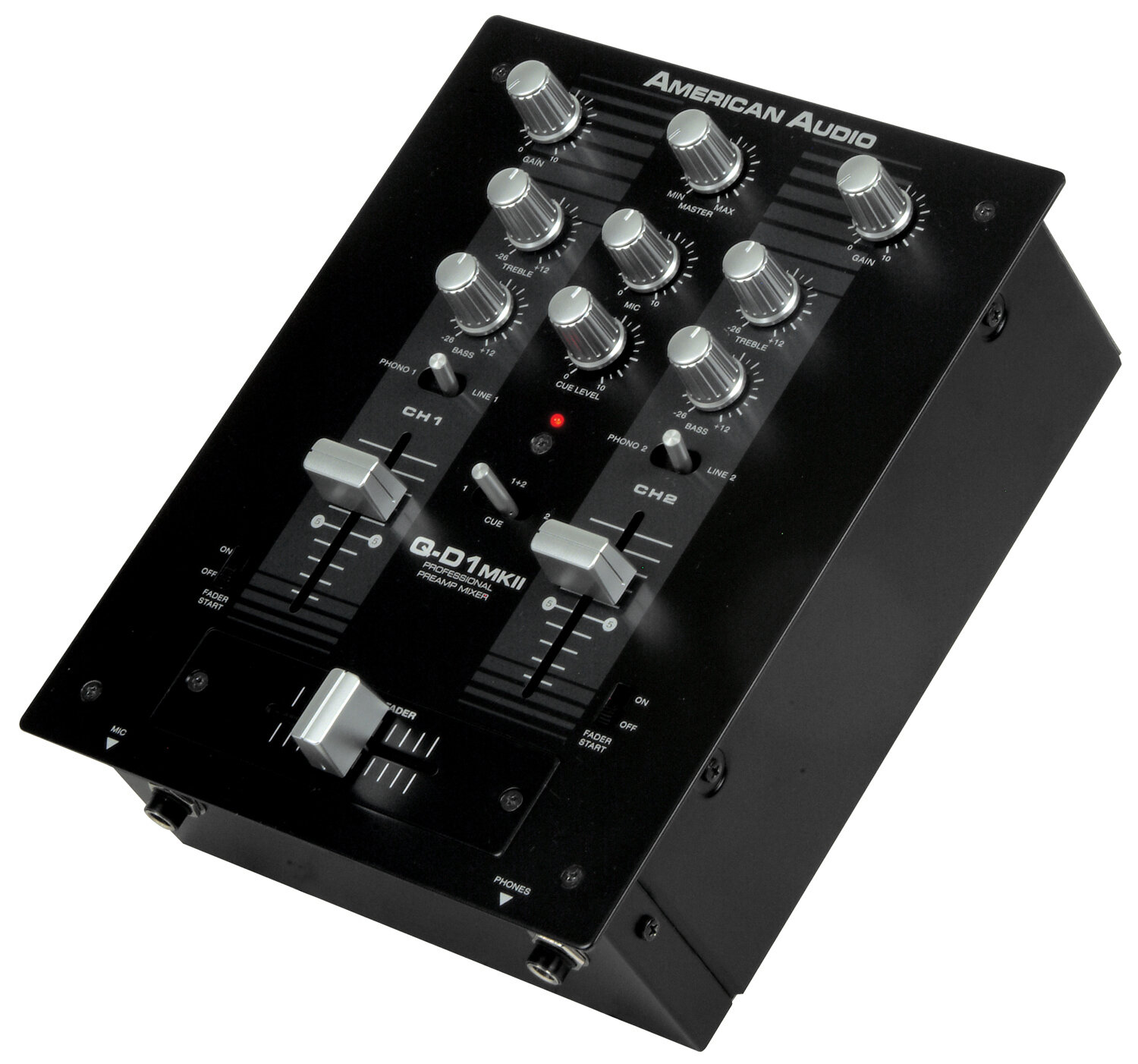

American Audio QD1 MKII Professional Preamp DJ Mixer, Angle
American Audio QD1 MKII Professional Preamp DJ Mixer, Main American Audio QD1 MKII Professional Preamp DJ Mixer, Angle
Get the party moving with this affordable and easy-to-use DJ mixer. It includes professional features that are optimized for beginner and intermediate DJs.

The professional two channel American Audio QD1 MKII DJ mixer has easy to use features whether you are mixing vinyl or CDs. Great for parties or clubs, the QD1 MKII has 2-band EQ built in to tweak your sounds and a 1/4 inch microphone input for voiceovers and announcements.

Plus it has a feather fader plus crossfader to blend the output signals of channel one and two. Great for beginners but the features that working DJs demand, the American Audio QD1 MKII mixer has the tools to keep your beat thumping and the crowd dancing all night.

American Audio QD1 MKII Preamp DJ Mixer Features

- Fader Q Start
- Independent Gains Per Channel
- Q-Start Compatible (for use with compatible American Audio CD Players )
- Front Access Headphone Jack
- Low Residue Resistance Crossfader
- Equipped with high quality Crossfader (Replaceable)
- 2 Band EQ per channel
- 2 Phono and 2 Line Level Inputs
- High output to headphones
- Two Turntable Ground Prongs
- Cue Mixing
- Front Access 1/4 inch Mic Jack
- Extremely clean signal to noise ratio
- Record Out
- Power Switch

- Power Supply: AC 9v/1000mA
- Dimensions: 192(W) * 236(D) * 82(H) mm
- Weight: 5.5 Lbs./2.3 Kgs
- Crossfader: Low Residue Resistanced Crossfader.
- Power Consumption: 10 Watts Typical
- Headphone Impedance: 16 Ohms
- Environmental Condition: Operating Temperature 5 to 35 deg. C, Humidity 25 to 85% RH (non-condensing)
- Input/Output Impedance & Sensitivity (Level/Impedence): (Master set to 0dBV output, Load=100K OHM, maximum gain)
- LINE: 10K OHM /-14dBV (200mV) +/-2dB
- Phono: 47K OHM /-50dBV (3.16mV) +/-2dB
- Mic: 2.2K OHM /-60dBV (1mV) +/-2dB
- Master: 1K OHM
- Rec: 1K OHM /-10dBV (316mV) +/-2dB
- Maximum Input (1KHz, Master Output THD=0.5%, EQ falt, Maximum Gain)
- Line: More than +4dBV
- Phono: More than -32dBV
- Mic: More than -42dBV
- Maximum Output (THD=1%, Maximum Gain, EQ at center position)
- Master (RCA): MORE THAN 18dBV (8V) at Load=100K OHM
- Phones: MORE THAN 4dBV (1.6V) at Load=32OHM
- Channel Balance: Within 3dB
- Output Noise (Maximum Gain, EQ flat, W/20KHz LPF, A-Weighted)
- Line: LESS THAN -90dBV
- Phono: LESS THAN -70dBV
- Mic: LESS THAN -60dBV
- Frequency Response (Master=0dBV output, Maximum Gain, EQ Flat)
- Line: 20-20KHz +/-1dB
- Phono: 20-20KHz +1/-1.5dB (RIAA)
- Mic: 20-20KHz +1/-2dB
- Note: 0dBV=1 Vrms
- Cross Talk: > 70dB @1Khz between left and right channels, > 70dB @1KHz between channels
- Channel Equalizer:
- Low: 12+/-2dB at 100Hz, -26+/-3dB at 100Hz
- Treble: 12+/-2dB at 10KHz, -19+/-3dB at 10KHz
- Fader Maximum Attenuation:
- Channel Fader: More than 80dB at 1KHz
- Crossfader: More than 80dB at 1KHz
