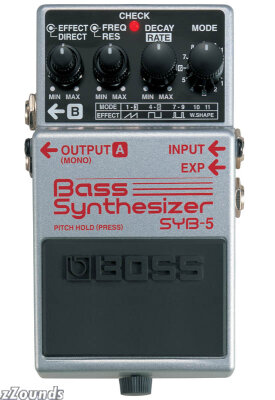

The BOSS SYB-3 was the world's first bass synthesizer to be packed into a compact pedal, and it found favor with experimentalists and tone aficionados alike. Today, the next-generation bass-synth pedal has arrived: the SYB-5. Utilizing the latest in DSP technology, the SYB-5 faithfully reproduces the classic sound characteristics of analog synthesizers with enhanced punch and power.
Features
11 DSP variations of saw, square, and pulse synth waves
Enhanced "Wave Shape" mode provides sharper sounds
Hold notes with the onboard pedal and jam over the top
Control filter cutoff and LFO rate via EV-5 expression pedal (sold separately)
Technical Info
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohms
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohms
Recommended Load Impedance: 10 k ohms or greater
Residual Noise: -96 dBu (IHF-A, Typ.); All knobs at center position
Connectors: Input jack, Output A (MONO) jack, Output B jack, EXP jack, AC adaptor jack (DC 9 V)
Power Supply: DC 9 V: Dry battery / 9 V type (6F22 (carbon), 6LR61 (alkaline)), AC Adaptor (PSA-series: optional)
Current Draw: 50 mA (DC 9 V)
Accessories: Owner’s Manual, Mode Label, Dry battery / 9 V type (6LR61)
Options: AC Adaptor (PSA-series), Expression Pedal (Roland EV-5)
Size and Weight ( incl. battery)
* Width: 73 mm 2-7/8 in.
* Depth: 129 mm 5-1/8 in.
* Height: 59 mm 2-3/8 in.
* Weight: 0.4 kg 1 lbs.
