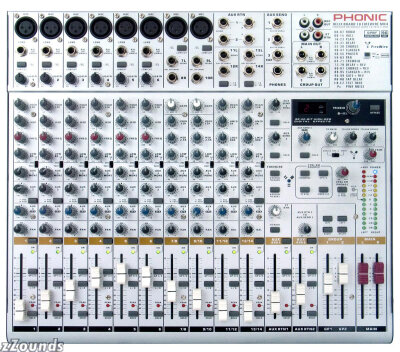

The Helix Board 18 FireWire is part of the new generation of FireWire mixers from Phonic. The MKII mixer features a FireWire interface that can individually stream up to 16 independent channels of audio to the computer and return two tracks for monitoring, all at screaming fast transfer rates of up to 24-bit/96 kHz with a zero latency. Pre/post switches on each input channel ensure users can adjust the outgoing FireWire signal between a pre fader and post fader signal with the utmost of ease. An onboard 32/40-bit digital multi-effect processor provides 100 popular programs, tap-delay, test tones (pink noise, 1 kHz, etc) and foot switch jacks.
There are 8 extremely low noise Mic preamps, each with phantom power, spread across six mono Mic/Line channels with 75 Hz low cut filters, and four stereo Line channels. Each Mic channel has a 3-band EQ (six with swept mid), and two stereo channels have a 4-band EQ. A 10-band system graphic equalizer can be assigned to Main Outs or Aux 1. Stereo RCA inputs and outputs make the addition of digital and analog playback and recording devices effortless.
Features
96 kHz FireWire interface for streaming 16 independent channels of audio to computer with zero latency
FireWire Pre/post setting for swapping streaming input channels to computer from pre low cut, EQ to post EQ, post fader
100+Tap 32/40-bit high-definition digital multi-effects
SPDIF digital audio output
8 Mic preamps
Steinberg Cubase LE workstation software included
Additional features include three Aux sends, two stereo Aux returns, input and output solo, two true subgroups and a rack mounting kit. Steinberg Cubase LE digital audio workstation software included.
Technical Info
FireWire Pre/post setting for swapping streaming input channels to computer from pre low cut, EQ to post EQ, post fader
18-input small-format analog Mixer with extremely low noise circuitry
96kHz FireWire interface for streaming 16 independent channels of audio to computer with zero latency
2 channels of monitoring from computer via FireWire interface, can be assigned to control room monitors, main mix and aux1
Channel 15/16 routed to Computer can be selected from main mix, group 1/2 and aux 2/3
DFX, our 32/40-bit high definition algorithm digital multi-effect processor with 100 programs plus tap delay, foot switch jacks and volume controls for sending processed signal to aux send 1 & 2
Six Mic/Line channels with inserts
8 extremely low noise mic preamps
Four stereo Line channels
3-band EQ with swept mid-range
75 Hz low-cut filter on mono channels
Three AUX sends, one with Pre/Post switch
Two stereo AUX returns, one with effect to monitor level control
+48V phantom power on Mic channels
Solo feature on each input and output
Two true subgroups with main L and R routing switches
Built-in switching power supply with universal connector, 100-240 VAC, 50/60 Hz
Rack-mounting kit included
S/PDIF digital audio output
Compatible with Mac OSX and Windows XP
Steinberg Cubase LE included
