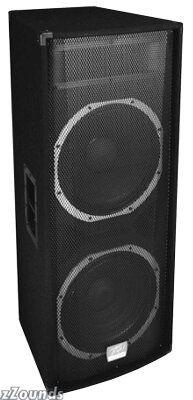

The Peavey TLS 6X is a quasi-three-way speaker system utilizing two 15 in. Scorpion Plus woofers and an RX22 titanium diaphragm, dynamic compression driver mounted on a 90 x 40 degree coverage constant-directivity horn.
The rugged, carpet-covered trapezoidal enclosure features steel handles, pocket casters and a top handle to facilitate portable use for music playback, live music or speech sound reinforcement. A full-length, black powder-coated steel grille provides driver protection and a professional appearance.
The TLS 6X speaker system is rated at 1,000 Watts program power handling, and the full crossover network includes high voltage film caps and Sound Guard III tweeter protection for clear punchy sound and excellent longterm reliability. Two 1/4 in. phone jack input connectors make hook-up a breeze.
Features
Quasi-three-way music playback enclosure
Peavey-exclusive Scorpion Plus woofers with 2.5 in. voice coils
RX 22 titanium diaphragm compression driver, with 2 in. diaphragm
Sound Guard III tweeter protection
1,000 Watts program/2,000 Watts peak power handling
Heavy duty crossover network for driver protection and EQ
Rugged, trapezoidal enclosure
90 x 40 degree coverage constant directivity horn for better off-axis tonality
High quality, heavy duty carpet covering
Steel handles
Steel corners
Rugged dado and rabbet construction for strong-yet-lightweight joints
T-Nut speaker mounting
Heavy duty full-length steel grille
Two pocket casters on bottom rear for ease of transport
Top rear centered handle for use with the pocket casters
Technical Info
Frequency range (-10 dB, half space): 40 Hz to 18 kHz
Frequency response (± 3 dB, half space): 58 Hz to 16 kHz
Sensitivity (1w/1m): 100 dB
Power rating (program): 1,000 Watts
Peak power capacity (peak): 2,000 Watts
Maximum SPL: 132 dB
Transducer complement: Two Scorpion® Plus 15 in. premium woofers, RX™22 2 in. titanium diaphragm dynamic compression driver on a 90 x 40 degree coverage constant directivity horn
Driver Protection: Sound Guard™ III on the compression driver provides long- and medium-term overload and overdrive protection
Nominal coverage pattern: 90 x 40 degree
Electro-acoustic Crossover Frequency: 300 Hz, 2.2 kHz
Nominal Impedance: 4 Ohms
Input connections: Two 1/4 in. phone jacks in parallel
Enclosure Materials & Finish: Trapezoidal, black carpet-covered enclosure with dado-joined 1/2 in. MDF (Medium Density Fiberboard) and a full-length, black powder-coated steel grille
Dimensions (H x W x D):
- Front: 44.75 x 18.25 x 17.563 in. (113.66 x 43.36 x 44.61 cm)
- Rear: 44.75 x 12.25 x 17.563 in. (113.66 x 31.12 x 44.61 cm)
Weight: 85 lbs. (38.64 kg)
