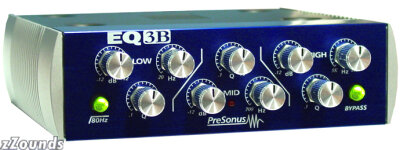

PreSonus EQ3B 3-Band EQ 1/3 Rack Space

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!

Description

Docs

Need a professional fully parametric EQ in a compact box? PreSonus has created the EQ3B to meet your needs for just about any application.

PreSonus EQ3B 3-Band EQ 1/3 Rack Space

Features

Three fully parametric bands with overlapping frequencies

High pass rumble filter

Extremely quiet operation

Warm, wide dynamic range for recording or live.

Technical Info

Technical Specifications

Input

XLR Impedance
10k Ohms

TRS Impedance
10k Ohm

Panel Controls

Low Frequency Range
20Hz to 800Hz

Mid Frequency Range
700Hz to 7kHz

High Frequency Range
5kHz to 20kHz

Bandwidth Adjust (Q)
.1 to 10

Gain Adjust
-12dB to +12dB

High Pass Filter
80Hz

Meters

Blue Backlit VU

Power Supply

Type
Linear

Input
16VAC/1000mA

Output

XLR Balanced
51 Ohms Impedance

1/4 in. TRS Unbalanced
51 Ohms Impedance

Performance

THD+Noise (Unweighted)
0.006% at 0dB

Noise Floor
-98dB

Signal To Noise
>95dB

Power Supply Rejection
>98dB

Physical

Weight
5lbs.

Dimensions
5.5 x 5.5 x 1.75

Mounting
Universal Rack Tray Insert

Chassis
Steel

Panel
Brushed Aluminum

Sides
Cast Aluminum

Power
16 Watts
