With the ability to deliver powerful, harmonically rich overdrives with a fat, articulate bottom end for bone crunching power chords, and soaring, saturated solo voicings for lead guitar, Fallen Angel has become standard issue for the new breed of guitarist. Now, with the inclusion of state-of-the-art digital processing, the Fallen Angel DSP All-Tube series opens up an almost limitless range of tonal possibilities.

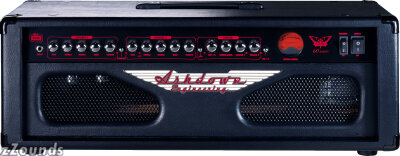

The FA 60 DSP All-Tube head combines a dual-channel all-tube 60-Watt amp section with 16 internal DSP effects - including four Chorus, four Flanger and eight Delay programs, plus an internal DSP Reverb section. Both channels offer flexible gain and EQ controls for a wide range of clean and crunch tones.
Equally at home on stage or in the studio, the FA 60 DSP All-Tube head includes a 4-way footswitch to select Channel 1/2, Boost On/Off, Effects On/Off and dual Master Volumes, and a Speaker Emulation circuit on the line level recording output.
Technical Info
Power Output (RMS): 60W into 4, 8 or 16 Ohms
Power Requirement: 120 Watts at rated supply voltage
Line Input: Impedance 1M Ohm, Level 100mV to 1V
Line Output: Impedance 4.7k Ohms, Level Nominal 0dBu (Speaker Emulated)
Effects Send: Impedance 4.7k Ohms, Level Nominal 0dBu
Effects Return: Impedance 50k Ohms, Level 0dBu adjustable
Pre-Amp Tubes: 4 x 12AX7 with DC heaters for low-noise
Output Tubes: 6 x EL34 fixed bias
