ART USB Phono Plus Preamp

USB audio interface with a standalone Phono preamp. Does not include USB cable. Includes AC adapter.

This product is no longer available at zZounds.

We recommend this product instead:

Main

ART USB Phono Plus V2 RIAA Phono Preamp

    • New $99.95
    • List: $129.00
      • SAVE: 22%
    • free ground shipping
    • In stock
    • 27 people rate: 8 out of 10

The USBPhonoPlus v2 is the ideal low cost interface solution for transferring any analog or digital audio source, including a turntable into a computer via standard USB connection. Learn More...

Shop our website for related products:

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

ART USB Phono Plus Preamp reviews

Rate and Review This Product:

25 People rated this product : * * * * * * * * * * 6 out of 10



5 People wrote reviews

Read all ART USB Phono Plus Preamp reviews...
* * * * * * * * * * 9 out of 10

"Totally worth buying!!"

Feature:
The unit has an input gain volume control, low cut filter, and USB power switch. Very simple and does the job. I like that ART didn't put EQ settings on this because it made the price less costly.

Quality:
The container is stylist and sturdy. The USB power switch has a very cool blue LED. The input gain knob turns easily and is easy to control.

Value:
Superb bang for the buck value! I use this unit to convert my vinyl into mp3 files. I was debating on a mixer or this, but the analog to digital conversion was the main seller for me. The sound is great and it's simple to use. This is a great unit!

Desirability:
Very nice design and the fact that you don't need an audio card to record vinyl is a very cool thing indeed!

Sound:
I'm basing this from comparing a CD to the same song on vinyl. I used BT's Flaming June for this comparision. The vinyl conversion was very good - the bass transferred over well as did the mid-tones, which is a HUGE plus in my book. The higher, more crisp sounds were a bit dulled compared to the CD, but that's to be expected since there is some sound loss in an analog-to-digital conversion. I gave this an 8 because the sound conversion was very good, but not CD-quality perfect. With some EQ tweaking using software, the sound could be rated as a 9 or 10.

Ease of Use:
Turntable to the unit to the computer. Can't be any simpler!

Support:
The company's website did not provide an easy way of navigating to information on this unit. The CD that came with it didn't have any clear indication that it wasn't a WinXP driver CD.

Overall:
Given a mixer of this unit, I'd choose this unit. There is less sound distortion and this thing is just great.

Submitted: 6/6/2006

Style of Music: trance

2 of 2 people (100%) found this review helpful. Did you?

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?


Thanks for your opinion!
* * * * * * * * * * 4 out of 10 zZounds has verified that this customer bought this product from us.

"Great product for simple LP Transfer too Computer, but NOT an "Audiophile" product"

Feature:
From an ease of use, and functional point of view, it's a great little device, and I'll probably keep it (it's better than the internal sound card on my notebook). But it certainly is NOT an "audiophile" component as advertized.

Sound:
The quality of the phono pre-am, whilst not as bad as some I've seen, leaves much to be desired. I cetainly would not use it for any sort of lp transfer, if I was looking for a 'professional' result. the "noise" on the audio channels is considerable, and in comparison to my current phono pre-amp, totally unacceptable. In addition the resultant transfer is very harsh, and not as warm as I would like.

Ease of Use:
Very Simple to set-up and use only takes minutes

Submitted: 8/27/2006

Style of Music: Jazz

1 of 1 people (100%) found this review helpful. Did you?

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?


Thanks for your opinion!

Read all ART USB Phono Plus Preamp reviews...

Additional Images:

Main
Main
Rear
Rear

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!
Description
Docs
From Our Catalog

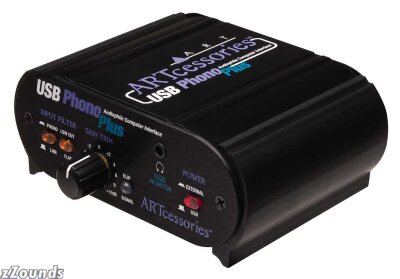

The USB Phono Plus is a USB audio interface with a standalone phono preamplifier.

The USB Phono Plus acts as an interface between your computer and a wide variety of analog and digital sources. The analog inputs are switchable between phono and line level signals and a low-cut filter removes rumble and wind noise. The front gain trim control and signal/clip LED allow you to optimize the A/D for a wide range of input sources. The front panel USB monitor/headphone jack and the optical output on the rear panel can monitor audio output from your computer. The built-in low-noise phono preamp circuit conforms to the RIAA standard. The line output jacks are always connected to the input preamp's signal for source monitoring.

Housed in an all-aluminum black anodized case, the USB Micro Pre can be powered by either an external power source or directly off the USB port so remote recording is a snap. Optical TOSLINK inputs and outputs as well as S/PDIF inputs let you use the USB Micro Pre as a digital audio to USB interface as well.

The USB Phono Plus is fully compliant with the USB 1.1 specification and uses USB adaptive mode for playback and USB asynchronous mode for record. It will work with the USB audio device drivers built into Windows 98SE/ME/2000/XP or Macs with native USB support -- OS9.1 or greater or OSX. No special drivers are needed.

Includes AC adapter. USB cable sold separately.

Technical Info

Frequency Response: 10Hz-50KHz, +/-.5dB

THD: .01% Typical @ 1KHz

Hum and Noise: >90dB below clipping

Input Impedance: 47k Ohms/100pF (phono) 270k Ohm (line)

Maximum Input Level: 40mVrms @1KHz (phono), +19dBu (line)

Maximum Gain: 45dB @ 1KHz (phono), +6dB (line)

Analog Output Connections: RCA (preamp line output), 1/8 in. (USB monitor/headphone output)

Maximum Output Level: +6dBu (1.4Vrms)

Filter Type/Response: Switchable, High Pass, -3dB @ 22Hz

A/D & D/A: 16 bit, 44.1KHz or 48KHz USB selectable

Digital Audio Interface: TOSLINK in and out, S/PDIF coax (RCA) in

Computer Interface: USB 1.1 compliant, Windows 98SE/ME/2000/XP or newer Mac OS9.1 or newer

Power Requirements: 7-12V DC or 9-12V AC @ 150mA, or USB buss powered

Dimensions: 1.75 in. H x 4.2 in. W x 3.5 in. D (44.5mm x 107mm x 89mm)

Weight: 1.35 lbs. (.61kg)
Digitize your vinyl with this standalone RIAA phono preamp and USB audio interface! Switchable stereo phono/line RCA inputs; stereo RCA outputs. TOSLINK I/O and S/PDIF input. Front-panel gain trim and headphone output. Selectable 44.1kHz or 48kHz 16-bit AD/DA conversion. Driverless operation for Mac or PC.
