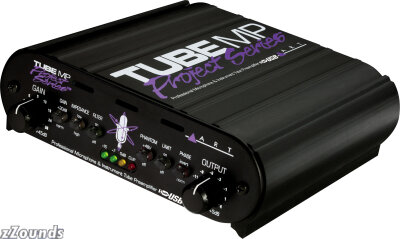

The Tube MP Project Series is a professional quality audio interface that lets you connect microphone, instrument, and line level signals to audio inputs to digital audio workstations as well as standard analog devices. They took the legendary Tube MP series and updated every aspect of the design, inside and out, while still maintaining a compact, reliable, cost effective product, and added a USB output. From the new all-aluminum stackable chassis to the precision LED level metering circuitry, we have improved virtually every aspect of the already successful Tube MP series and added USB connectivity.
USB (Universal Serial Bus) is a common hardware interface used for quick and easy connection of peripherals like the ART USB Tube MP. The Tube MP features a single Type B USB peripheral connector on the rear panel for outputting audio over USB to your computer. One of the nice features of USB is its Hot Swapping capability, allowing the Tube MP to be connected and disconnected without turning your computer off. The ART USB Tube MP is fully USB 1.1 compliant, operating under Windows 98SEor newer, and Mac OS 9.1 or newer.
The new ultra low noise discrete microphone preamp front end has an extremely flat and wide frequency response and handles a wide range of input signal levels with a minimum of coloration. This gives you a very clean and neutral sound with a wide variety of signal sources. The high impedance 1/4 in. instrument inputs optimized for guitar pickups allowing every nuance to be heard. We use a high quality 12AX7A tube inside to add warmth to musical dynamics and the power supply is external to keep AC line noise and hum back at the wall.
The input Gain control and switch help you to maximize your input dynamic range as well as control how hard you are driving the tube. Input impedance is switch selectable to optimize your microphone’s response right on the front end. These two features are a must when trying to get the most out of a vintage ribbon or studio grade microphone. The switch selectable high-pass filter removes very low frequency rumble and wind noise before it has a chance to overload your inputs. The Bessel filter design is set at a low 40Hz to preserve bass tonality and time domain response and it is very effective when tracking or interfacing to your computer based audio workstation. Phantom power is available for the XLR input and is a clean +48 Volts DC from a low noise internal supply that is current limited to prevent damage to your sensitive microphones.
A FET Limiter with fast attack and musical release times limits the maximum audio output level to prevent overloading succeeding equipment while still maintaining a clear uncompressed sound. This allows you to maximize the dynamic range of your signal before converting to digital. A Phase Invert switch allows you to switch signal polarity right at the source. This feature is especially handy when you are mixing the signal output with other channels in a mix. The Output control comes after the Tube and Limiter and is used to match the output level to a wide variety of systems. Following it is a new output section that provides high output signal drive capability to both outputs.
Features:
USB Interface Output
Extremely Low Noise Discrete Front End
Up to 70dB of Clean, "Musical" Gain
High Output Signal Drive Capability
Fast FET Limiter to Prevent Overload
Switch Selectable Input Impedance
Precision LED Metering
Built-in Low Noise Phantom Power Supply
Compact, Stackable all Aluminum Chassis
XLR and 1/4 in. Inputs and Outputs
Phase Invert Switch
High Cut Filter Switch
Variable Input and Output Controls
Tube Mic Preamps Series Overview
Pro Dynamic Processors: The New Digital MPA Solid Gold. A professional microphone preamplifier is defined by warmth, presence and clarity -- core elements that make an audio processor desirable. They’ve designed a new microphone preamplifier that captures all these elements, with an exceptionally affordable price.Introducing the Digital MPA by ART. With features like variable input impedance, selectable plate voltage, dual differential Class A inputs, digital outputs and sample rates up to 192kHz, it is truly a modern day classic.
Tube MP: The World’s Most Popular External Tube Mic Preamp. Whether you’re working with a computer, hard disk or digital multi-track recorder, the Tube MP’s TEC award nominated design will allow you to obtain professional results at an affordable price. ART preamps offer warm tone, useful features, and are innovatively designed. Their line of Tube MP products add presence, clarity and fullness to any signal, and is exceptionally low-noise. The Tube MP Studio V3 features V3 Technology (Variable Valve Voicing), which provides optimized reference points to begin the recording process. V3 delivers a wide variety of settings designed for various microphones and DI inputs, including guitars, basses, keyboards, synths, electronic drums and much more. Don't settle for a copy-cat lookalike. Go with the real thing -- the Tube MP by ART!
