Alesis MultiMix 12R 8-Channel Compact Mixer with EQ

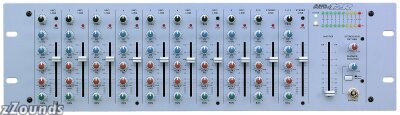

Ideal for mobile live PA/production systems, the MultiMix 12R is the world's most affordable 12-input, 2-buss analog rack mixer featuring 8 mic preamps with 2 stereo line channels, all in a compact, 3-U rack mount configuration. This versatile mixer has 2-band, fixed frequency EQ on each channel, 1 pre-fader aux send and 1 post-fader aux send per channel, and 60mm linear potentiometers (faders) for master level of each channel. The master section features an external stereo aux return level, stereo LED bar graph meters, stereo master L/R buss 60mm fader, and a separate phones/monitor level control.
Features
12-channel analog mixer in compact 3-U rackmount design
8 XLR mic inputs with phantom power
2 Aux sends (pre- and post-fader) for monitor returns and effects
Insert points on 8 channels, plus 2 channels of stereo line inputs
2-band shelving EQ at 12kHz and 80Hz
60mm linear faders on each channel
Front-panel headphone jack
Technical Info
Specifications
Frequency Response
10 Hz - 65 kHz +0/-1 dB (any input to any output at nominal operating levels)
-3dB Point: 125 kHz
Connectors
MIC IN jacks: Female XLR (Pin 1 ground, Pin 2 +, Pin 3 -)
LINE IN jacks: Female 1/4 in. 3-conductor phone (Tip = +, ring = -, sleeve = ground)
INSERT jacks: Female 1/4 in. 3-conductor phone (Tip = send, ring = return, sleeve = ground)
Inserting plug to first 'click' allows direct output without breaking normal signal flow
STEREO LINE IN and STEREO AUX RETURN jacks: Female 1/4 in. 3-conductor x 2
MAIN OUT BALANCED, MONITOR OUT, and AUX SEND jacks: Female 1/4 in. 3-conductor phone (Tip = +, ring = -, sleeve = ground)
MAIN OUT -10 dBV jacks: Female phono (RCA) jacks
TAPE IN jacks: Female phono (RCA) jacks
Levels
MIC IN: -60 dBu to -10 dBu nominal, maximum level +12 dBu
LINE IN: -40 dBu to +10 dBu nominal, maximum level +32 dBu (balanced)
STEREO LINE IN: -15 dBu to +15 dBu nominal, maximum input level +22 dBu
MAXIMUM GAIN:
+76 dB, MIC IN to MAIN OUT, balanced
+80 dB, MIC IN to MONITOR OUT, balanced or unbalanced
CHANNEL PEAK LED ON: 6 dB below channel clipping
METER: Peak type
-24 dB to PK (+18 dB over reference at MAIN OUT, 6 dB before output clipping)
MAIN OUT LEVEL (1/4 in. phone jacks) (when meter is at 0 VU):
+4 dBu (1.24 volts) into a balanced load
-2 dBu into an unbalanced load
MAIN OUT LEVEL (phono jacks): -10 dBV (.316 volts) unbalanced
MAXIMUM OUTPUT LEVEL: +22 dBu unbalanced, +28 dBu balanced (6 dB above 'PK' segment of main meter)
MONITOR OUT LEVEL: Same as above, but variable following MONITOR/PHONES control
INSERT/DIRECT OUT (tip): Unity gain
INSERT IN (ring)l Maximum level +22 dBu
HEADROOM: 23.5 dB above nominal output
Impedance
MIC IN: 50-150 Ohms nominal source impedance (presents 4 kOhms balanced load impedance)
LINE IN: 600 Ohms-2 kOhms nominal (>20 k Ohms load impedance)
OUTPUTS (MAIN, AUX and MON): 150 Ohms unbalanced, 300 Ohms balanced
1.1 k Ohms at -10dBV MAIN OUTS
Noise performance (typical)
Measured at MAIN OUT +4 dBu jacks, unbalanced load, 22 Hz to 22 kHz, all channels panned to center.
MIC IN to INSERT OUT: -128.5 dBu Equivalent Input Noise at maximum gain
Residual output noise (MASTER fader at nominal, channel faders at minimum): < -88 dBu
12 inputs, faders and trims at unity gain, inputs terminated 150 Ohms: < -85 dBu unbalanced (+22 dB max unbalanced out = 107 dB dynamic range)
Distortion (THD+N)
Measured with a 0 dBu signal coming into a MIC IN jack with trim set for a +15 dBu output from the insert jack.
At INSERT jack: Better than 0.0010%
At MAIN OUT (+21 dBu balanced output level): Better than 0.0015%
Power
U.S.A. model: 120 VAC, 60 Hz, 40 watts power consumption maximum
Mounting
19 in. EIA rack mountable, 3 spaces
