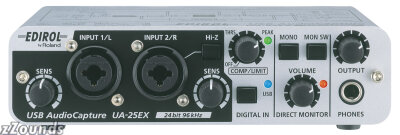

UA25EX Rugged, compact, and feature filled, the new UA25EX is a portable-interface powerhouse. Ideal for computer-based audio engineers who appreciate mobility, this 24-bit/96 kHz USB audio interface is equipped with pro-grade microphone preamps, a newly developed analog compressor/limiter, and ground-lift functionality for studio and stage.
Features
High-resolution 24-bit/96kHz performance with newly developed mic preamps and analog compressor/limiter
USB bus powered, low-noise, wide-range power supply
Two mic preamps and XLR/TRS combo jacks with 48V phantom power, Hi-Z port for guitar-direct connection, S/PDIF optical I/O, MIDI in/out
Ground lift for studio and live stage use
Bundled with Production Plus Pack from Cakewalk By Roland
High-Resolution Performance
Don't let its compact frame fool you - the UA25EX is a full-featured, professional audio interface with extras you wouldn't expect in its size and price class. It's capable of handling audio at 24-bit/96kHz resolution, and boasts newly developed high-end mic preamps, plus pro-quality balanced audio inputs and outputs, and an integrated low-noise, wide-range power supply.
Analog Compression & Limiting
The UA25EX features a newly developed analog compressor with variable attack times and threshold control for smooth capture of vocals or dynamic instruments. The accompanying limiter prevents input clipping from occurring so you'll never lose those perfect takes.
Pro-Quality Shielding with Ground Lift
With its high-grade aluminum chassis, the UA25EX can withstand hard impacts, and is shielded against high-frequency interference from other electrical components. Should a ground loop occur, the new ground-lift function eliminates the noise by disconnecting the sleeve pin of the master output from the earth ground.
Bundled Software
Included with the UA25EX is the Production Plus Pack from Cakewalk By Roland, a feature-rich recording software bundle consisting of SONAR LE, Project 5 LE, and Dimension LE for PC-based recording. The CD-ROM also includes the latest ASIO, WDM, and MME drivers for Windows XP and Vista (32-bit versions), plus CoreAudio drivers for Mac OSX.
Technical Info
Specifications
Number of Audio Record/Playback Channels
Record: 1 pair of stereo
Playback: 1 pair of stereo
Digital Out Switch = Off:
Full duplex (except for 96 kHz setting)
Digital In Switch = On: Recording only
Signal Processing
PC interface:
24 bits (Advance = Off: 16 bits)
AD/DA Conversion:
24 bits (linear)
Sampling Frequency
Digital output: 44.1/48/96 kHz
Digital input: 44.1/48/96 kHz
AD/DA Conversion: 44.1/48/96 kHz
Advance Switch = Off: 44.1kHz only
Frequency Response
96 kHz: 20 Hz to 40 kHz (+0 dB/-2 dB)
48.0 kHz: 20 Hz to 22 kHz (+0 dB/-1 dB)
44.1 kHz: 20 Hz to 20 kHz (+0 dB/-1 dB)
Nominal Input Level
Input Jack L, R (XLR type): -60 to -20 dBu
Input Jack L, R (1/4 inch TRS phone type): -36 to +4 dBu
Nominal Output Level
Output Jack L, R (1/4'' TRS phone type): +4 dBu (balanced)
Output Jack L, R (RCA phono type): -2 dBu
Residual Noise Level
Output Jack: -96 dBu (S/N ratio: 105 dB)
(Input terminated with 1 k ohms, Output Volume: max., Input Monitor: min., IHF-A, typ.)
Interface: USB
Digital input/output
Optical type (conforms to IEC60958 consumer format)
Connectors
Front Panel
Input Jack L, R
XLR type
(balanced, phantom power +48 V)
1/4'' TRS phone type (balanced)
Input Jack 2: high impedance is supported
Headphones Jack (Stereo 1/4 inch)
Rear Panel
Digital Input Connector (Optical type)
Digital Output Connector (Optical type)
Output Jack L, R
1/4 inch TRS phone type (balanced)
RCA phono type
MIDI Connectors (IN/OUT)
USB Connector (B type)
Power Supply: USB Bus Power
Current Draw: 480 mA
Dimensions (WxDxH): 164 x 133 x 64 mm, 6 1/2 x 5 1/4 x 2 9/16 in.
Weight: 0.6 kg / 1 lb 4 oz
Accessories Included:
Owner's Manual
USB cable
CD-ROM
