LD Systems DAVE 8 ROADIE Portable Sound System

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
LD Systems DAVE 8 ROADIE Portable Sound System, Main
LD Systems DAVE 8 ROADIE Portable Sound System, Front
LD Systems DAVE 8 ROADIE Portable Sound System, Glamour View 1
LD Systems DAVE 8 ROADIE Portable Sound System, Glamour View 2
LD Systems DAVE 8 ROADIE Portable Sound System, Pole Slot
LD Systems DAVE 8 ROADIE Portable Sound System, Speaker Bottom
LD Systems DAVE 8 ROADIE Portable Sound System, Speaker Rear
LD Systems DAVE 8 ROADIE Portable Sound System, Sub Front
LD Systems DAVE 8 ROADIE Portable Sound System, Sub Rear
LD Systems DAVE 8 ROADIE Portable Sound System, Sub Side
LD Systems DAVE 8 ROADIE Portable Sound System, Main LD Systems DAVE 8 ROADIE Portable Sound System, Front LD Systems DAVE 8 ROADIE Portable Sound System, Glamour View 1 LD Systems DAVE 8 ROADIE Portable Sound System, Glamour View 2 LD Systems DAVE 8 ROADIE Portable Sound System, Pole Slot LD Systems DAVE 8 ROADIE Portable Sound System, Speaker Bottom LD Systems DAVE 8 ROADIE Portable Sound System, Speaker Rear LD Systems DAVE 8 ROADIE Portable Sound System, Sub Front LD Systems DAVE 8 ROADIE Portable Sound System, Sub Rear LD Systems DAVE 8 ROADIE Portable Sound System, Sub Side
zZounds Gear Experts Say...
Don't let the name fool you; you can easily take the DAVE 8 ROADIE PA system to the gig by yourself and still get powerful, pro-quality sound.

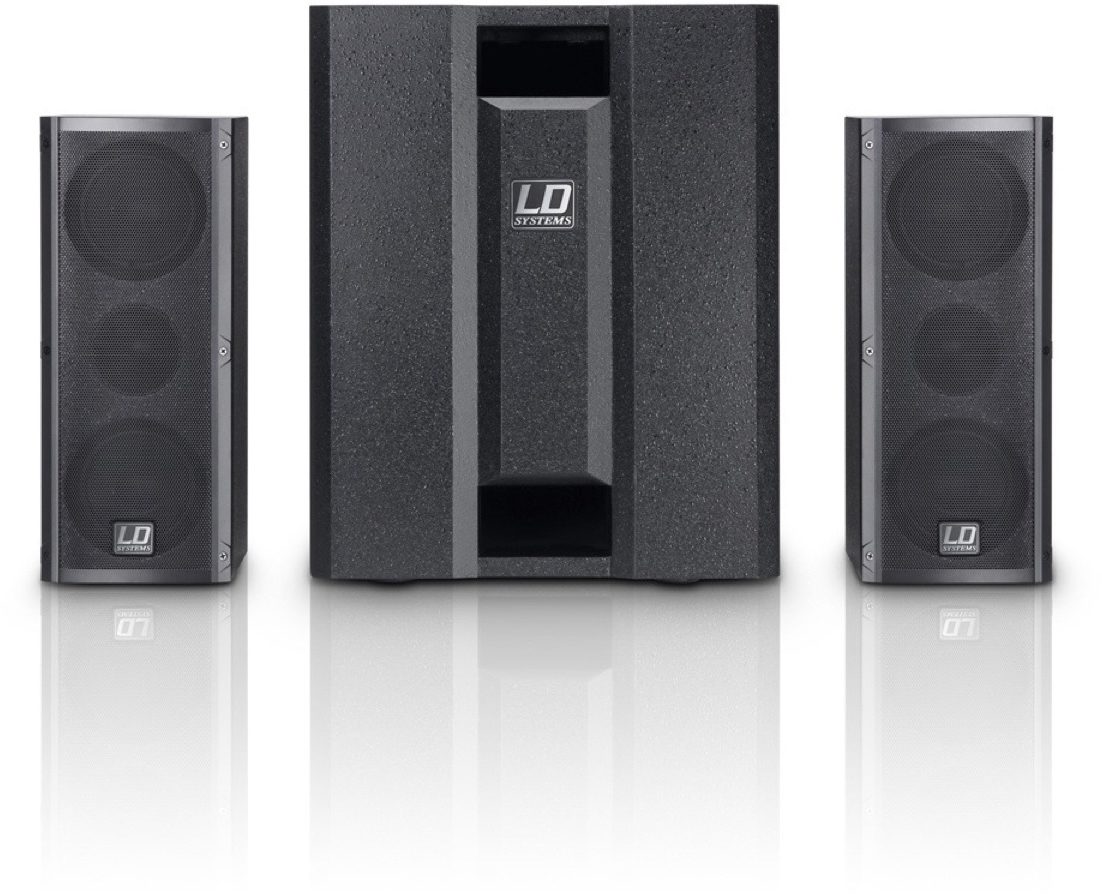

With the DAVE 8 ROADIE, LD Systems are successfully implementing their motto "pro audio in motion". This complete PA system with its powerful 1400-watt (Peak) power amp delivers astounding performance for mobile applications. The system is equipped with a high-performance 8" band-pass subwoofer and two satellite speakers (2 x 4" + 1") and was designed as a flexible and portable mini PA system especially for musicians.

The DAVE 8 ROADIE features three different inputs, which can be used simultaneously. One channel has a combo socket (XLR/jack) for dynamic microphones. One channel offers dual RCA connectors for computers as well as a combo socket (XLR/jack) for mixers or keyboards. Finally, the third channel has a 3.5 mm stereo and a 6.3 mm mono jack input for MP3 players or guitars with a switch for selecting the desired input. The high-performance Class A/B power amp module integrated in the subwoofer powers both the subwoofer and the satellites.

The systems features all of the usual protection circuits. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180*), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.

Sturdy front grilles and ergonomic handles on both the subwoofer and the satellites underscore the roadworthiness of the DAVE 8 ROADIE and make the system… read more an ideal companion for musicians. read less

- Type: active
- Color: Black
- Max. SPL (continuous): 117dB
- Max. SPL (peak): 123dB
- Frequency response: 45 - 19000Hz
- Dispersion (H x V): 60* x 60*

Subwoofer:
- Low/mid driver dimensions: 8"
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 1.5"
- Cabinet construction: Bandpass
- Cabinet material: MDF
- Cabinet surface: painted
- Subwoofer Dimensions: (W x H x D) 14" x 17" x 17"
- Subwoofer Weight: 46 lbs.

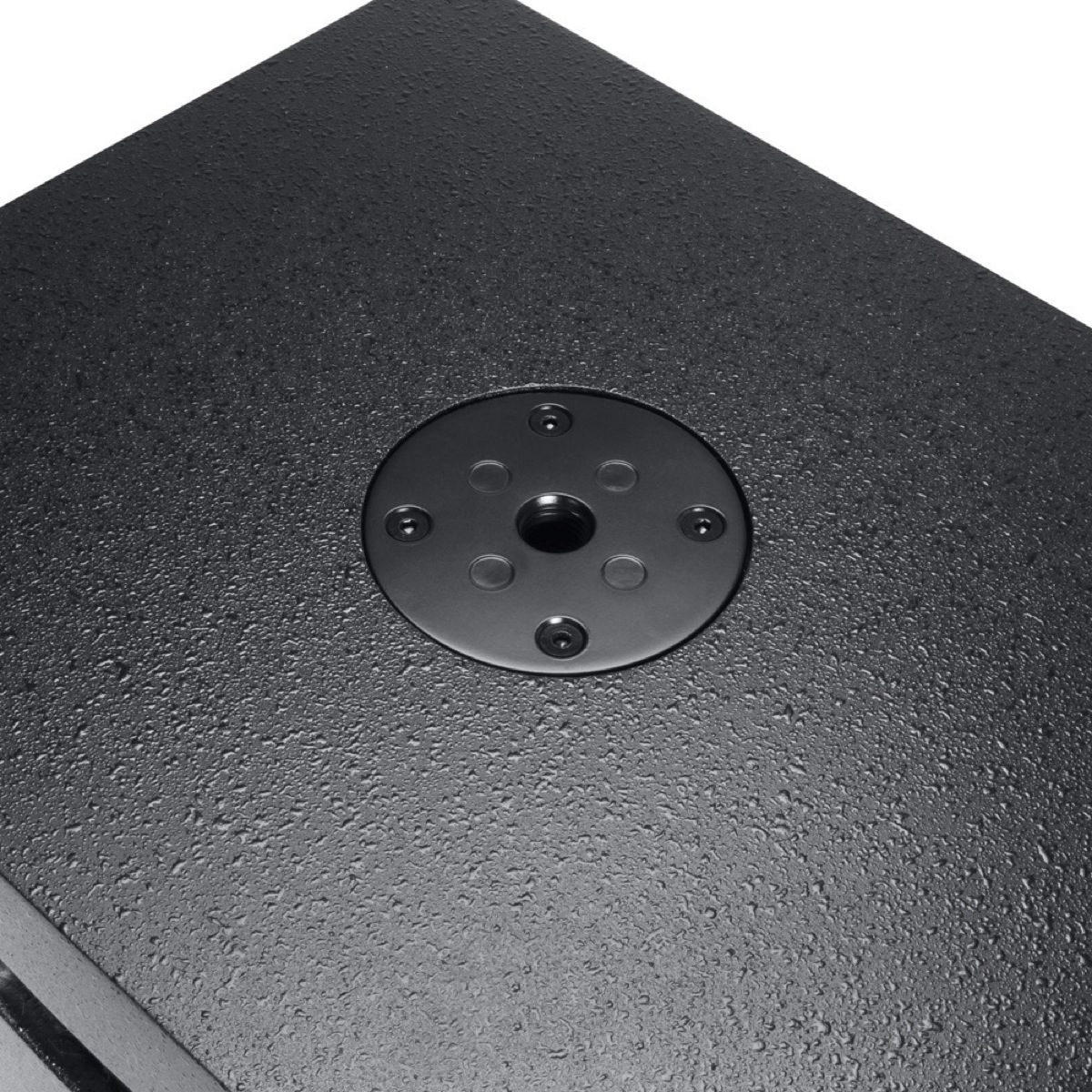

- Subwoofer features: limiter, transport handle, threaded flange M20

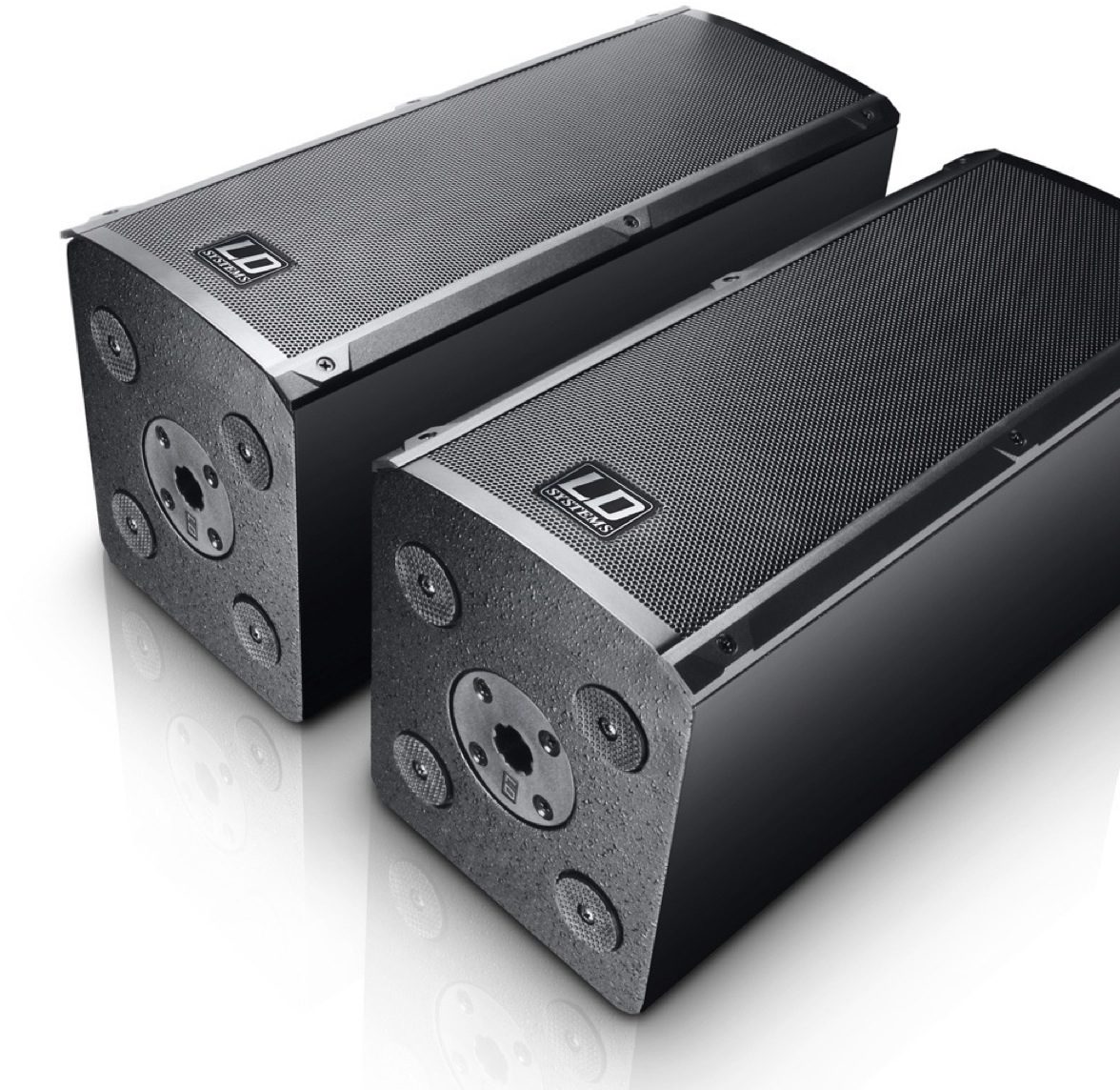

Mid/Hi System:
- Midrange size: 2 x 4"
- Midrange magnet: Ferrite
- Midrange brand: Custom-made
- Midrange voice coil: 1"
- Horn: radial
- Tweeter dimensions: 1"
- Tweeter magnet: Ferrite
- Tweeter brand: Custom-made
- Tweeter voice coil: 1"
- Mid/Hi system impedance: 4 Ohm(s)
- Loudspeaker inputs: 1
- Speaker input connections: Speakon compatible
- Cabinet construction mid/high: Closed
- Mid/Hi system cabinet material: MDF
- Mid/Hi system cabinet surface: painted
- Mid/Hi system Dimensions: (W x H x D) 5.9" x 13.8" x 6.7"
- Mid/Hi system weight: 9.2 lbs. each satellite
- Mid/Hi system features: 16 mm flange, metal front grille, transport handle

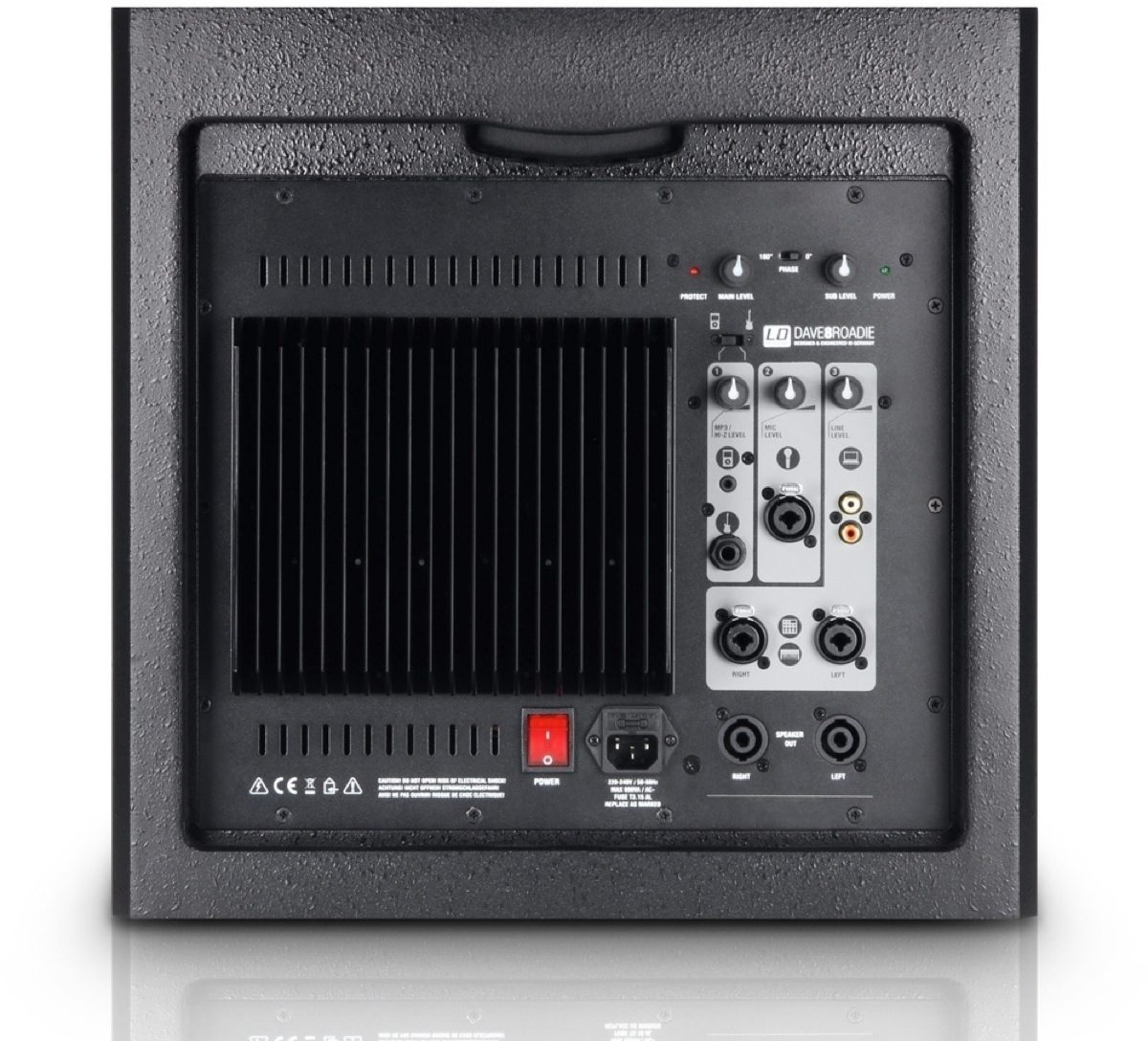

Amplifier Module (integrated in Subwoofer):
- Amplifier: Class A/B
- Amplifier Output System (RMS): 350W
- Amplifier Output System (Peak): 1400W
- Protection circuits: limiter, short circuit, over-current
- Cooling: heat sink
- Controls: input switch (MP3 / Hi-Z), Subwoofer Phase Reverse, Line Level, MP3 / Hi-Z Level, Main Level, Mic Level, sub level, On / Off
- Display: Power, protect (protection circuit engaged)
- Operating voltage: 110 V AC - 120 V AC
- Line inputs: 3
- Line input connectors: RCA, XLR, 1/4" Jack
- Mic inputs: 1 - XLR, 1/4" Jack
- MP3 inputs: 1
- MP3 input connectors: 1/8" mini jack
- Hi-Z inputs: 1
- Hi-Z input connectors: 1/4" Jack
- Loudspeaker outputs: 2
- Speaker output connections: Speakon compatible
