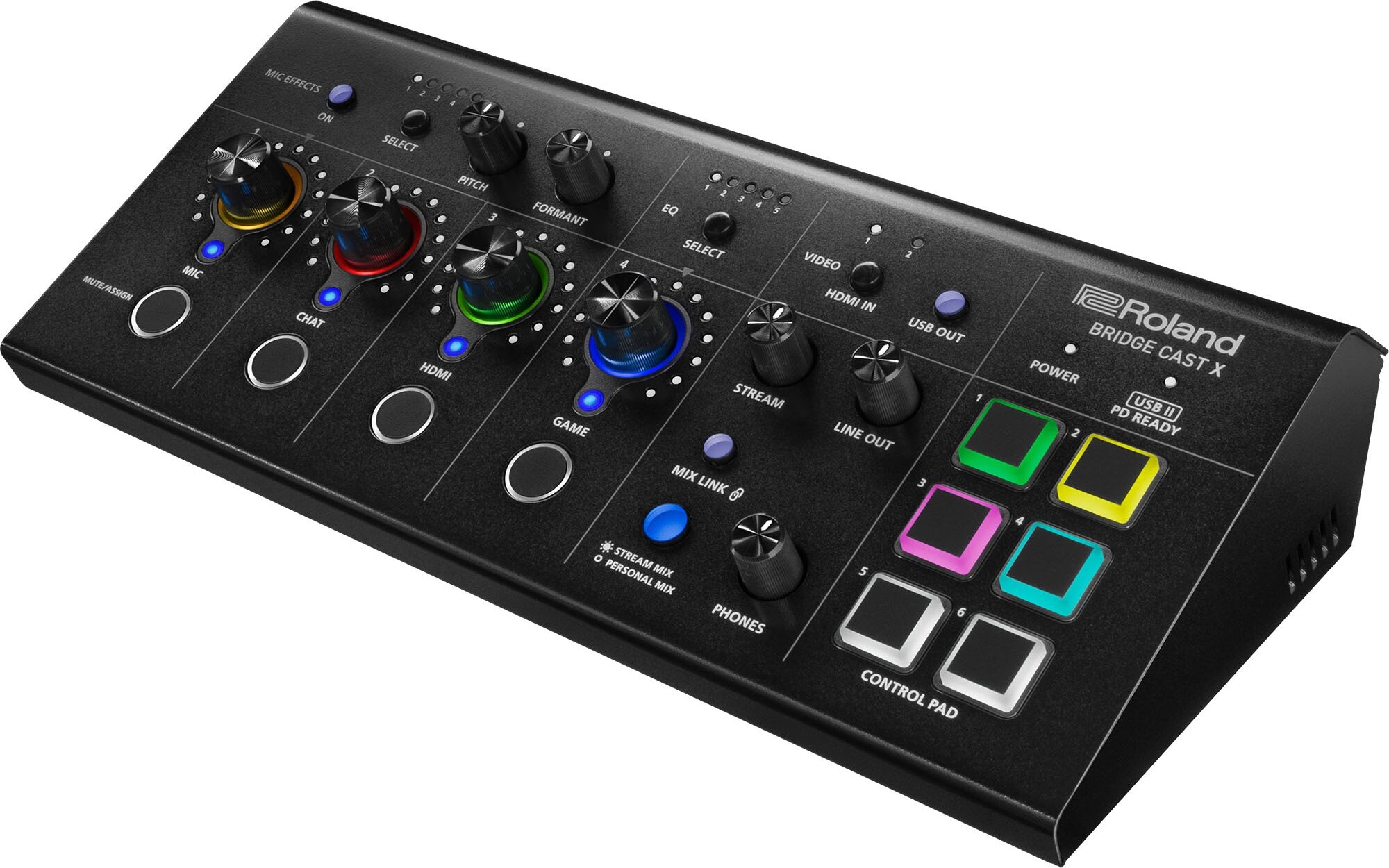

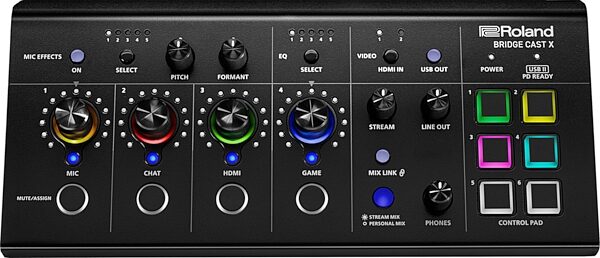

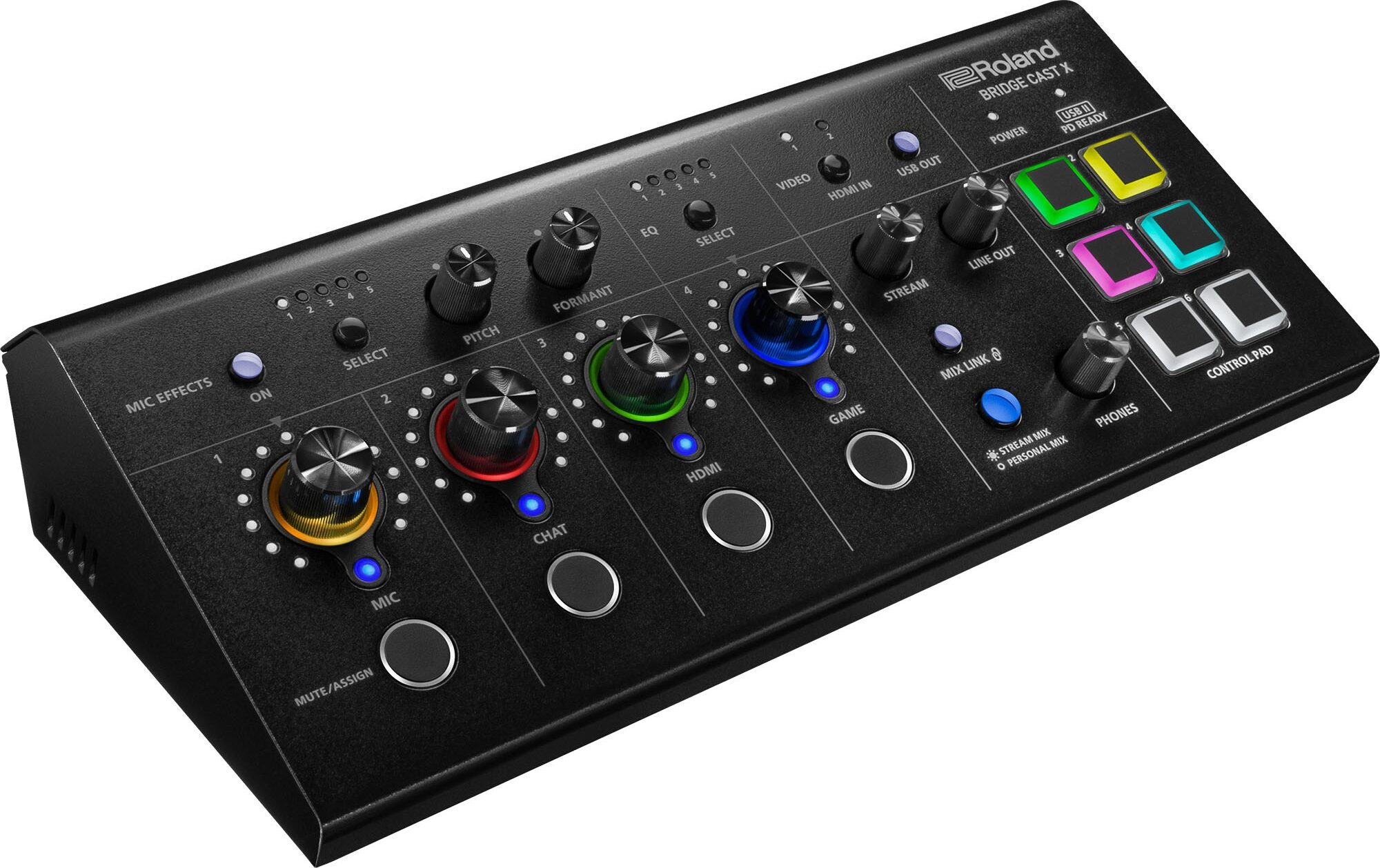

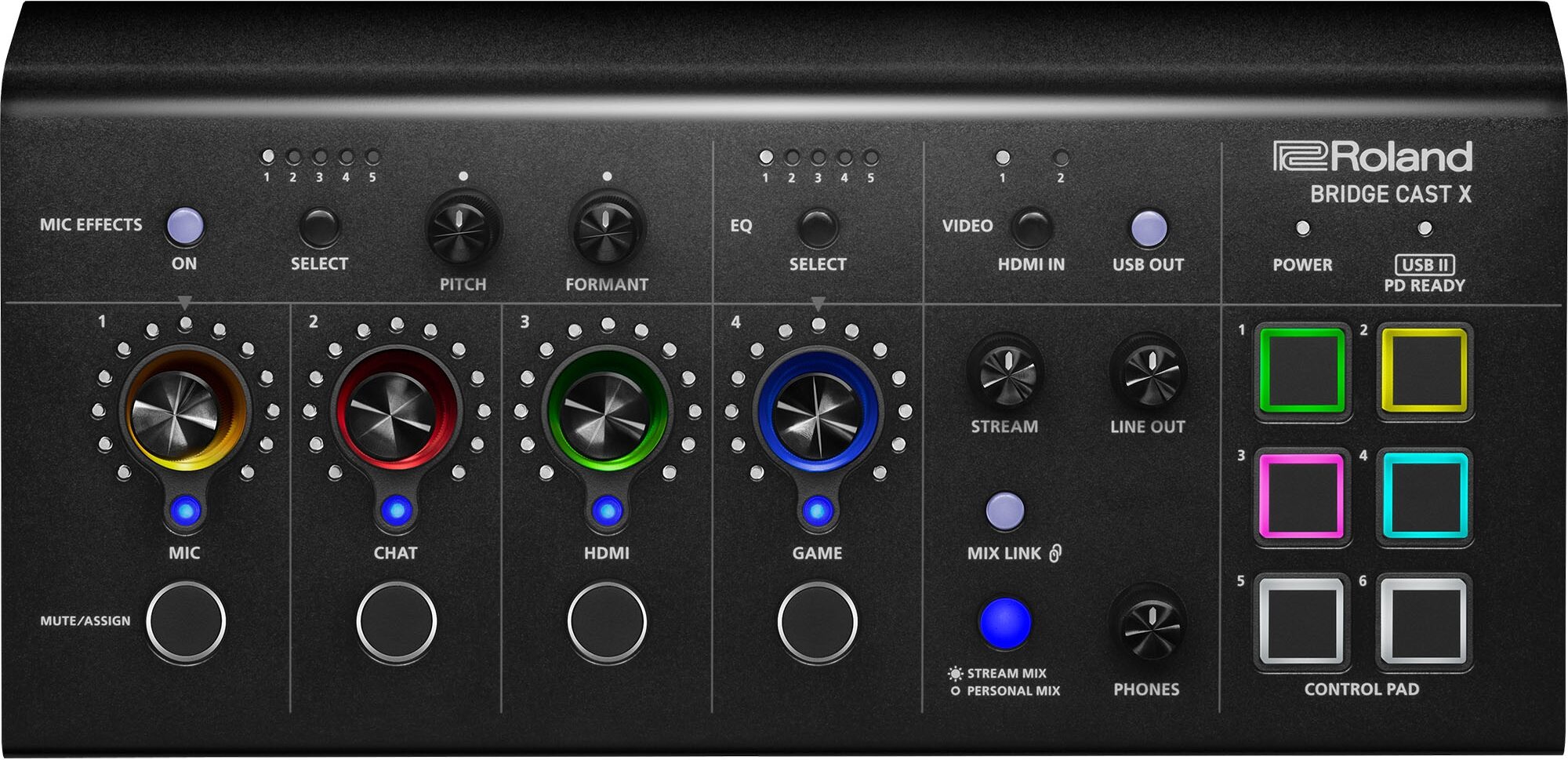

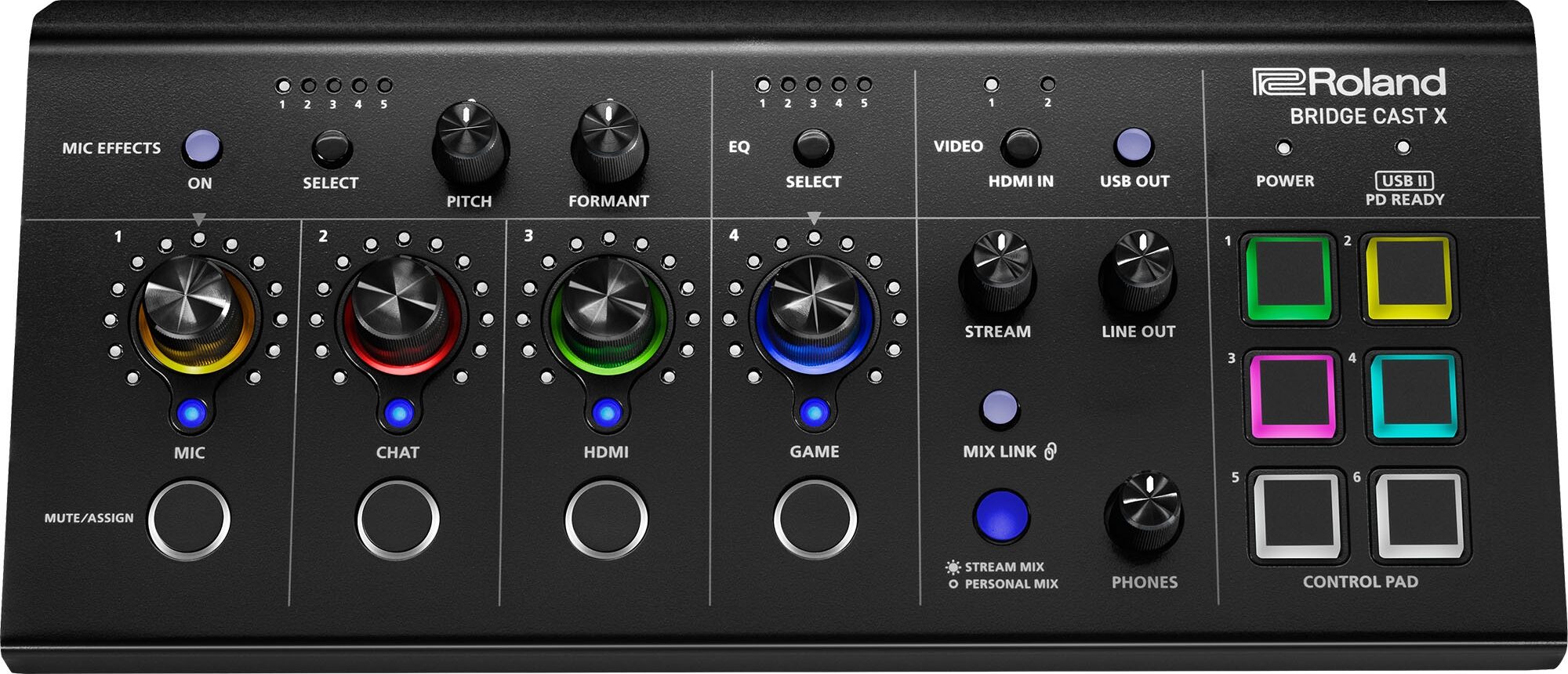

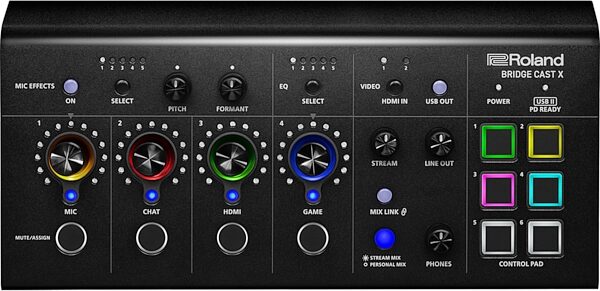

Roland Bridge Cast X Dual-Bus Gaming Audio Mixer
zZounds Gear Experts Say...
With everything from Roland's original Bridge Cast plus multiple USB-C and HDMI ports and more, Bridge Cast X is ideal for gamers on dual-PC streaming rigs.
Overview
Elevate your streaming content with BRIDGE CAST X, a compact, all-in-one desktop solution filled with hands-on controls and Roland's acclaimed pro AV features. Say goodbye to messy add-ons and unify your workflow with multiple connections for gaming consoles, computers, cameras, and audio devices. Then crush the competition with epic features like dual sound mixes, broadcast-quality XLR mic support, voice processing, royalty-free music and sound effects, assignable control pads, and so much more.
read less
Capture, Mix, and Control
From online gaming to podcasting, vlogging, and other video content, BRIDGE CAST X keeps you focused on creating rather than fussing with cables and different pieces of specialized gear. The integrated design simplifies connections and reduces clutter, while the intuitive interface lets you smoothly mix audio and control the action in the flow. And with multiple USB-C and HDMI ports,* you can connect all your devices and avoid having to repatch every time you want to change gears for the day's stream.Dual PCs
If you use one PC for gaming and another for streaming and chatting, BRIDGE CAST X has you covered. The USB II port provides audio and video integration for a single-cable connection to your streaming computer. The USB I audio and HDMI ports support a variety of connection options for a second computer, including HDMI throughput to a dedicated video monitor.PC and Gaming Consoles
Console-to-computer setups can get messy. Streamline your… read more rig by connecting a PC and two gaming consoles to BRIDGE CAST X for seamless video and audio streaming. If you're a PlayStation 5 owner, you can control chat and game audio independently using both the USB-C and HDMI connections.Video Chat
Looking for a straightforward way to chat on video? Upgrade your webcam with a high-quality camera and connect it to an HDMI input on BRIDGE CAST X perfect for live interviews, gameplay recaps, and Just Chatting.Specs
-[Video]
- HDMI IN/THRU Formats:
1280 x 720/50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F)
1920 x 1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F)
2560 x 1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F)
3840 x 2160/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F)
1280 x 720/60Hz (VESA DMT)
1920 x 1080/60Hz (VESA DMT)
2560 x 1440/60Hz (VESA CVT Reduced Blanking)
2560 x 1080/60Hz (VESA CVT Reduced Blanking)
3440 x 1440/60Hz (VESA CVT Reduced Blanking)
1920 x 1080/240Hz
2560 x 1080/144Hz
2560 x 1440/144Hz
3440 x 1440/100Hz
* The listed refresh rate (Hz) is the maximum value of each resolution.
* HDR (High Dynamic Range) Supported
- HDMI IN/THRU Formats (When using USB video output):
1280 x 720/50p, 59.94p, 60p (CTA-861-F)
1920 x 1080/29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F)
3840 x 2160/29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F)
-USB Video Output Format: YUY2 (Uncompressed), Motion JPEG (Compressed)
- USB Video Output Resolution: 1920 x 1080, 1280 x 720, 640 x 480 * Maximum frame rate is 60 fps.
[Audio]:
- Input Channel:
MIC
AUX
HDMI (*1)
USB CHAT (*2)
USB GAME (*2)
USB MUSIC (*2)
USB SYSTEM (*2)
CONSOLE/MOBILE (*3, *4)
(*1) Linear PCM 48 kHz, 2ch, 5.1ch, 7.1ch
(*2) When the USB port connection setting is "PC"
(*3) When the USB I port connection setting is "CONSOLE/MOBILE"
(*4) When the USB II port connection setting is "MOBILE"
- Output Channel:
LINE OUT
PHONES
AUX (*5)
USB MIC (*5)
USB STREAM (*6)
USB PERSONAL (*6)
USB CONSOLE/MOBILE (*7, *8)
(*5) Microphone audio is output from the CTIA MIC jack
(*6) When the USB port connection setting is "PC"
(*7) When the USB I port connection setting is "CONSOLE/MOBILE"
(*8) When the USB II port connection setting is "MOBILE"
- Audio Mixing Bus: 2 (STREAM MIX, PERSONAL MIX)
- Sampling Frequency: Windows: 44.1 kHz, 48 kHz, 96 kHz, macOS/iOS/Other: 48 kHz
- Signal Processing: AD/DA: 24 bits, Internal Processing: 32-bit Floating point
- Effects:
MIC: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut
CHAT: De-esser, Compressor
HDMI: Equalizer, Virtual Surround
GAME: Equalizer, Virtual Surround
STREAM: Delay
- Audio File Player:
Number of tracks: 2
Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono)
Maximum Time: 5 seconds/track
- Input Level:
MIC: -87-- -12 dBu (Maximum: 0 dBu)
HEADSET MIC: -56-- -12 dBu (Maximum: 0 dBu)
AUX: -10 dBu (Maximum: +2 dBu)
- Input Impedance:
MIC: 8 k ohms
HEADSET MIC: 1.3 k ohms
AUX: 10 k ohms
- Output Level:
LINE OUT: -4 dBu (Maximum: +8 dBu)
PHONES/HEADSET: +1 dBu (Maximum: +13 dBu)
PHONES/HEADSET: 78 mW + 78 mW (32 ohms)
PHONES/HEADSET: 35 mW + 35 mW (250 ohms)
- Output Impedance:
LINE OUT: 1.1 k ohm
PHONES/HEADSET: 10 ohms
AUX (MIC): 940 ohms
[Others]:

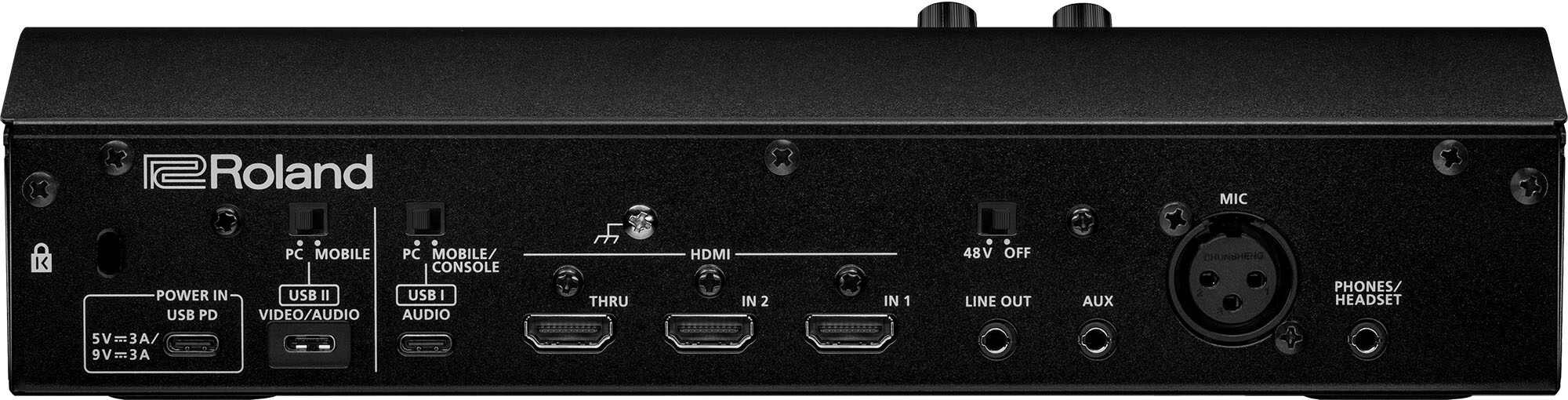

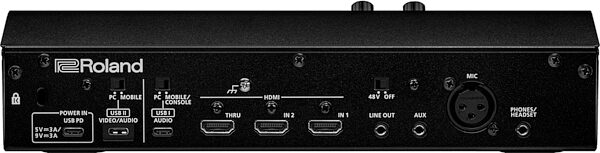

- Connectors:
MIC jack: XLR type (Phantom power DC 48 V, 6 mA Max)
PHONES/HEADSET jack: Stereo miniature phone type (CTIA, PLUG-IN power)
AUX jack: Stereo miniature phone type (TRRS)
LINE OUT jack: Stereo miniature phone type (TRS)
HDMI IN 1--2, THRU jack: HDMI type A (*9, *10)
USB I port: USB Type-C(R) (*11)
USB II port: USB Type-C(R) (*12, *13)
USB POWER IN port: USB Type-C(R) (*14)
(*9) HDCP Supported
(*10) Multi-format Supported
(*11) Audio/MIDI/HID Supported
(*12) Video/Audio/MIDI/HID Supported
(*13) Capable of supplying power to USB PD (Power Delivery) compatible smartphones (When 9V/3A is supplied to USB POWER IN jack)
(*14) Requires a USB PD compatible AC adapter capable of supplying 5V/3A or 9V/3A
- Power:
USB bus power (*15)
USB PD compatible AC adaptor (sold separately)
(*15) Bus-powered operation when connected to USB II port with a PC capable of supplying 5V/3A power
- Current Draw:
5 V DC, 3 A
9 V DC, 3 A (*16)
(*16) When supplying power to a smartphone connected to USB II port
- Operating System:
Microsoft Windows 10, Windows 11
Apple macOS 1
- Accessories:
Leaflet "Read Me First"
USB 3.2 Type-C(R) to Type-C(R) Cable
USB 2.0 Type-C(R) to Type-C(R) Cable (POWER)
- Dimensions (W x D x H): 10.6 x 5.1 x 2.8 in / 269 x 130 x 70mm
- Weight: 3 lb / 1.35 kg
- HDMI IN/THRU Formats:
1280 x 720/50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F)
1920 x 1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F)
2560 x 1080/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F)
3840 x 2160/23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p, 100p, 119.88p, 120p (CTA-861-F)
1280 x 720/60Hz (VESA DMT)
1920 x 1080/60Hz (VESA DMT)
2560 x 1440/60Hz (VESA CVT Reduced Blanking)
2560 x 1080/60Hz (VESA CVT Reduced Blanking)
3440 x 1440/60Hz (VESA CVT Reduced Blanking)
1920 x 1080/240Hz
2560 x 1080/144Hz
2560 x 1440/144Hz
3440 x 1440/100Hz
* The listed refresh rate (Hz) is the maximum value of each resolution.
* HDR (High Dynamic Range) Supported
- HDMI IN/THRU Formats (When using USB video output):
1280 x 720/50p, 59.94p, 60p (CTA-861-F)
1920 x 1080/29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F)
3840 x 2160/29.97p, 30p, 50p, 59.94p, 60p (CTA-861-F)
-USB Video Output Format: YUY2 (Uncompressed), Motion JPEG (Compressed)
- USB Video Output Resolution: 1920 x 1080, 1280 x 720, 640 x 480 * Maximum frame rate is 60 fps.
[Audio]:
- Input Channel:
MIC
AUX
HDMI (*1)
USB CHAT (*2)
USB GAME (*2)
USB MUSIC (*2)
USB SYSTEM (*2)
CONSOLE/MOBILE (*3, *4)
(*1) Linear PCM 48 kHz, 2ch, 5.1ch, 7.1ch
(*2) When the USB port connection setting is "PC"
(*3) When the USB I port connection setting is "CONSOLE/MOBILE"
(*4) When the USB II port connection setting is "MOBILE"
- Output Channel:
LINE OUT
PHONES
AUX (*5)
USB MIC (*5)
USB STREAM (*6)
USB PERSONAL (*6)
USB CONSOLE/MOBILE (*7, *8)
(*5) Microphone audio is output from the CTIA MIC jack
(*6) When the USB port connection setting is "PC"
(*7) When the USB I port connection setting is "CONSOLE/MOBILE"
(*8) When the USB II port connection setting is "MOBILE"
- Audio Mixing Bus: 2 (STREAM MIX, PERSONAL MIX)
- Sampling Frequency: Windows: 44.1 kHz, 48 kHz, 96 kHz, macOS/iOS/Other: 48 kHz
- Signal Processing: AD/DA: 24 bits, Internal Processing: 32-bit Floating point
- Effects:
MIC: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut
CHAT: De-esser, Compressor
HDMI: Equalizer, Virtual Surround
GAME: Equalizer, Virtual Surround
STREAM: Delay
- Audio File Player:
Number of tracks: 2
Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono)
Maximum Time: 5 seconds/track
- Input Level:
MIC: -87-- -12 dBu (Maximum: 0 dBu)
HEADSET MIC: -56-- -12 dBu (Maximum: 0 dBu)
AUX: -10 dBu (Maximum: +2 dBu)
- Input Impedance:
MIC: 8 k ohms
HEADSET MIC: 1.3 k ohms
AUX: 10 k ohms
- Output Level:
LINE OUT: -4 dBu (Maximum: +8 dBu)
PHONES/HEADSET: +1 dBu (Maximum: +13 dBu)
PHONES/HEADSET: 78 mW + 78 mW (32 ohms)
PHONES/HEADSET: 35 mW + 35 mW (250 ohms)
- Output Impedance:
LINE OUT: 1.1 k ohm
PHONES/HEADSET: 10 ohms
AUX (MIC): 940 ohms
[Others]:
- Connectors:
MIC jack: XLR type (Phantom power DC 48 V, 6 mA Max)
PHONES/HEADSET jack: Stereo miniature phone type (CTIA, PLUG-IN power)
AUX jack: Stereo miniature phone type (TRRS)
LINE OUT jack: Stereo miniature phone type (TRS)
HDMI IN 1--2, THRU jack: HDMI type A (*9, *10)
USB I port: USB Type-C(R) (*11)
USB II port: USB Type-C(R) (*12, *13)
USB POWER IN port: USB Type-C(R) (*14)
(*9) HDCP Supported
(*10) Multi-format Supported
(*11) Audio/MIDI/HID Supported
(*12) Video/Audio/MIDI/HID Supported
(*13) Capable of supplying power to USB PD (Power Delivery) compatible smartphones (When 9V/3A is supplied to USB POWER IN jack)
(*14) Requires a USB PD compatible AC adapter capable of supplying 5V/3A or 9V/3A
- Power:
USB bus power (*15)
USB PD compatible AC adaptor (sold separately)
(*15) Bus-powered operation when connected to USB II port with a PC capable of supplying 5V/3A power
- Current Draw:
5 V DC, 3 A
9 V DC, 3 A (*16)
(*16) When supplying power to a smartphone connected to USB II port
- Operating System:
Microsoft Windows 10, Windows 11
Apple macOS 1
- Accessories:
Leaflet "Read Me First"
USB 3.2 Type-C(R) to Type-C(R) Cable
USB 2.0 Type-C(R) to Type-C(R) Cable (POWER)
- Dimensions (W x D x H): 10.6 x 5.1 x 2.8 in / 269 x 130 x 70mm
- Weight: 3 lb / 1.35 kg
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 4.56 lbs
- Shipping Dimensions: 14 x 8 x 6 in
- Manufacturer Part Number (MPN): BRIDGECSTX
