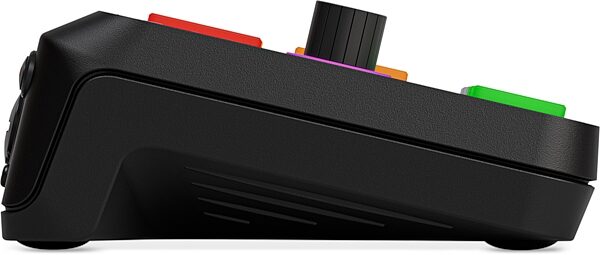

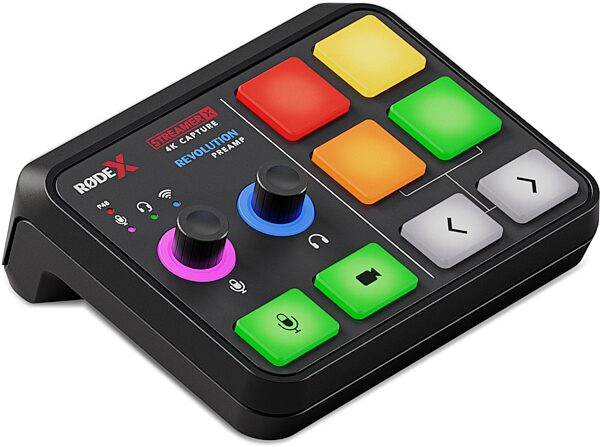

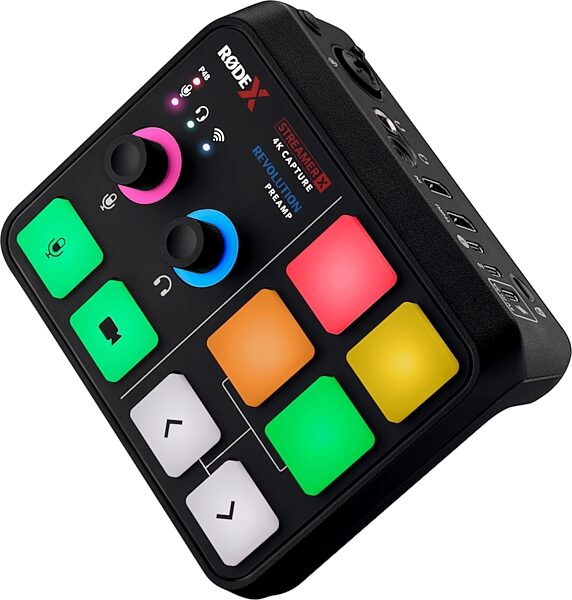

Rode Streamer X Professional Audio Video Interface

Rode Streamer X Professional Audio Video Interface, New, Action Position Back

zZounds Gear Experts Say...

One box to do it all! Rode's Streamer X is an HDMI video capture card, audio interface for your XLR mic or gaming headset, and a livestream control surface.

Overview

The Streamer X is a revolutionary product that combines a professional audio interface and video capture card in a compact, easy-to-use console.

It features studio-grade audio inputs for XLR and line-level devices, headsets and RODE wireless microphones, with an ultra-low-noise, high-gain Revolution Preamp(TM) and powerful APHEX audio processing delivering pristine sound quality.

It also offers 4K30 / 2K60 streaming and up to 2K120 / 4K60 pass-through for incredible video quality in a wide variety of applications, from streaming and gaming, to podcasting and content creation, to business presentations. Two USB-C connections seamlessly accommodate dual PC setups, and four customisable SMART pads allow for on-the-fly triggering of sound or voice FX and other actions on a computer. It is also fully compatible with RODE software solutions, including UNIFY, RODE Central and RODE Connect for expanded functionality and unmatched flexibility.

The Streamer X represents a new way to livestream with incredible audio and video. Never before has broadcast-quality video and audio capture been possible using a single console. This is the ultimate all-in-one streaming solution.

What is a capture card? How do you use your camera as webcam? Find out with Rode's video:

Specs

- Product Type: Professional audio interface, video capture card and control surface
- Connectivity: 2x USB-C (USB 3.1 and USB 2.0), 1x HDMI 2.0 Input, 1x HDMI 2.0 Passthrough, 1x XLR/1/4" combo jack, 1x 3.5mm TRRS headset jack, 1x 1/4" headphone jack
- Power Source: USB 5V @ 3A (bus powered or external power supply)
- Frequency Response: 20Hz-20kHz (microphone inputs and headphone output)
- Sample Rate: 48kHz
- Bit Depth: 24-bit
- Resolution: Max Input: 4K60 HDR, 1440p144 HDR, 1080p240 HDR; Max Capture: 4K30, 1440p60, 1080p120, 1080p60 HDR; Passthrough: 4K60, 2K120
- Frame Rate: Max Input: 4K60 HDR, 1440p144 HDR, 1080p240 HDR; Max Capture: 4K30, 1440p60, 1080p120, 1080p60 HDR
- Polar Pattern: Depends on connected microphone
- Dynamic Range: 113dB
- Input Channels: 1x XLR/1/4" combo, 1x 3.5mm TRRS headset, 1x integrated wireless receiver, 1x HDMI
- Output Channels: 1x 1/4" headphone, 1x HDMI passthrough
- Phantom Power: 48V selectable
- Compatibility: macOS 10.15 or later, Windows 10 Version 1803 or later, Windows 11
- Microphone Type: Depends on connected microphone
- Impedance: Microphone input: 4kΩ, Instrument input: 1MΩ
- Signal-to-Noise Ratio: Preamp noise: -131.5dBV (A-weighted)
- Operating System Requirements: macOS 10.15 or later, Windows 10 Version 1803 or later, Windows 11

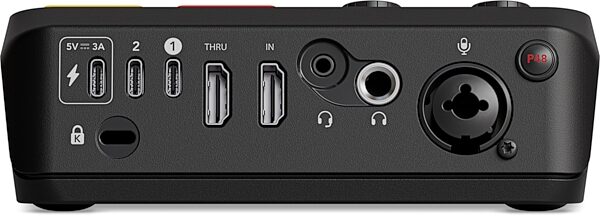

- Ports: 2x USB-C, 2x HDMI 2.0, 1x XLR/1/4" combo, 1x 3.5mm TRRS, 1x 1/4" headphone, 1x 5V power
- Control Protocol: RØDE Central, UNIFY software

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 2.33 lbs
Shipping Dimensions: 9 x 7 x 4 in
Manufacturer Part Number (MPN): STREAMERX

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 562-364-7400
Web: https://rode.com/en/support/contact

Reviews

(1 ratings)

Submitted May 12, 2025 by James H

"I was so hopeful"

Overall:

(see rating details)

Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.

Sound quality and video quality for streaming are top tier, however, the Unify app is completely broken. I can use the Rodecaster App to get it to work but not well and I can't use most of the features. I've uninstalled and reinstalled the software multiple times, read and watched tutorials and I still cannot get it to output through Unify to OBS. This experience has been rather disappointing because I thought I found a solution to make streaming easier, but instead, I end up not streaming due to frustration.
