Nord Electro 7 Stage Synthesizer Keyboard, 61-Key

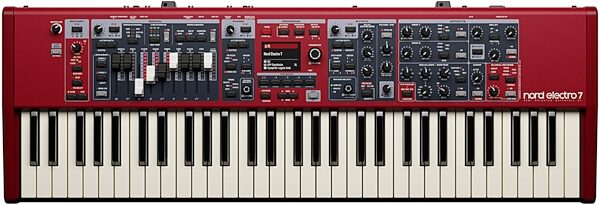

Nord Electro 7 Stage Synthesizer Keyboard, 61-Key, New, Main

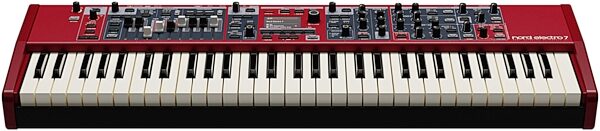

Nord Electro 7 Stage Synthesizer Keyboard, 61-Key, New, Action Position Back

zZounds Gear Experts Say...

Perform limitlessly and expressively with the Nord Electro 7, a do-everything stage synth with killer sounds and controls you can touch.

Overview

The Nord Electro 7 elevates the Electro series with a powerful new Synth Section, dedicated per-section effects, and a refined panel design with a high-resolution color display. Combining our latest piano features with the acclaimed Organ and Rotary Speaker from the Nord Organ 3, the Electro 7 offers exceptional versatility in a lightweight, stage-ready instrument.

Features:

- New Panel design and new large color display
- Physical Drawbars on all models
- Pitch Stick and Modulation Wheel on 73 and HP models
- HP model - new 73-key Kawai Triple Sensor Hammer Action keybed
- Expression Pedal Assign, enabling pedal control of Synth Filter and effect parameters
- Compatible with the Nord Piano Library
- B3, B3 Bass, Vox, Farfisa, Soft B3 and Pipe organs
- Dedicated effects per section
- New Amps (Brit and Suitcase)
- Samples, Analog waveforms and FM synthesis
- Push Encoder for selecting Category and Sound
- Organ Section
- The Organ Section is based on the Nord Organ 3 engine and features stunning recreations of classic tonewheel, transistor, and pipe organs as well as the latest generation of our acclaimed Rotary Speaker emulation with multiple microphone perspectives.
- B3, B3 Bass, Vox, Farfisa, Soft B3 and Pipe organs from Nord Organ 3
- Rotary Speaker emulation from the Nord Organ 3
- 3 mic positions for Rotary Speaker
- Physical Drawbars with LEDs on all models
- Piano Section
- The Nord Electro 7 contains a large selection of Grands, Uprights and Electric Pianos from… read more the exclusive Nord Piano Library along with new features such as Dynamic Compression, Unison and Timbre. Our state-of-the-art sampling technique captures the extraordinary nuances and real character of the source instruments.
- Compatible with the Nord Piano Library
- Push Encoder for selecting Category and Sounds
- Dynamic Compression, Unison, Timbre
- Effects Section
- The Nord Electro 7 has an expanded new Effects section per Layer. The wide range of Effects includes brand new types of Reverb, Delay, Amps and Modulation effects.
- Dedicated effects per section
- Rate and Amount for Modulation Effects
- New Spring reverb
- New Amps (Brit and Suitcase)
- Global Reverb with per layer Send
- Synth Section
- A brand new Synth Section introducing Analog Waveforms and FM synthesis alongside high-quality Samples from the Nord Sample Library. The Synth Section includes Mono, Legato and Glide modes for expressive performance control. Low-Pass Filter with resonance and dual ADR envelopes for Amp and Filter/FM Amount designed for exceptional real time control.
- Samples, Analog waveforms and FM synthesis
- Push Encoder for selecting Category and Sound
- Vibrato with adjustable rate, amount and delay
- Mono, Legato and Glide
- Unison
- Low-pass filter with Resonance control
- FM Partial and FM Amount
- Dual envelope for Amp and Filter/FM
- Compatible with the Nord Sample Library
- Included Accessories:
- User Manual
- Power cord

Specs

- Keybed: 61-key (5 octaves, C-C) Semi Weighted Waterfall keyboard
- Organ Section:
B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe model with full polyphony
B3 Percussion Controls with Poly option
Vibrato/Chorus with B3 Deep mode
Adjustable percussion level and percussion decay
3 Tonewheel modes: select the level of "vintage" desired
2 Organ manual Presets and Live Drawbars
Physical Drawbars with LED indicators
Mount for Half-Moon Switch on Electro 7 61/73
- Piano Section:
- Categories: Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord and Misc/Mallet
Pianos can be added, replaced and organized using the Nord Sound Manager
String Resonance
Timbre settings - individually tailored for acoustic, electric and clavinet sounds
3 KB Touch settings
Dynamic Compression for even sound level without altering the tonal character
Unison with 3 amount options
120 Voices polyphony for Piano Library sounds.
- Synth Section:
Sample, Analog and FM synthesis
Samples can be added, replaced and organized using the Nord Sound Manager
Preset library for Analog and FM sound
Amp and Filter/FM ADR/ASR envelopes
Velocity and Amount controls for Filter/FM envelope
Low Pass Filter with Cutoff and Resonance controls for Analog and Sample sounds
Amount and Partial controls for FM
Mono, Legato and Glide options
Unison with 3 amount options
3 Dynamics/amp velocity options
Vibrato with adjustable rate, amount and delay
Synth Vibrato button for real time control
30+ voice polyphony
- Rotary Speaker:
Rotary Speaker emulation from Nord Organ 3
Close, Wide and XY Mic Position options
Bass Wide (stereo) option
Dedicated tube Drive control
Fix Angle option for Stop position (user adjustable)
- Effect Section:
Dedicated Effects for Organ, Piano and Synth
FX Focus with FX Bypass option
Expression Pedal can be assigned to most effect parameters
- Mod 1:
Pan1 (Soft), Pan2 (Hard), Tremolo, Wah and Ring Modulator
Dedicated Rate and Amount Controls
- Mod 2:
Phaser, Flanger, Chorus, Vibe and Ensemble
Wide option for stereo width
Dedicated Rate and Amount Controls
- Equalizer/Amp Simulations:
Twin, Small, Suitcase, JC and Brit amp models
Drive
Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
- Delay:
Tempo with Tap function
Feedback and Dry/Wet controls
Low Pass, High Pass and Band Pass feedback filter options
Ping Pong with 3 amount options
Analog mode
Global mode
- Compressor:
control and Global option
- Global Reverb:
Spring, Room, Stage, Hall and Cathedral reverb types
Spring Reverb placed before Rotary Speaker
Chorale option for all reverb types
Bright/Dark options
Dry/Wet control with Layer Send mode for individual control of reverb level per section
- Connections
- 2 Audio outputs L and R: 1/4", 6.35 mm jacks, unbalanced
- 1 Monitor input: 1/8", 3.5 mm stereo jack
- 1 Headphone output: 1/4", 6.35 mm stereo jack
- 1 Expression pedal input: 1/4", 6.35 mm TRS stereo jack
- Sustain Pedal: 1/4", 6.35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals
- Rotary Control/Foot Switch: 1/4", 6.35 mm jack.
Use a momentary pedal or a switch type pedal.
- MIDI In: 5 pin DIN connectors
- MIDI Out: 5 pin DIN connectors
- USB: type B connector for USB MIDI, Software Update and Sound Transfer
- Power Cord: IEC C14 connector
- Dimensions: 901 mm (35.5") x 104 mm (4.1") x 294 mm (11.6")
- Weight: 8.3 kg (18.3 lbs)
