Lindell Audio 506 Power MkII 500 Series Rack
zZounds Gear Experts Say...
This 6-slot chassis delivers 2.4A of power (that's 400mA per slot), with Feed switches to send each slot's output into the next, and both dSub and XLR I/O.
Overview

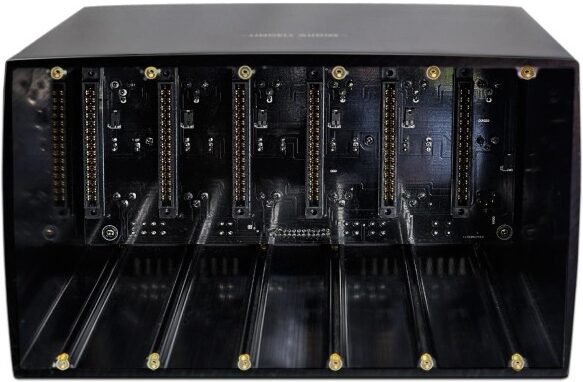

The 506 MkII Power chassis holds up to six 500-series modules in a compact yet rugged unit. An external no-noise power supply delivers the perfect amount of power to run your modules with crystal clear sound. This lightweight aluminum chassis has a small footprint that fits in any studio. The affordable 506 Power gives you exactly what you need to get your studio up and running. Create your ideal signal chain with the Lindell Audio 506 Power chassis.
The lightweight and small-sized 506 Power 500 series chassis holds six 500-series processors in a single easy-to-transport unit. Arrange your preamps, EQs, and effects in any order quickly and easily.
- Lightweight aluminum enclosure
- Gold plated XLR I/O's
- dSub I/O's

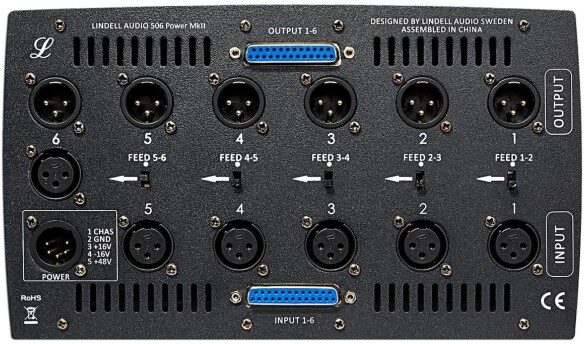

- Feed switch. Mix one channel into another without cables
- No-noise, high-frequency switching power supply
- Overload and short-circuit protection
- 400mA per slot
- Includes protective neoprene bag
The lightweight and small-sized 506 Power 500 series chassis holds six 500-series processors in a single easy-to-transport unit. Arrange your preamps, EQs, and effects in any order quickly and easily.
Features:
- 6-slot chassis for 500-series modules- Lightweight aluminum enclosure
- Gold plated XLR I/O's
- dSub I/O's
- Feed switch. Mix one channel into another without cables
- No-noise, high-frequency switching power supply
- Overload and short-circuit protection
- 400mA per slot
- Includes protective neoprene bag
Specs
- Number of Slots: 6
- Power Supply Type: External no-noise high-frequency switching
- Voltage Rails: +/-16V and 48V
- Current per Slot: 400mA
- Total Current Output: 2.4A
- Phantom Power: 48V
- Compatibility: 500 Series compatible
- I/O Connectors per Slot: Gold-plated XLR and D-Sub
- Chassis Material: Lightweight aluminum
- Rack Units: 3U
- Power Supply Type: External no-noise high-frequency switching
- Voltage Rails: +/-16V and 48V
- Current per Slot: 400mA
- Total Current Output: 2.4A
- Phantom Power: 48V
- Compatibility: 500 Series compatible
- I/O Connectors per Slot: Gold-plated XLR and D-Sub
- Chassis Material: Lightweight aluminum
- Rack Units: 3U
Dimensions and Weight in Packaging
6 Slot
- Shipping Weight: 8.65 lbs
- Shipping Dimensions: 10 x 9 x 7 in
- Manufacturer Part Number (MPN): 506powermk2
Open Box (Very Good), 6 Slot
- Shipping Weight: 8.65 lbs
- Shipping Dimensions: 10 x 9 x 7 in
- Manufacturer Part Number (MPN): 506powermk2
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 845-378-1266
Email: info@lindellaudio.com
Web: https://lindellaudio.com/en/tech-support
Phone: 845-378-1266
Email: info@lindellaudio.com
Web: https://lindellaudio.com/en/tech-support
