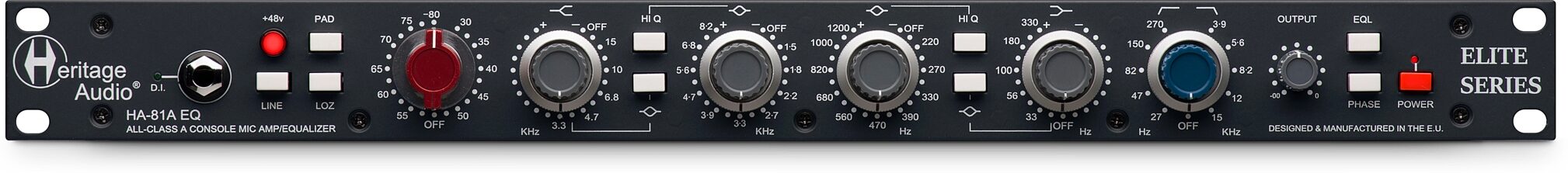

Heritage Audio HA-81A British-Spec Hybrid Channel Strip

Heritage Audio HA-81A British-Spec Hybrid Channel Strip, New, Action Position Back

zZounds Gear Experts Say...

Get a classic 73-style preamp and 81-style equalizer in one box with Heritage Audio's HA-81A, an all-discrete channel strip with no-compromise build quality.

Overview

Introducing Heritage Audio's HA-81A: a mix of 2 classic consoles. The HA-81A is a channel strip that combines an all discrete, Class-A 73-style mic preamp with the infamous 81-style equalizer -- arguably the most in-demand products for all recording engineers.

The mic preamp that meets the demands

The HA-81A's preamp section is an 80 dB, all discrete Class-A design with Carnhill and St. Ives input and output transformers. To put it simply, it's an exceptional Heritage Audio take on the infamous 73-style preamplifier.

The preamp features gain, output trim, -20db pad, polarity reverse, and +48v phantom power.

The best console equalizer ever made

The HA-81's equalizer section is an exceptionally musical 4 band, inductor-based equalizer with high and low pass filters. Where 3 band equalizers such as the typical 73-style exceed at musicality but may get short of features, the HA-81A EQ equally excels on both. Extreme control over Shelf or Bell response curves on the high and lows, dual Q on both mid bands, with dedicated high and low mid ones, and a range of 30 frequency selections to choose from.

Hybrid design. Heritage quality.

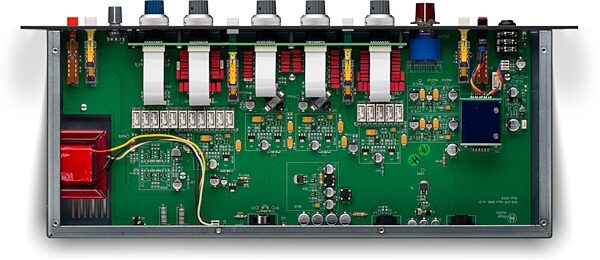

The Heritage HA-81A utilizes only rotary switches and precision, concentric potentiometers. And like all of the products in the Elite range, the HA-81A is built with the most cutting edge methods in manufacturing and design, without ever compromising audio quality or cutting corners - all at the Heritage headquarters in Spain.… read more

Features:

- Classic European console preamp and equalizer; a hybrid design based on two of the best designs ever made
- Full-featured 71-style mic preamp
- Full-featured 81-style equalizer
- Built at Heritage headquarters in Spain

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Channels: 1
- Input Connectors: XLR3-31 female (Mic), XLR3-32 female (Line), 1/4" TRS (Hi-Z/DI)
- Output Connectors: XLR3-31 male balanced
- Gain Range: 0 to 80 dB (in 5 dB steps)
- Frequency Response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB) - EQ Off
- Equivalent Input Noise (EIN): Less than -125 dBu at 80 dB mic gain
- Total Harmonic Distortion (THD): Less than 0.025% at 1 kHz, Less than 0.05% at 100 Hz
- Phantom Power: +48V
- Maximum Output Level: Greater than +26.5 dBu into 600 Ω (internally terminated)
- Input Impedance: Mic: HI = 1200 Ω minimum, LO = 300 Ω minimum; Line: 10 kΩ bridging
- Output Impedance: Less than 75 Ω, transformer balanced and floating
- Power Requirements: Less than 150 mA @ 48V DC (external power supply)
