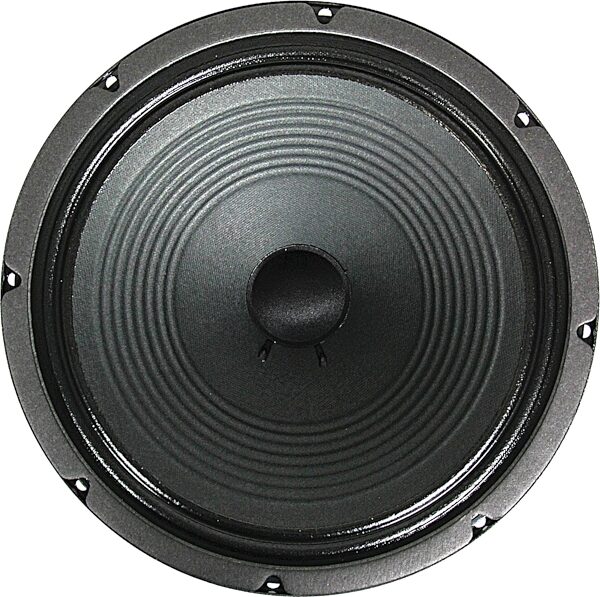

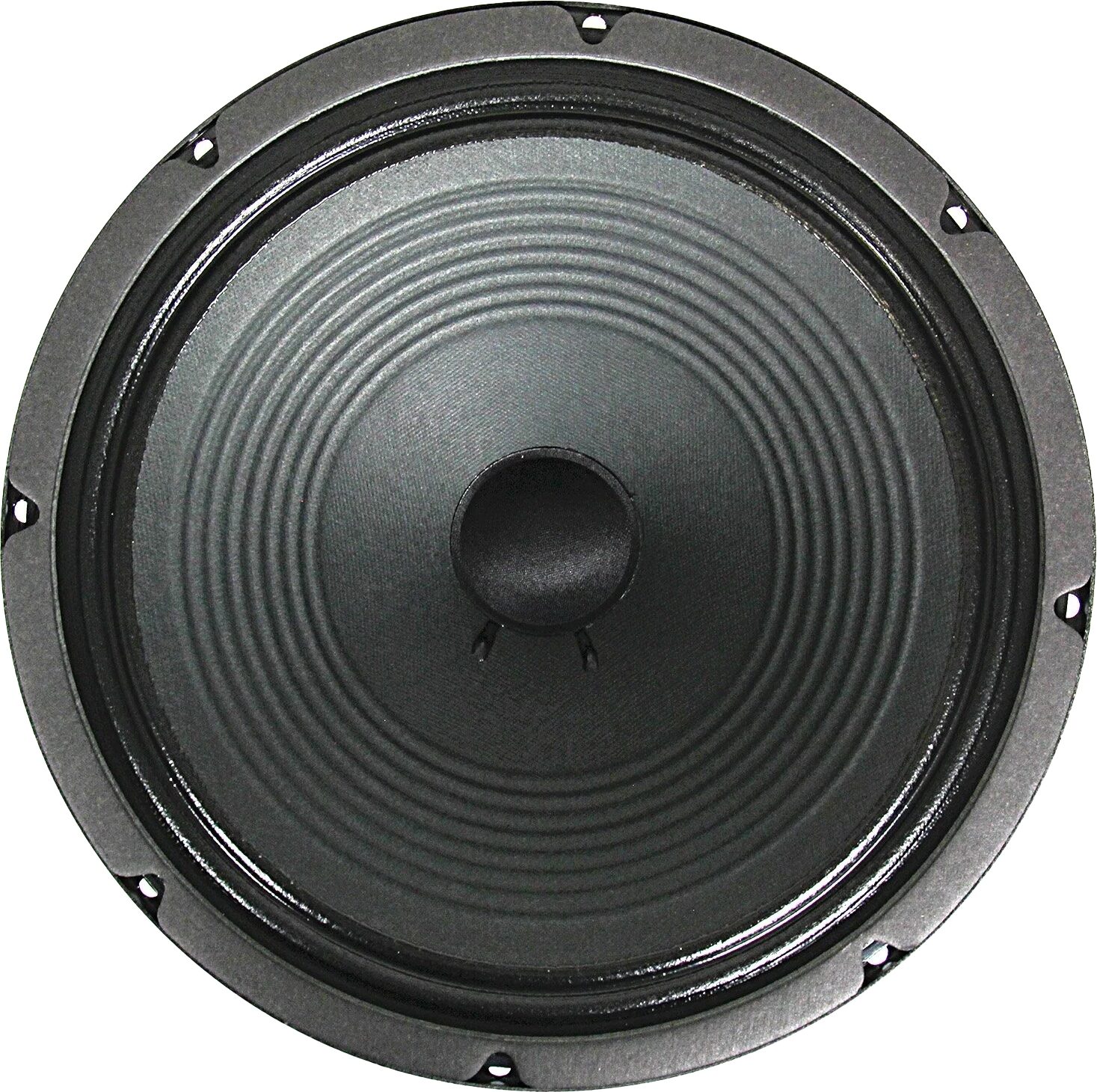

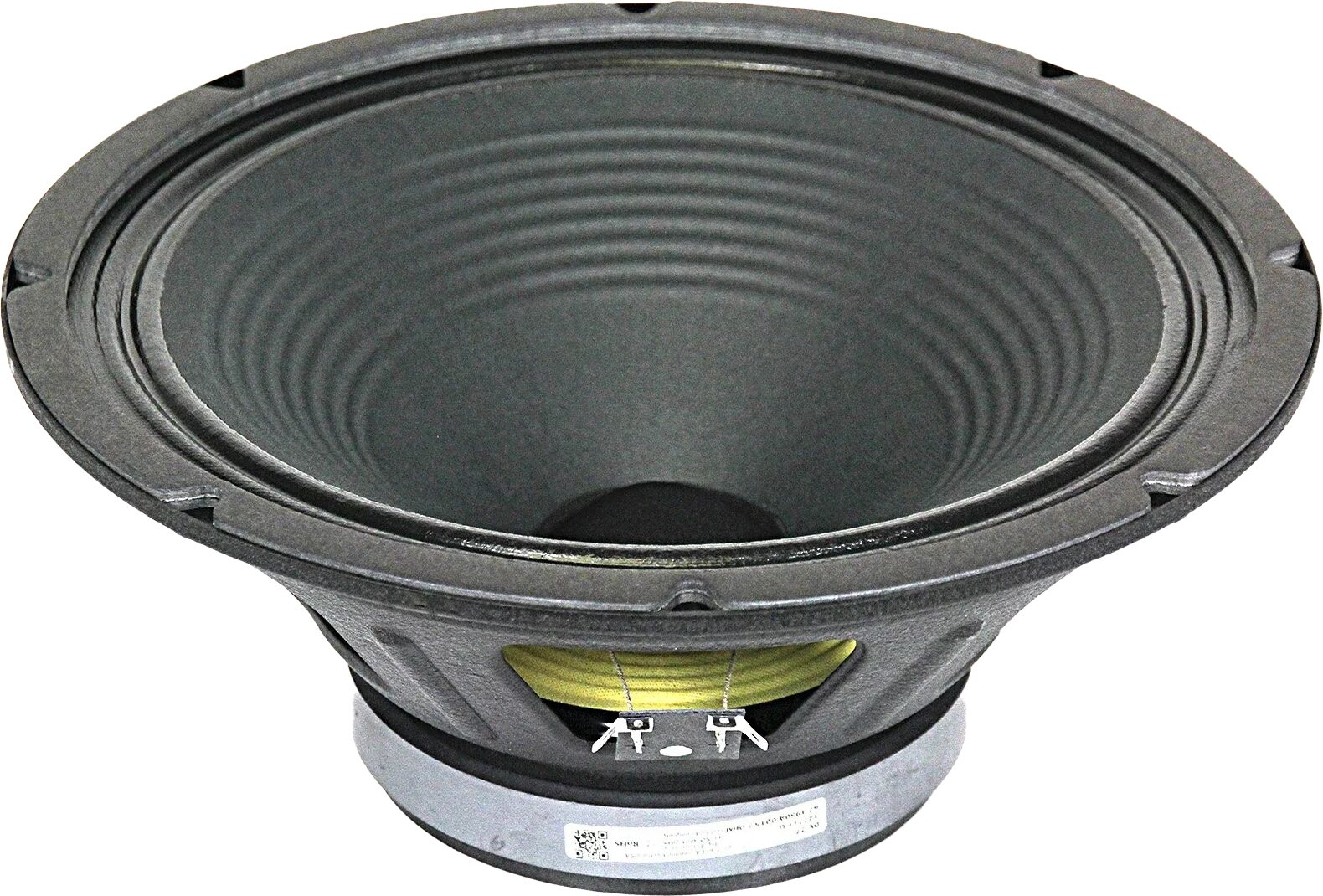

Eminence Mick Thomson Guitar Speaker (70 Watts, 12")

Created in collaboration between Mike Smith and Mick Thomson, the Eminence Mick Thomson guitar speaker is ideal for those who like a heavy, yet clear tone.

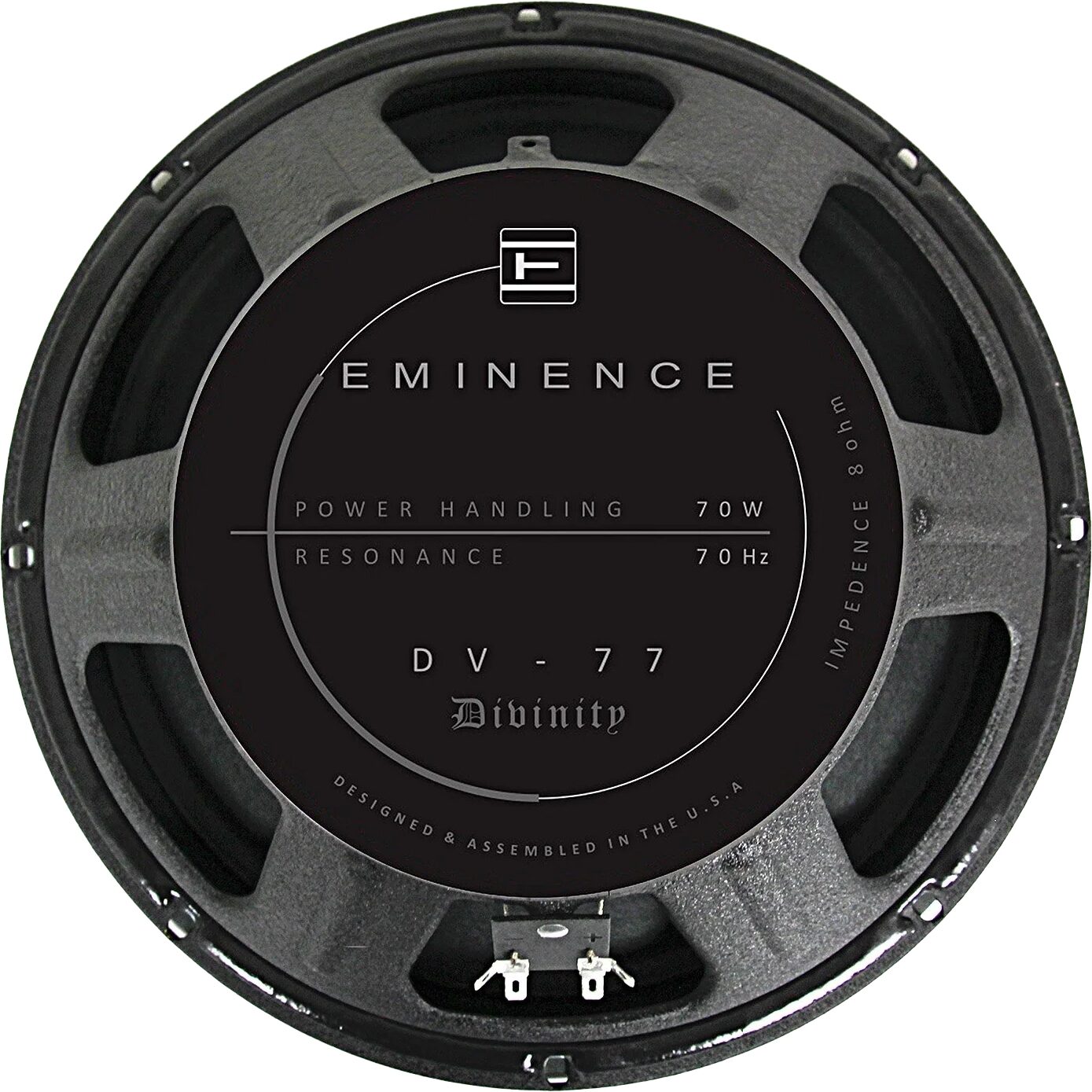

Designed by Mike Smith of OMEGA and Mick Thomson of Slipknot, this speaker represents the future of Mick's signature tone. Assembled in the USA by Eminence, the DV-77 leverages a custom-designed basket, a voice coil design, a spider design, and a carefully chosen UK made Kurt Mueller cone to deliver exceptional tone and reliability.

From the beginning, the focus of this speaker was balance, response, and a very musical tone. Delivering tight punchy lows, thick harmonically complex mid-range & detailed highs without excess fizz. Not a clone or a copy, this speaker was designed in the studio and proven on the stage. With over a year of real-world testing by Mick, the DV-77 Mick Thomson Signature Speaker is the perfect addition to your rig.


- 12 inch Guitar Speaker
- 16 ohm impedance
- Up to 70 watts power range
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Nominal Basket Diameter: 12", 304 mm
- Nominal Impedance: 8 Ohm
- Watts: 70 W
- Resonance : 70 Hz
- Usable Frequency Range: 70 Hz - 5.3 kHz
- Sensitivity: 100.6 dB
- Magnet Weight: 50 oz.
- Gap Height: 0.313", 7.95 mm
- Voice Coil Diameter: 1.75", 44 mm
- Resonant Frequency (fs): 74 Hz
- DC Resistance (Re) : 13.27 Ohm
- Coil Inductance (Le): 0.74m H
- Mechanical Q (Qms): 13.48
- Electromagnetic Q (Qes): 0.54
- Total Q (Qts): 0.52
- Compliance Equivalent Volume (Vas): 71.19 liters / 2.51 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 41.04 cc
- Mechanical Compliance of Suspension (Cms): 0.19 mm/N
- BL Product (BL): 13.18 T-M
- Diaphragm Mass Inc. Airload (MMs): 27 grams
- Efficiency Bandwidth Product (EBP): 156
- Maximum Linear Excursion (Xmax): 0.79 mm
- Surface Area of Cone (Sd): 519.5 cm2
Dimensions and Weight in Packaging
16 Ohms
Shipping Weight: 12.05 lbs
Shipping Dimensions: 14 x 13 x 7 in
Manufacturer Part Number (MPN): DV-77-16
8 Ohms
Shipping Weight: 11.95 lbs
Shipping Dimensions: 14 x 14 x 7 in
Manufacturer Part Number (MPN): DV-77
