Arturia Audiofuse X8 Out Expander

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Arturia Audiofuse X8 Out Expander, New, Action Position Back
open zoom image for Arturia Audiofuse X8 Out Expander, New, Action Position Back
open zoom image for Arturia Audiofuse X8 Out Expander, New, Action Position Back
open zoom image for Arturia Audiofuse X8 Out Expander, New, Action Position Back
open zoom image for Arturia Audiofuse X8 Out Expander, New, Action Position Back
open zoom image for Arturia Audiofuse X8 Out Expander, New, Action Position Back
open zoom image for Arturia Audiofuse X8 Out Expander, New, Action Position Back
open zoom image for Arturia Audiofuse X8 Out Expander, New, Action Position Back
Arturia Audiofuse X8 Out Expander, New, Action Position Back Arturia Audiofuse X8 Out Expander, New, Action Position Back Arturia Audiofuse X8 Out Expander, New, Action Position Back Arturia Audiofuse X8 Out Expander, New, Action Position Back Arturia Audiofuse X8 Out Expander, New, Action Position Back Arturia Audiofuse X8 Out Expander, New, Action Position Back Arturia Audiofuse X8 Out Expander, New, Action Position Back Arturia Audiofuse X8 Out Expander, New, Action Position Back
zZounds Gear Experts Say...
Extend your sonic possibilities with this expander, designed to add 8 ADAT-to-analog outputs to your studio setup, compatible with your existing ADAT gear!

The AudioFuse X8 OUT is an essential tool for recording producers and sound engineers who are looking for additional high-quality analog outputs. By improving integration with external gear and supporting complex signal routing for live setups, AudioFuse X8 OUT ensures studios can manage intricate audio workflows without the added complexity or cost.

More specifically, an 8 ADAT-to-Analog output expander enables you to send audio to outboard gear (hardware FX, mixing console), add additional speakers and control an array of synths via DC-coupled output.

Features

- 8x DC coupled outputs
- World clock input on BNC
- 24-bit latest generation Cirrus Logic DA converters up to 96 kHz sampling rate
- Robust half 1-U rack chassis
- Assembly kit included to rack two AudioFuse X8 units

Efficient Expansion
AudioFuse X8 OUT provides 8 outputs via ADAT, enhancing the connectivity of your existing audio setup without the unnecessary cost and clutter of a fully-featured audio interface.

Professional Audio Quality
AudioFuse X8 OUT supports 8 channels of premium ADAT-to-analog conversion up to 96 kHz and utilizes the best components available, ensuring your recordings and outputs maintain the highest fidelity.

Versatile Installation
Designed as half-sized rack units, X8 OUT comes with removable rack ears for flexible installation. This allows them to be used as desktop units or mounted in a standard rack setup, accommodating up to two units side by side for expanded setups.

Ease of… read more Use
Front-panel controls offer direct access to channel management, making setup and adjustments straightforward. Colorful VU meters provide clear visual feedback for monitoring levels.
read less

- Accessory Type: ADAT to analog output expander
- Compatibility: ADAT-equipped audio interfaces

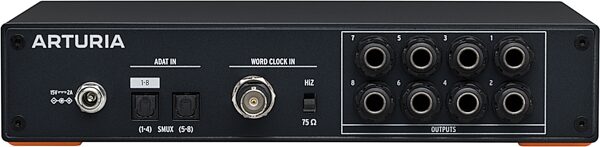

- Input Connectors: 2 x ADAT Toslink optical inputs, 1 x BNC Word Clock input
- Output Connectors: 8 x 1/4" TRS line outputs
- Connector Gender: TRS jacks (balanced outputs), Toslink optical (inputs), BNC (Word Clock)
- Number of Channels: 8 channels
- Output Impedance: 240Ω balanced, 120Ω unbalanced
- Frequency Response: 20Hz to 20kHz +/-0.04dB
- Signal to Noise Ratio: 120.5dB (A-weighted)
- Maximum Input Level: +24dBu
- Power Requirements: 15V 2A external power supply (included)

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 4.41 lbs
  • Shipping Dimensions: 13 x 10 x 3 in
  • Manufacturer Part Number (MPN): 831003

For support or warranty questions, please contact the manufacturer:
Web: https://www.arturia.com/support
