Allparts True Lok Vin-Mod 6-in-Line Locking Tuners
zZounds Gear Experts Say...
Want to enhance the performance of your Strat- or Tele-style guitar while keeping vintage flair? These 6-in-line Vin-Mod locking tuners do just that!
Overview
Combining vintage aesthetics with modern manufacturing techniques, True Lok Vin-Mod series tuning keys offer fans of vintage guitars ultimate tuning stability while maintaining a classic, traditional appearance inspired by tuning keys used on vintage guitars.
Combined with its string locking mechanism and 18:1 gear ratio, a tension washer is installed between the string post and base plate to eliminate "post wiggle," making these keys accurate and ultra stable. Players will notice the silky-smooth feel employed by internal nylon washers that cushion the key's gear shaft. Lastly, string changes are made easy by simply pulling the string through the tuner post and locking it in place before tuning to pitch. True Lok Vin-Mod keys are the perfect solution for those wanting to preserve the classic look of vintage instruments with the accuracy and stability of a modern locking tuning key!
- Tension washer added to the base of string post prevents "post wiggle" for better sustain and more stable tuning
- Nylon washer added to worm gear post for smoother feel
- Staggered posts eliminate the need for a string tree
- Casted vintage housing offers a classic look while encasing internal components better than older keys made of stamped steel, making them less susceptible to corrosion and adding to the key's overall longevity
- Follows same screw pattern as most 2-screw mount vintage style keys
Combined with its string locking mechanism and 18:1 gear ratio, a tension washer is installed between the string post and base plate to eliminate "post wiggle," making these keys accurate and ultra stable. Players will notice the silky-smooth feel employed by internal nylon washers that cushion the key's gear shaft. Lastly, string changes are made easy by simply pulling the string through the tuner post and locking it in place before tuning to pitch. True Lok Vin-Mod keys are the perfect solution for those wanting to preserve the classic look of vintage instruments with the accuracy and stability of a modern locking tuning key!
Features:

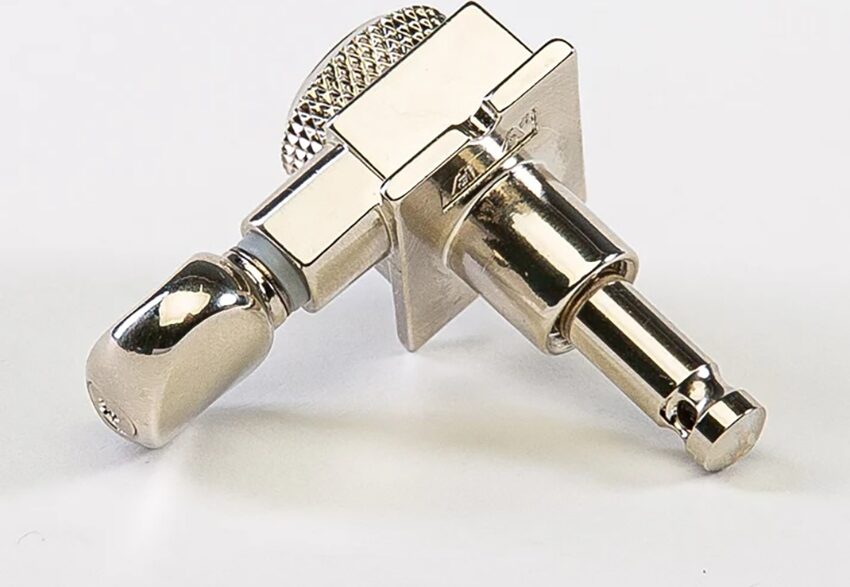

- Locking key with lock wheel on back of housing- Tension washer added to the base of string post prevents "post wiggle" for better sustain and more stable tuning
- Nylon washer added to worm gear post for smoother feel
- Staggered posts eliminate the need for a string tree
- Casted vintage housing offers a classic look while encasing internal components better than older keys made of stamped steel, making them less susceptible to corrosion and adding to the key's overall longevity
- Follows same screw pattern as most 2-screw mount vintage style keys
Specs

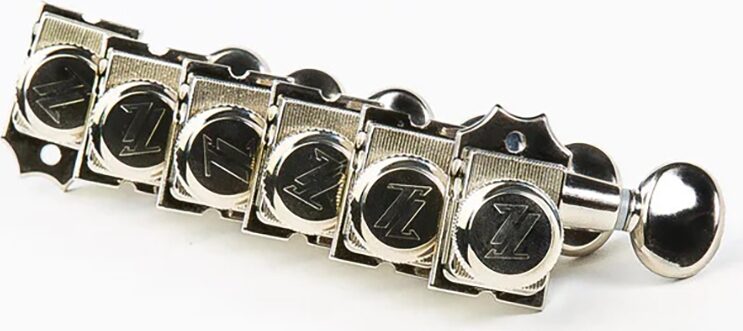

Orientation: 6 In-line w/ staggered height posts
Gear Ratio: 18:1
String Post: Brass
Worm Gear: Steel
Gear: Brass
Key Housing: High density die-cast zinc
Button Style: Metal oval
Post Diameter: 6mm (requires 10mm hole for screw-in bushing)

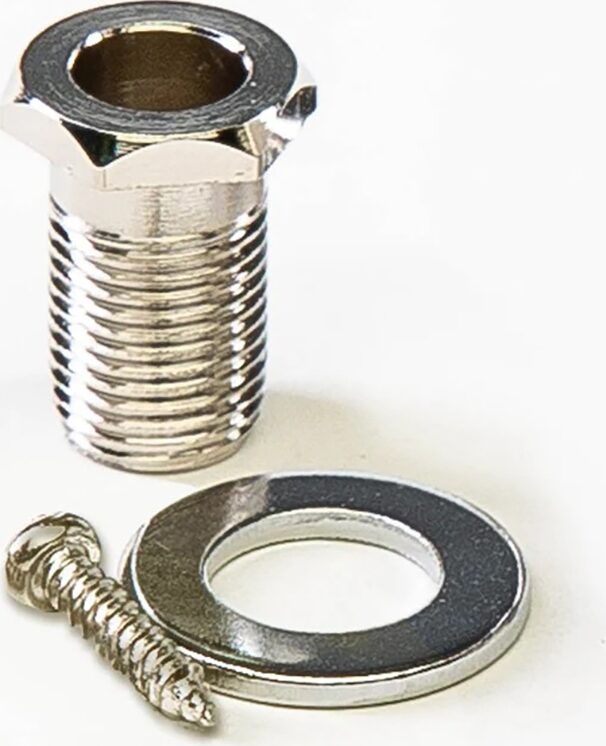

Hardware Included: 6 screw-in bushings, 6 dress washers, 7screws
Gear Ratio: 18:1
String Post: Brass
Worm Gear: Steel
Gear: Brass
Key Housing: High density die-cast zinc
Button Style: Metal oval
Post Diameter: 6mm (requires 10mm hole for screw-in bushing)
Hardware Included: 6 screw-in bushings, 6 dress washers, 7screws
Dimensions and Weight in Packaging
Nickel
- Shipping Weight: 0.55 lbs
- Shipping Dimensions: 8 x 5 x 2 in
- Manufacturer Part Number (MPN): TK-7135-001
