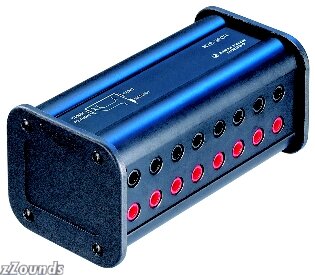

Neutrik Patchbox 16-Point TRS Balanced Patchbay

Includes eight 1/4 in. send/return modules.

See Full Size Image

Overall User Ratings

Overall:: 8 out of 10
Features:: 6 out of 10
Quality:: 8 out of 10
Value:: 8 out of 10
I Want It:: 5 out of 10
Sound:: 0 out of 10
Ease of Use:: 0 out of 10
Support:: 0 out of 10

"GET RID OF THOSE INSERT CABLES!!!"

Overall:: 10 out of 10
Features:: 10 out of 10
Quality:: 10 out of 10
Value:: 10 out of 10
I Want It:: 10 out of 10

User: a customer from qwest.net

Submitted: 4/26/2002

Style of Music: Ballade

Location: Phoenix, Arizona

If you are utilizing the "Insert" connections of your mixer, you either take up a group of connection on you patchbay (8 chan = 16 positions) PLUS insert cables, OR you buy this unit! Rack mount? Sure, just buy the NEUTRIK NYS-SPP-L patchbay and substitute these modules in place of the std ones supplied. Presto, 8 positions consumed, 16 std left for other uses. The input is a TRS from the INSERT jack, and you get tip TS on the top jack, and ring (return) on the lower. That is ALL with std cables!

Did you find this review helpful?

Thanks for your opinion!

"This is not a balanced patch bay"

Overall:: 5 out of 10
Features:: 4 out of 10
Quality:: 8 out of 10
Value:: 6 out of 10
I Want It:: 2 out of 10

User: a customer from iname.com

Submitted: 12/18/2001

Style of Music: Pop / Rock

Location: Denver

Despite the title given by Neutrik, this is only a insert split block so that you can plug 1/4" cables into you inserts.

Unfortunately, there is no normalling if nothing is plugged into the return side, which means you always have to patch across from send to return if you don't need any inserts.

Did you find this review helpful?

Thanks for your opinion!

"No Virginia, it's NOT balanced."

Overall:: 5 out of 10
Features:: 4 out of 10
Quality:: 6 out of 10
Value:: 8 out of 10
I Want It:: 2 out of 10

Submitted: 4/25/2002

Style of Music: rock/ folk/ metal/ emo

Location: california

It's TRS in the rear for inserts, with UNBALANCED TS sends (black) and UNBALANCED TS returns (red) on the front. There is NO provision for normalling, so you'll have to patch every time. It would be good for sending 8 signals to tape and returning those signals post deck while tracking, but not much else.
I use it for amplifier to speaker patching in a studio, and it's nice for that, but if you do that, beef up the circuit boards with speaker wire to handle the higher current.
