This product is no longer available at zZounds.
We recommend this product instead:
Yamaha MSP5S Active Studio Monitor (40 Watts, 1x5 in.)
-
- New from $274.99
- List: $349.00
- SAVE: 21%
- Blowouts save up to $35.04!
- In Stock
Like the larger MSP7 Studio, the MSP5 Studio is a 2-way bi-amplified bassreflex system that delivers outstanding monitoring precision for digital or analog production in stereo or surround formats. The more compact dimensions of the MSP5 Studio make it an ideal choice for smaller project studios and DAW based production systems. The MSP5 Studio features a 5 in. cone woofer driven by a 40-watt amplifier and a 1 in. dome tweeter driven by a 27-watt amplifier. Learn More...
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

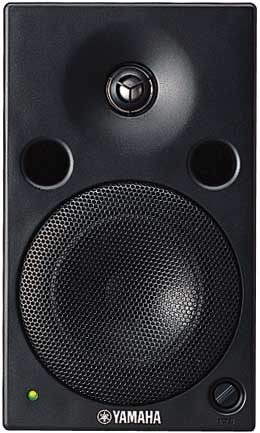

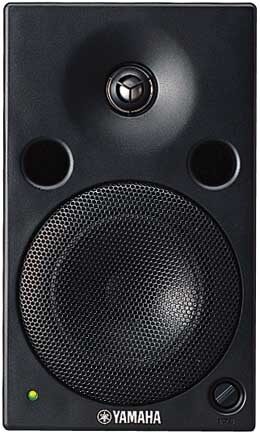

Yamaha MSP5 Bi-Amplified Monitor Speaker
40 watts, 5 in. LF; 28 watts, 1 in. tweeter. (Single speaker.)
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs
MSP5
High quality, powered monitors have traditionally demanded premium prices. The new MSP5 bi-amplified monitor speakers from Yamaha deliver extraordinary sound quality, at an equally attractive price! The MSP5 provides the perfect choice for a wide range of applications, from home recording to post production.
Ultra-Compact, Quick and Easy Hookup
Ultra-compact enclosures allow easy placement. Small face print makes them very accurate for "point source" listening. Hookup is quick and easy with both XLR and 1/4 in. phone jacks available. 67 combined watts of audio power in a bi-amplified monitor this size, let alone near this price, was previously unheard of -- until now. Upgrading to studio level monitoring has never been easier.
Custom Designed 5 in. Woofer and 1 in. Titanium Tweeter
Titanium offers excellent response, separation and durability. The MSP5's dome tweeter, surrounded by a waveguide horn offers a broad coverage area of 120 degrees.
Built-In Bi-Amplification
With 2 separate amplifiers powering the woofer and tweeter, incredibly lower distortion is realized. A total of 67 watts, 40 to the woofer and 27 to the tweeter, generates a much larger sound field than would normally be expected from a system of this size.
Great for Mastering
Flat frequency response out to 40kHz makes the MSP5 great for mastering, where high sample and bit rates are the norm.
Waveguide Technology
The smooth circular horn surrounding the tweeter delivers uniform dispersion without distortion or coloration.
Magnetic Shielding, Compact Enclosures
Complete magnetic shielding and compact size permits easy placement near all types of audio, video and computer equipment.
Versatile Equalization Control
The MSP5's 4 position EQ switch for low frequency and 3-position switch for high frequency match the system's response to the acoustic environment.
General Crossover Frequency: 2.5kHz
General Overall Frequency Response: 50 Hz ~ 40kHz
Dimensions (W X H X D): 169mm x 279mm x 222mm (6 5/8 in. x 11 in. x 8� in.)
Weight: 7.5kg (16.5 lbs)
Speaker Components:
LF: 12cm (4 2/7 in.) cone (4 ohms)
HF: 2.5cm (1 in.) titanium dome (6 ohms)
Speaker Enclosure: Bass reflex type, magnetic shielding construction
Amplifier Output Power:
LF: 40W at 400Hz, THD=0.02%, RL=4 ohms
HF: 27W at 10kHz, THD=0.02%, RL= 6 ohms
Amplifier Input Sensitivity/ Impedance:
Line 1: +4dB/10k ohm/XLR
Line: 2 -10dB/10k ohm/Phone Jack
Amplifier S/N: Greater than or equal to 100dB (A weighted)
Amplifier Controls: TRIM switches: LOW: 4 position (+1.5dB, 0dB, -1.5dB, -3.0dB at 60Hz); HIGH: 3 position (+1.5dB, 0dB, -1.5dB, at 15kHz); Power switch: On/Off; Level Control
Amplifier Power Indicator: Green LED
Amplifier Power Requirement: 120v 60Hz
Amplifier Power Consumption: 60W
High quality, powered monitors have traditionally demanded premium prices. The new MSP5 bi-amplified monitor speakers from Yamaha deliver extraordinary sound quality, at an equally attractive price! The MSP5 provides the perfect choice for a wide range of applications, from home recording to post production.
Ultra-Compact, Quick and Easy Hookup
Ultra-compact enclosures allow easy placement. Small face print makes them very accurate for "point source" listening. Hookup is quick and easy with both XLR and 1/4 in. phone jacks available. 67 combined watts of audio power in a bi-amplified monitor this size, let alone near this price, was previously unheard of -- until now. Upgrading to studio level monitoring has never been easier.
Custom Designed 5 in. Woofer and 1 in. Titanium Tweeter
Titanium offers excellent response, separation and durability. The MSP5's dome tweeter, surrounded by a waveguide horn offers a broad coverage area of 120 degrees.
Built-In Bi-Amplification
With 2 separate amplifiers powering the woofer and tweeter, incredibly lower distortion is realized. A total of 67 watts, 40 to the woofer and 27 to the tweeter, generates a much larger sound field than would normally be expected from a system of this size.
Great for Mastering
Flat frequency response out to 40kHz makes the MSP5 great for mastering, where high sample and bit rates are the norm.
Waveguide Technology
The smooth circular horn surrounding the tweeter delivers uniform dispersion without distortion or coloration.
Magnetic Shielding, Compact Enclosures
Complete magnetic shielding and compact size permits easy placement near all types of audio, video and computer equipment.
Versatile Equalization Control
The MSP5's 4 position EQ switch for low frequency and 3-position switch for high frequency match the system's response to the acoustic environment.
Technical Info
General Type: Biamp. 2-way, bass-reflex powered speakerGeneral Crossover Frequency: 2.5kHz
General Overall Frequency Response: 50 Hz ~ 40kHz
Dimensions (W X H X D): 169mm x 279mm x 222mm (6 5/8 in. x 11 in. x 8� in.)
Weight: 7.5kg (16.5 lbs)
Speaker Components:
LF: 12cm (4 2/7 in.) cone (4 ohms)
HF: 2.5cm (1 in.) titanium dome (6 ohms)
Speaker Enclosure: Bass reflex type, magnetic shielding construction
Amplifier Output Power:
LF: 40W at 400Hz, THD=0.02%, RL=4 ohms
HF: 27W at 10kHz, THD=0.02%, RL= 6 ohms
Amplifier Input Sensitivity/ Impedance:
Line 1: +4dB/10k ohm/XLR
Line: 2 -10dB/10k ohm/Phone Jack
Amplifier S/N: Greater than or equal to 100dB (A weighted)
Amplifier Controls: TRIM switches: LOW: 4 position (+1.5dB, 0dB, -1.5dB, -3.0dB at 60Hz); HIGH: 3 position (+1.5dB, 0dB, -1.5dB, at 15kHz); Power switch: On/Off; Level Control
Amplifier Power Indicator: Green LED
Amplifier Power Requirement: 120v 60Hz
Amplifier Power Consumption: 60W
What Our Customers Say About zZounds
"Wonderful shopping experience!" - customer on November 15, 2009
Yamaha MSP5 Bi-Amplified Monitor Speaker Reviews
10 out of 10
"These Babies ROCK!"
Feature:
The highs can be tweaked depending on the placement in your room to give you more accurate mixes.
Quality:
Definitely a solid product...
Value:
For the price, its a great buy. You don't have to spend thousands on an accurate monitoring setup.
Desirability:
I already have it! :)
Sound:
If your mix sounds good on these monitors, be assured that it'll translate well onto most systems. These monitors are NOT bass shy... they have a nice round low end as well as crystal clear high ends. If you want to go lower, get a sub... but you'll be able to mix most commercial application music using these monitors
Support:
Never used
Overall:
These monitors are for keeps. If I evern buy new ones, I'd go the "overhead" route and buy large monitors. But for nearfields, these babies ROCK!
The highs can be tweaked depending on the placement in your room to give you more accurate mixes.
Quality:
Definitely a solid product...
Value:
For the price, its a great buy. You don't have to spend thousands on an accurate monitoring setup.
Desirability:
I already have it! :)
Sound:
If your mix sounds good on these monitors, be assured that it'll translate well onto most systems. These monitors are NOT bass shy... they have a nice round low end as well as crystal clear high ends. If you want to go lower, get a sub... but you'll be able to mix most commercial application music using these monitors
Support:
Never used
Overall:
These monitors are for keeps. If I evern buy new ones, I'd go the "overhead" route and buy large monitors. But for nearfields, these babies ROCK!
Submitted: 11/20/2005
10 out of 10
"The Legend lives!"
Quality:
On the new A Perfect Circle album, in the first song (the package), at high volumes, the bass makes the speakers rattle a lot. Those kind of frequencies ask for a subwoofer.
Value:
They worth more than double the price. Want to have the same mixing conditions than Andy Wallace and other world-class mixing engineers and producers? Buy them.
Desirability:
When I was searching for monitors, I checked out this possibility because they seemed a bit ugly and too small to have good bass. But after searching and reading a lot of reviews to other brands and models I realised: "They use NS10 to mix in pro studios! I just need that type of precision and capacity to show the ugly things in a mix. I need Yamahas". The MSP5 have it all.
Sound:
Sound is FLAT until around 50 HZ. I mean FLAT. I measured the frequency response at the listening position and I got an almost flat graph (with slightly more treble). The sound is HUGE for such small speakers. It's pretty much a new, improved version of the legendary NS10! Trust me, don't listen to any other reviews. These speakers literally open the whole mix, so that you can see its guts.
Overall:
I think my ears will mold to this sound, and probably I will someday get a subwoofer to match them. But they will remain as my mixing spoeakers for a lifetime.
On the new A Perfect Circle album, in the first song (the package), at high volumes, the bass makes the speakers rattle a lot. Those kind of frequencies ask for a subwoofer.
Value:
They worth more than double the price. Want to have the same mixing conditions than Andy Wallace and other world-class mixing engineers and producers? Buy them.
Desirability:
When I was searching for monitors, I checked out this possibility because they seemed a bit ugly and too small to have good bass. But after searching and reading a lot of reviews to other brands and models I realised: "They use NS10 to mix in pro studios! I just need that type of precision and capacity to show the ugly things in a mix. I need Yamahas". The MSP5 have it all.
Sound:
Sound is FLAT until around 50 HZ. I mean FLAT. I measured the frequency response at the listening position and I got an almost flat graph (with slightly more treble). The sound is HUGE for such small speakers. It's pretty much a new, improved version of the legendary NS10! Trust me, don't listen to any other reviews. These speakers literally open the whole mix, so that you can see its guts.
Overall:
I think my ears will mold to this sound, and probably I will someday get a subwoofer to match them. But they will remain as my mixing spoeakers for a lifetime.
Submitted: 10/07/2003
Style of Music: New Metal/Rock
