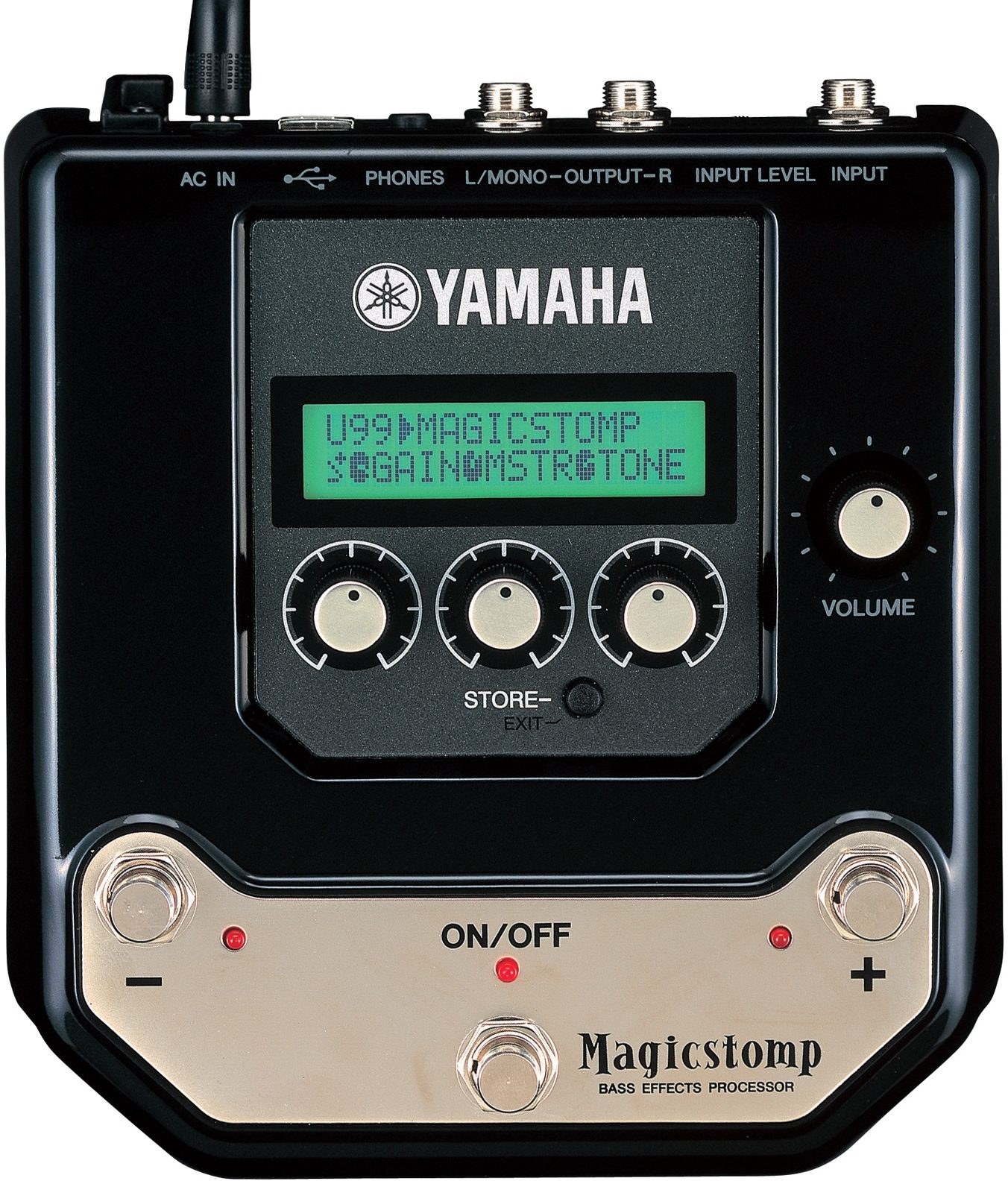

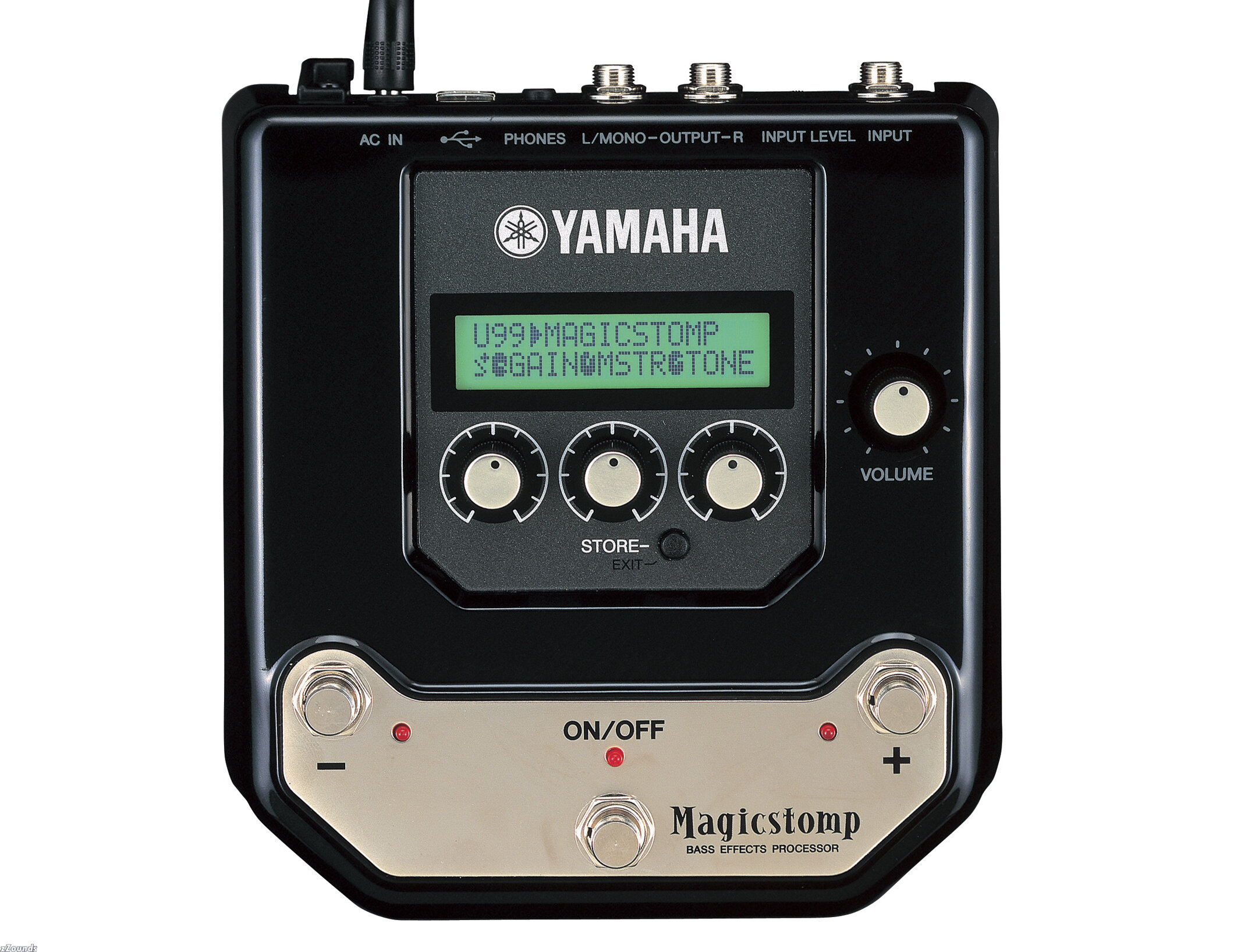

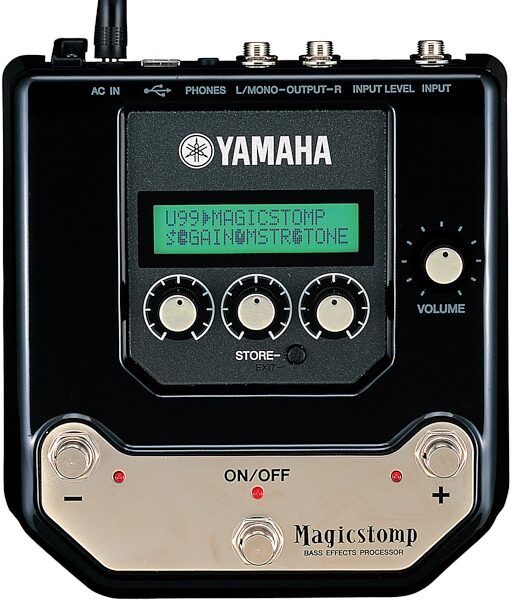

Yamaha Magicstomp Bass Effects Processor

The new Magicstomp EB is the bass players answer to Magicstomp II. All of the great features included with Magicstomp have been modified for the needs of electric and acoustic bass.

Features
99 factory preset patches, 99 user patches

63 effects algorhythms / thousands of effects combinations designed for bass

24-bit AD/DA converter

USB interface

Compatible with Apple Macintosh OS and Microsoft Windows 98/2000/XP

Headphone output for private monitoring

www.magicstomp.com for end-user uploads/downloads

Award-winning effects from SPX series and AG/DG/UD Stomp pedals

Limited lifetime warranty

Technical Info

Digital section:
-- EDigital signal processing effector

-- Includes special editor application, "Sound Editor for MAGICSTOMP"

-- Patch select: 2 modes

-- Built-in chromatic auto tuner

Communications:
-- Receive: parameter change, bulk in (1 patch), bulk in (99 patch)

-- Transmit: bulk out (99 Patch)

Controllers/switches:
-- Knob x 4: control 1, 2, 3, volume

-- Push switch x 4: -, +, on/off, store

Slide switch x 1: input level (high/low)

Display: 16 x 2 character LCD (w/back light) LED x 3 (-, +, on/off)

Connections:
-- Input: standard monaural phone jack

-- Output L/mono, R: standard monaural phone jack

-- USB

-- AC in

A/D converter: 24 bit + 3 bit floating

D/A converter: 24 bit

Sampling frequency: 44.1 kHz

Memory allocations:
-- Preset: 99

-- User: 99

Input Level/Impedance:
-- Input high: -25dBm/1 M

-- Input low: -15dBm/1 M

Output level/impedance:
-- Output L/mono, R: 0dBm/1 k

Additional output: headphone output

Power:
-- Exclusive power adapter (AC-10)

-- AC output: AC 12 V, 1 A

Power consumption: 12 W

Dimensions (W x H x D): 6-7/16 x 2-7/16 x 6-15/16 in. (164 x 62 x 176mm)

Weight: 2 lbs (910g)

System Requirements
For Windows users:

Sound Editor for MAGICSTOMP

OS: Windows 98/Me/2000/XP Home Edition/XP Professional

Computer: 166 MHz or higher; Intel Pentium/Celeron processor

Available memory: 32 MB or more

Hard disk: 2 MB or more

USB MIDI Driver

OS: Windows 98/Me/2000/XP Home Edition/XP Professional

Computer: 166 MHz or higher; Intel Pentium/Celeron processor

Available memory: 32 MB or more (64 MB or more is recommended)

Hard disk: 2 MB or more.

For Macintosh Users

Sound Editor for MAGICSTOMP

OS: Mac OS 8.6 through Mac OS 9.22
(The Mac OS X and Mac Classic environments are not supported)

Computer: A Macintosh computer with a PowerPC or later CPU

Available Memory: 16 MB or more

Hard Disk: 32 MB or more

Display: 800 x 600, 32,000 colors or more

USB MIDI Driver

OS: Mac OS 8.5 through Mac OS 9.22 (The Mac OS X and Mac classic environments are not supported)

Computer: A Macintosh computer with a USB connector and a PowerPC or later

Memory: 64 MB or more (128 MB or more is recommended)
* Turn off virtual memory.

Hard disk: 2 MB or more

Other: OMS 2.3.8 (included in the CD-ROM in the package)

* Minimum System Requirements -- The system requirements above may differ slightly depending on the particular operating system.
