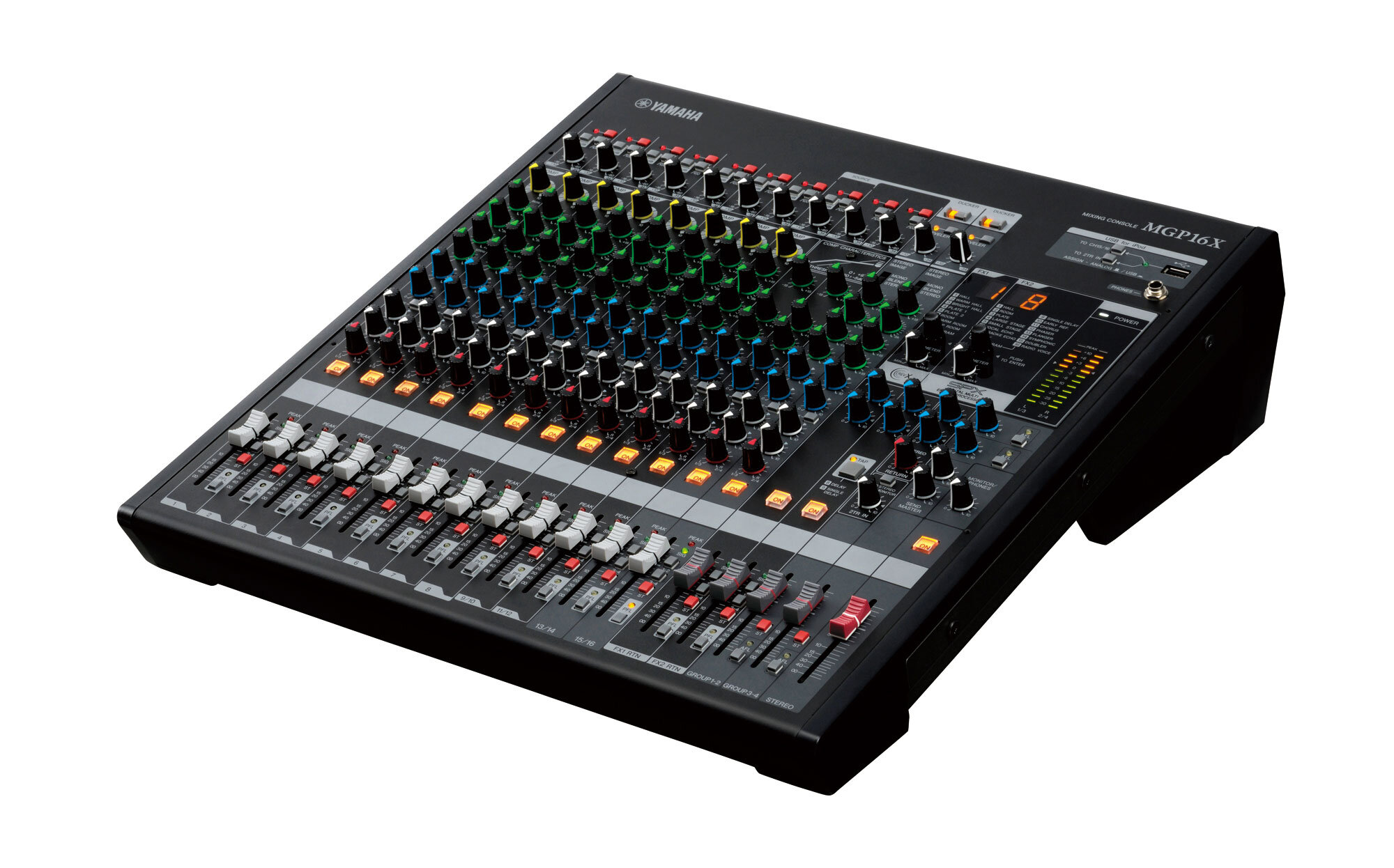

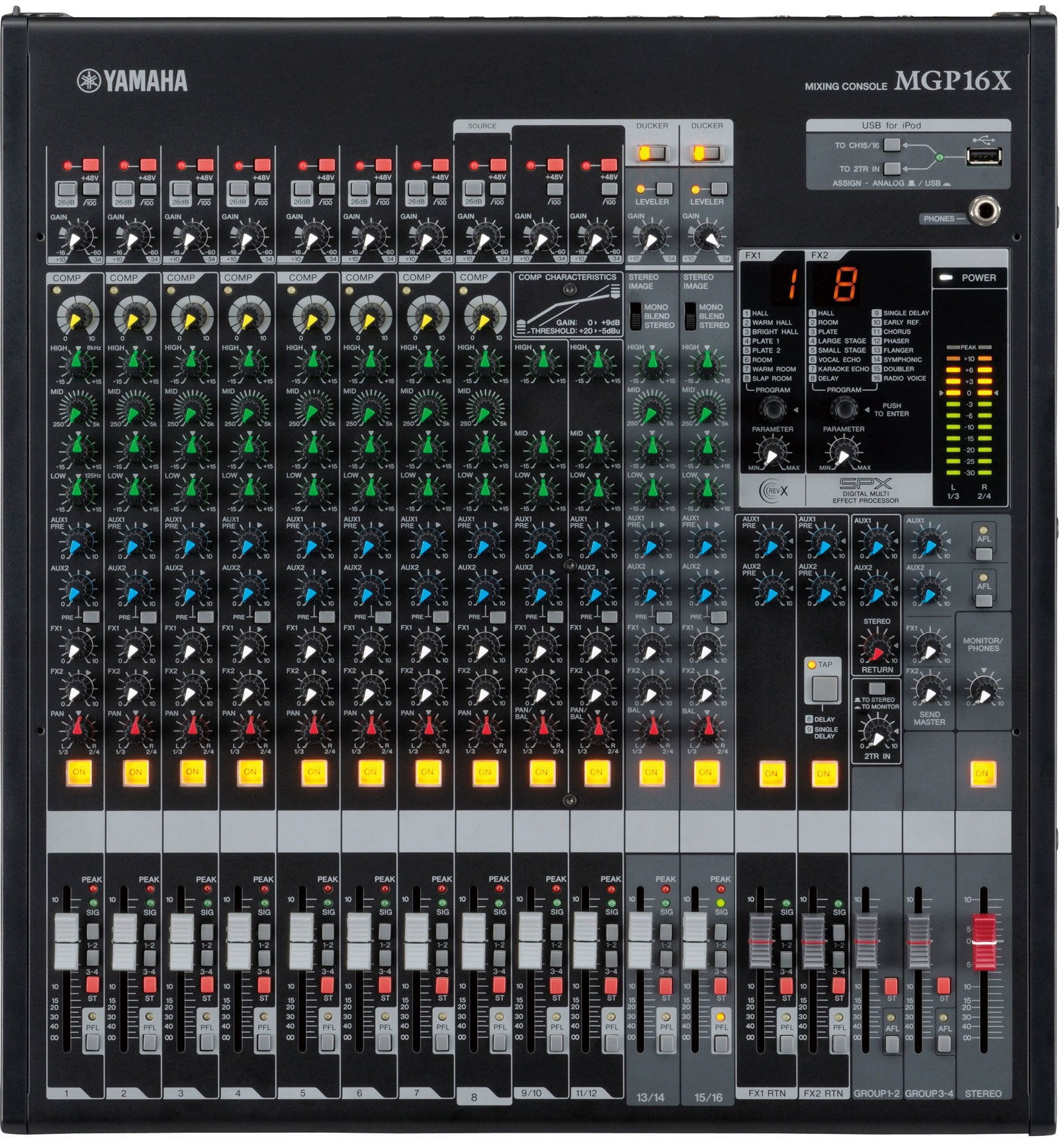

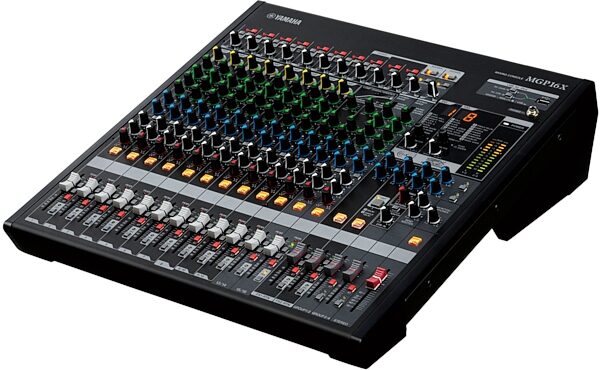

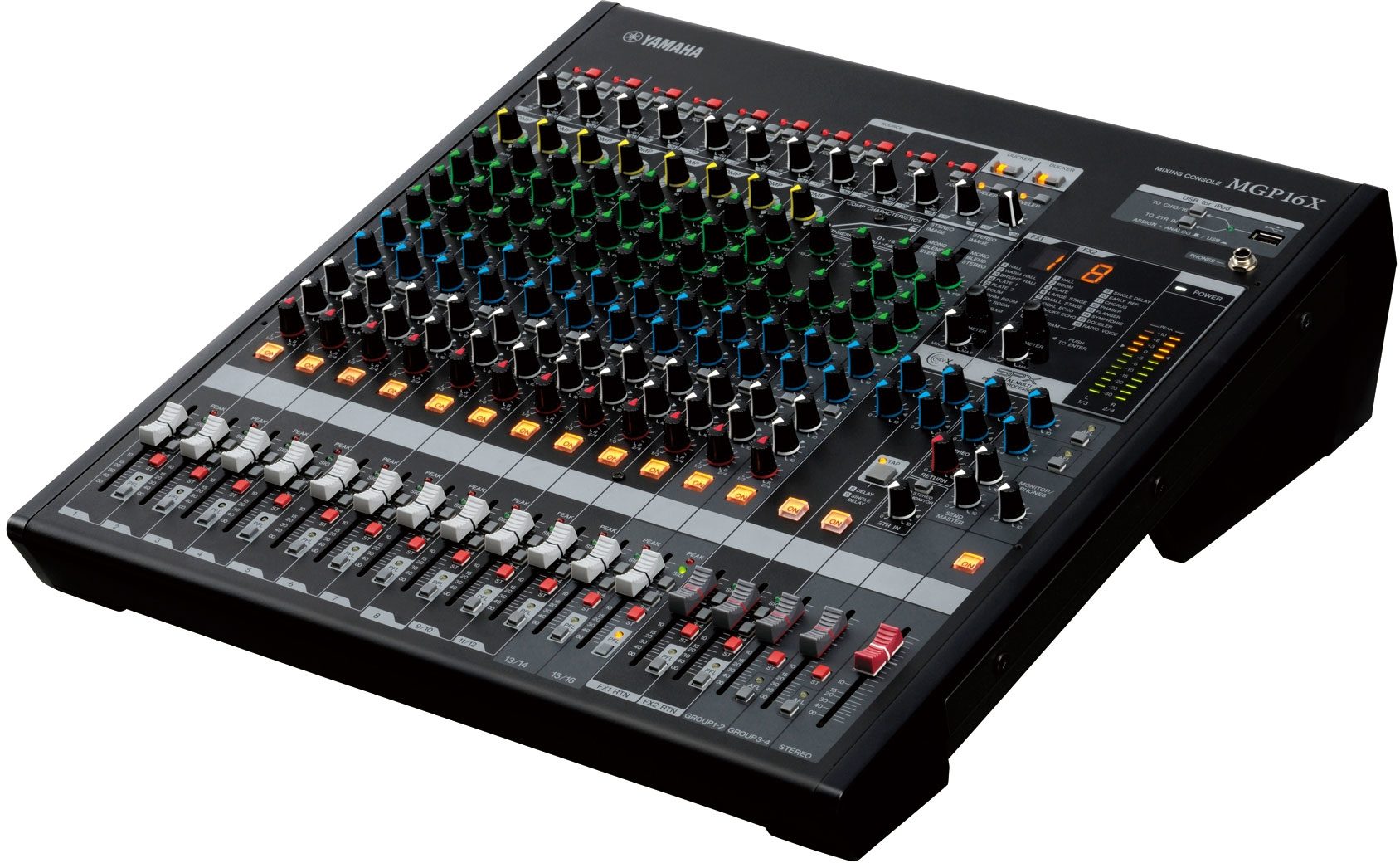

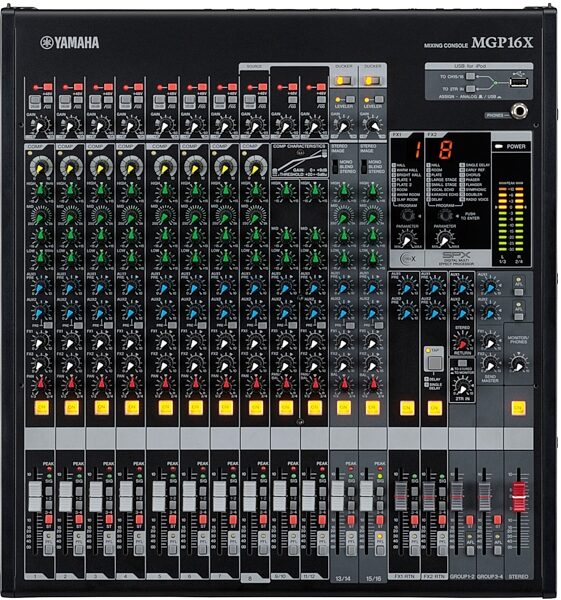

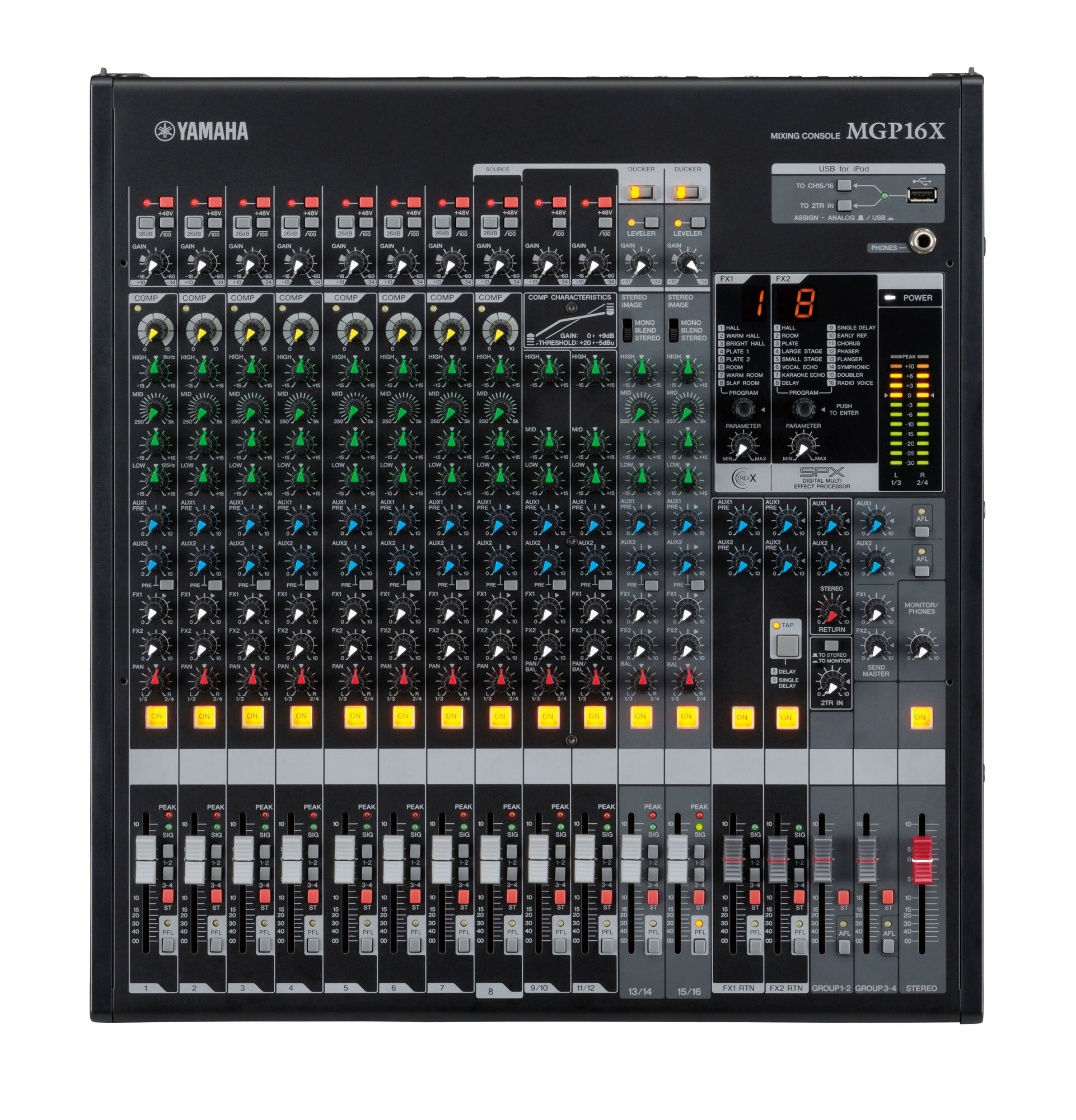

Yamaha MGP16X Premium Mixer, 16-Channel and 4-Bus

Ideal for venue PA systems, this Yamaha mixer delivers serious sound in a small footprint, with analog-style control of onboard compression and DSP effects.
Ships to: Can ship to United States Can ship to APO/FPO
Roll Over to Enlarge Main

Product Description

The Yamaha MGP16X premium mixer is not just for live bands and DJ's, it's part of the MG Series of mixing consoles which can easily adapt to a truly impressive range of applications from portable PA to fixed installation. Now with the newly added digital functions and superior sound of the MGP, the possibilities are endless.

From the preamps, EQ and effects to the Hybrid Channel functions and iPod/iPhone connectivity-every aspect, every feature, every sound, establishes the MGP as a premium mixing console in a class of its own.

Features

- 10 Mic Inputs with 48V Phantom Power and HPF per Channel
- 16 Line Inputs (8 mono and 4 stereo)
- Additional 2TR Inputs Provided to Accept the Output from Analog Devices or iPod/iPhone
- 2 Aux Sends + 2 FX Sends
- 4 Group Buses + ST Bus zZounds is an authorized dealer of Yamaha products.
- Mixing capability: Mixing channels: 16 Line Inputs (8 mono and 4 stereo)
- Group: 4 Group Buses + ST Bus
- Aux: 2 Aux Sends + 2 FX Sends
- Input channel functions: Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(Mono) +/-15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(Stereo) +/-15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving
- On-board processors: FX1:REV-X(8 Program, Parameter control), FX2:SPX (16 Program, Parameter control)

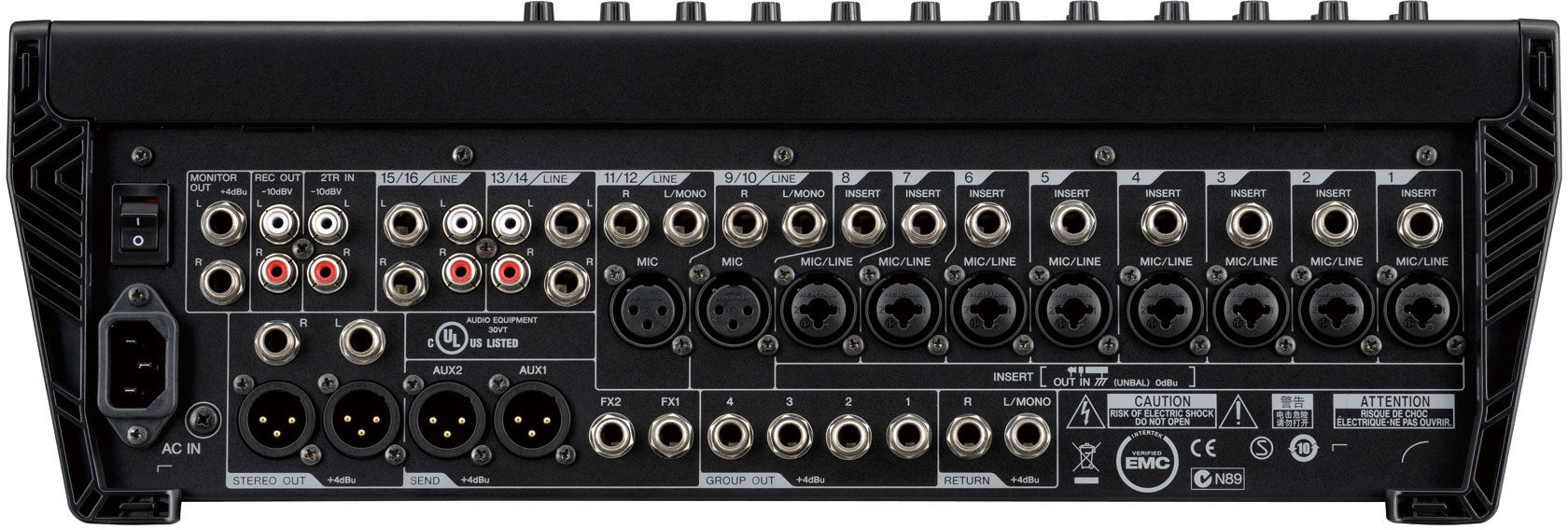

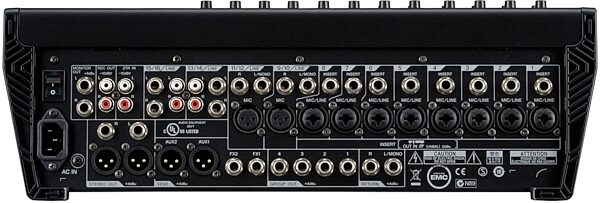

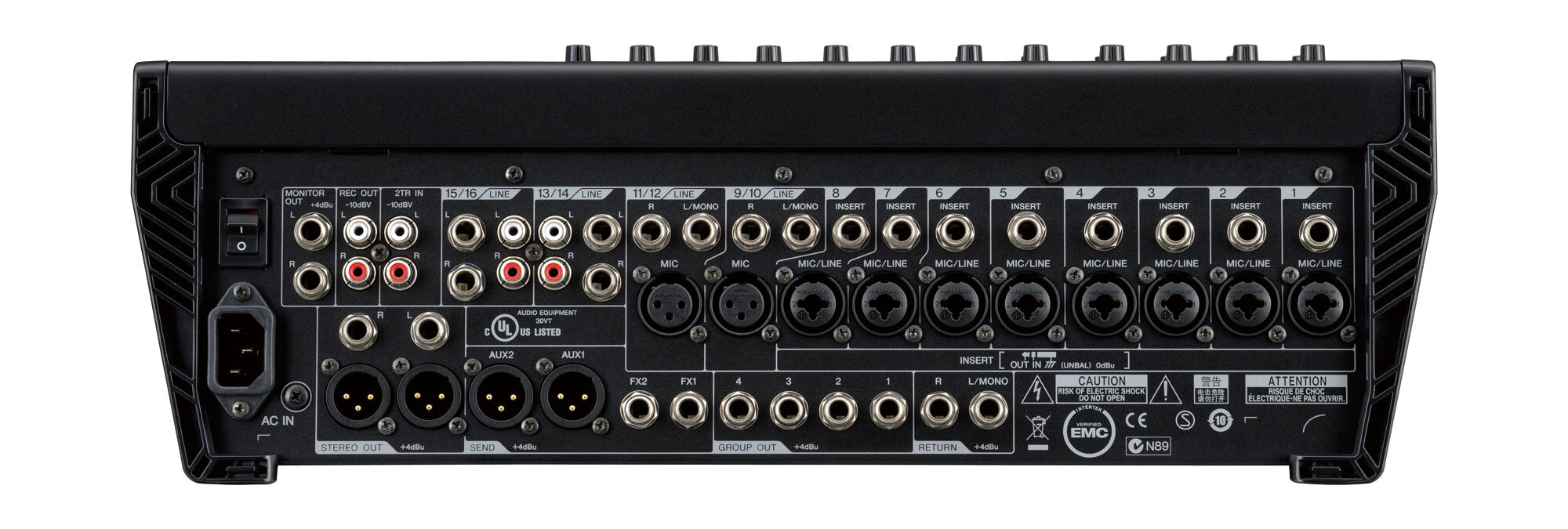

- I/O: Mic inputs: MIC: 10
- Phantom power: 48V phantom power per channel
- Line inputs: LINE: 8mono+4stereo, CH Insert: 8, Return: 1stereo, 2TR IN: 1 stereo
- Digital I/O: USB Audio USB IN/OUT: iPod, iPhone exclusive

General specifications

- Total harmonic distortion: 0.02% (20Hz-20kHz@ +14dBu)
- Frequency response: +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
- Hum & noise level: Equivalent input noise: -128 dBu (20Hz-20 kHz, Rs=150Ohm, Input Gain = Maximum)
- Residual output noise: -102 dBu (20Hz-20 kHz, Rs=150Ohm, Input Gain = Maximum)
- Crosstalk: -74dB @ 1kHz
- Power requirements: 100-240V 50Hz/60Hz
- Power consumption: 55W max
- Dimensions: W: 447mm
- H: 143mm
- D: 495mm
- Net weight: 9.0kg
Dimensions and Weight in Packaging
Shipping Weight: 30 lbs
Shipping Dimensions: 24 x 24 x 10 in
Yamaha Warranty
Yamaha Warranty
If you have additional warranty questions, please call the manufacturer at 714-522-9011
Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!
