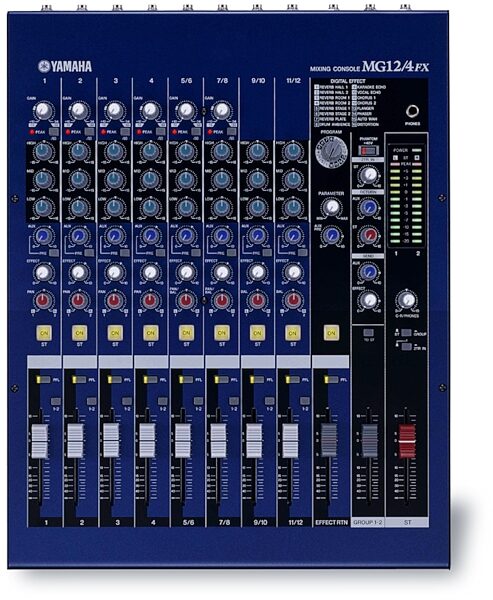

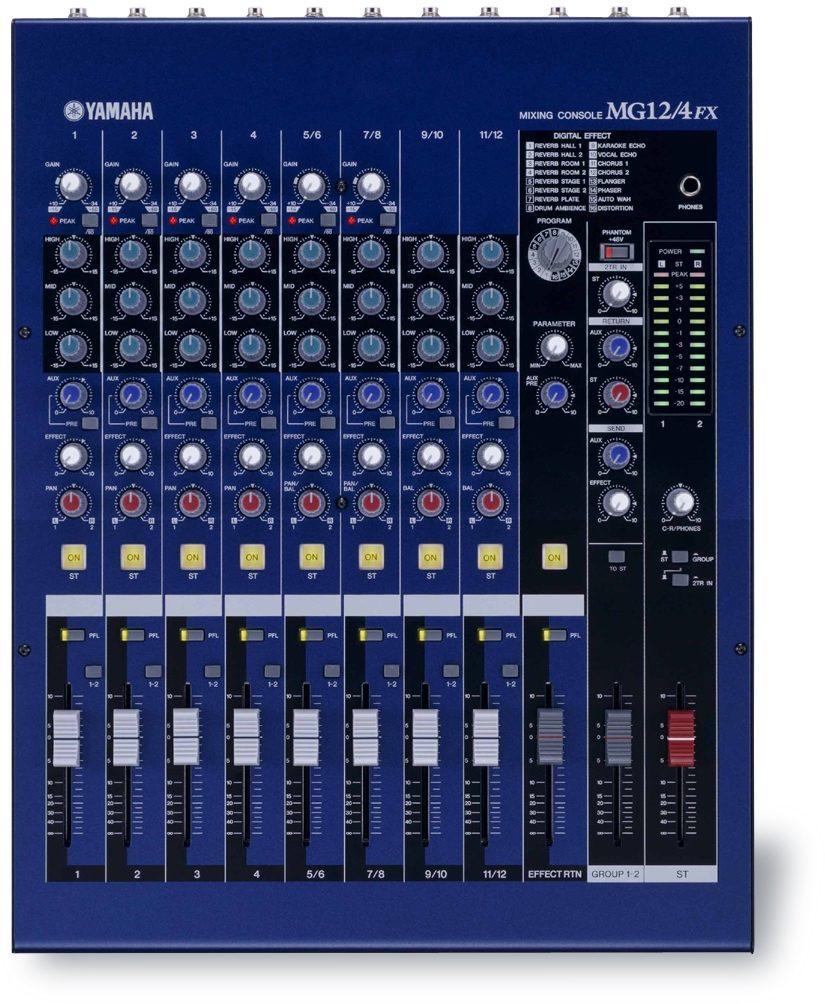

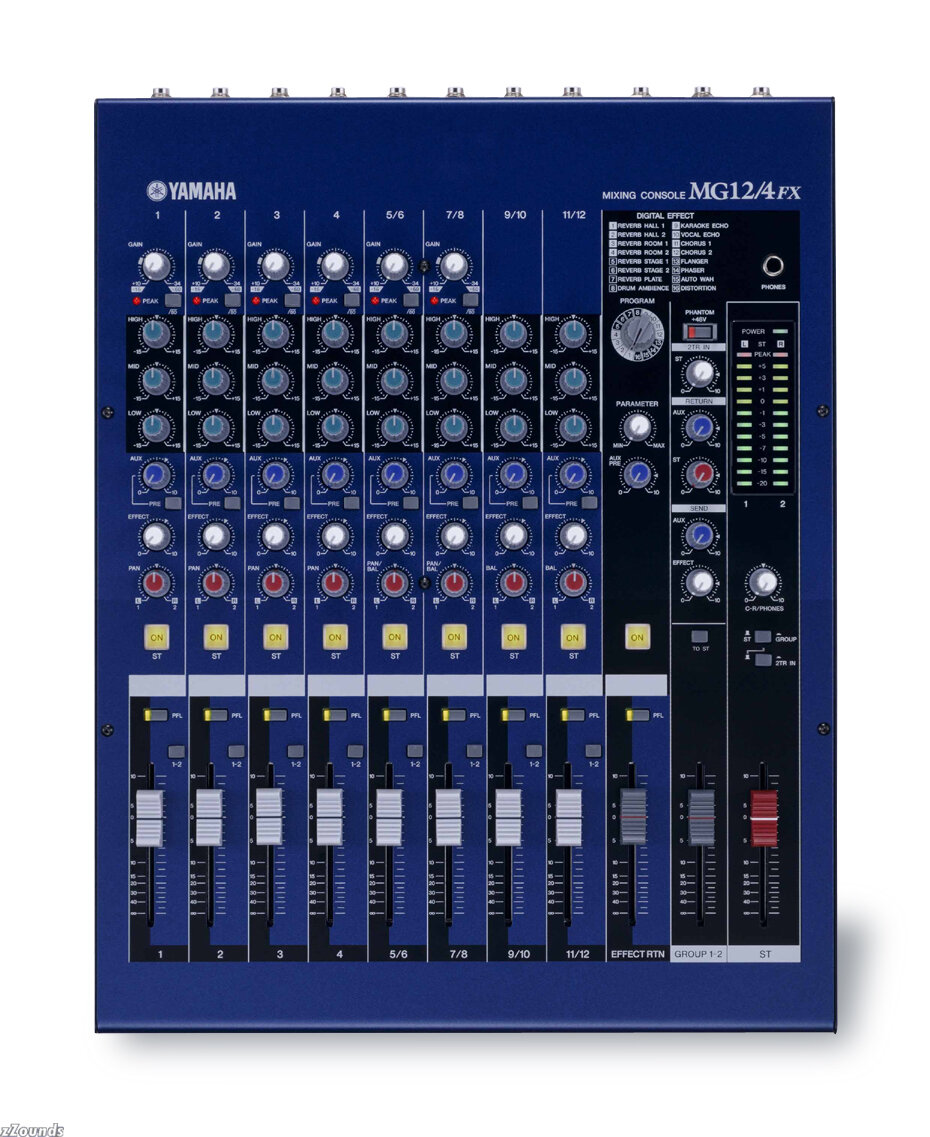

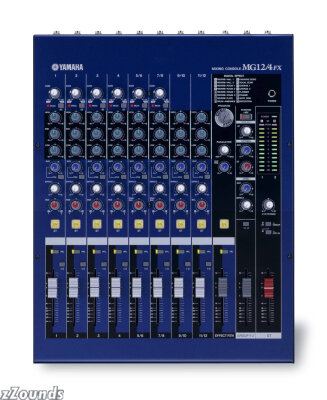

Yamaha MG124FX 12-Channel Mixer with DFX

Manufacturer's Description for Yamaha MG124FX 12-Channel Mixer with DFX

All The Effect Processing You Need Built-In
If the idea of having some of the finest effects available built right into the console appeals to you, then consider the MG12/4FX. You get the same type of versatile mixing power and superior audio performance that is provided by the non-effect models, plus leading Yamaha signal processing quality all in one console.

12 Input Channels
The MG12/4FX features a total of 12 input channels: four mono microphone/line inputs and four stereo line inputs, two of which offer mono microphone input capability. Gain trim covers a wide -60 dB thru -16dB range for microphone input, and -34dB thru +10dB for line input.

A Variety of Input Connectors
Balanced XLR connectors are provided on all four mono inputs and two of the stereo inputs a total of six XLR connectors, in addition to phone jack connectors. Two of the stereo channels can accept mono microphone input either via the XLR or phone jack connectors. The remaining two stereo inputs feature both phone jack and pin jack inputs for broad connectivity. A separate stereo 2TR input with pinjack connectors is provided for independent input of signals from CD players or similar sources.

Six Low-noise, High-precision Mic Preamps
Six high-performance head amplifiers will bring out the best in any dynamic or condenser microphone.

Phantom Power
All high-performance mic preamps feature switchable phantom power for studio condenser microphones. A single switch turns phantom power on or off for all channels.

Insert I/O
Mono input channels feature insert I/O patch points so you can add compressors or EQ for vocals, a noise gate on a guitar channel, or other extra signal processing to individual channels as required.

3-band Channel EQ & HPF
Smooth, "musical-response" 3-band equalizers are provided on the input channels. All mono microphone input channels also feature a switchable high-pass filter that can be used to cut out unwanted low-frequency noise.

Four Buses (Stereo and Group)
In addition to the main stereo bus, the MG12/4FX features a stereo group bus and outputs that can be used for convenient channel grouping. Stereo and group bus assign switches are located above each channel fader. You could, for example, mix your instrument sources to the stereo bus while creating separate groups for the main vocal and chorus channels...or any bus configuration you need for your application.

Aux and Effect Sends & Stereo Aux Return
The MG12/4FX has one pre/post switchable Aux send as well as an effect send. You have plenty of flexibility for external signal processing and monitoring. A stereo auxiliary return is also provided.

A Comprehensive Selection Of Output Connectors
In addition to the main L and R XLR and phone-jack stereo outputs, this versatile mixer also offers phonejack control room, pin-jack recording, and stereo phone-jack headphone outputs. You have plenty of outputs for a wide range of applications - monitoring, master recorder feed, etc. Phone-jack group outputs are also provided to allow independent output of the group bus mixes.

12-segment Meters for Accurate Visual Monitoring
Output level monitoring is made accurate and easy with high-visibility 12-segment level meters on the stereo and group buses as well as the 2TR inputs.

Top-quality Digital Effects Built In
Yamaha digital signal processing is widely respected as the finest in the industry. It may be small, but the MG12/4FX is packed with a surprising amount of signal-processing power. Renowned Yamaha multieffect technology brings you a range of reverb, delay, chorus, flanger, phaser, distortion, and other effects built in a total of 16 types in all. Each effect program has a number of editable parameters as well as effect on/off switching and return level control. Additional convenience is provided by a footswitch jack to MG12/4FX which you can connect an optional footswitch for effect on/off switching .

Reliable 60-millimeter Faders & Illuminated Switches
Reliable, high-performance 60-millimeter faders provide smooth, noise-free level control. while original Yamaha illuminated ON (ST buss assign), PFL (Pre-Fader Listen), and phantom power switches provide easy visual confirmation of critical console settings.

Compact, Portable Design
Compact and surprisingly light in weight, the MG12/4FX can easily be carried just about anywhere. You get top-quality mixing performance in the rehearsal studio, club, outdoors -- wherever you need it.

Rack Mount Adaptors Included
Use your MG mixer on a desktop or mounted in a rack - the rack mount adaptors are provided.

Easy Operation and High Reliability
All switches and controls used in this mixer have been chosen for smooth, reliable operation as well as easy visual confirmation. zZounds is an authorized dealer of Yamaha products.

Total Harmonic Distortion: Less than 0.1 % (THD+N) 20 Hz - 20 kHz @ +14 dBu (ST OUT)

Frequency Response: -3, 0, +1 dB 20 Hz - 20 kHz @ +4 dBu (ST OUT)

Input Hum & Noise: -128 dBu Equivalent Input Noise/-100 dBu Residual Output Noise, 20 Hz - 20 kHz, Rs=150 Ohm, Input Gain = Maximum, Input sensitivity = -60 dB

Crosstalk: -70 dB @ 1 kHz

Mic Input: 6 (Ch 1 - 4, 5/6, 7/8: XLR)

Line Input: 4 (Ch 1 - 4: TRS:Phone)

Stereo Input: Ch 5 - 6, 7 - 8: TRS:Phone; Ch 5,7: L (MONO); Ch 9 - 10, 11 - 12: TRS:Phone/RCA:Pin

Insert I/O: 4 (Ch 1 - 4: TRS:Phone = T: Out, R: In, S: Gnd)

Aux Send: 1 (Post-Pre selectable: TRS:Phone)

Aux Return: 1 Stereo (L/MONO, R: TRS:Phone)

Effect Send: 1 (TRS:Phone)

2TR In: 1 Stereo (L, R: RCA:Pin)

Rec Out: 1 Stereo (L, R: RCA)

Stereo Out: 2 Stereo (L, R: 2 TRS:Phone & 2 XLR)

C/R Out: 1 Stereo (L, R: TRS:Phone)

Group Out: 2 (1, 2: TRS:Phone)

Phones Out: 1 (TRS:Phone Stereo)

Phantom Power: + 48 V

Channel Input Gain Control: 44 dB variable

Channel High Pass Filter: 80 Hz 12 dB/Octave

Channel EQ (+/- 15 dB max.): high, 10 kHz (Shelving); mid, 2.5 kHz (Peaking), low, 100 Hz (Shelving)

Internal Digital Effects: 16 Programs, Parameter Control

Dimensions: 12.67 in. x 16.4 in. x 4.25 in. (322 mm x 416.6 mm x 108 mm)

Weight: 11 lb. (5 kg)

Power Requirements: PA-10 adaptor, 30 W, 120 V, 60 HZ AC
