Line 6 X2 XDR959 Lavalier Wireless Microphone System

Proven as a breakthrough in wireless technology, Line 6's X2 XDR959 digital wireless system utilizes award-winning solutions that analog wireless systems simply cannot deliver. Perfect for an array of applications including public speaking, houses of worship, schools, conferences or any other presentation settings, the XDR959 offers total freedom, superior tone and refreshing simplicity. X2 XDR959 allows for a completely professional experience.

Features
- Extended frequency response (10 Hz-20 kHz)

- Extended operating range (300 feet line-of-sight)

- Extended dynamic range (>118 dB)

- 24-bit A/D conversion

- Exclusive anti-jam dual-frequency broadcast shields against static, interference and dropouts

- 5 compatible user-selectable channels (can be used simultaneously)

- Fully operational throughout the United States and Canada

- 2009 FCC/DTV compliant

- Line 6 one-year warranty

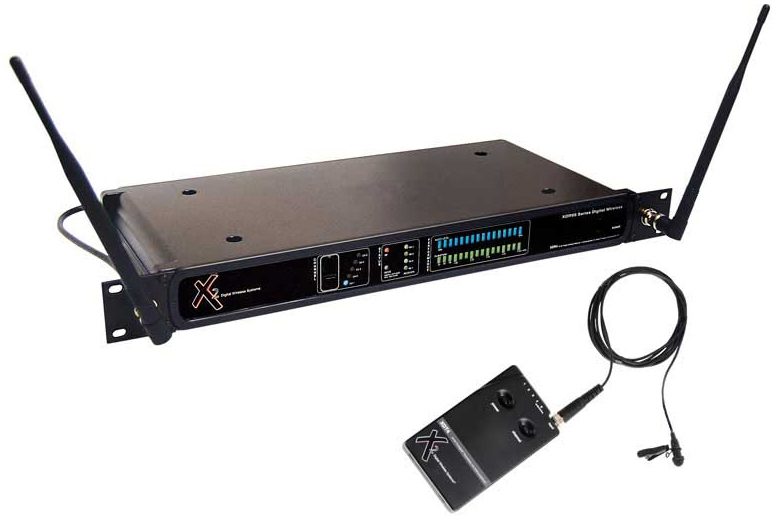

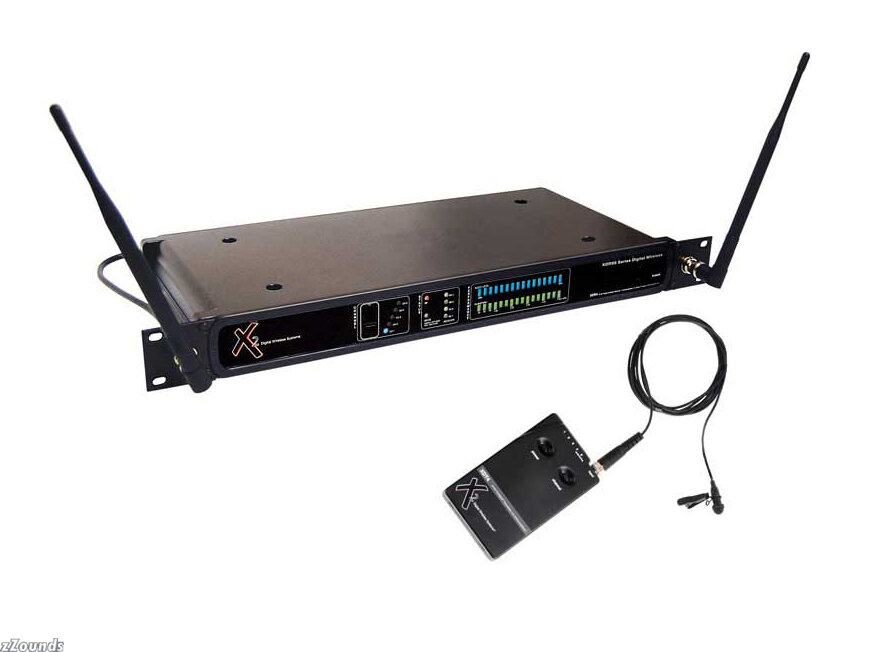

LM4 cardioid lavalier microphone; Digital receiver with rack-mounting hardware and digital bodypack transmitter (with polycarbonate housings impact-tested to 300 lbs); Includes all necessary accessories including antennas, batteries and power supply

The cardioid lavalier microphone delivers high-quality vocal reproduction and crucial feedback protection. Cardioid microphones are the number-one choice for vocal and speaking applications.

Boasting extended frequency response and dynamic range, X2 XDR959 produces a brilliant sound comparable to that of a high-quality audio cable connection. But instead of tripping over dozens of feet of tangled cable, performers will fall for X2 XDR959's clear and commanding tone.

At its maximum range of 300 feet, the length of a football field, X2 XDR959 provides the same blazing signal and uncompressed tone range that it provides at the source. Analog wireless systems, notorious for compressing their signals and producing a "squashed" tone, force the performer to sacrifice sound for wireless functionality.

X2 XDR959 offers an extra layer of signal protection that instills professional confidence in any presentation setting. Where analog wireless signals remain susceptible to interference because they are commonly broadcast over crowded frequencies, X2 XDR959 uses dual-RF anti-jam technology to broadcast dual signals to four receivers that work simultaneously to avoid signal dropouts, static and interference. Plus, the system uses a proprietary digital data stream that only recognizes signals embedded with a unique digital signature.

Free of complicated setup, and ready for use throughout the United States and Canada without the need for an FCC operator's license, X2 XDR959 provides out-of-the-box simplicity. Complete with all the batteries, antennas and accessories you need, just fire up X2 XDR959 and hit the ground running.

Technical Info

System Specifications
Transmission Format: Line 6 proprietary digital audio transmission

Frequency Response: 10 Hz - 20 kHz

Audio Dynamic Range: Greater than 118 dB

Distortion: 0.03% THD

RF Carrier Frequency: 902 MHz to 928 MHz, FSK, dual frequency transmission

Compatible Channels: Five

RF Output Power: 15mw

Audio Output Level: Unity gain with transmitter input

Polarity: Positive voltage at input yeilds positive voltage at output

Transmission Range: 300 feet line-of-sight (may vary due to local conditions)

FCC Approval: Part 15 approved, no user-license required

Operating Temperature Range: -20° to +85° C (-4° to +185° F)

XDT4 Transmitter Specifications
A/D Conversion: 24-bit Delta Sigma, 128 times over sampling

Input Impedance: 1.2 M-ohm instrument input, 10K-ohm mic input

Connectors: 1/8 inch Unbalanced locking connector

Controls: Power On/Off, Channel Select

Five Segment LED Display: Power On, Channel, Battery Life, Audio Level Meter

Dimensions (WxHxD): 2.4 x 4 x .8 i. (6.09 x 10.16 x 2.03 cm)

Battery Life: 9V alkaline, switching power supply, two modes:
- Q-DiversityPLUS mode: 5.5 hrs in (dual frequency)
- Q-Diversity mode: 6.5 hrs in standard (single frequency)

Weight: 0.25 lbs (with 9V battery installed)

Housing: Polycarbonate, impact tested to 300 lbs

XDR4 Receiver Specifications
D/A Conversion: 24-bit Delta Sigma, 128 times over sampling

Output: 2.12V RMS (Unbalanced: 1.8K Ohm)

Connector:
- 1/4 inch Unbalanced TRS output
-- 1.8K-ohm impedance
-- tip= instrument voicing, ring= full bandwidth, sleeve= ground
- XLR Balanced 600 ohm

LED Display:
- Power On
- RF
- Channel
- Diversity
- Battery Life
- Audio Level Meter

Controls:
- Power On/Off
- Channel Up and Down

Dimensions (WxHxD): 16.2 x 1.75 x 7.5 in. (41.14 x 4.44 x 19.05 cm)

Power Requirements: 9V DC 500mA via included AC/DC adapter

Weight: 2.5 lbs (with rack hardware and antenna installed)

Housing: Polycarbonate, impact tested to 300 lbs
