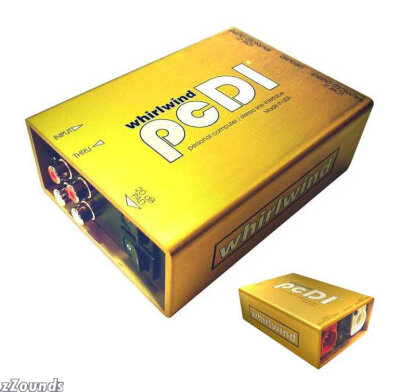

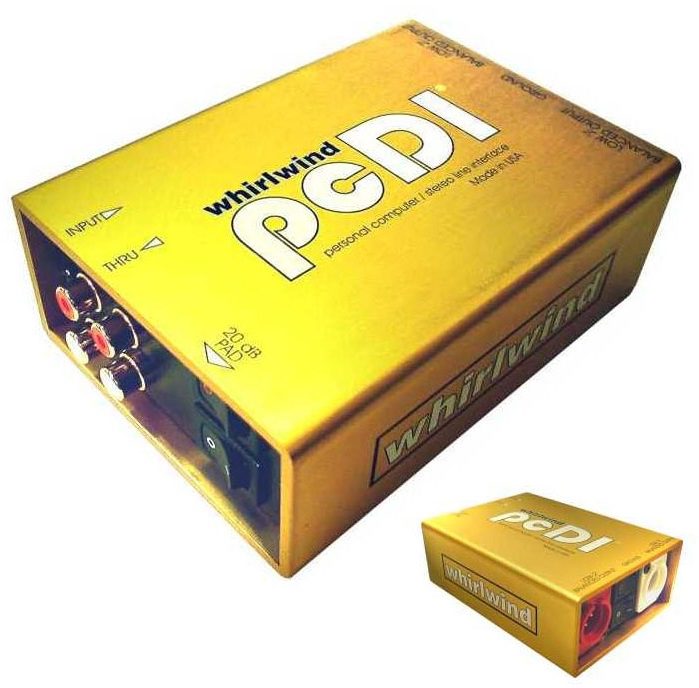

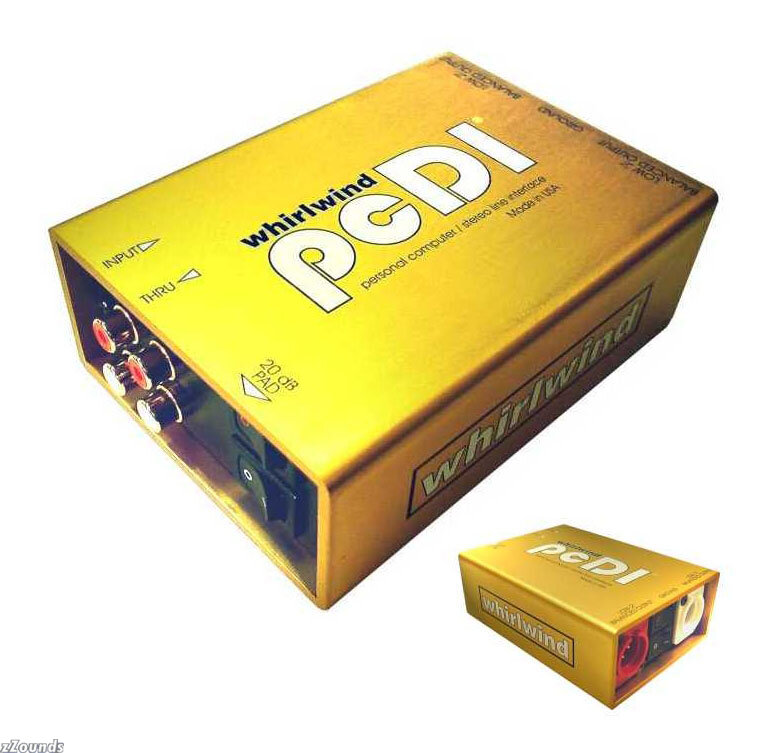

Whirlwind PCDI Direct Box

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!

Description

The Whirlwind pcDI is the first direct box designed to interface your unbalanced stereo line sources with professional balanced low impedance equipment. This unit contains 2 separate DIs -- input your signals with one 3.5mm (1/8 in.) mini TRS stereo jack or 2 sets of color coded RCA phono type input and through jacks. Output is via corresponding color coded XLRs. Each section features a ground lift switch to help eliminate hum and a 20dB pad switch for connecting to "hot" signals. Perfect for interfacing with the outputs of CD players, computer sound cards, tape decks, etc.

Features:
3.5mm (1/8 in.) mini TRS stereo input jack (tip=left +, ring=right +, sleeve=common negative)

Color coded RCA phono in/through jacks

Color coded XLR output jacks

Ground Lift switch to help eliminate hum and buzz

-20dB pad switch for connection to "hot" input signals

Uses Whirlwind's TRHL-M transformer with metal shield

Technical Info

Input Impedance: 2 X 20k Ohms

Output Impedance: 2 X 150 Ohms

Frequency Response: 20Hz-20kHz ±1dB

Level Change (input to output): -20dB (pad out), -40dB (pad in)
