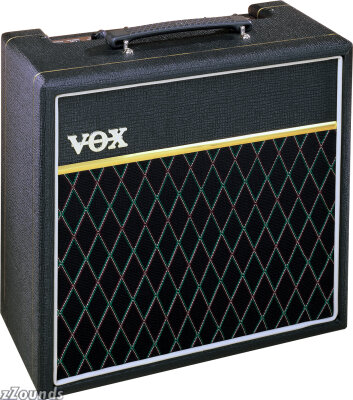

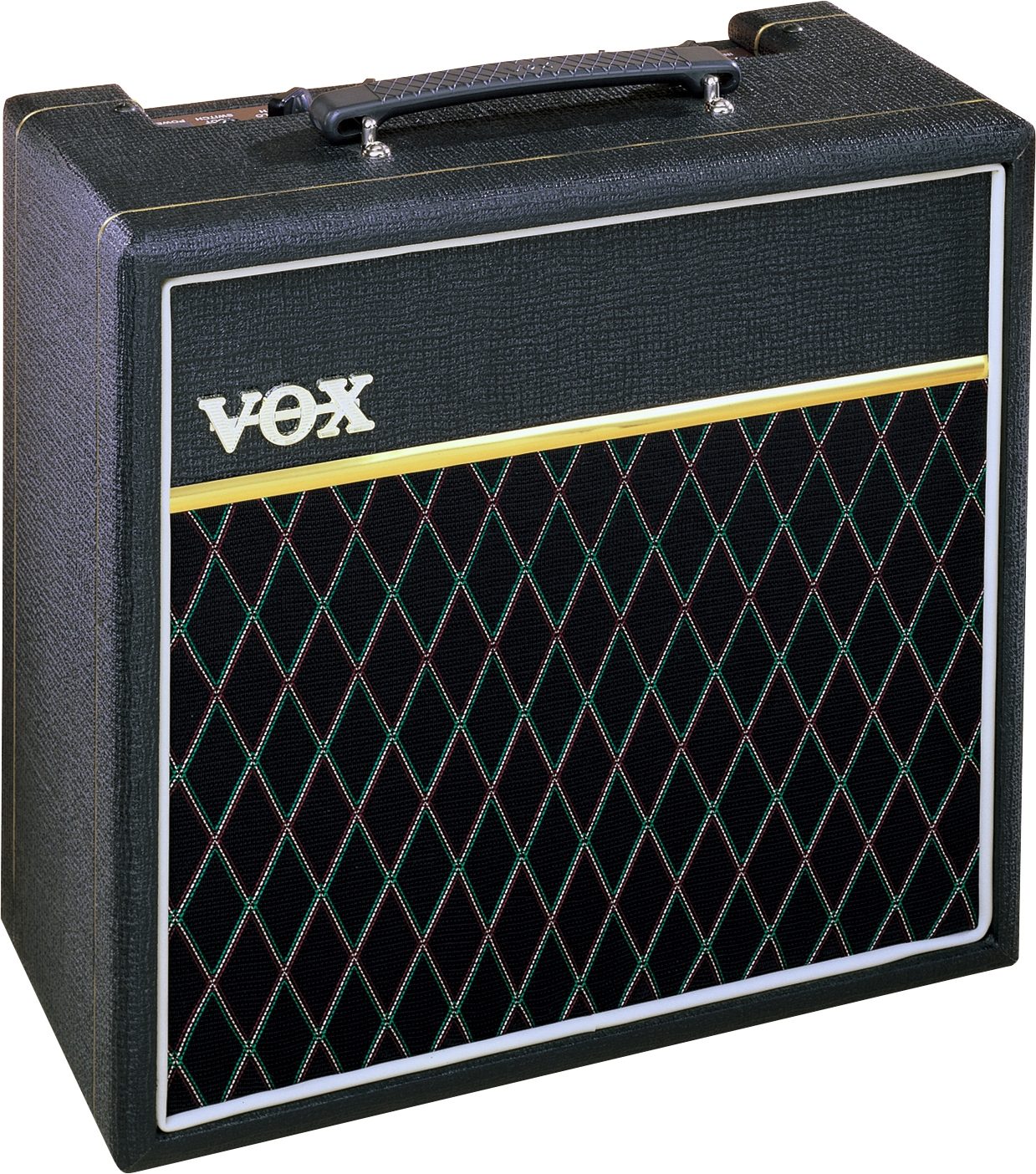

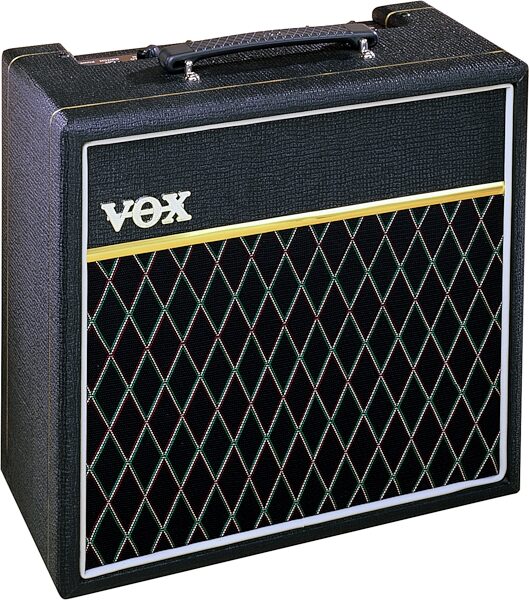

With the classic good looks of its bigger brothers, the new 15-Watt, 1 x 8 in. Pathfinder 15 combo packs a profusion of Vox style and sound into a highly compact and affordable package. Like other family members, it sports typical Vox characteristics like basket-weave vinyl, diamond grille cloth, white piping, gold beading and, of course, "chicken head" pointer knobs.
Performance Control
The Pathfinder 15 houses a wonderful sounding, vintage Tremolo effect and is extremely versatile when it comes to tone. Its distinctive, maroon colored top panel features a Gain Boost switch plus controls for Volume, Gain, Treble, Bass, Tremolo Speed and Tremolo Depth. Both the Gain Boost and the built-in Tremolo are footswitchable via an optional Vox VFS2 dual footswitch, offering you even more performance power.
Bulldog Speakers and More
The Pathfinder 15 produces 15 watts of power that drives a specially voiced 8 in. Vox Bulldog speaker. In addition to a Headphone output that mutes the internal speaker for "silent" practice, the rear panel also has a specially filtered Line Out jack for recording/live work and an External Speaker output as well.
The Pathfinder 15R is identical to the Pathfinder 15 but also features an onboard Spring Reverb system with a Reverb control that adjusts the level of the effect.
Features
Input Jack: Standard 1/4 in. jack for guitar connection.
Gain Control: Set higher for crunch and distortion sounds and lower for cleaner tones.
Boost Switch: Press in for more gain and distortion. Press out for cleaner sounds. You can turn this function on and off remotely with the optional VFS2 Footswitch.
Volume Control: Controls the overall volume. Set high for clean sounds. Lower the level when setting the Gain control high for distortion.
Treble Control: Adjusts the higher frequencies or treble in your tone, from soft and full at one extreme to bright and cutting at the other.
Bass Control: Adjusts the lower frequencies or bass in your tone, from warm and light at one extreme to dark and heavy at the other.
Tremolo Speed Control: Controls the speed at which the built in tremolo oscillates.
Tremolo Depth Control: Controls the intensity of the built in tremolo.
Boost/Tremolo Foot Switch Jack: For the connection to the optional VFS2 Dual On/Off Footswitch with which you can turn both the Boost and the Tremolo functions on and off independently.
Power ON/OFF Switch & LED: On/Off switch for mains (AC) power to amplifier. Plus power indicator LED.
External Speaker Output Jack: For connection to an alternative speaker cabinet.
Headphone Output Jack: The headphone jack on the rear panel mutes the built-in speaker and lets the guitarist play "silently" at any time.
Line Output Jack: Specially filtered line level signal for recording/live work.
The usual Vox cosmetic refinements: The Gold Logo, Basket Weave Vinyl, White Piping, Gold Facia Strip and the Diamond Fret Cloth.
Specially designed "Blue" speaker
Pointer Knobs
Vox Handle
* Note: Pathfinder 15R has one extra control for Reverb level
* Specification subject to change.
Technical Info
Dimensions (W x H x D): 396 x 400 x 193 (15.9 x 15.75 x 7.6 in.)
Weight: 8 kg (17.7 lbs.)
