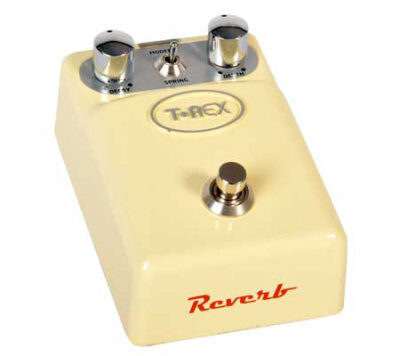

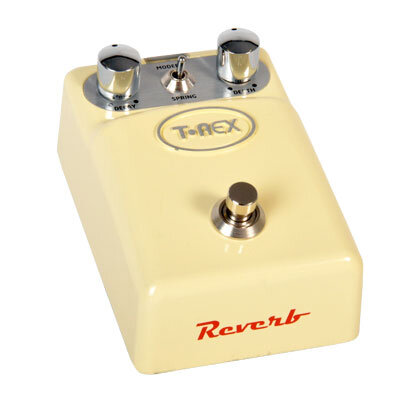

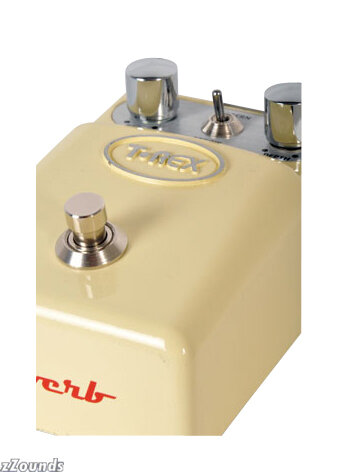

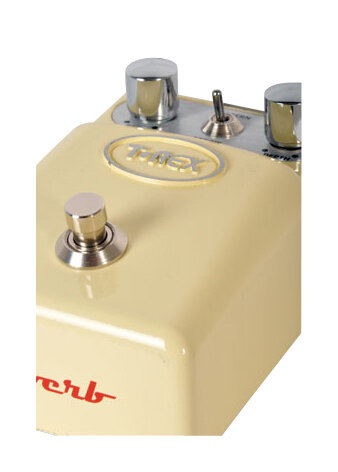

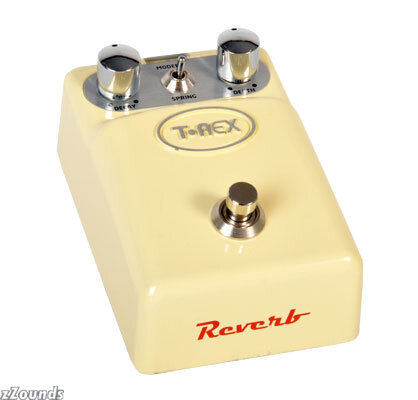

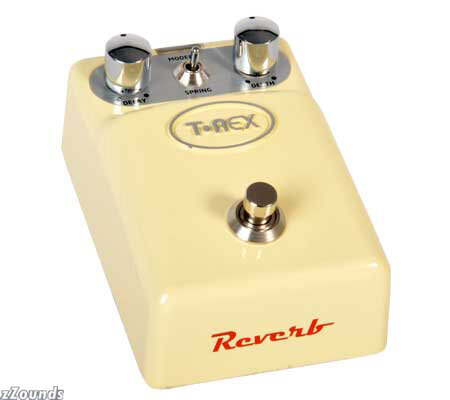

T-Rex Tonebug Reverb Pedal

It's alive!
T-Rex Engineering is proud to announce ToneBug Reverb, a stunning new reverb pedal built with one goal in mind: to bring dry, flat-sounding, bedroom-bound guitar playing to life. ToneBug Reverb simulates real-life performance environments - from huge echoey concert halls and modern-sounding live stages, to raunchy clubs and basement dives. But no matter what setting you choose, loads of incredible T-Rex tone will keep you sounding like the best of them.

Modern or spring
What makes ToneBug Reverb so versatile is its ingenious dual mode feature. The mode switch lets you go from Modern, for more contemporary reverb sounds, to Spring - for a world of vintage reverb that sounds almost too authentic to be true. It's really like having two separate pedals in one. Try ToneBug Reverb today, and discover why it's the one pedal you'll never want to live without.

Technical Info

Specifications
Input Impedance @ 1 KHz: Higher than 1 M Ohm

Output Impedance @ 1 kHz: Lower than 1 K Ohm

Power supply: 9V DC

Minimum Power supply Voltage: 8V DC

Maximum Power supply Voltage: 12,5V DC

Current Draw @ 9V DC: 75 mA

Maximum input signal Vp/p: 2,5 Vp/p

Battery Type: 9V battery 6F22 Alkaline

Battery Life: 0,5 to 1 Hours

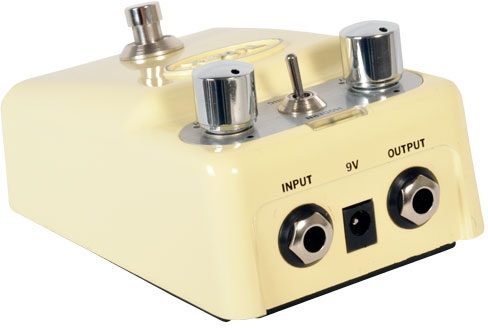

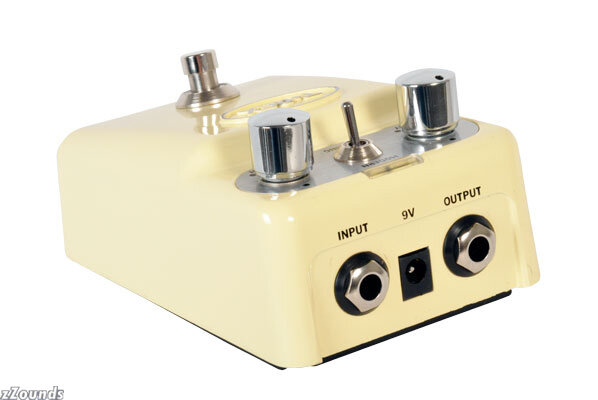

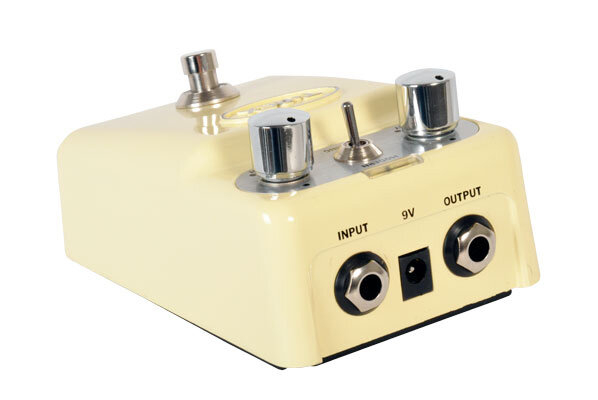

External connectors: Input Jack. Output Jack (stereo!), 9V DC Jack (center pin negativ)

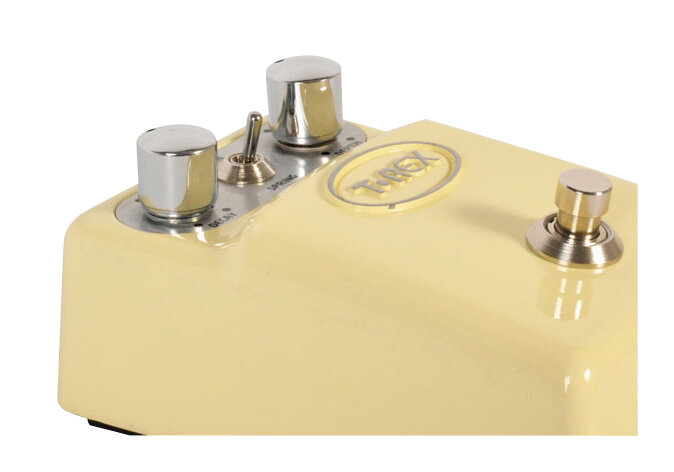

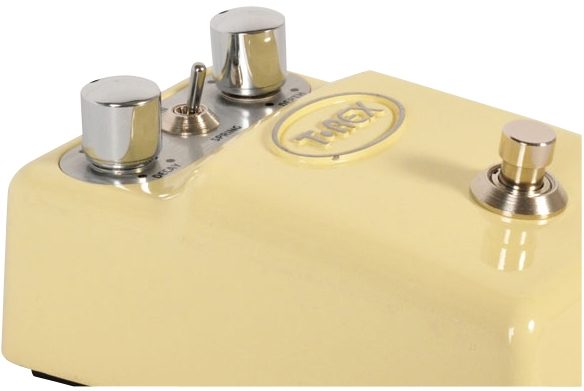

Controls: On/Off, Decay, Modern/ Spring, Depth

Depth: 120 mm

Width: 78 mm

Height: 60 mm

Weight with Power supply: 0,404 Kg
