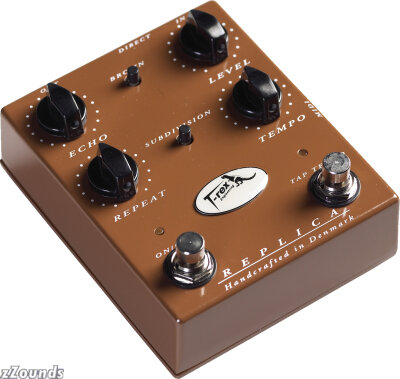

T-Rex Replica Delay Echo Pedal

The Replica utilizes truly amazing circuitry to create the most amazing delay. Unlike other digital units that use a DSP chip to sample at 44.1 kHz, the Replica uses 2 Burr Brown 24-bit converters (1 Analog to Digital; 1 Digital to Analog) to sample at an unprecedented rate of 200 kHz! In order to maintain full dynamics, the signal is routed from the input ADC directly into RAM, where it is manipulated (according to the unit's settings) and then routed directly to the Output DAC. The circuitry is entirely analog, with the exception of the 24-bit converters and RAM. An input pad switch can be engaged (attenuation of -10 dB) for studio use.

In addition, the Replica can be made to sound more "analog" by pressing the "Brown" button which engages a Hi-cut filter that alters the tone of the repeats. The result is a warmer, smoother delay reminiscent of a 60's era tape echo. The Replica is true (hot-wire) bypass and is capable of delay settings up to 2000ms. The Replica also features a tap tempo function (which can be controlled externally, via the built-in MIDI socket), and a subdivision function (which when engaged, creates triplets, based on the "tapped" quarter note tempo). The Replica provides a direct out 1/4 in. jack and contains a built-in power supply. The Replica - just plug it into any AC outlet and go, go, go !

T-Rex pedals are handcrafted in Denmark and offer a 2-year unconditional warranty.

Technical Info

Approximate Dimensions: 4 in. wide x 4.75 in. deep x 1.5 in. high

Audio Samples
