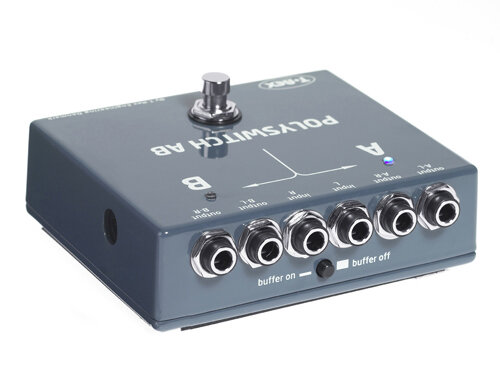

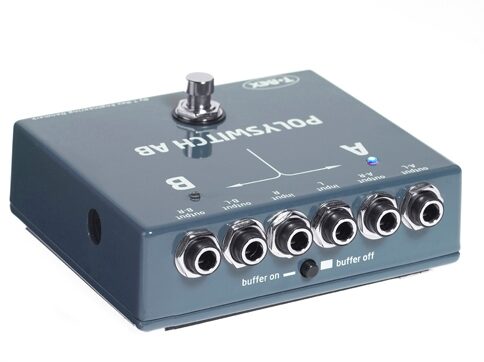

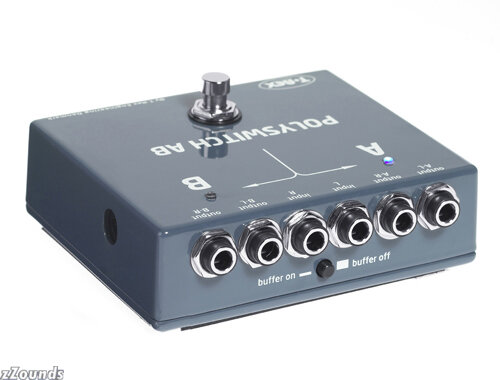

T-Rex PolySwitch Stereo A/B Pedal

T-Rex Engineering is pleased to announce our breakthrough stereo PolySwitch AB - a true hardwire stereo A-B switch. PolySwitchAB is the perfect solution for guitarists looking to route their signal to two different setups - even in stereo - and easily switch between these.

Precision versatility
Not only does PolySwitchAB let you split your stereo signal and switch between outputs. It also works "backwards", letting you run two separate stereo instruments into a single amplifier or other signal destination. And with every input and output available in stereo, it's a great solution for keyboardists or anyone else needing to route a stereo signal to two destinations or two stereo signals to a single stereo in.

Signal integrity
As you'd expect from a T-Rex product, PolySwitchAB is specially engineered to protect the natural integrity of your sound - all the way through the signal path. True hardwire signal routing, top-grade electronics, and a built-in buffer switch for low-level signals caused by long cables, for instance, make sure you don't lose a single ounce of your precious tone.

Technical Info

Specifications
Input Impedance @ 1KHz with buffer OFF: 3,5Mohm

Input Impedance @ 1KHz with buffer ON: 862Kohm

Output Impedance @ 1KHz with Buffer OFF: >10Mohm

Output Impedance @ 1KHz with Buffer ON: 120Ohm

Power supply: 9V DC (Power tool 9)

Minimum Power supply Voltage: 8V DC

Maximum Power supply Voltage: 12,5V DC

Current Draw @ 9V DC: 19mA

Maximum input signal Vp/p With buffer OFF: Input = output. No limit

Maximum input signal Vp/p With buffer ON: 4Vp/p

Battery Type: 9V battery 6F22

Battery Life: 5 to 8 hours

External connectors: Input(L), Input(R), Out(A)left/ Right, Out(B)left/ Right

Controls: On/Off, buffer

Depth: 120mm

Width: 110mm

Height: 55mm

Weight (excl. Battery): 430g
