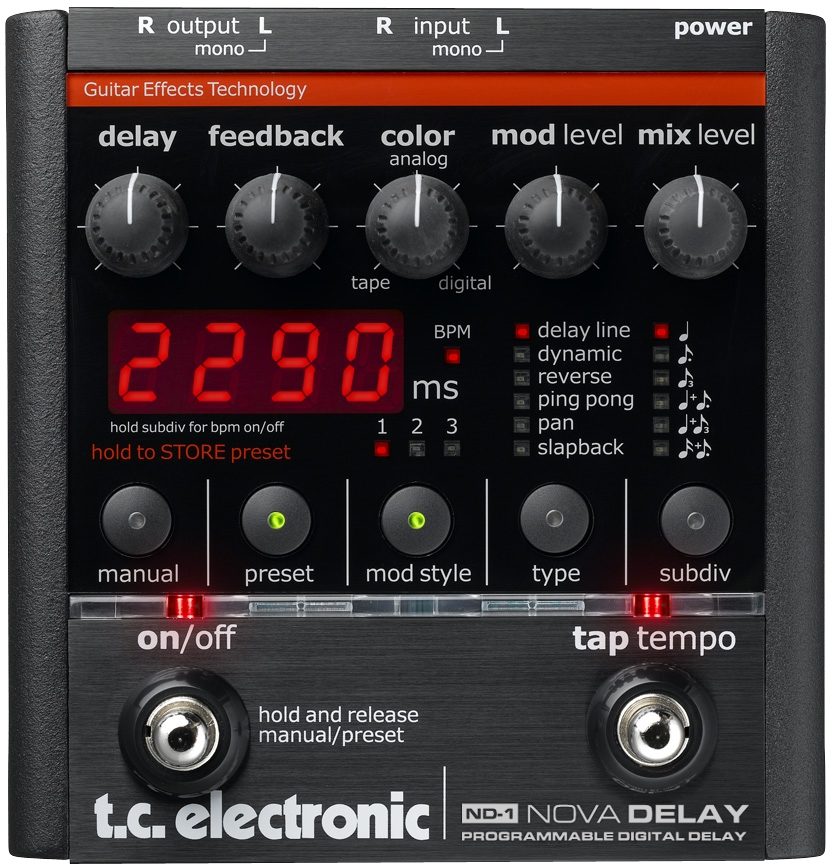

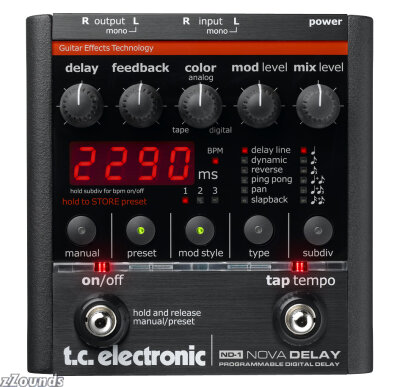

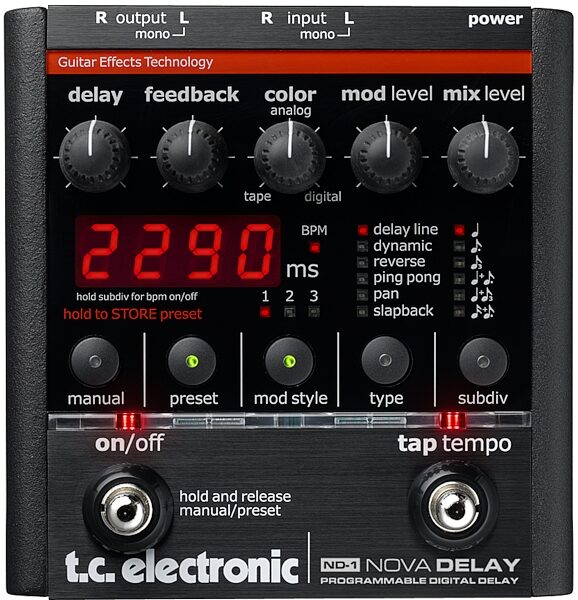

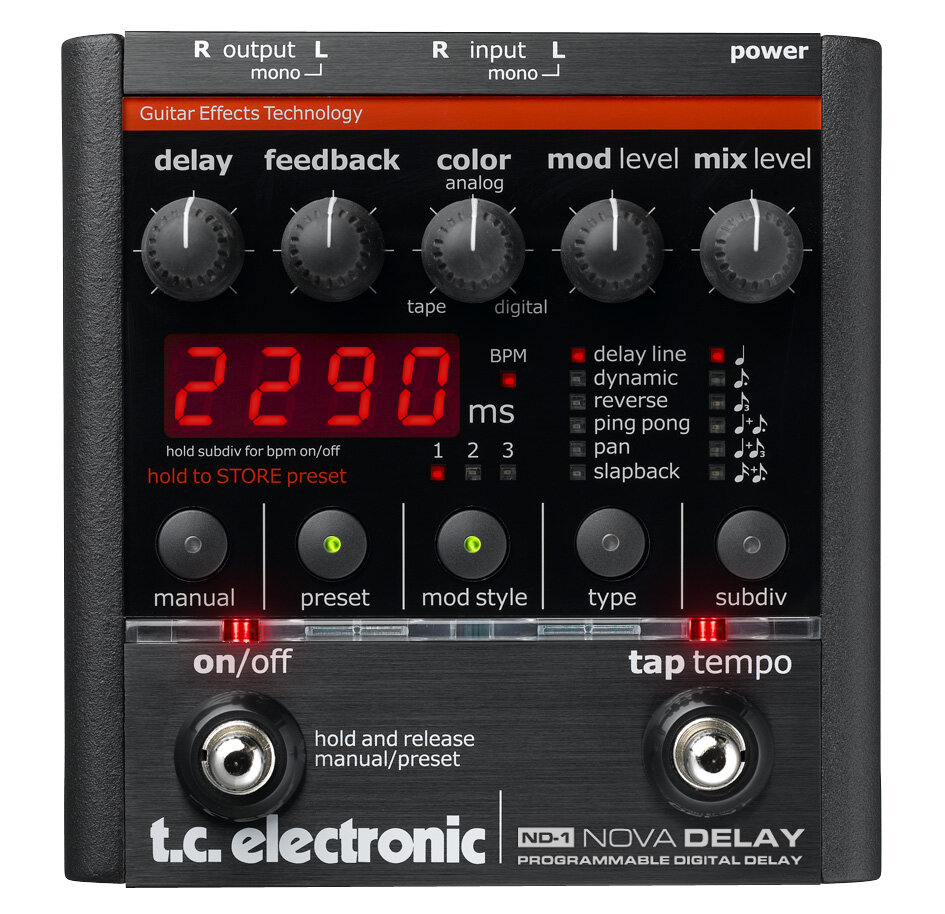

With 6 different stereo delay types and the option to store up to 9 presets customizable by an array of style parameters ranging from vintage tape to digital delay the TC Electronic Nova Delay pedal easily serves all delay requirements of modern guitar players who wanna create unique sounds.
Built upon the legacy and knowledge of TC’s world-renowned TC 2290 Dynamic Digital Delay the ND-1 Nova Delay raises the bar for guitar effect pedals and redefines what it means to be "state-of-the-art". ND-1 Nova Delay offer uncompromised studio quality digital effects in a compact floor-based design.
The ND-1 Nova Delay pedal features 6 different delay types:
Delay line
Dynamic
Reverse
Ping-pong
Pan
Slap-back
Each of these types can be modified with a delay style – a unique feature of ND-1 Nova Delay that allows you to mix and match your delay type and style infinitely.
Both single delay and dual delay lines can be applied to any type and style using the tap tempo switch or delay time knob to determine the delay time that ranges from 1 to 2290 ms.
Three different types of modulation (light, medium and heavy) can be applied to any of the delay types – a feature originating from the legendary TC 2290 Dynamic Digital Delay processor.
The all-new Audio Tapping technology enables you to set the tempo of the delay by playing a rhythm into the pedal while holding down the tap tempo switch. You can now set the tempo of the delay using your most important asset: Your playing.
Other great ND-1 Nova Delay features include the ability to choose between ms (milliseconds) and bpm (beats per minute) readout, decide if you want spillover on individual settings and turn global tempo – where tap tempo determines delay time on user presets – on and off.
Features
6 studio quality digital delay types
Two switchable settings: manual and preset
9 user programmable presets
Up to 2290 ms delay time
Audio Tapping – audio-generated tap tempo
Modulated delay
Delay spillover
Technical Info
Analog Inputs
Connectors: 1/4 in. phone jacks w. monosense
Impedance: 1 MOhm
Max. Input Level: TBD dBu
A to D Conversion: 24 bit, 128 x oversampling bitstream
A to D Delay: TBD
Dynamic Range: 05 dB typ, 20 Hz - 20 kHz
THD typ.: < 92 dB (0,0025 %) @ 1 kHz
Frequency Response: +0/-0.1 dB @ 48 kHz, 20 Hz to 20 kHz
Crosstalk: <-95 dB, 20 Hz to 20 kHz
Analog Outputs
Connectors: 1/4 in. phone jack, balanced
Impedance Balanced / Unbalanced: 40 Ohm
Max. Output Level: TBD dBu
D to A Conversion: 24 bit, 128 x oversampling bitstream
D to A Delay: TBD
Dynamic Range: 105 dB typ, 20 Hz to 20 kHz
THD typ: <-94 dB (0.002 %) @ 1 kHz, +20 dBu Output
Frequency Response: +0/-0.5 dB @ 48 kHz, 20 Hz to 20 kHz
Crosstalk: <-100 dB, 20 Hz to 20 kHz
EMC
Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
Enviroment
Operating Temperature: 32° F to 122° F (0° C to 50° C)
Storage Temperature: -22° F to 167° F (-30° C to 70° C)
Humidity: Max. 90 % non-condensing
General
Finish: Anodized aluminum front Plated and painted steel endcaps
Dimensions: 12.5 x 12.5 cm. 4.9212598 x 4.9212598 in.
Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select) AC wall adapter
Power Consumption: <5 W
Warranty Parts and labor: 1 year
