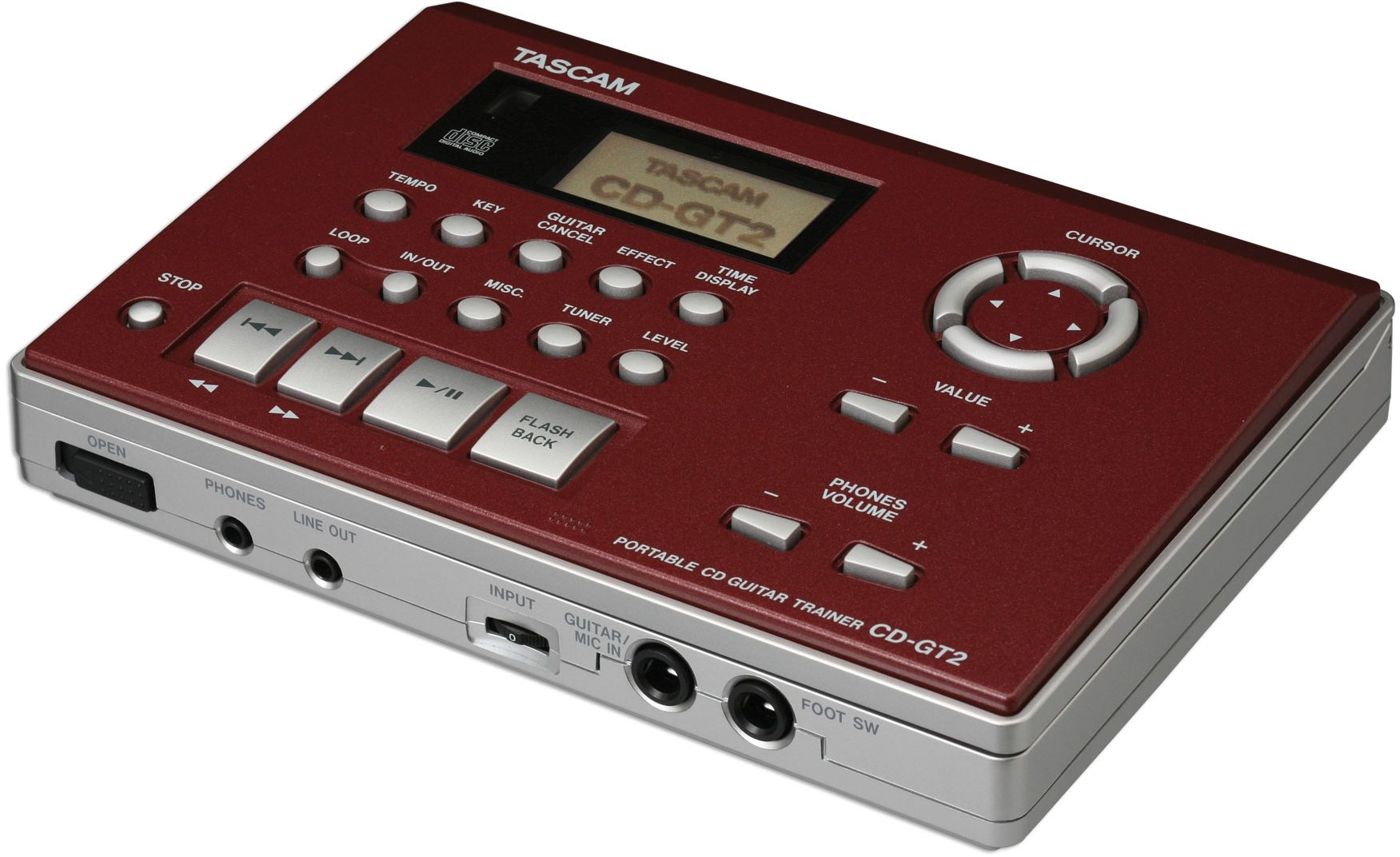

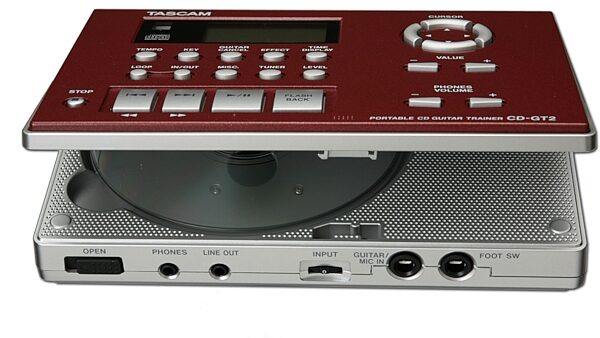

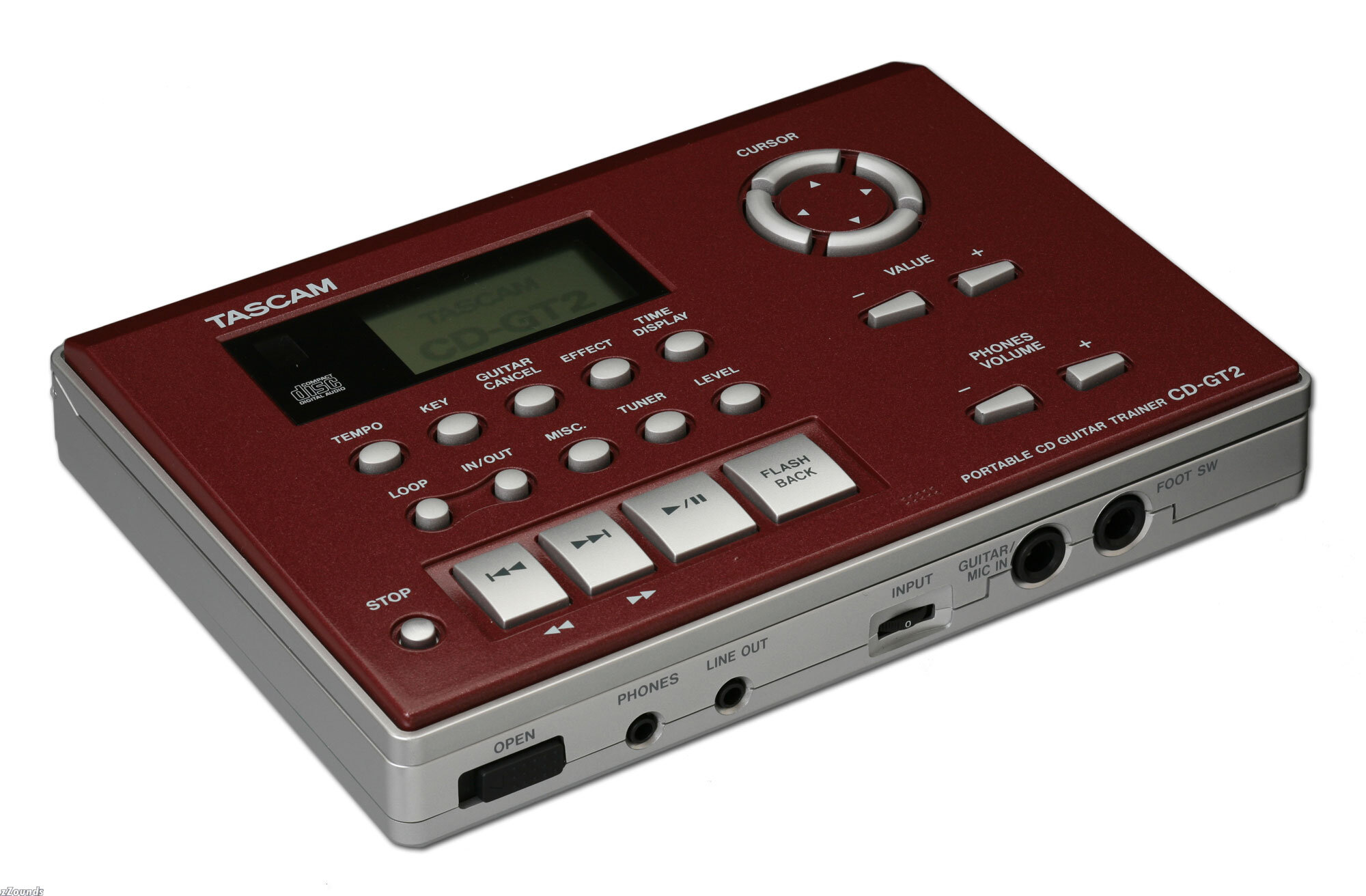

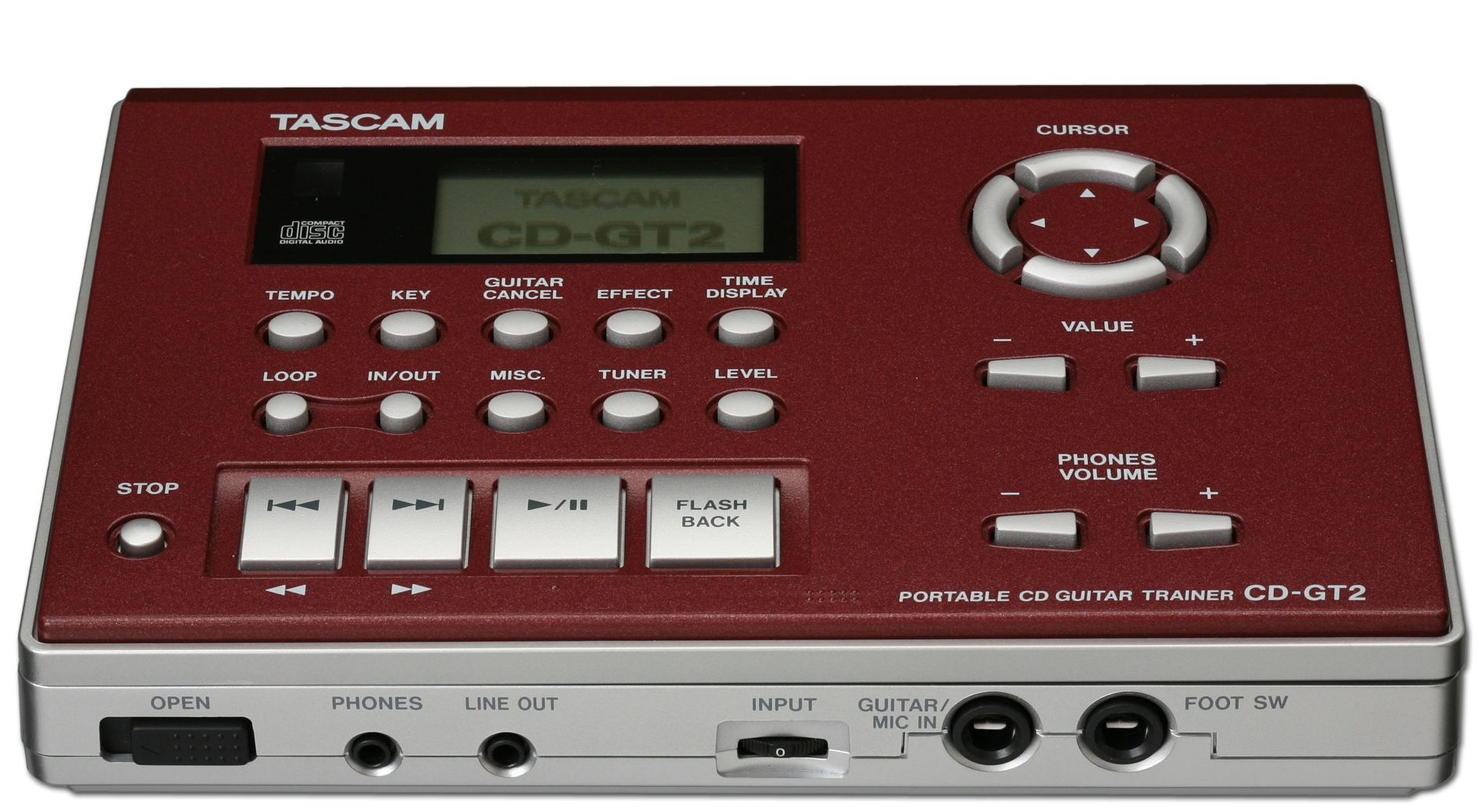

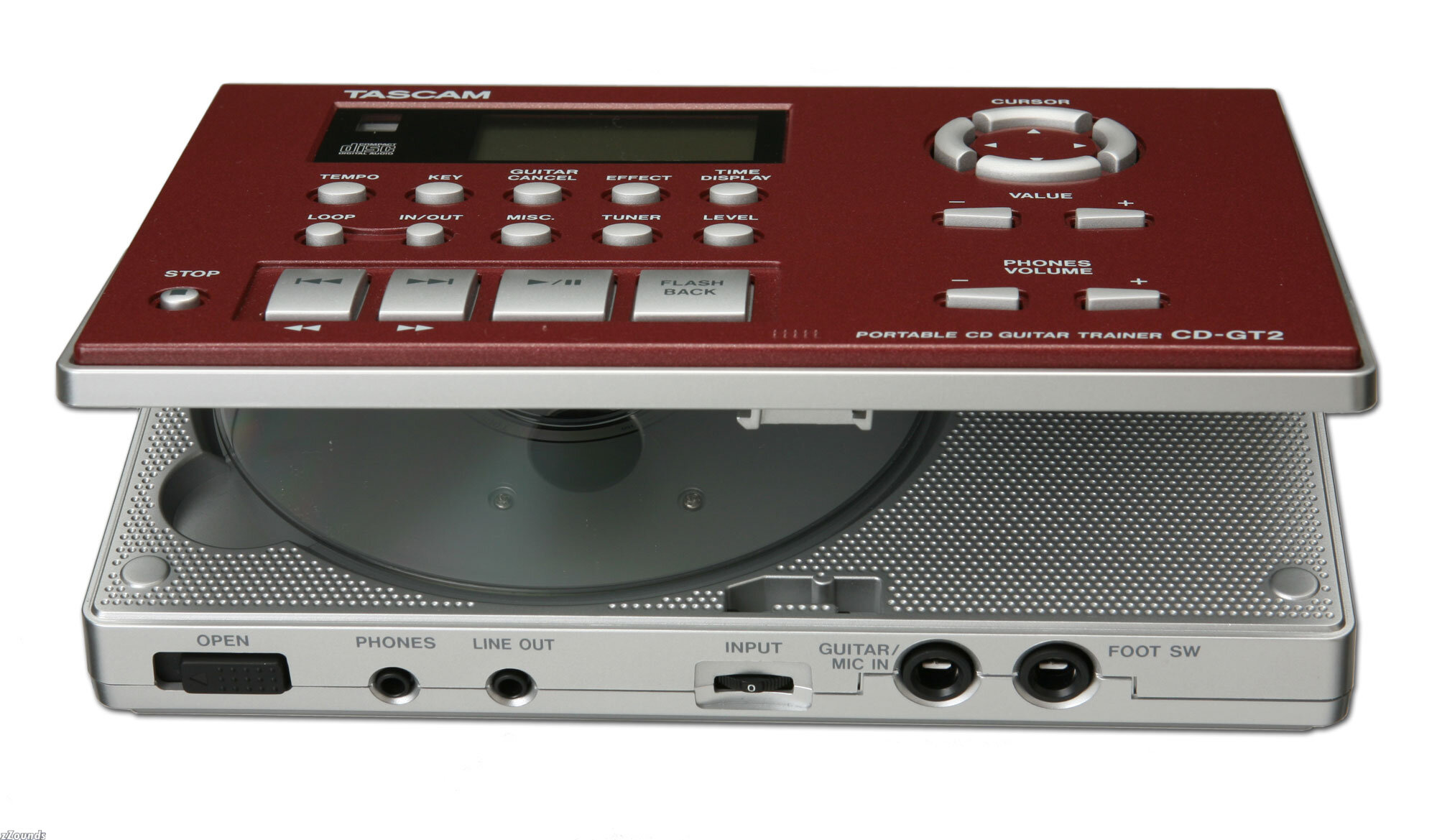

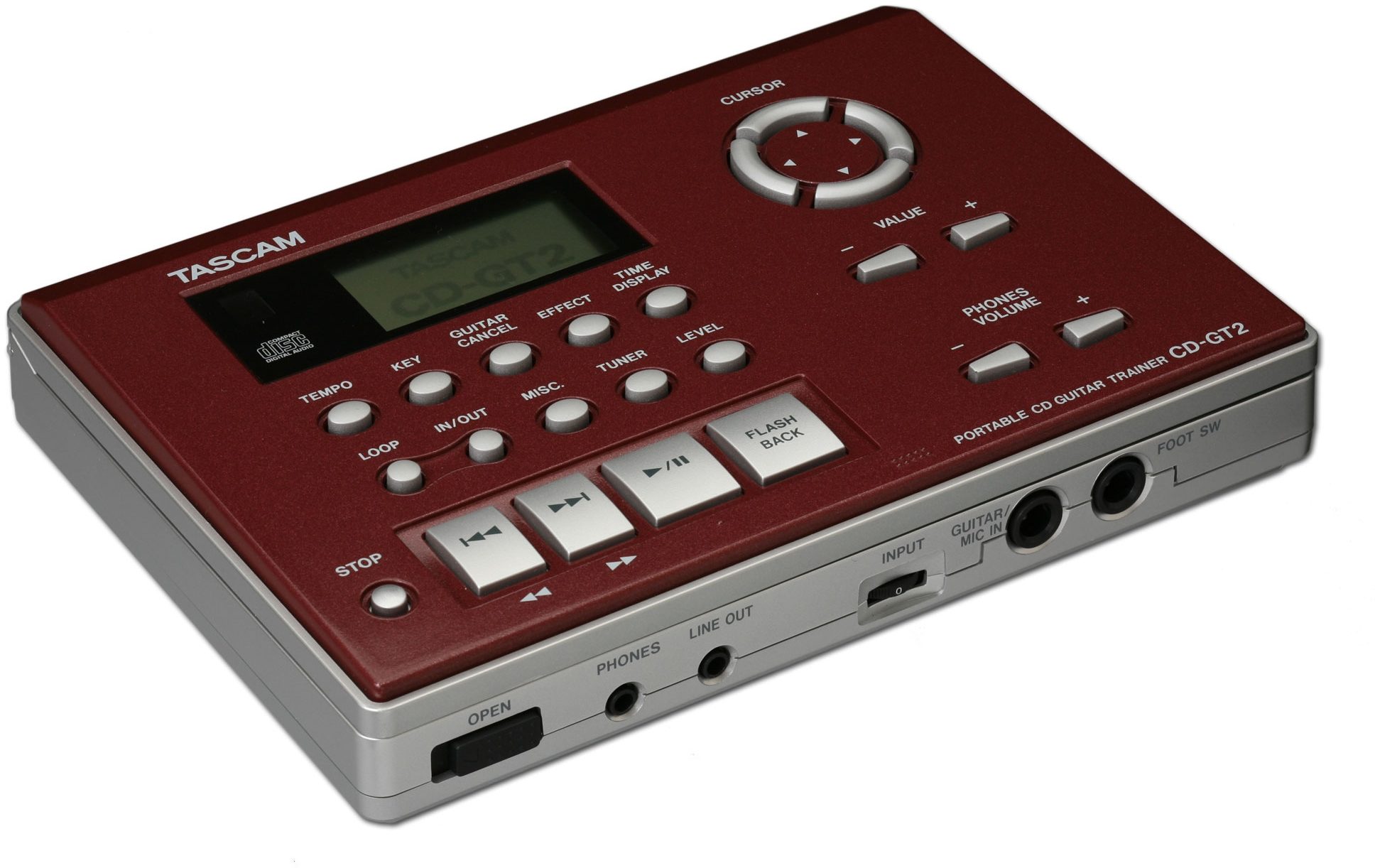

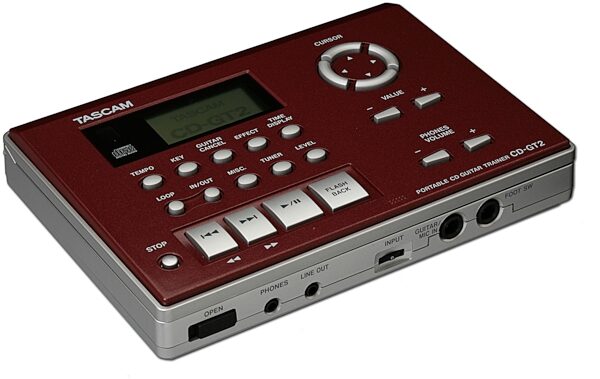

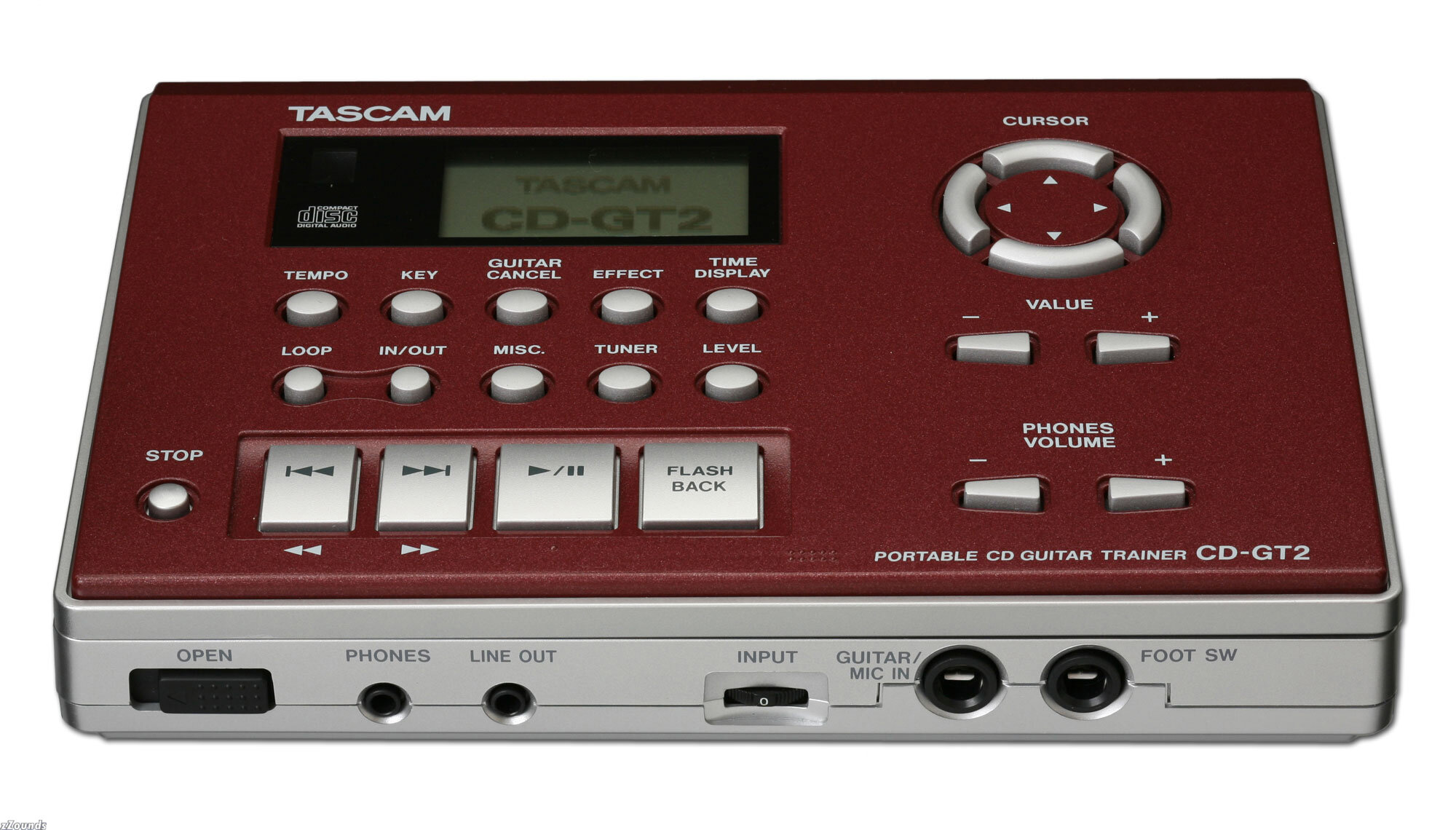

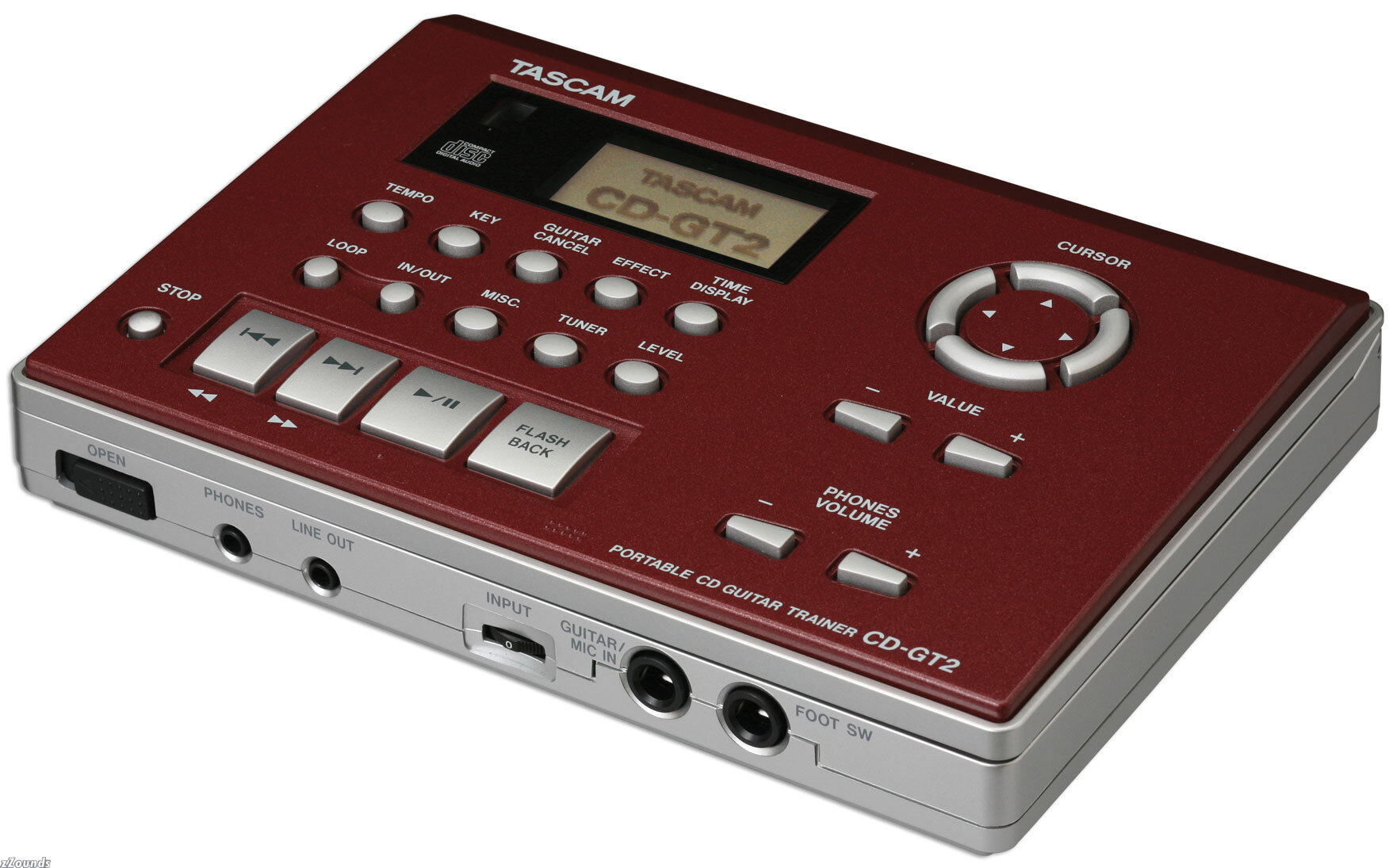

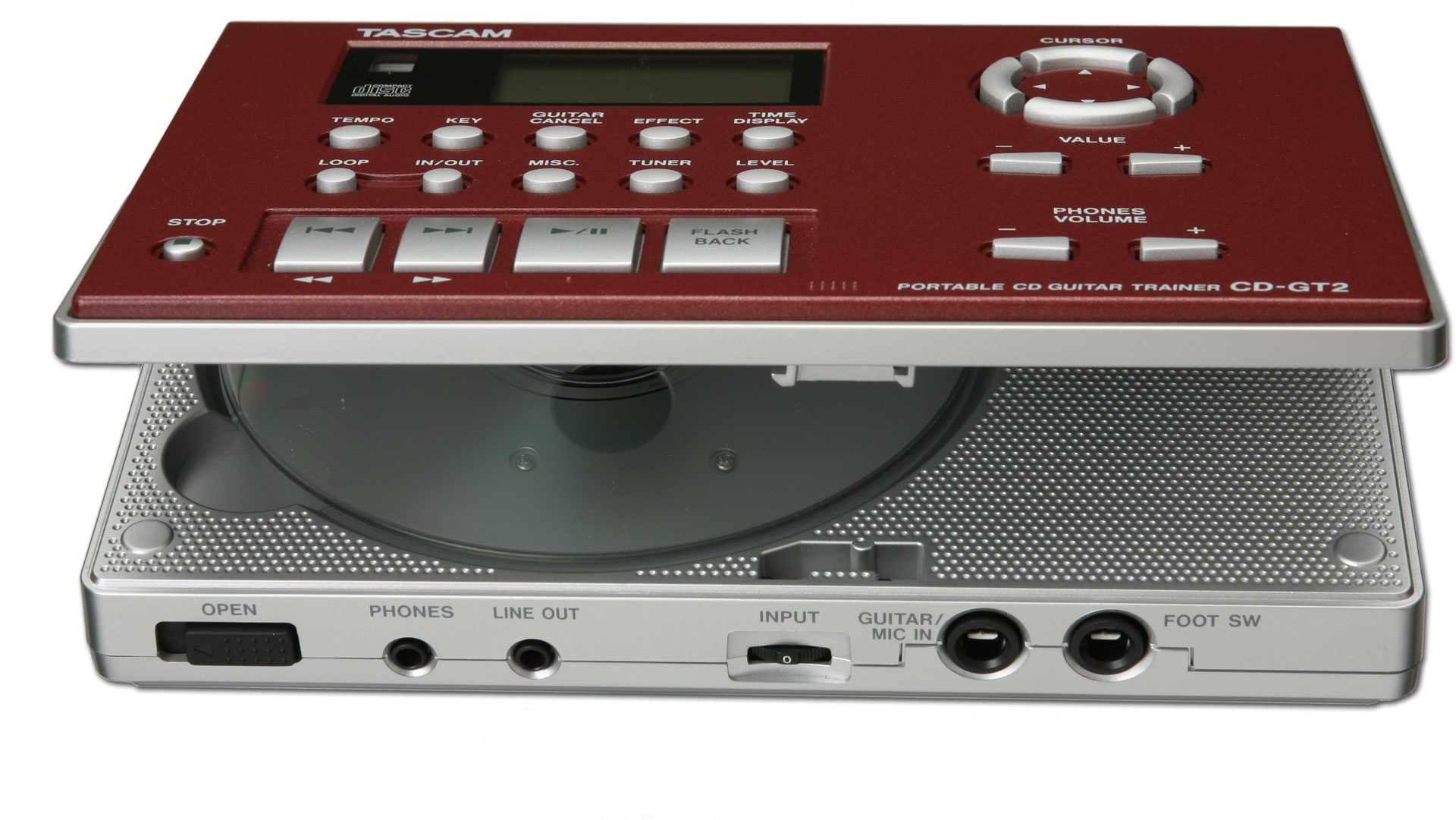

Tascam CDGT2 Portable CD Guitar Trainer

The new CD-GT2, is the latest introduction in the portable CD trainer by TASCAM. Like the wildly-popular original CD-GT1 guitar trainer, musicians have the ability to slow down the speed of a CD without changing the pitch - allowing artists, musicians, students, and music teachers to practice, learn and teach fast licks, rhythm parts and solos from their favorite artists. With its ultra-compact design and new functionality, the new CD trainers from TASCAM are the most user-friendly trainers ever. The new CD-GT2 guitar trainer completes our all-new lineup of trainers for the, musician, student, teacher and artist on the go.

The new CD-GT2 guitar trainer features an all new improved ultra compact design, comprehensive LCD display with graphical user interface, Album title/Track title indication by CD-Text, expanded effect banks for user preset, 3 octaves tone oscillator, and TASCAM'S pioneering VSA (Variable Speed Audition, pitch control without affecting key) Feature lets music fans learn up a continuous mix of their favorite songs anywhere they go.

With TASCAM'S legendary ease of use, pioneering features such as integrated pitch and key control, instrument canceller with selectable canceling pan point and selectable frequency range, and seamless integration with CD-DA/CD-R/CD-RW disc playback. Users can now discover the licks their favorite artist really played.

Technical Info

Portable CD guitar trainer (More compact than previous CD-GT1MKII)

CD-DA/CD-R/CD-RW disc playback

10 second anti-shock memory

Comprehensive 128 x 64 dot matrix LCD display with graphical user interface

Album title/Track title indication by CD-Text

Elapsed Time/Remain Time display with bar meter

+16 to -50% pitch control in 1% steps

VSA (Variable Speed Audition, pitch control without affecting key)

Key control: +/-6 semi-tone, in semi-tone steps with +/-50 cents fine tune

Single play and continuous play

Single Loop, All Loop, and Seamless IN-OUT Loop

Flash Back function (Instant review up to 5 seconds prior playback)

Guitar Canceller with selectable canceling pan point and selectable frequency range

10 effect banks for user preset

Chromatic tuner with calibration (435 to 445Hz)

3 octaves tone oscillator

Metronome (BPM: 40 to 220, Beat: 2 to 6)

1/4 in. Guitar input

Guitar/Mic input volume

Guitar/Mic input level meter indicator on LCD display

CD level meter indicator

Foot switch connector

5 selectable functions by foot switch (Flash Back, Rewind, FF, Bank, Effect on/off)

1/8 in. stereo line output

1/8 in. stereo headphone output

Headphone volume

MONO monitor for CD (L+R, L, R)

Split monitor (Left ch: CD, Right ch: Input or vice versa)

Battery operation

*Optional power supply PS-P520

Specifications

Disc Type: 8cm and 12cm CD

Line Output Connector: 1/8 in. Stereo mini connector

Nominal Stereo Output Level: -10dBV

Output Impedance: 600ohm (2V RMS)

Maximum Output Level (LINE OUT): +6dBV

Headphone Output Connector: 1/8 in. Stereo mini connector

Maximum Output Level (PHONES): 15mW (at 32ohm loaded)

Guitar/Mic Input Connector: 1/4 in. Phone Connector

Nominal Input Level
Guitar Input: -15dBV
Mic Input: -40dBV

Maximum Input Level
Guitar Input: +6dBV
Mic Input: -19dBV

Frequency Response: 20 Hz to 20 kHz (-3/+1dB)
(A weight filter + 20KHz LPF)

Signal to Noise Ratio: Better than 85 dB

Total Harmonic Distortion: < 0.03% (200Hz HPF + 20KHzLPF)

Channel Separation: Better than 80dB
(A weight filter + 20KHz LPF)

Power Requirements: DC 9V (Optional AC adapter PS-P520)

AA batteries x 4

Power Consumption: 4W (with PS-P520)

Dimensions (WxHxD): 194 x 38.7 x 138(mm)

Weight (excluding batteries): 550g

New compact design! Lets you play along with a CD, change its pitch, speed, and more, all with top-quality guitar effects. Onboard tuner.
