This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
Tapco by Mackie SW10 Active Subwoofer (1x10 in.)
Flat frequency response, 10 in. high-precision woofer, 120-watt power amplifier
Loading...
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
The SW10 Active Studio Subwoofer joins the popular S5 and S8 monitors in TAPCO's active studio monitor lineup. Developed by the renowned Mackie studio monitor team, the SW10 outperforms anything in its class - both sonically and aesthetically. This versatile and compact "mini-sub" offers loud, punchy, and precise low-end down to 34 Hz. With its natural bass, full, powerful sound and superior frequency response, the SW10 is the perfect compact subwoofer to add low-down thump to your tracks.
Features
Flat frequency response (±3 dB, 34 Hz to 110 Hz)
10 in. high-precision woofer with dual-voice coil
120-watt power amplifier
High-strength cabinet constructed of 5/8" MDF composite
High-density adiabatic fiberfill absorbs internal reflections

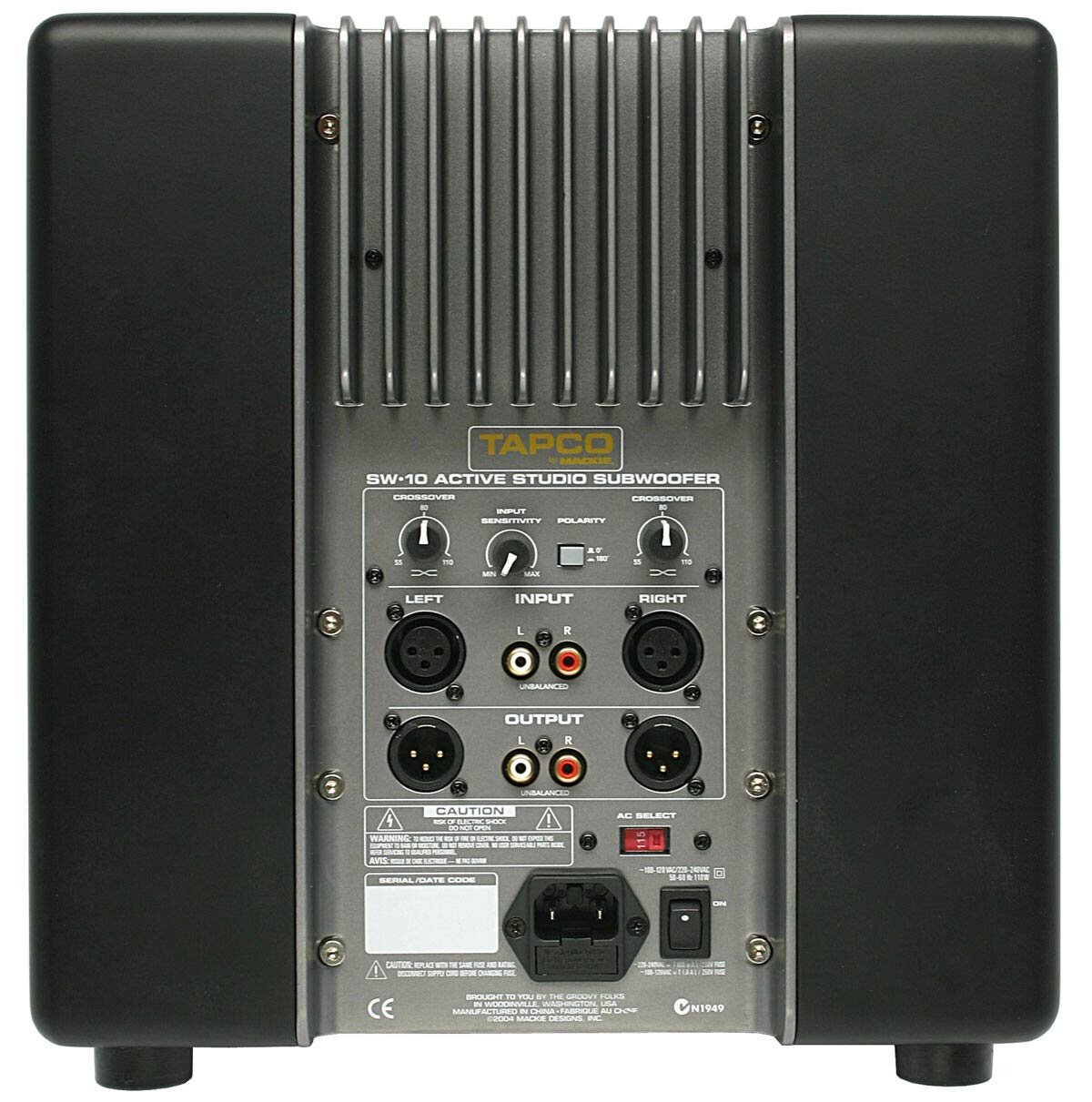

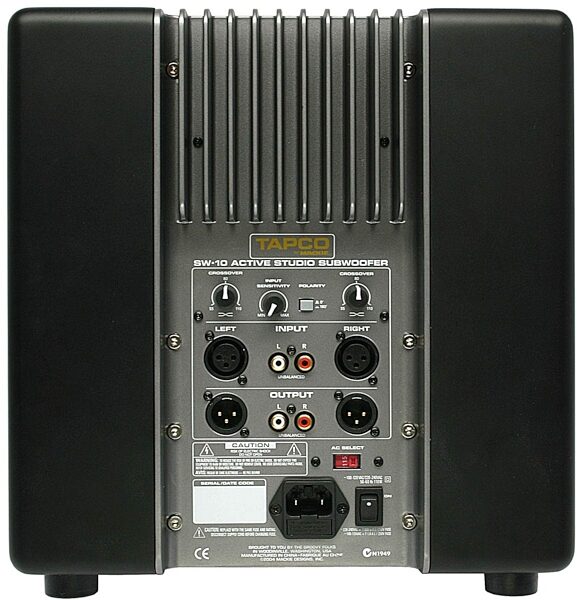

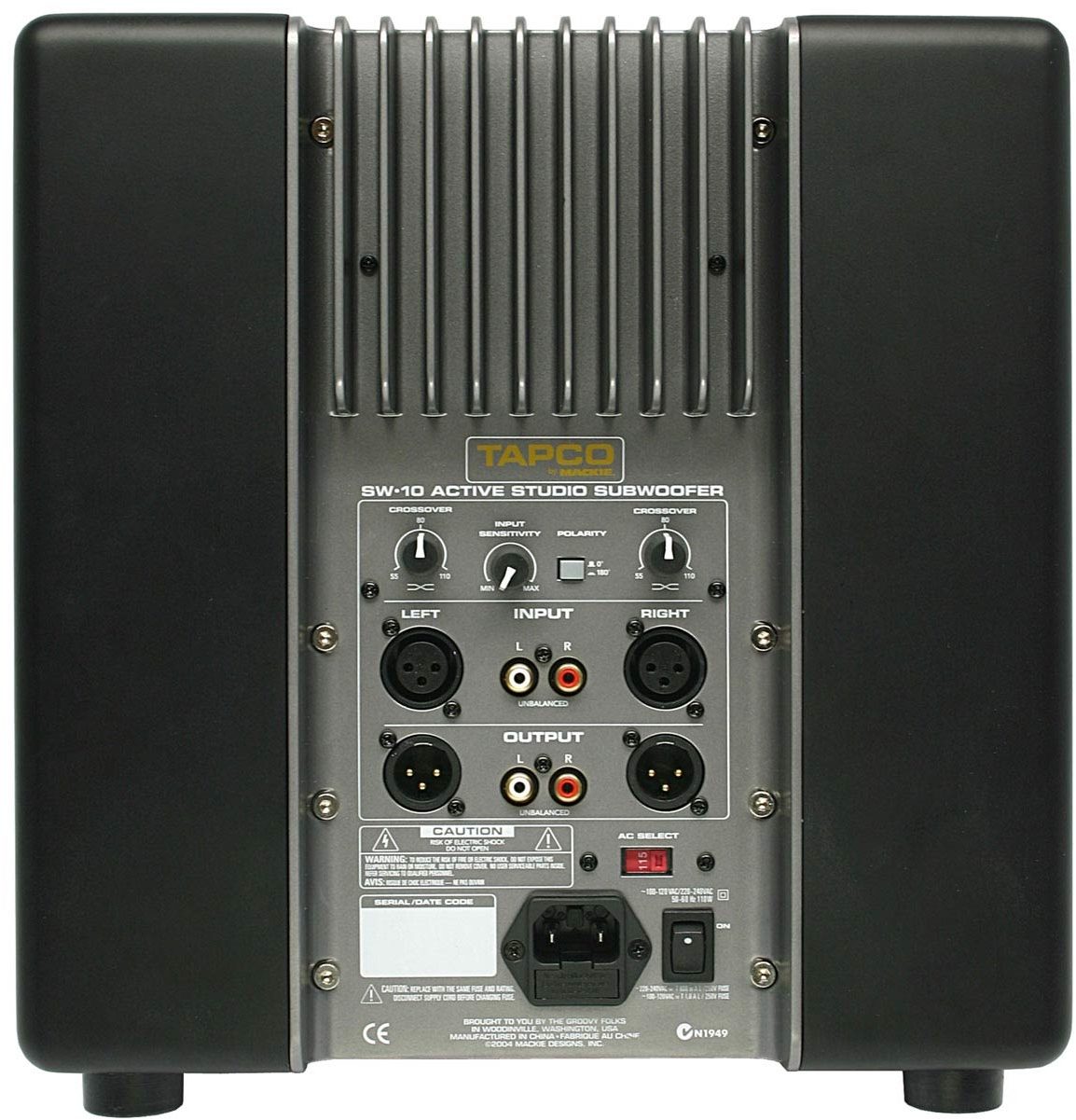

Balanced XLR and unbalanced RCA input and high-pass output connectors
Individual left and right 24 dB/octave Linkwitz-Riley crossovers, adjustable from 55 Hz to 110 Hz
Rear panel power switch and AC voltage select
User-adjustable sensitivity control
Polarity Switch
Free Field Frequency Response: 34 Hz - 110 Hz (±3 dB)
Lower Cutoff Frequency: -3 dB @ 34 Hz
Upper Cutoff Frequency: -3 dB @ 110 Hz
Maximum SPL @ 1 meter, 7.5 dBu into both Balanced Inputs: 103 dB SPL @ 1m
Transducer
Low Frequency Driver: 10 in/254 mm woofer with steel frame,dual voice coil, and paper cone
Amplifiers
Rated Power: 120 watts rms into a 4 ohm load (60 watts rms x 2)
Burst Power: 270 watts rms into a 4 ohm load (135 watts rms x 2)
Slew Rate: > 15 V/µs
Distortion (THD, SMPTE IMD, DIM 100): < 0.03%
Signal-to-Noise Ratio:
> 110 dB, 20 Hz to 20 kHz, A-weighted, referenced to 60 watts into 4 ohms
Type: Monolithic IC, Class AB
Electronic Crossover
Crossover Type: 24 dB/octave Linkwitz-Riley
Crossover Frequency: Variable, 55 Hz to 110 Hz
Input Impedance: 20 kΩ, balanced bridging; 10 kΩ unbalanced
AC Power Requirements
US: 120 VAC, 60 Hz
AC Connector: 2-pin IEC 250 VAC, 16 A male
Fuse: 115 VAC: T 1.6 A/250 V
, 230 VAC: T 800 mA/250 V
Power Consumption: 80 watts with music, loud mix
20 watts quiescent (idle)
Physical Dimensions and Weight
Enclosure: 0.625 in/16 mm thick MDF
Damping: Adiabatic fiberfill
Dimensions (H x W x D): 12.3 (with feet) x 12.0 x 12.4 in (312 x 295 x 315 mm)
Weight: 28 lb/12.7 kg
Features
Flat frequency response (±3 dB, 34 Hz to 110 Hz)
10 in. high-precision woofer with dual-voice coil
120-watt power amplifier
High-strength cabinet constructed of 5/8" MDF composite
High-density adiabatic fiberfill absorbs internal reflections
Balanced XLR and unbalanced RCA input and high-pass output connectors
Individual left and right 24 dB/octave Linkwitz-Riley crossovers, adjustable from 55 Hz to 110 Hz
Rear panel power switch and AC voltage select
User-adjustable sensitivity control
Polarity Switch
Technical Info
Acoustic PerformanceFree Field Frequency Response: 34 Hz - 110 Hz (±3 dB)
Lower Cutoff Frequency: -3 dB @ 34 Hz
Upper Cutoff Frequency: -3 dB @ 110 Hz
Maximum SPL @ 1 meter, 7.5 dBu into both Balanced Inputs: 103 dB SPL @ 1m
Transducer
Low Frequency Driver: 10 in/254 mm woofer with steel frame,dual voice coil, and paper cone
Amplifiers
Rated Power: 120 watts rms into a 4 ohm load (60 watts rms x 2)
Burst Power: 270 watts rms into a 4 ohm load (135 watts rms x 2)
Slew Rate: > 15 V/µs
Distortion (THD, SMPTE IMD, DIM 100): < 0.03%
Signal-to-Noise Ratio:
> 110 dB, 20 Hz to 20 kHz, A-weighted, referenced to 60 watts into 4 ohms
Type: Monolithic IC, Class AB
Electronic Crossover
Crossover Type: 24 dB/octave Linkwitz-Riley
Crossover Frequency: Variable, 55 Hz to 110 Hz
Input Impedance: 20 kΩ, balanced bridging; 10 kΩ unbalanced
AC Power Requirements
US: 120 VAC, 60 Hz
AC Connector: 2-pin IEC 250 VAC, 16 A male
Fuse: 115 VAC: T 1.6 A/250 V
, 230 VAC: T 800 mA/250 V
Power Consumption: 80 watts with music, loud mix
20 watts quiescent (idle)
Physical Dimensions and Weight
Enclosure: 0.625 in/16 mm thick MDF
Damping: Adiabatic fiberfill
Dimensions (H x W x D): 12.3 (with feet) x 12.0 x 12.4 in (312 x 295 x 315 mm)
Weight: 28 lb/12.7 kg
What Our Customers Say About zZounds
"I love how zZounds notifies me of great deals when they come in." - customer on November 4, 2009
Tapco by Mackie SW10 Active Subwoofer (1x10 in.) Reviews
10 out of 10
zZounds has verified that this customer bought this product from us.
"Tight, clean, beautiful bass!"
Feature:
Includes a power cable, and switches between 110v and 220v. Has both XLR and RCA inputs.
Quality:
At this price, I figured the fit and finish would be cheap. Not at all--it's built like a tank!
Value:
Durable design and incredible sound you'd expect from Mackie at an affordable price. The packaging isn't as fancy as a Mackie product, the warranty isn't as good, and the unit is made in China. However, I'm not seeing what other corners they cut.
Desirability:
It's a subwoofer... these aren't exactly exciting. The bass is incredible though.
Sound:
Clean, tight, beautiful bass.
Ease of Use:
A snap to set up and use.
Overall:
The quality you'd expect from Mackie at a price that mere mortals can afford. A perfect companion to my Mackie HR624s. Who could ask for more?
Includes a power cable, and switches between 110v and 220v. Has both XLR and RCA inputs.
Quality:
At this price, I figured the fit and finish would be cheap. Not at all--it's built like a tank!
Value:
Durable design and incredible sound you'd expect from Mackie at an affordable price. The packaging isn't as fancy as a Mackie product, the warranty isn't as good, and the unit is made in China. However, I'm not seeing what other corners they cut.
Desirability:
It's a subwoofer... these aren't exactly exciting. The bass is incredible though.
Sound:
Clean, tight, beautiful bass.
Ease of Use:
A snap to set up and use.
Overall:
The quality you'd expect from Mackie at a price that mere mortals can afford. A perfect companion to my Mackie HR624s. Who could ask for more?
Submitted: 10/10/2007
