Steinberg VSL 2020 Audio Card (Windows)

Steinberg VSL 2020 Audio Card (Windows)

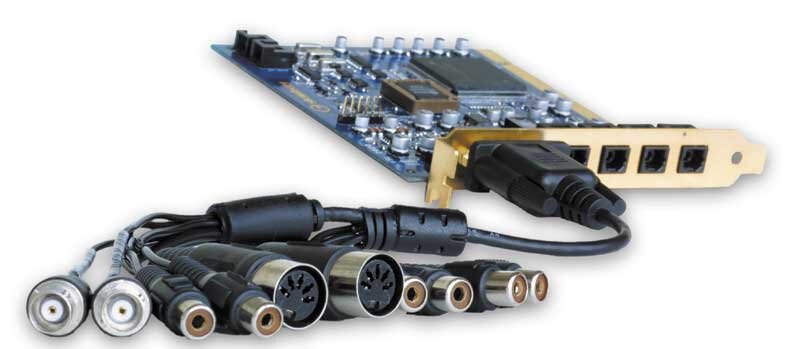

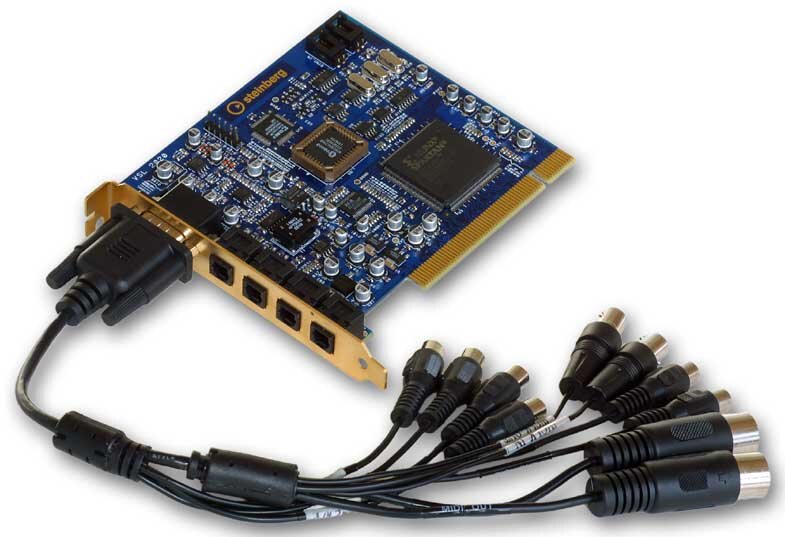

The VSL 2020 audio card provides 32 ADAT channels for pristine transmission of audio and MIDI data to and from the other computers in your VST System Link network. Flawless support of ASIO 2.0 ensures stable, low-latency multichannel network operation with other computers running Cubase or Nuendo. Let the VSL 2020 card and V-STACK increase the available music-making power in your studio.

VSL 2020 and V-STACK can also turn your PC into a live virtual instrument station. The VSL 2020 Ultra Low Latency architecture guarantees dynamic, live play of VST instruments at latencies as low as 32 samples (less than 1ms). The supplied V-STACK software hosts up to 16 VST instruments, and provides 8 send effects, 5 insert effect slots and 4 master bus effects for your VSTi sounds. All this in immaculate 32 Bit floating point audio quality.

Includes V-STACK VST System Link software.

Features

32 ADAT channels - 2 optical ADAT I/O with S/MUX support

Analog I/O - unbalanced (-10dBV) Stereo RCA I/O

Standard MIDI 5-pole I/O

Ultra Low Latency down to 32 samples (1 ms)

S/PDIF I/O - supports AES/EBU and consumer S/PDIF

SuperClock (FS 256) and WordClock I/O with BNC connector

24 Bit with 32, 44.1, 48, 88.2 or 96 kHz
