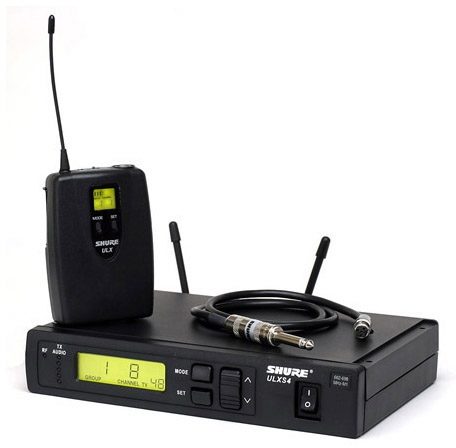

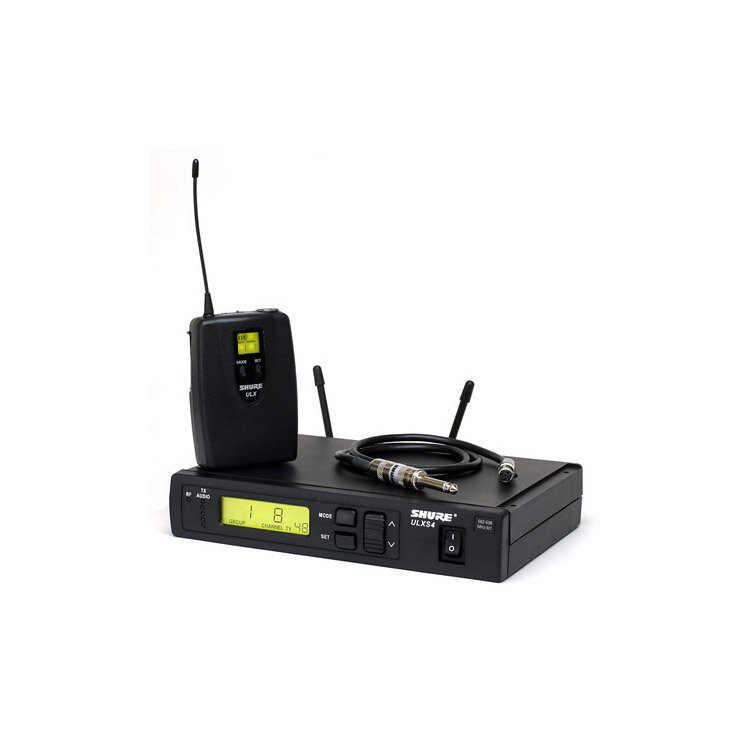

Shure ULXS14 UHF Guitar and Bass Wireless System

Product Description

ULX Standard UHF systems represent a breakthrough in performance and price for both working musicians and professional sound installers. Multiple system configurations provide limitless options, each with a choice of legendary Shure microphone transmitters. Over 1400 selectable, pre-programmed frequencies are available, and Automatic Frequency Selection provides a straight shot to a clear channel.

Includes:

- WA302 Guitar/Bass Cable
- ULXS4 Diversity Receiver
- Automatic Frequency Selection
- Over 1400 selectable frequencies
- Predictive Diversity
- RF presence LED
- 5 segment audio meter
- 3 segment transmitter battery fuel gauge
- Multifunction LCD
- 1/2 rack design
- Detachable 1/4 wave antennas
- Durable plastic chassis
- Locking DC connector
- XLR and 1/4 in. outputs
- Mic/line switchable

ULX1 Transmitter

- 3 segment battery fuel gauge
- Backlit LCD shows group and channel
- Frequency and power settings
- Control lockout
- 8-hour battery life
- 300 ft (92m) operating range
- 20dB pad switch on ULX1

About ULX Series

Shure's ULX Series is wireless the way it should be - simple, agile, and bulletproof solutions that are affordable for working musicians and professional sound installers. Wireless traffic jamming your transmissions? The frequency agile ULX features Automatic Frequency Selection finds open frequencies for you. Whether ULX Standard or Professional Series Systems, the clear channels and strong transmission free you to concentrate on what matters most - your sound.

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of Shure products.

Channel Frequencies
Channel J1: 554 to 590 MHz
Channel M1: 662 to 698 MHz

System Includes: ULXS4 Standard Diversit Receiver, ULX1 Bodypack Transmitter, WA302 Instrument Cable

RF Carrier Frequency Range: 554.000 to 865.000 MHz (Available frequencies depend on the applicable regulations in the country where the system is used).
Refer to the frequency supplement supplied with the system.

Effective Range: 100 m (300 ft.) under optimal conditions
NOTE: Actual working range depends on RF signal absorption, reflection, and interference

Audio Frequency Response: 25 to 15,000 Hz, +/-2 dB
NOTE: Overall system frequency response depends on the microphone element.
*Output Level: Microphone Level = Line Level - 20 dB

Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive volt-age applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4 in. output

Transmitter Gain Adjustment Range ULX1: 25 dB

Receiver Audio Output Level (+/-38 kHz deviation, 1 kHz tone):
XLR connector (into 600 ohm load): +3.9 dBV (line), -17dBV mic
1/4 in. connector (into 3000 ohm load): -2 dBV

Impedance:
ULX1: 1 Megohm
ULXS: 450 ohms at line level; 2000 ohms at mic level

Modulation:
+/-38 kHz deviation compressor-expander system with pre- and de-emphasis

FR Power output:
ULX1: 30 mW maximum

Dynamic Range: >100 dB, A-weighted

RF Sensitivity: 1.26 uV for 12 dB SINAD (typical)

Image Rejection: 80 dB typical

Spurious Rejection: 75 dB typical

Ultimate Quieting (reference +/-38 kHz deviation): >105 dB, A-weighted

System Distortion (reference +/-38 kHz deviation, 1 kHz modulation):
0.3% total harmonic distortion, typical

Power Requirements:
ULX1: 9V alkaline battery (Duracell MN1604 recommended); 8.4V Nicad optional
ULXS4: 14-18 VDC (negative ground), 550 mA

Battery Life:
8 to 9 hours (with 9V Duracell MN1604 alkaline battery)

Operating Temperature Range:
-20 to 49 degrees C (-4 to 120 degrees F)
Note: Battery characteristics may limit this range

Overall Dimensions (H x W x D):
ULX1: 96.5 x 67 x 26.7 (3.86 x 2.68 x 1.10 in.)
ULX4S: 43 x 214 x 163 mm (1.72 x 8.56 x 6.52 in.)

Net Weight:
ULX1: 79 g (2.8 oz.), without battery
ULXS4: 1049 g (2 lbs., 5 oz.)

Dimensions and Weight in Packaging

Channel J1

Shipping Weight: 6 lbs

Shipping Dimensions: 19 x 15 x 4 in

Channel M1

Shipping Weight: 6 lbs

Shipping Dimensions: 19 x 15 x 4 in
