Shure PGX24 UHF Handheld Wireless System with SM58 Microphone

Add wireless freedom to any performance with the PGX system!
If you've got a roadie, count yourself lucky. Most musicians, speakers, and presenters have to load-in and set up their own gear. Not only do you need a strong back for all that heavy lifting, you've got to have a good understanding of the equipment to use it correctly. Speakers, cables, and power amplifiers are fairly self-explanatory, but some music gear can be kind of a hassle for non-technical performers. Wireless microphone systems, for example, present some unique challenges if you're unfamiliar with the technology. Carrier frequencies and RF interference aren't exactly everyday terms; and how about squelch? Is that even a real word? If you've been wanting to add wireless freedom to your stage performance but don't have a firm grasp on the technology, Shure's PGX system is just what you've been waiting for. Its easy-to-use interface will have your message floating through the air faster than you can say "modulated frequency companding."

One-button configuration
The basic wireless concept isn't all that hard to understand. It works sort of like your own private radio station. The wireless microphone transmitter broadcasts your message, and the receiver picks it up when tuned to the correct channel. Sure sounds simple, but some wireless systems can be difficult to configure. The PGX24 couldn't be easier, though. With the push of a button, it automatically finds the cleanest, interference-free channel available, and instantly handles all the configuration on its own. You can spend your valuable time checking cue cards, tweaking your set list, or any other pre-show rituals you may have; your wireless gear is ready to go.

Tone-tweaking functions, right on the microphone
Don't let the ease of use fool you; this is a sophisticated system. There are plenty of additional functions to help you fine-tune your sound, should you ever need them. Do you have a big voice? If it sounds boomy or harsh through the microphone, just enable the -10dB pad. This reduces the overall input level, which can help smooth-out the sound. If the microphone isn't getting enough of your vocals and the audience is straining to hear what you're saying, you can boost the input gain (volume) and take-in more of your performance. To prevent the microphone from picking up any sound during a break in the action, use the mute function. This can help reduce annoying feedback squeals when the microphone is not in use. Some systems require these changes to be made all the way back by the wireless receiver, but this isn't always practical. You don't want to be running back and forth in the middle of a performance, for example. With the PGX24's wireless range of up to 300 feet, this could be quite a chore! Shure gives you easy access to all these functions, right onboard the microphone. You may never have to use them, but it's nice to know they're within easy reach.

Wireless version of the famous SM58
If you've got even the slightest experience with microphones, chances are good you've heard of Shure. Their legendary reputation as a manufacturer of quality musical gear is known all over the world. This system includes a wireless version of their most popular handheld microphone: the SM58. It has a specially tuned frequency response for vocals, delivering clear, natural tone for both singing and speech. The sweetened midrange gets your message across with power and presence, while its unidirectional pickup pattern automatically rejects unwanted sounds from the back and sides. The audience is free to focus on your voice, anywhere you choose to roam, with no distractions. The wireless transmitter can operate for up to eight hours on two AA batteries.

Compatible with any PA system

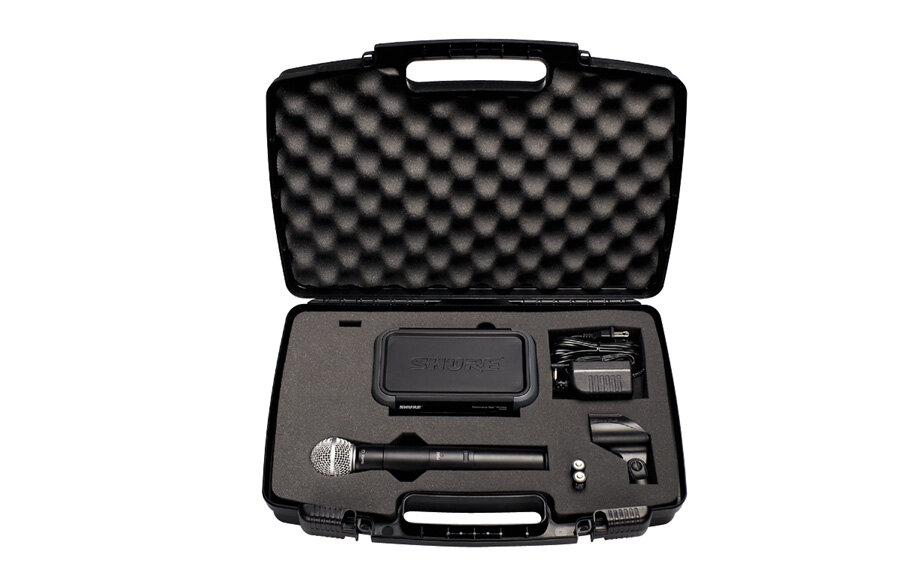

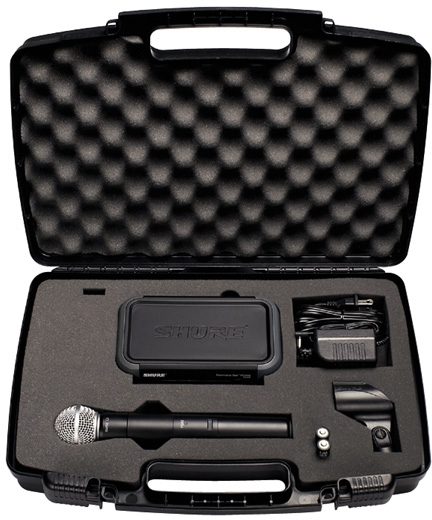

Do you currently have a PA system with a wired microphone, and aren't sure if it's compatible with wireless microphones? There's nothing to worry about. Shure's PGX receivers have a balanced three-pin output connection for standard XLR mixer channels, as well as an unbalanced 1/4-inch output jack. Using one or the other, you can plug into any audio environment, from a basic karaoke machine to a full-blown professional audio installation. It's easier than ever to add unconstrained wireless capability anywhere you can book a performance. Shure includes a rugged, foam-lined carrying case to protect the microphone and receiver during transport and storage, and an AC adapter for convenient, long-lasting power.

Shure PGX Wireless Series
Created for active musicians and presenters who also manage their own sound, Shure PGX Wireless improves your performance and simplifies your setup. Innovations such as automatic frequency selection and automatic transmitter setup make wireless quicker and completely worry-free. PGX systems now feature Shure's patented Audio Reference Companding, delivering the crystal clear sound quality that pro audio engineers trust. It's the best-sounding, simplest choice in wireless, from the leader in live performance sound.

Shure SM58 Microphone with PGX2 Transmitter
This legendary Shure vocal mic is tuned to accentuate the warmth and clarity of lead and back-up vocals. Consistently the first choice of performers around the globe, the Shure SM58 is a unidirectional (cardioid) dynamic vocal microphone designed for professional vocal use in live performance, sound reinforcement, and studio recording. A highly effective, built-in, spherical filter minimizes wind and breath "pop" noise. A cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise. The SM58 has a tailored vocal response for a sound which is a world standard. Rugged construction, a proven shock mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently. Outdoors or indoors, singing, speech - the SM58 is the overwhelming choice of professionals.

Features
Frequency response tailored for vocals, with brightened midrange and bass rolloff

Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise

Pneumatic shock-mount system cuts down handling noise

Effective, built-in spherical wind and pop filter

Supplied with break-resistant stand adapter which rotates 180 degrees

Lengendary Shure quality, ruggedness and reliability

Pattern: Cardioid (unidirectional); dynamic microphone

Frequency response: 50 to 15,000 Hz

This system includes:
Shure PGX4 receiver

Shure SM58 Microphone with PGX2 Transmitter

(2) AA batteries

Power supply

User guide

Carrying case

Microphone clip

Optional Accessories
Zipper Bag (PGX2): model # 26A14

Universal Rack Tray: model #URT

Technical Info

Channel Frequencies
Channel H6: 524.000 to 542.000 MHz
Channel J6: 572.250 to 589.875 MHz
Channel L5: 644.000 to 662.000 MHz

System Working Range: 100 m (300 ft.)
Note: actual range depends on RF signal absorption, reflection, and interference

Audio Frequency Response (+/- 2 dB):
Minimum: 45 Hz
Maximum: 15 kHz
(Overall system frequency depends on microphone element.)

Total Harmonic Distortion (Ref. +/- 33 kHz deviation, 1 kHz tone): 0.5 %, typical

Dynamic Range: >100 dB A-weighted

Operating Temperature Range:
18 deg. C (0 deg. F) to 50 deg. C (122 deg. F)
Note: battery characteristics may limit this range

Transmitter Audio Polarity:
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

PGX4 Receiver
Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)

Weight: 327 g (11.5 oz.)

Housing: ABS

Audio Output Level (Ref. +/- 33 kHz deviation with 1 kHz tone):
XLR connector (into 600 & load): 19 dBV
1/4 inch connector (into 3000 & load): 5 dBV

Output Impedance:
XLR connector: 200 Ohms
1/4 inch connector: 1kOhm

XLR output:
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio

Sensitivity: 105 dBm for 12 dB SINAD, typical

Image Rejection: >70 dB, typical

Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply

PGX2 Handheld Transmitter
Audio Input Level:
+2 dBV maximum at -10dB position
-8 dBV maximum at 0dB position

Gain Adjustment Range: 10dB

RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)

Dimensions: 254 mm x 51 mm dia. (10 x 2 in.) (including SM58 cartridge)

Weight: 290 grams (10.2 oz.) (without batteries)

Housing: Molded PC/ABS handle and battery cup

Power Requirements: 2 AA-size alkaline or rechargeable batteries

Battery Life: >8 hours (alkaline batteries)

Rebates

This just in: the SM58 is now more popular than shoes. No? Ok, well, it's popular.
