Shure MX150 Subminiature Lavalier Microphone

No longer available at zZounds

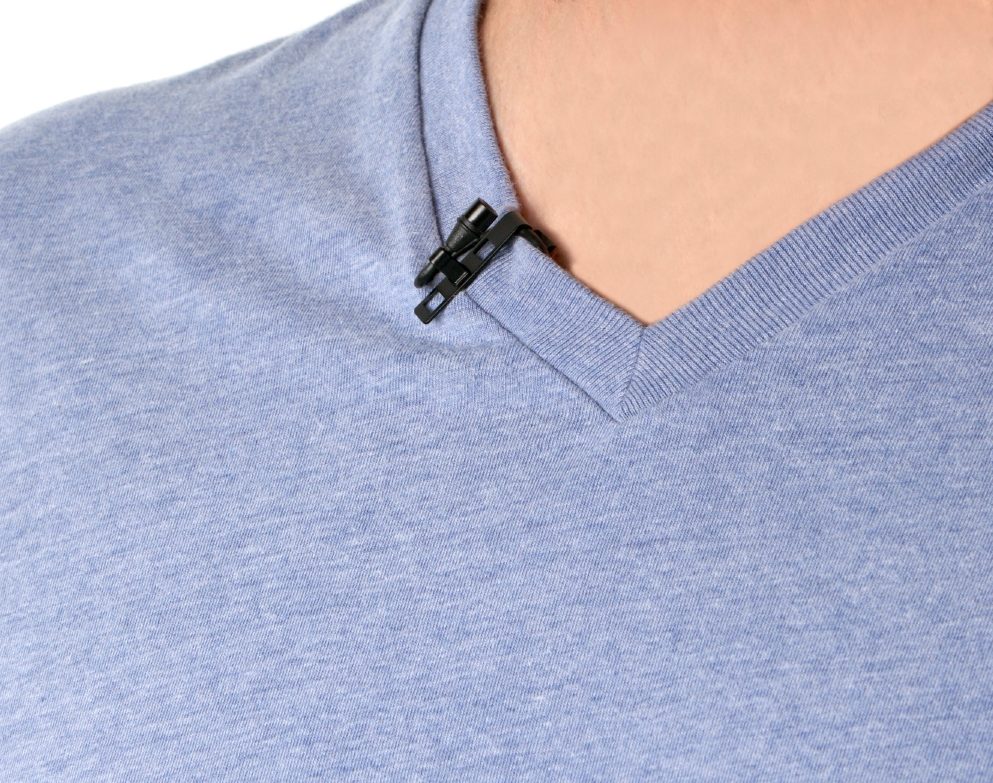

Hide the tiny Shure MX150 lavalier mic on your lapel or collar. Its clip-on design makes for easy placement for on-camera interviews or stage presentations.

The Shure Microflex MX150 is a professional electret lavalier condenser microphone ideal for applications requiring low-profile placement.

Fully compatible with all Shure wireless systems, the discreet MX150 offers uncompromising sound quality and high reliability for television broadcasting, corporate lectures, A/V teleconferencing, houses of worship, and sound reinforcement.

Features

- Available in cardioid or omnidirectional polar patterns and TQG (for use in Shure bodypacks) or wired XLR variations
- CommShield(r) Technology guards against interference from cellular RF devices and digital bodypack transmitters
- Matte black, sleek design for inconspicuous placement

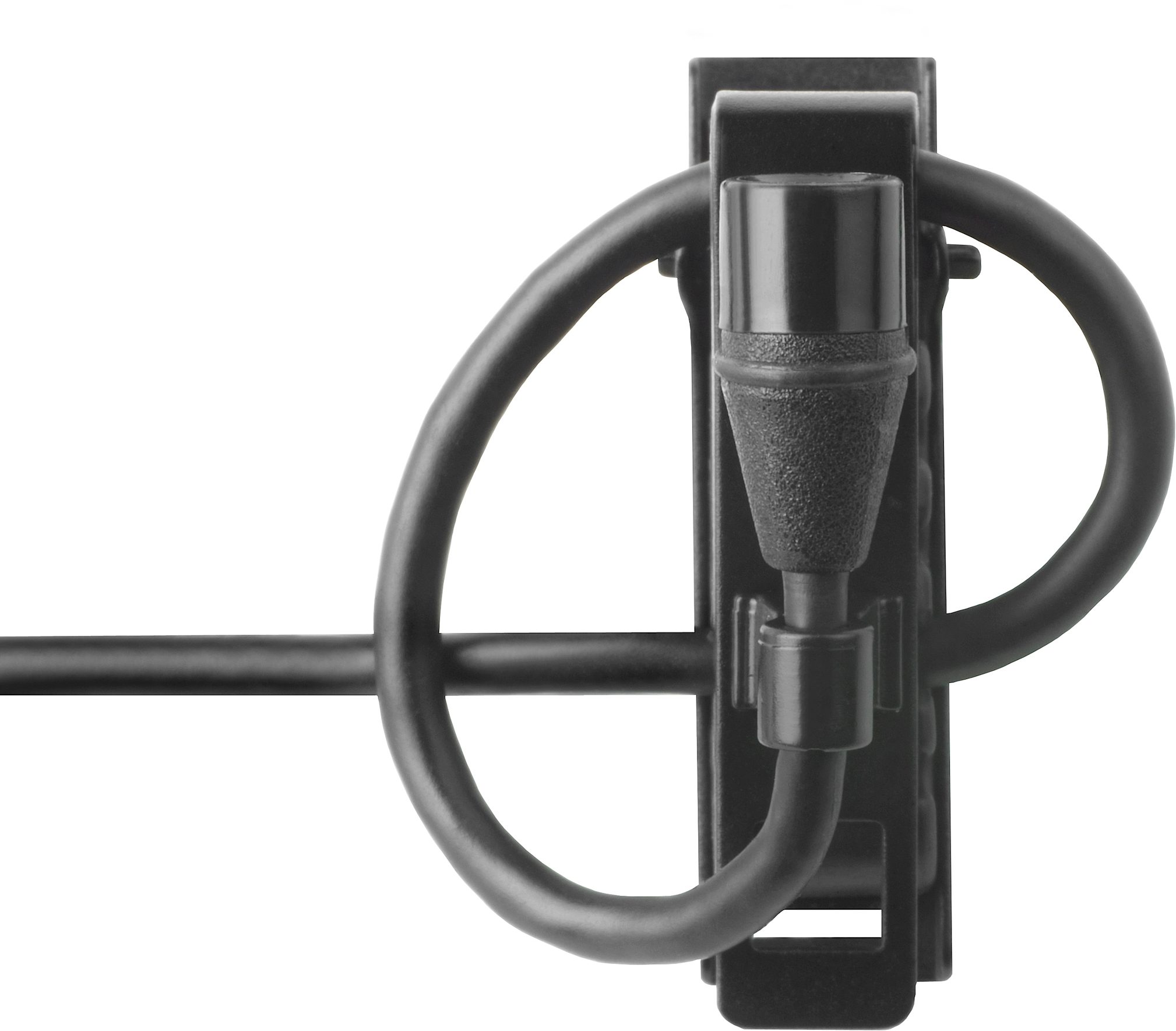

- Multi-position tie clip allows for a variety of placement options and features an integrated cable management system for convenient cable dress with minimal handling noise
- Kevlar(r)-reinforced soft-flex cable design further reduces handling noise while providing superior flexibility for routing and placement
- User-changeable equalization caps for response shaping (omnidirectional only)
- Snap-fit, concise windscreen provides protection from plosives and wind noise with minimal visibility
- Legendary Shure quality, ruggedness, and reliability

Transducer Type: Electret condenser

Polar Pattern:

- MX150/C: Cardioid
- MX150/O: Omnidirectional

Frequency Response: 20 to 20,000 Hz

Output Impedance:

- MX150/C: TQG: N/A, XLR: 165.5Ohm
- MX150/O: TQG: N/A, XLR: 165.0Ohm

Sensitivity (open circuit voltage, @ 1 kHz, typical)

MX150/C:
- TQG: -51.0 dBV/Pa (3.0 mV)
- XLR: -39.0 dBV/Pa (11.0 mV)
MX150/O:
- TQG: -46.5 dBV/Pa (4.5 mV)
- XLR: -34.5 dBV/Pa (19.0 mV)

Maximum SPL (1 kHz at 1% THD)

MX150/C:
- TQG: 147.5 dB SPL
- XLR: 129.5 dB SPL
MX150/O:
- TQG: 143.0 dB SPL
- XLR: 125.0 dB SPL

Signal-To-Noise Ratio:

MX150/C
- TQG: 57.5 dB
- XLR: 57.0 dB
MX150/O:
- TQG: 60.0 dB
- XLR: 59.5 dB

Dynamic Range @ 1 kHz

MX150/C:
- TQG: 111.0 dB SPL
- XLR: 92.5 dB SPL
MX150/O:
- TQG: 109.0 dB SPL
- XLR: 90.5 dB SPL

Self-Noise (equivalent SPL, A-weighted, typical)

MX150/C:
- TQG: 36.5 dB
- XLR: 37.0 dB
MX150/O:
- TQG: 34.0 dB
- XLR: 34.5 dB

- Operating Temperature Range: -18*C (0*F) to 57*C (135*F)

Polarity:

- TQG: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
- XLR: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Power Requirements:

- TQG: 5 V DC (0.04 - 0.18 mA)
- XLR: 11-52 V DC phantom power (IEC-61938), < 2.2 mA

Weight:

- TQG: 21 g (0.7 oz.)
- XLR: 121 g (4.3 oz.)
