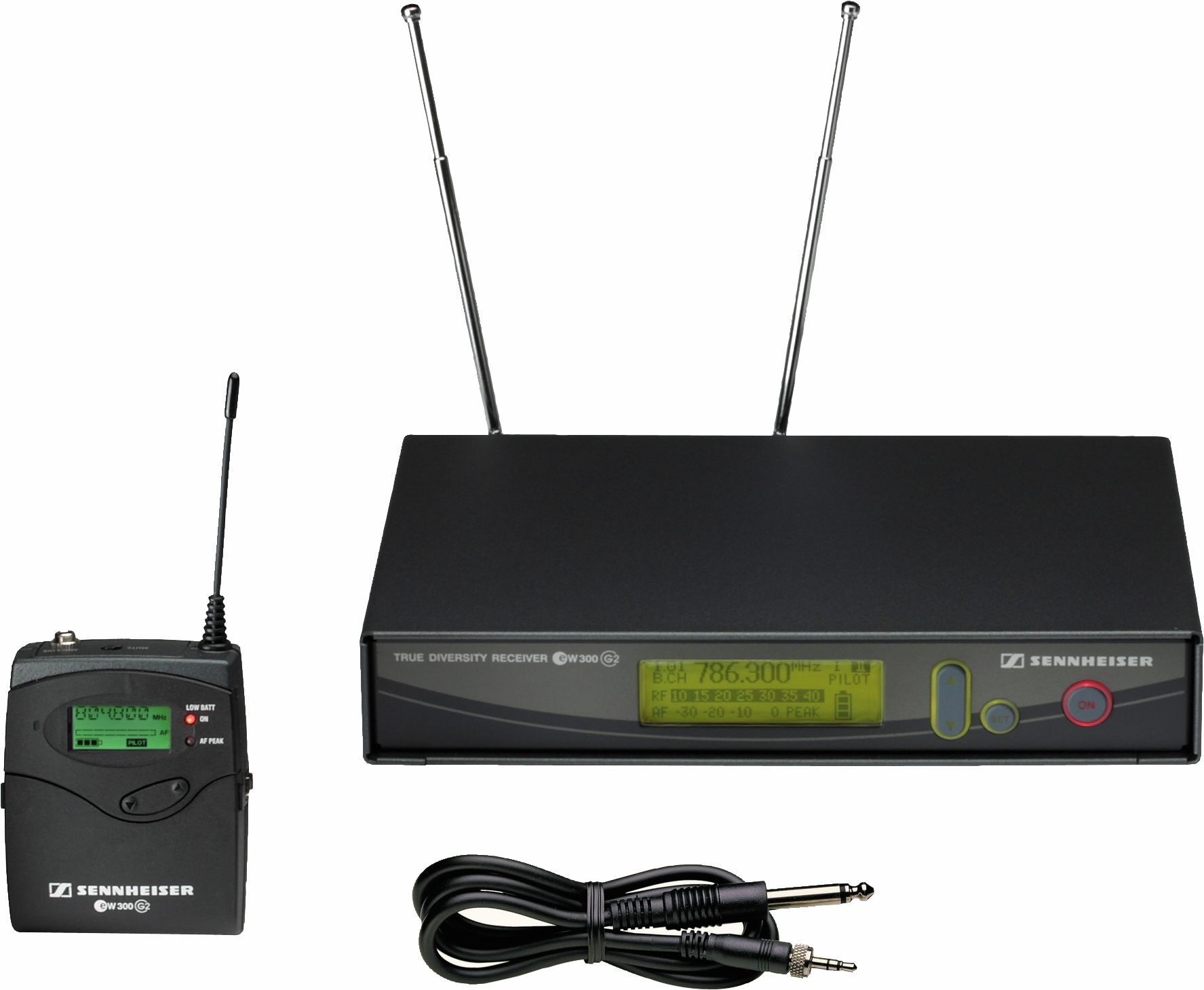

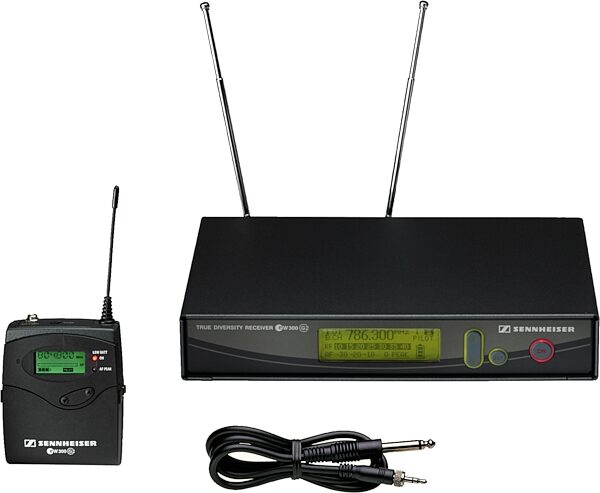

RF wireless system for instruments with a 1/4 in. jack socket, for example guitars. It includes the extremely compact SK 300 G2 bodypack/instrument transmitter and the EM 300 G2 rack-mount receiver. They feature nine frequency banks with eight directly accessible presets each -- ready for immediate use.
Features
1440 tunable UHF frequencies for interference-free reception
Absolutely reliable transmission and extended range due to high RF output power
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Transmitter and receiver with rugged metal housings
Rack mount included
Transmitter has contacts for recharging the BA 2015 rechargeable battery pack directly in the transmitter
Transmitter with backlit display (lights up when a button is pushed)
Receiver features user-friendly menu operation via two-colour backlit graphics display (green = OK; red = warning)
Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
4-step battery status display, also transmitted to receiver
Mute function for the transmitter
Wide range of accessories adapts the system to any requirement

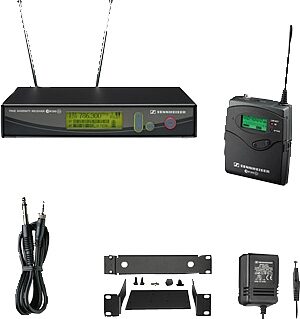

Delivery Includes
1 EM 300 G2 rack-mount receiver
1 SK 300 G2 bodypack transmitter
1 CI 1 instrument cable
1 GA 2 rack mount
1 NT 2-1 power supply unit
2 telescopic antennas
2 AA size batteries
Operating instructions
Technical Info
Channel Frequencies
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)
RF frequency range: 518..... 866 MHz
Transmission/receiving frequencies: 1440
Presets: 8
Switching bandwidth: 36 MHz
Peak deviation: +/- 48 kHz
Compander: HDX
Frequency response (microphone): 40.....18000 Hz
Signal-to-noise ratio: > 112 dB(A)
THD, total harmonic distortion: < 0,9 %
In compliance with: ETS 300422 , ETS 300445 , CE , FCC
Antenna connector: 2 BNC, 50 Ohm
Audio-XLR connector: 6,3 mm
Audio output level (balanced): XLR: +18 dBu max
Audio output level (unbalanced): Jack: +12 dBu max
Power supply: 10,5 - 16 V DC
Dimensions (Receiver): 212 x 145 x 38 mm
Weight (Receiver): 1100 g
RF output power: 30 mW
Power supply: 2x 1.5 V battery AA (Mignon)
Operating time (transmitter): > 8 h
Input voltage range: mic 1,8 V
Input voltage range: line 2,4V max
Dimensions (Transmitter): 82 x 64 x 24 mm
Weight (Transmitter): 158 g
